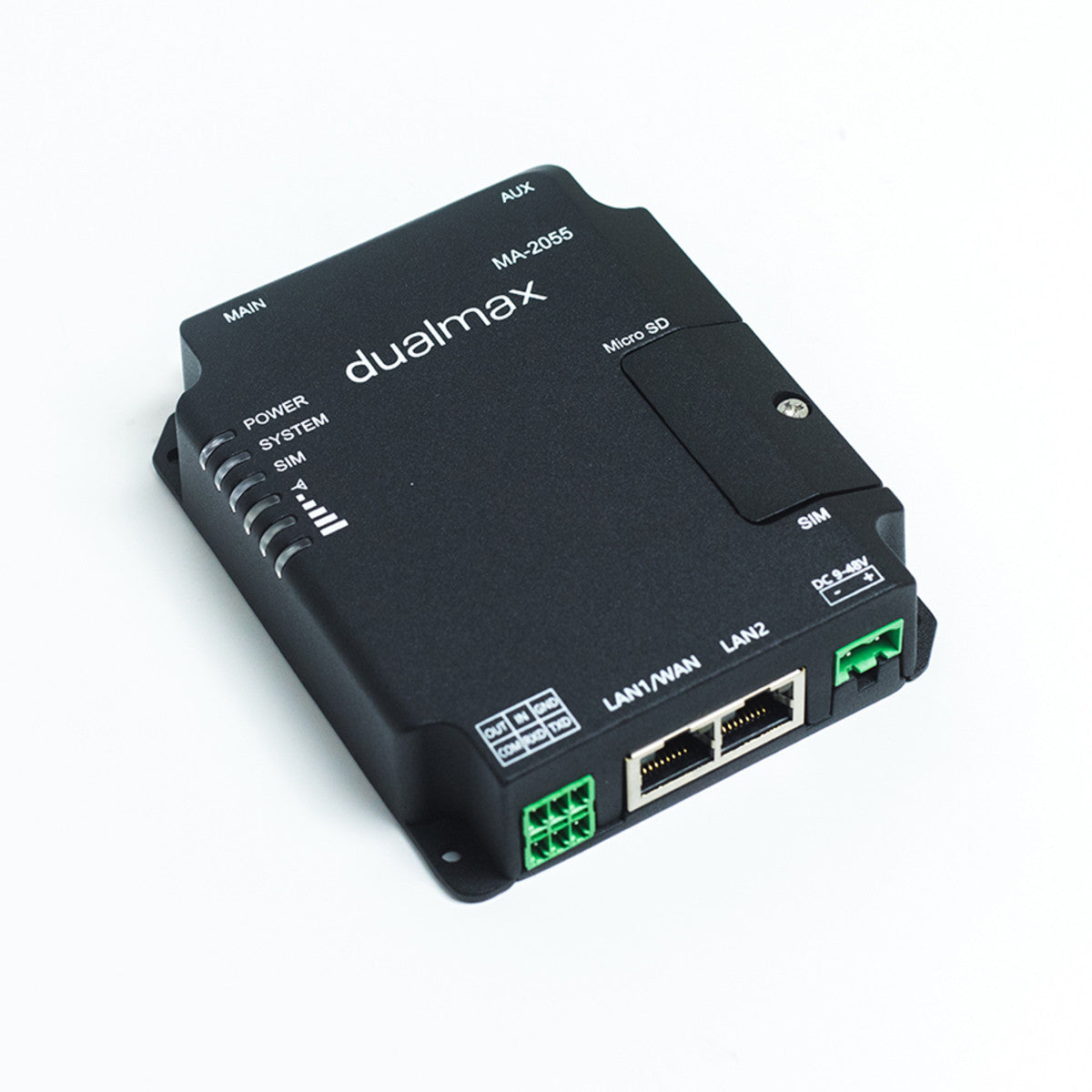

The MA-2055 is an LTE Ethernet modem router for providing data communications via the public network. The Maxon MA-2055 Dualmax 4G Ethernet Router utilises an industrial 32-bit CPU with an embedded operating system. The device has two Ethernet ports, I/O, and a terminal block serial port to conveniently connect devices to a cellular network, allowing you to connect your existing serial and Ethernet devices with minimal configuration.

Product Features:

• The device supports FDD LTE CAT4 with Band 28 (700 MHz) compatibility.
• It includes 3G fallback, providing network redundancy in areas with limited LTE coverage.
• With dual SIM functionality, the device enables seamless network switching for enhanced reliability.
• It features two Ethernet LAN ports, with one port configurable as WAN.
• The 10/100M Ethernet connectivity ensures stable and efficient wired communication.
• It supports a maximum downlink speed of 150 Mbps and an uplink speed of 50 Mbps.
• The device includes one digital input and one digital output, enabling integration with external control systems.
• An RS-232 serial port is available for industrial and legacy communication requirements.
• Advanced networking capabilities include DDNS support for dynamic IP management and a built-in IP stack.
• The device supports multiple communication protocols, including TCP Server, TCP Client, UDP Server, and UDP Client.
• For secure remote access, it features SSH support and allows users to access the device via a web interface.

Application Areas:

• Solar inverter monitoring
• Retail and POS Systems
• M2M applications such as smart grid
• Digital media installations
• Telemetry equipment
• Digital factory
• Finance and payment device
• Environment protection
• Water conservancy

Kit Includes:

• 1 x Maxon MA-2055 Dualmax 4G Ethernet Router
• 2 x SMA (M) Cellular Antennas
• 1 x Power Pack
• 1 x Ethernet Cable
• 1 x DIN rail bracket
• 4 x Setscrews

3G Shutdown replacement for:

• Unimax MA-2025
• Unimax 4G MA-2025-4GX

Note: It is advised to contact D2X technical support team to discuss your application prior to transitioning from these products.

Documents:

Maxon MA-2055 Dualmax Router - Brochure Maxon MA-2055 Dualmax Router - User Manual
