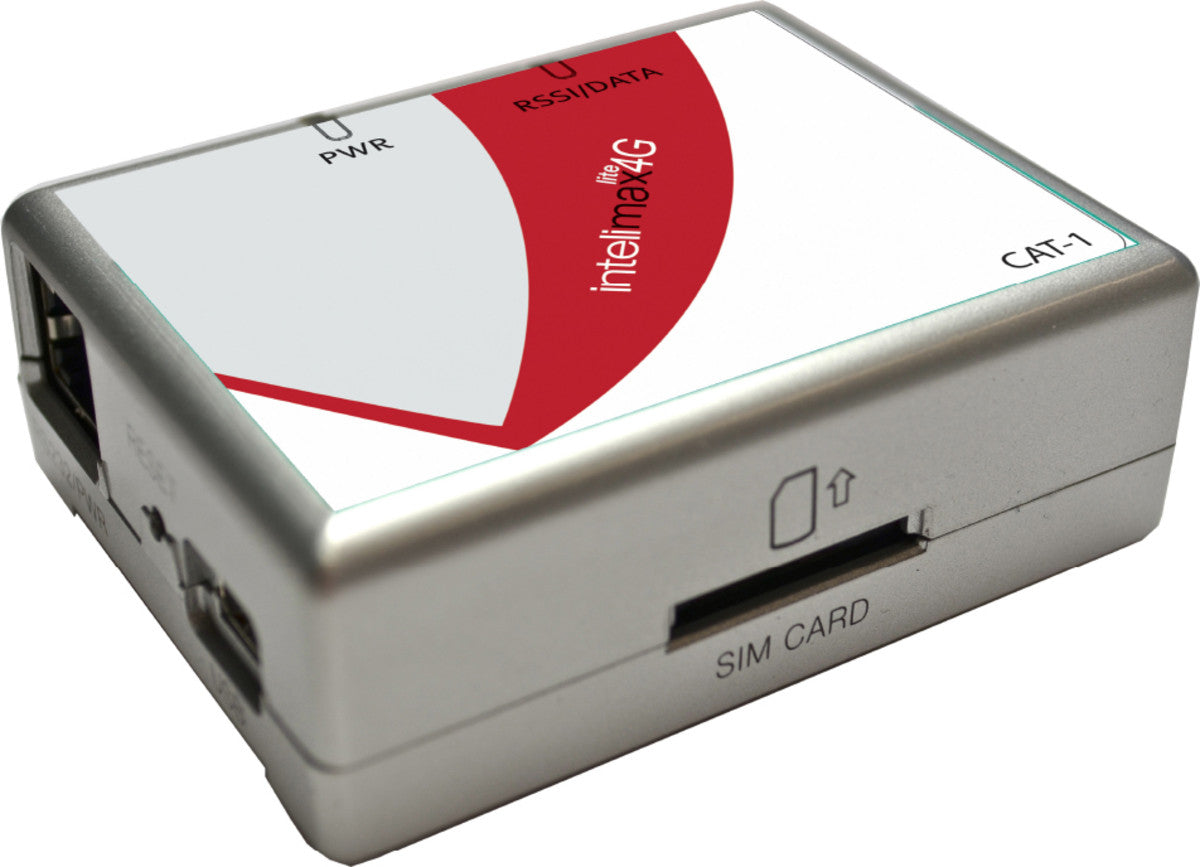

Maxon MA-2060-4G Intelimax Lite 4G Router Kit is a robust and versatile modem solution designed for industrial and commercial applications. It is an ideal upgrade from 3G to 4G, offering packet data and 2-way SMS communication while maintaining cost-effective serial connectivity. The Intelimax Lite 4G has all the essential functionality for today's M2M environment including Packet Switch Data, 2-way SMS, Circuit Switch Data and IP Stack. The device is easy to configure via AT Commands or Windows GUI.

This product has been declared obsolete. If you need a substitute product, please email us at [email protected] with details of your use case / application.

Product Features:

• Supports FDD-LTE CAT 1 with 3G fallback and Quad-Band frequencies, including Band 28 (700MHz) for better coverage.
• Operates in TCP Server/Client, UDP Server/Client modes with remote SSH and AT over IP support.
• Features auto recovery with detection and automatic redial for continuous operation.
• Allows configuration via AT commands and a Windows-based GUI for easy setup and updates.
• Accepts a wide DC input voltage range from 5V to 48V.
• Offers RS232 or RS485 serial interfaces to suit various industrial needs.
• Supports packet-switched data transmission and two-way SMS in both Text and PDU modes.
• Rugged plastic housing, dual external antenna support, LED indicators, and wide temperature range (-30°C to 85°C).

Application Areas:

• Telemetry and SCADA systems.
• Security and Real-Time monitoring
• Alarm systems with SMS and data transmission.
• CCTV
• Broadcast Industry
• Electronic Signage
• Media Transfers

Kit includes:

• 1 x Intelimax Lite Modem (MA-2060-4G)
• 1 x SMA Antenna (ANT-8030)
• 1 x Rubber Boot (ANT-8035)
• 1 x Serial Cable (CAB-RJ45-DB9)
• 2 x Mounting Brackets (SP-5615)

3G Shutdown replacement for:

• Intelimax Lite 3G MA-2060

Optional Accessories:

• USB Cable
• SMA (Male) 4G Unity Gain Antenna
• AC power adapter

Documents:

Maxon MA-2060 4G Router - Datasheet Maxon MA-2060 4G Router - User Manual Maxon MA-2060 4G Router - Hardware Specifications
