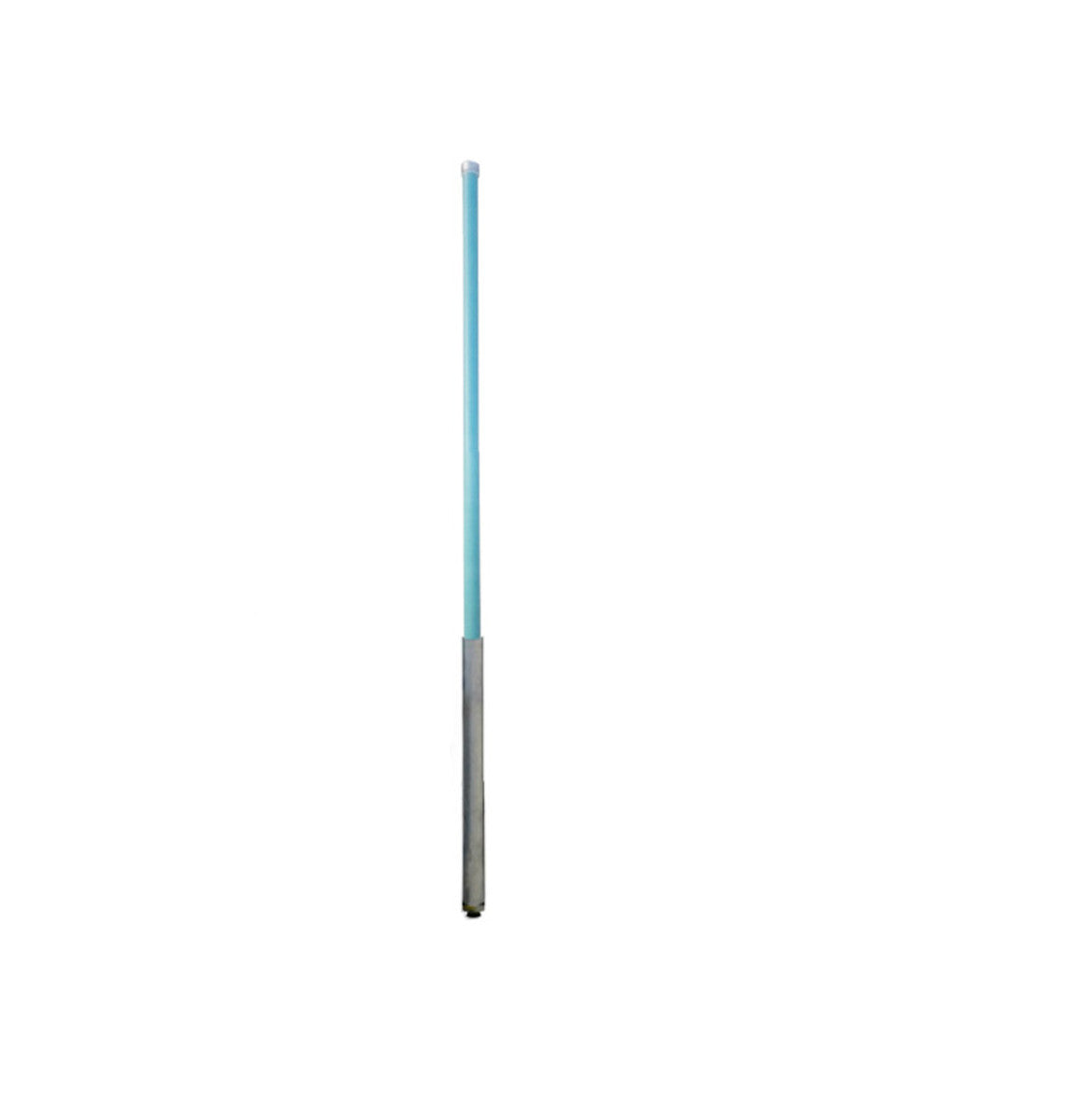

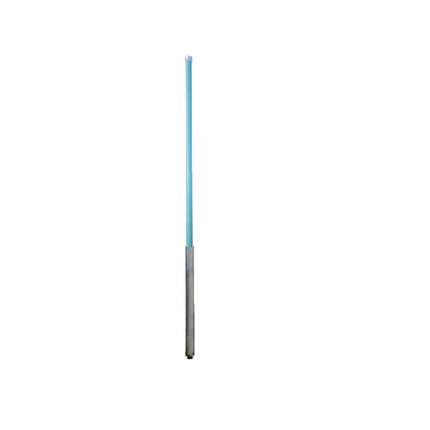

MEANDER COLLINEAR 380-400 MHz

This range of Meanderâ„¢ collinear antennas has been specifically designed for wireless applications requiring high performance, broad bandwidth and exceptional PIM and PIP specifications. The patented MEANDER COLLINEAR 380-400 MHz design allows multiple half wave elements to be stacked without the variations in cable lengths and mechanical joints which have typified the construction techniques in high gain collinear antennas. With the dipole elements being printed on a single sided PCB the susceptibility to passive intermodulation is practically eliminated. Placing the elements on a board not only controls PIM but also removes manufacturing variations so that each and every antenna will provide the same pattern, tilt and VSWR characteristics over its operating bandwidth.

• Excellent bandwidth providing full band coverage
• Internally DC grounded for lightning protection and the reduction of precipitation noise
• Tightly controlled radiation patterns for optimum coverage
• Patented Meanderâ„¢ PCB design for optimum RF pattern stability
• Industry leading PIM ratings (-150 dBc) providing low IM and low noise characteristics for optimum network performance
• Excellent Peak Instantaneous Power (PIP) rating (25 kW)

Documents:

RFI COL41 Antenna - Datasheet
