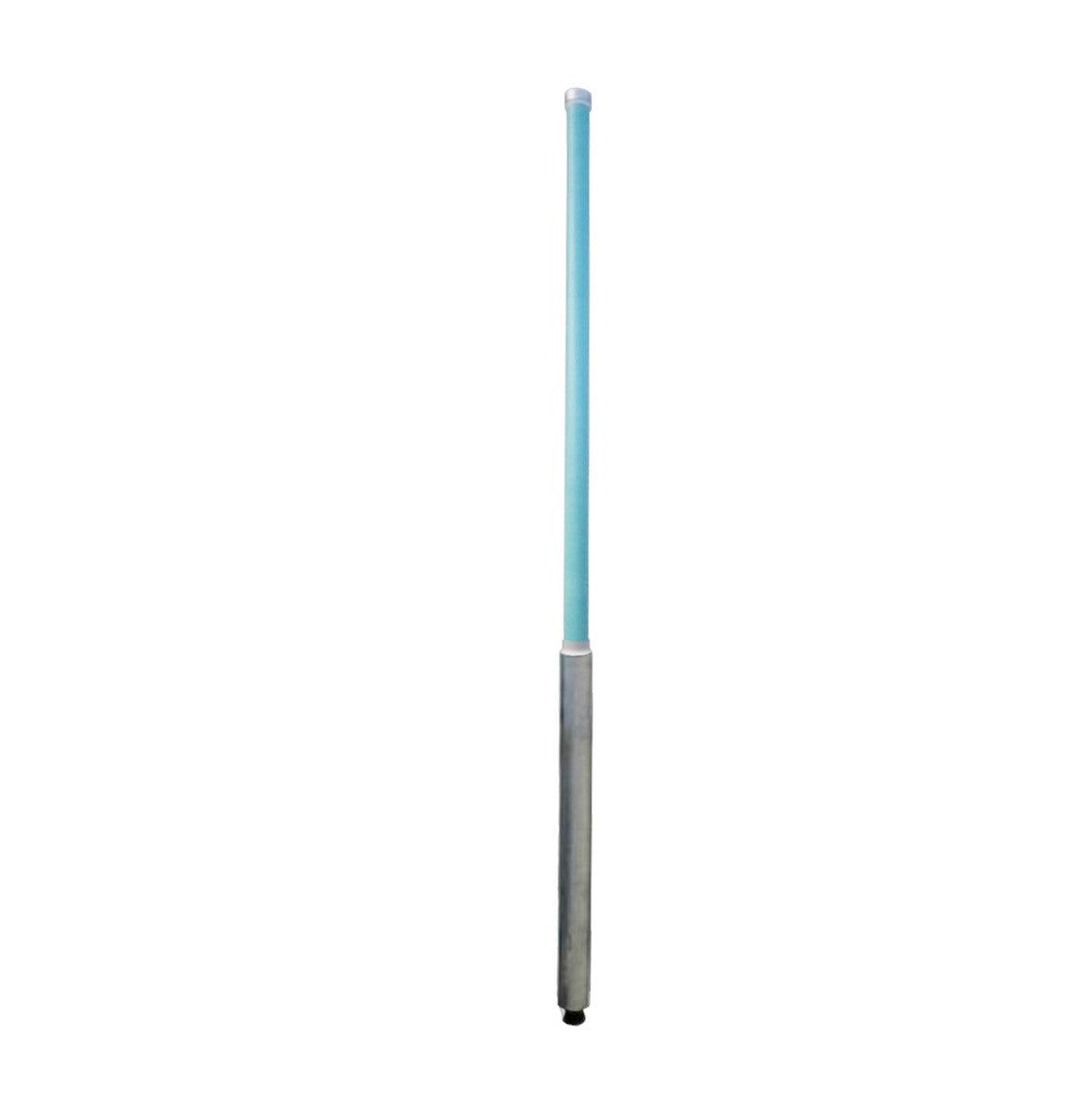

RFI COL84-870-P Meander Collinear Antenna, 806-870 MHz, 5 dBd, 4.3-10-Female

RFI COL84-870-P Meander Collinear Antenna, 806-870 MHz, 5 dBd, 4.3-10-Female

On backorder

Brand:
Item ID:
167015847
Export:
Restricted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
COL84-870-P
Send Request for Quote (RFQ) Discount Offers
Meander Collinear 806-870 MHz 5 dBd Gain; -150 dBc PIM; 4.3-10 Female Connector designed for wireless applications requiring high performance.
Regular price $906.00
Regular price $0.00 Sale price $906.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

Meander Collinear 806-870 MHz 5 dBd Gain; -150 dBc PIM; 4.3-10 Female Connector

  • Excellent bandwidth providing full band coverage
  • Internally DC grounded for lightning protection and the reduction of precipitation noise
  • Patented Meander PCB design for optimum RF pattern stability
  • Industry leading PIM ratings (-150 dBc) providing low IM and low noise characteristics for optimum network performance
  • Excellent Peak Instantaneous Power (PIP) rating (25 kW) Also available with N connector (see note)
The MEANDER COLLINEAR 806-870 MHz 5 dBd GAIN allows multiple half wave elements to be stacked without the variations in cable lengths and mechanical joints which have typified the construction techniques in high gain collinear antennas. With the dipole elements being printed on a single sided PCB the susceptibility to passive intermodulation is practically eliminated. Placing the elements on a board not only controls PIM but also removes manufacturing variations so that each and every antenna will provide the same pattern, tilt and VSWR characteristics over its operating bandwidth.

Documents:

RFI COL84 Antenna - Datasheet

Product Specifications

MPN COL84-870-P
Antenna port connectors 4.3-10 (F)
Brands RFI
Construction Composite fibreglass sky blue radome, aluminium mounting tube
Coverage type Omni-directional
Height 3
Horizontal beamwidth Omni +/-0.5dB
Installation type External mounting
Length 99
Low pim Yes
Max frequency mhz 870
Max gain dbd dbi 5
Mimo support No
Min frequency mhz 806
Min gain dbd dbi 5
Mount supported Clamp mount
Mount supported detailed UC1
Mounting area 500mm x 48.5mm diam. Ecofilm plated aluminium
No of antenna ports 1
Peak instantaneous power kw 25
Pim 3rd 2x20 w dbc -150
Polarisation Vertical
Power w 250
Radome diameter mm 38
Technologies supported UHF
Termination 4.3-10
Torque nm 48
Tuned bandwidth Full band
Vertical beamwidth 16?
Vswr <1.5:1
Width 3
Wind gust km h 240
Wind thrust 81
