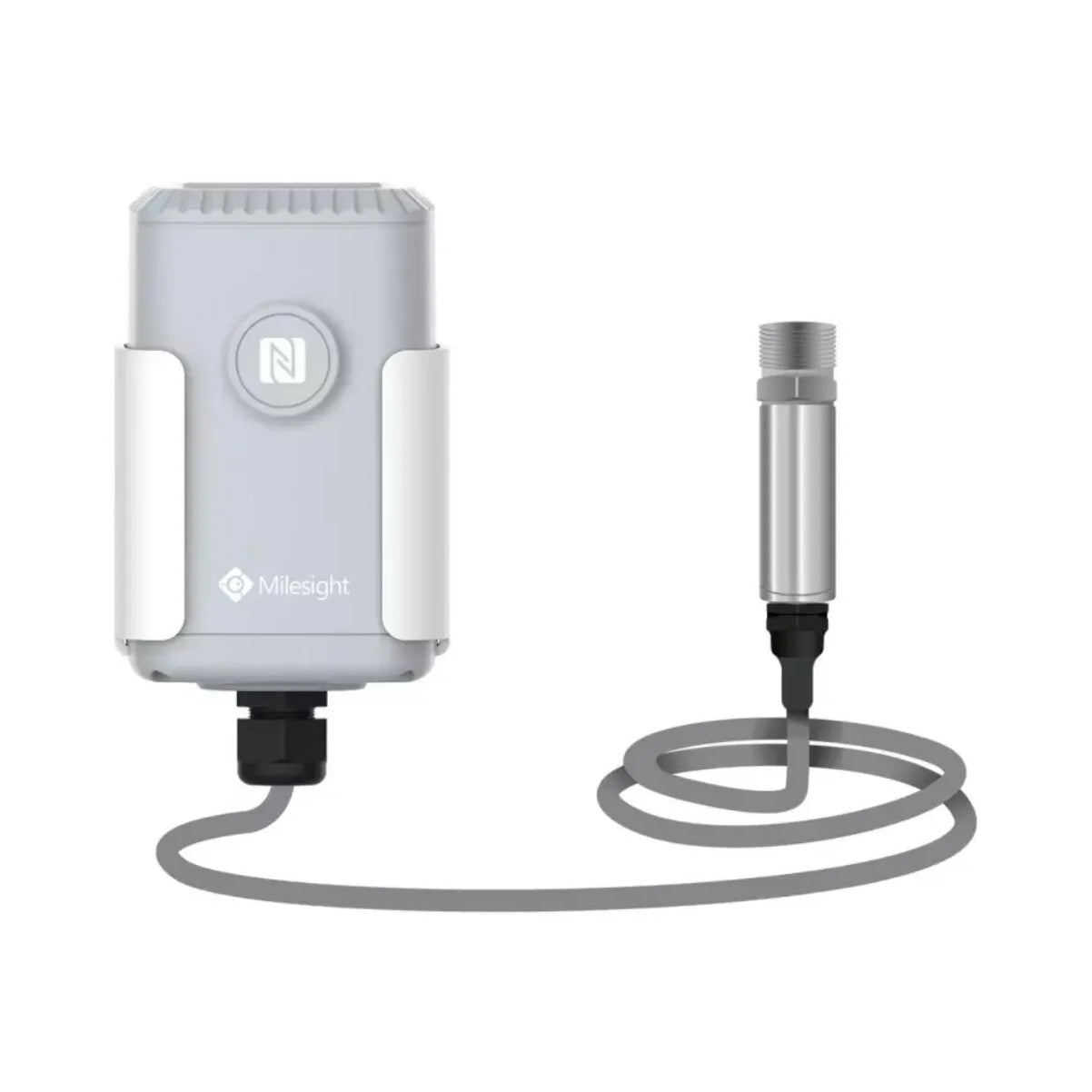

The Milesight EM500-PP-AU915M is a LoRaWAN-based pipe pressure sensor designed for accurate and reliable monitoring of liquid and gas pressure in industrial systems. With a measurement range of 0 to 1.6 MPa, this sensor is ideal for detecting pressure changes and potential leaks in tanks and pipelines. It integrates seamlessly with the Milesight IoT Cloud, enabling real-time monitoring and control from both web and mobile platforms.

Product Features:

• It offers high measurement accuracy with an error margin of less than ±0.5FS, ensuring precise pressure readings.
• The device includes temperature compensation, which enhances accuracy and stability across varying environmental conditions.
• It features a shock-resistant and vibration-resistant design, making it suitable for rugged industrial environments.
• The sensor is housed in an IP66-rated protective case, with an IP67 option available upon request, providing strong resistance to dust and water ingress.
• It is powered by a built-in 19000 mAh high-capacity battery, offering up to 10 years of maintenance-free operation.
• The device supports LoRaWAN wireless transmission, enabling long-range, low-power communication for remote monitoring.
• It is easily configurable via NFC, allowing for quick setup and adjustments using a mobile phone or PC.
• The sensor integrates with the Milesight IoT Cloud, which provides a drag-and-drop interface, intuitive widgets, triggers, and device management tools.

Application Areas:

• The sensor is ideal for industrial pipelines where continuous pressure monitoring is essential for safety and efficiency.
• This solution is suitable for water and wastewater systems that require accurate pressure tracking to prevent leaks or bursts.
• It is perfect for chemical and gas storage facilities where pressure control is critical to operational safety.
• The device can be used in smart infrastructure projects to enhance monitoring and maintenance of fluid systems.

In the Box:

• 1x Milesight EM500-PP LoRaWAN Pipe Pressure Sensor, IP66, 0~1.6 MPa

Documents:

Milesight Pipe Pressure Sensor - Datasheet Milesight Outdoor Environment Monitoring Sensor - User Guide
