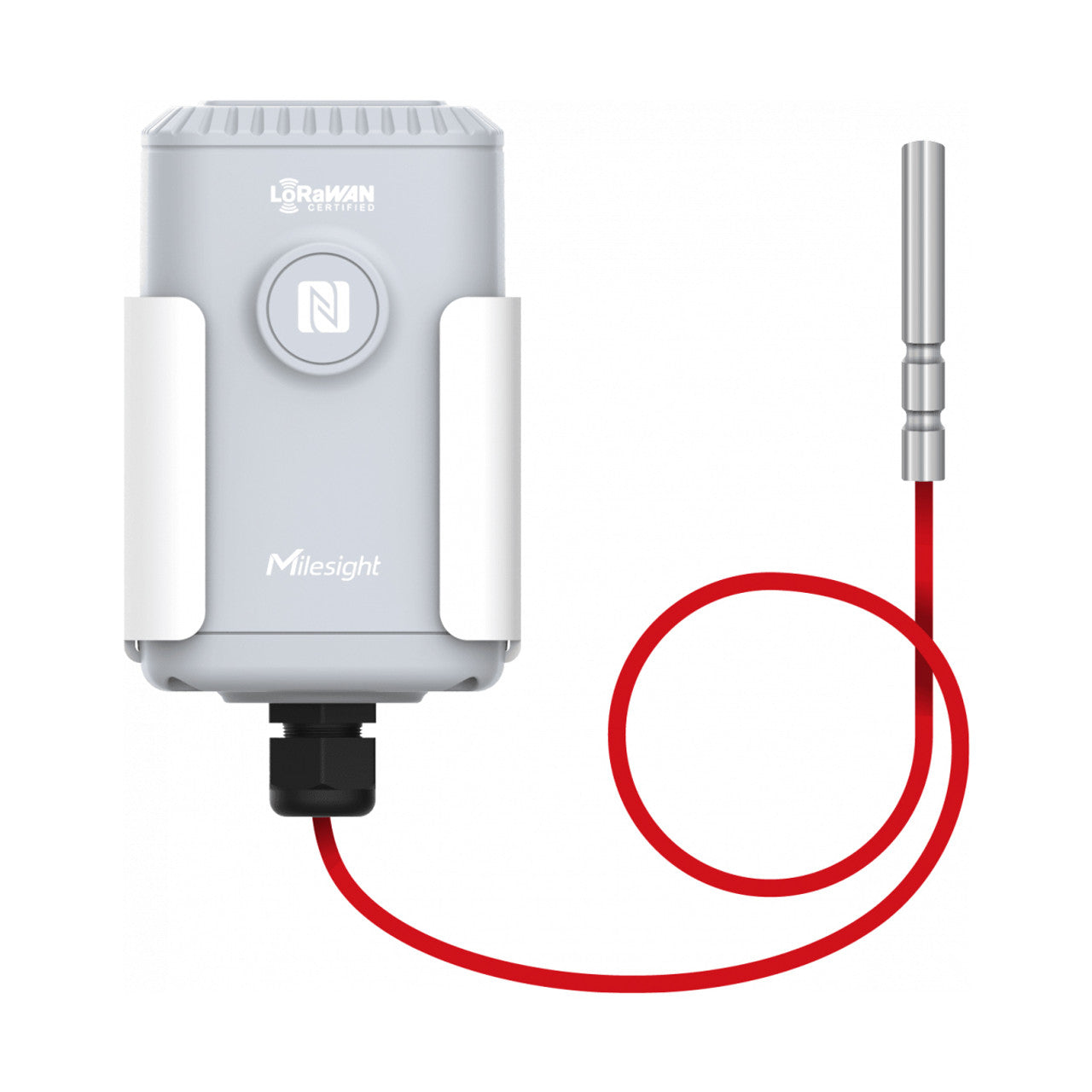

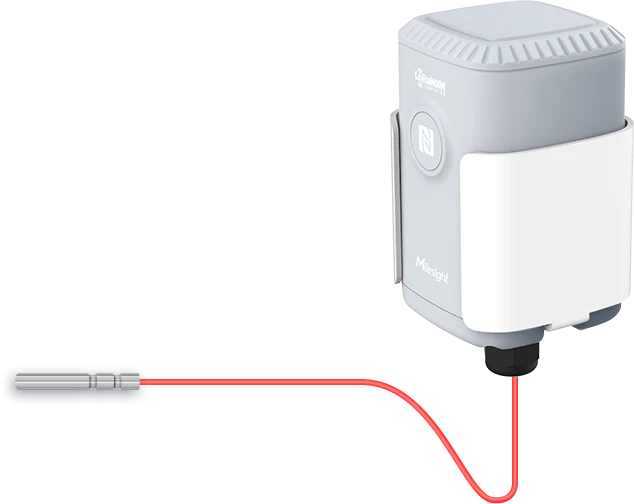

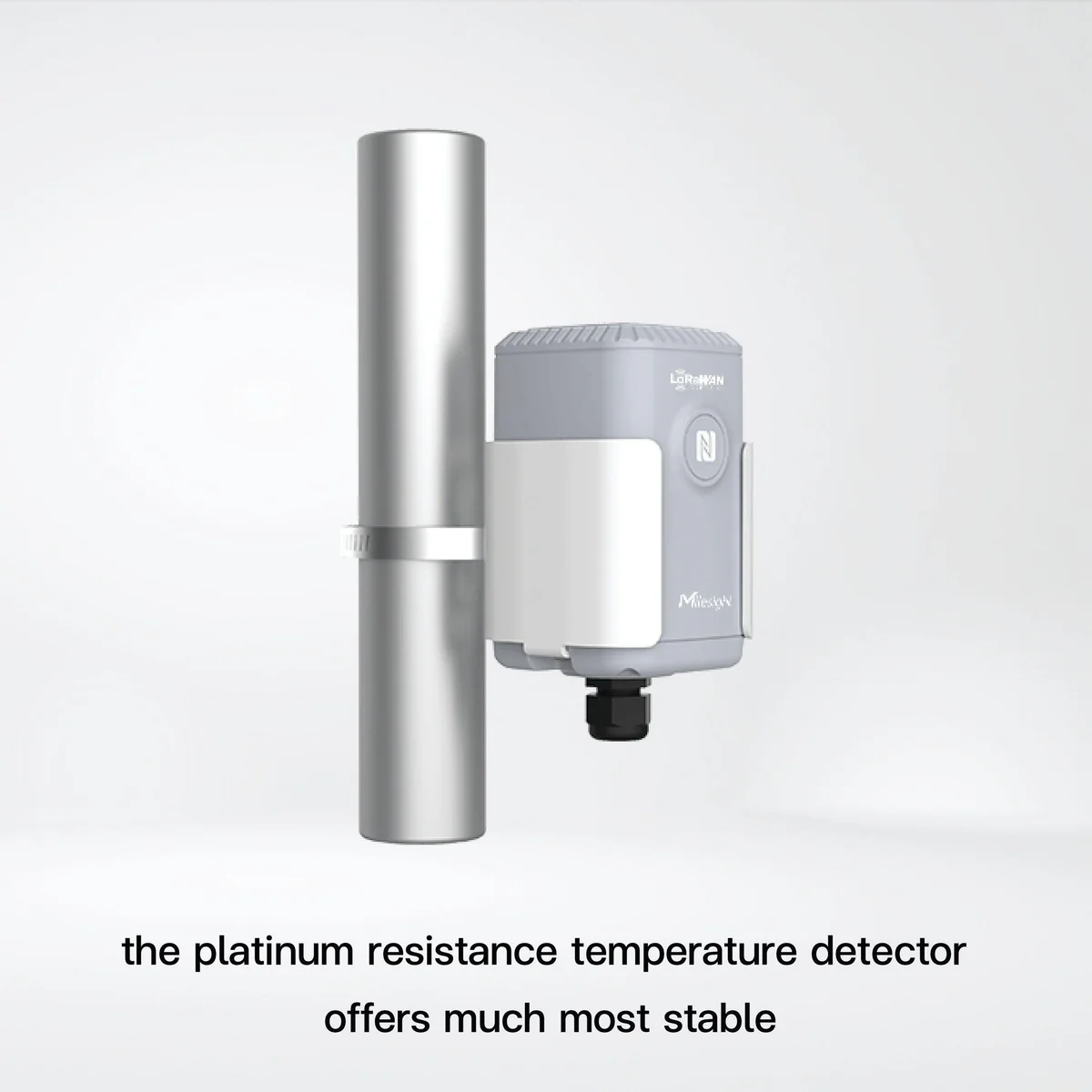

The Milesight EM500-PT100-T200 is a rugged, industrial-grade LoRaWAN temperature sensor designed for precise temperature monitoring in extreme environments. Equipped with a highly accurate PT100 platinum resistance detector, this sensor integrates with the Milesight IoT Cloud, which offers a drag-and-drop interface, intuitive widgets, triggers, and device management features.

Product Features:

• The EM500-PT100 sensor features a customisable temperature detection range from -200°C to 800°C, making it suitable for extreme temperature monitoring.
• The device is available with various terminal head options including straight tube, armoured, SMT, threaded, and magnet, offering flexibility for different installation needs.

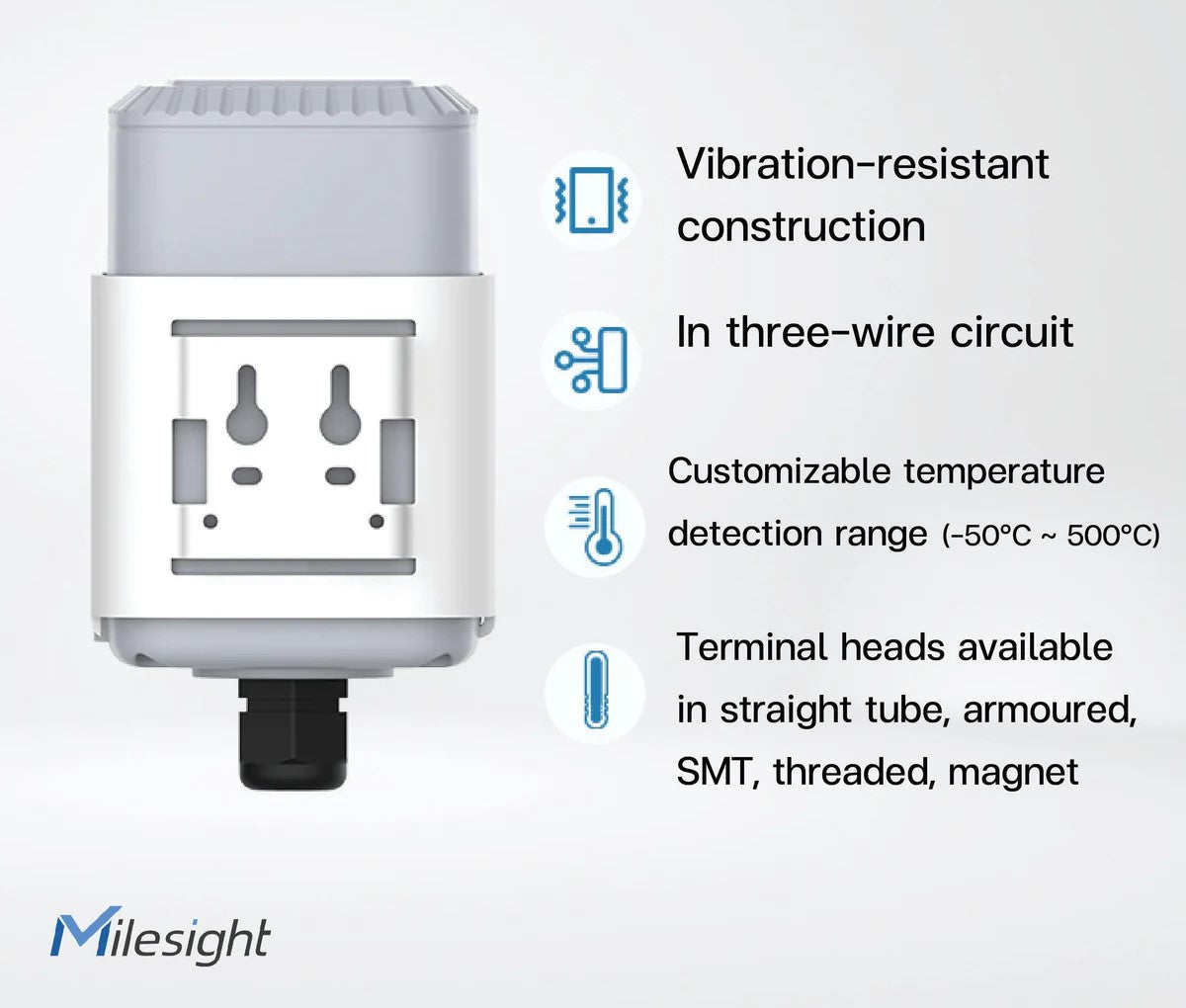

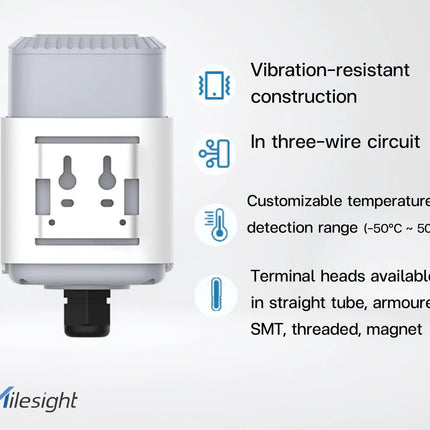

• It is built with a vibration-resistant construction and operates in a three-wire circuit, ensuring reliable performance in demanding environments.
• The sensor is housed in an IP66-rated protective case, with an IP67 option available upon request, providing strong resistance to dust and water ingress.

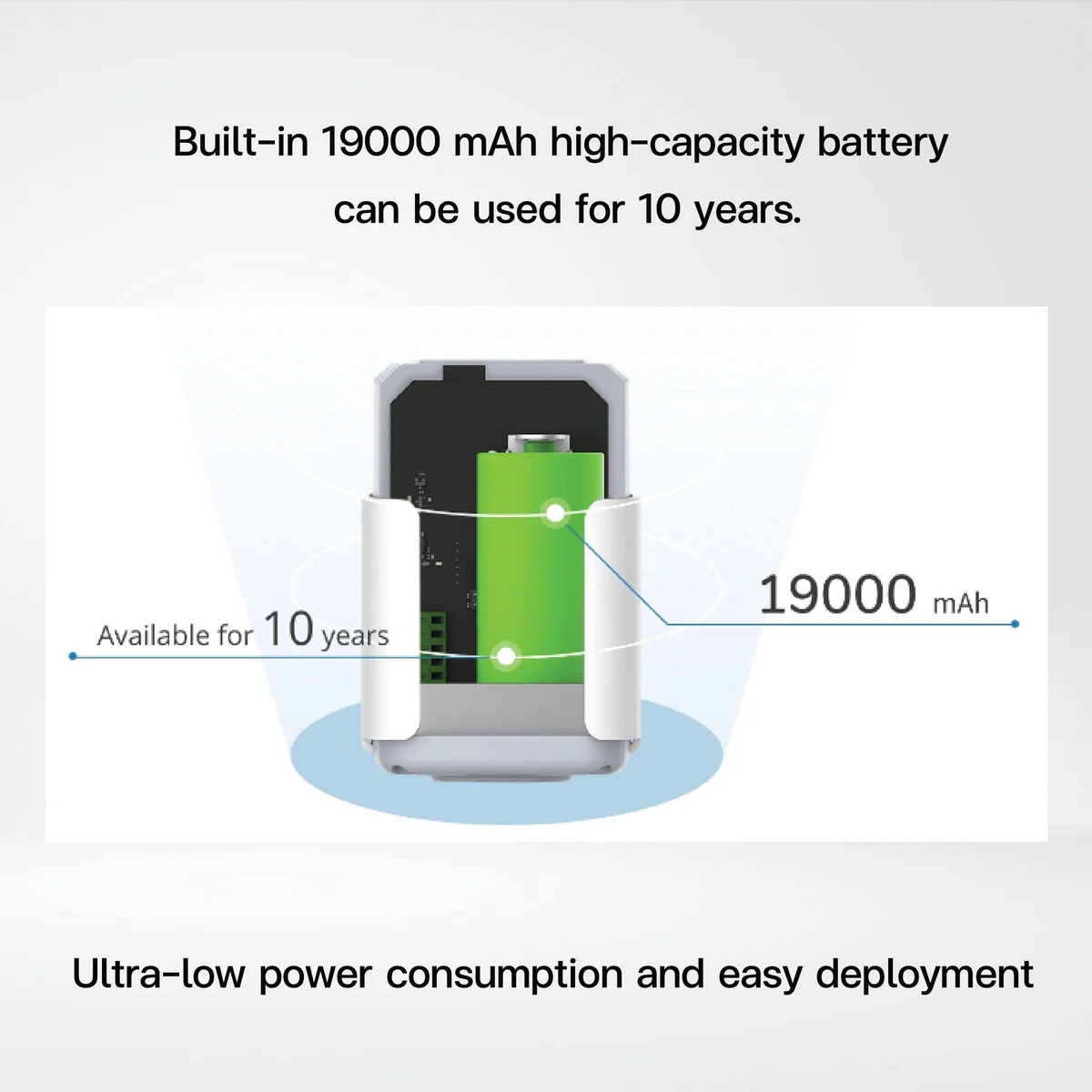

• It is powered by a built-in 19000 mAh high-capacity battery, offering up to 10 years of maintenance-free operation.

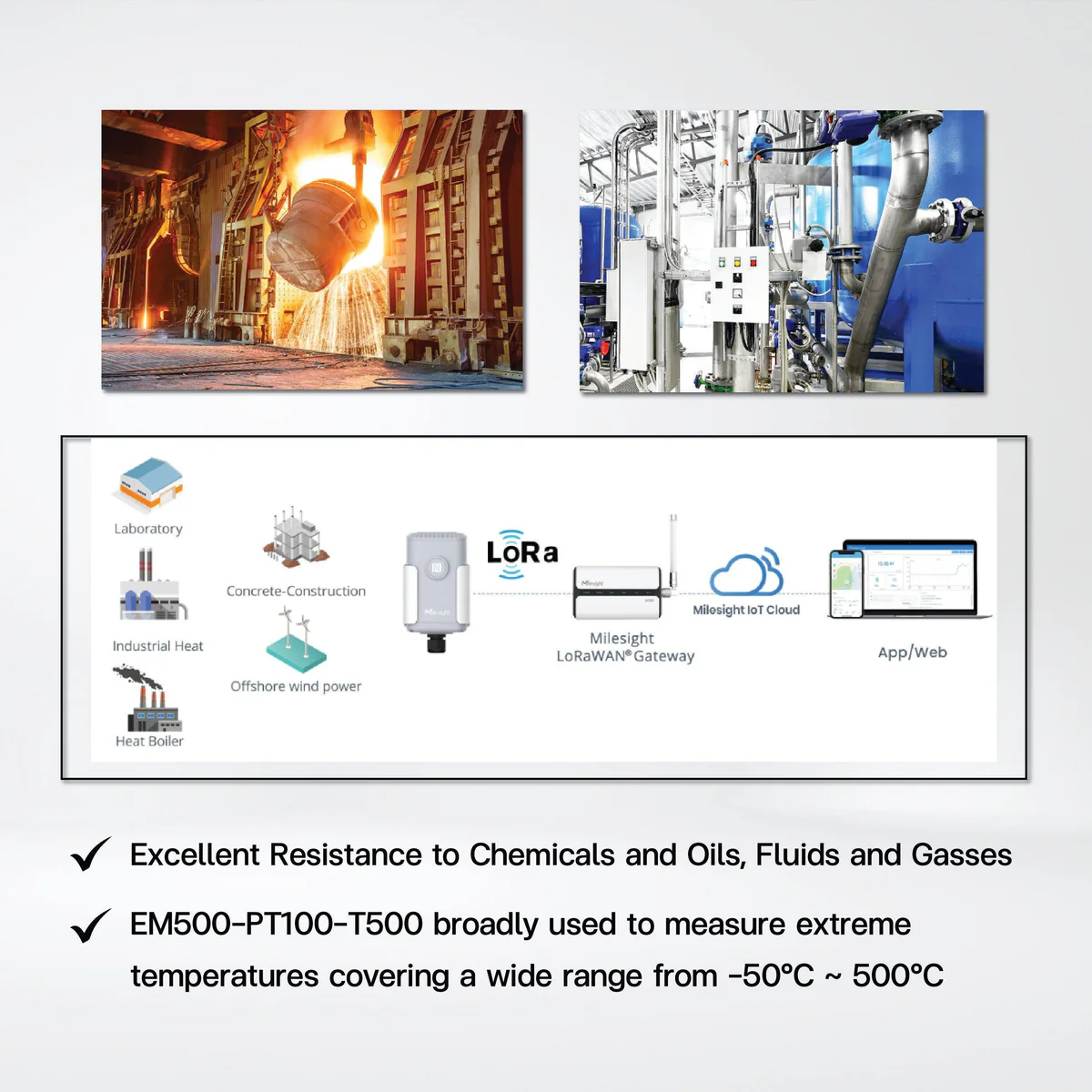

• The device supports LoRaWAN wireless transmission, enabling long-range, low-power communication for remote monitoring.
• It is easily configurable via NFC, allowing for quick setup and adjustments using a mobile phone or PC.
• It supports remote monitoring through both web and mobile platforms, allowing users to access temperature data anytime, anywhere.

Application Areas:

• The sensor is ideal for industrial facilities requiring accurate and long-term temperature monitoring in high or low temperature environments.
• This solution is suitable for manufacturing processes where precise thermal control is critical to product quality and safety.
• It is perfect for energy and utility sectors where equipment and infrastructure must be monitored under extreme conditions.
• The device can be used in research and laboratory environments that demand high-precision temperature data.

In the Box:

• 1x Milesight EM500-PT100 Industrial Temperature Sensor, MPN T200

Documents:

Milesight Industrial Temperature Sensor - Datasheet Milesight Industrial Temperature Sensor - User Guide
