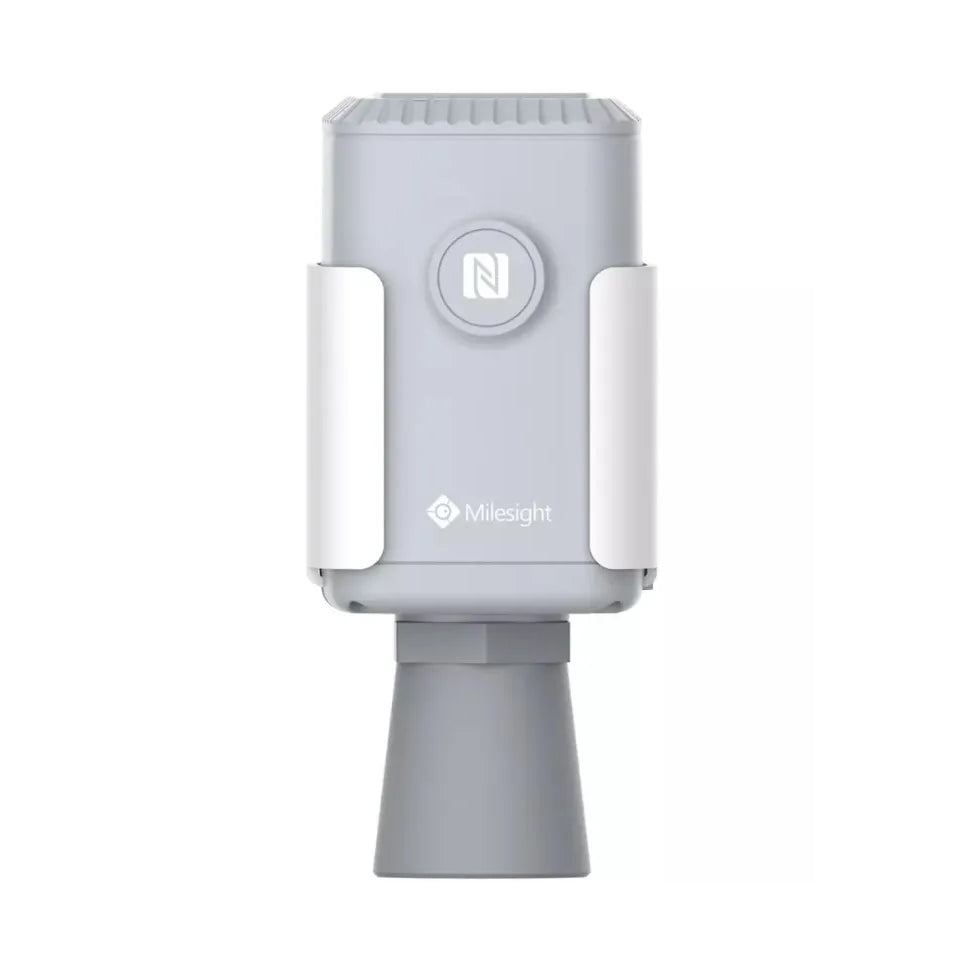

The Milesight EM500-UDL-W050 is a LoRaWAN-based ultrasonic distance sensor designed for accurate and reliable level measurement in a wide range of industrial and environmental applications. The sensor is housed in an IP66-rated protective case, with an IP67 option available upon request, providing strong resistance to dust and water ingress. It supports remote monitoring through both web and mobile platforms, allowing users to access data anytime, anywhere.

Product Features:

• The EM500-UDL-W050 sensor provides precise distance measurement within a range of 0.3 to 5 meters.
• It is capable of measuring very small containers or narrow openings, offering flexibility in confined or specialized spaces.
• The device is suitable for both benign and chemical mediums, supporting a wide variety of use cases.
• It enables non-contact detection of corrosive liquid chemicals or combustible substances, ensuring safety and durability in sensitive environments.
• It is powered by a built-in 19000 mAh high-capacity battery, offering up to 10 years of maintenance-free operation.
• The device supports LoRaWAN wireless transmission, enabling long-range, low-power communication for remote monitoring.
• It is easily configurable via NFC, allowing for quick setup and adjustments using a mobile phone or PC.
• The sensor integrates with the Milesight IoT Cloud, which offers a drag-and-drop interface, intuitive widgets, triggers, and device management features.

Application Areas:

• The sensor is ideal for flood monitoring systems that require accurate water level detection in real time.
• This solution is suitable for wastewater management facilities where non-contact measurement is essential for safety and efficiency.
• It is perfect for monitoring fill levels in grain silos, fertilizer tanks, or other agricultural storage units.
• The device can be used in industrial environments where precise distance measurement is needed in challenging conditions.

In the Box:

• 1x Milesight EM500-UDL-W050 LoRaWAN Ultrasonic Distance Sensor

Documents:

Milesight EM500-UDL Sensor - Datasheet Milesight Outdoor Environment Monitoring Sensor - User Guide
