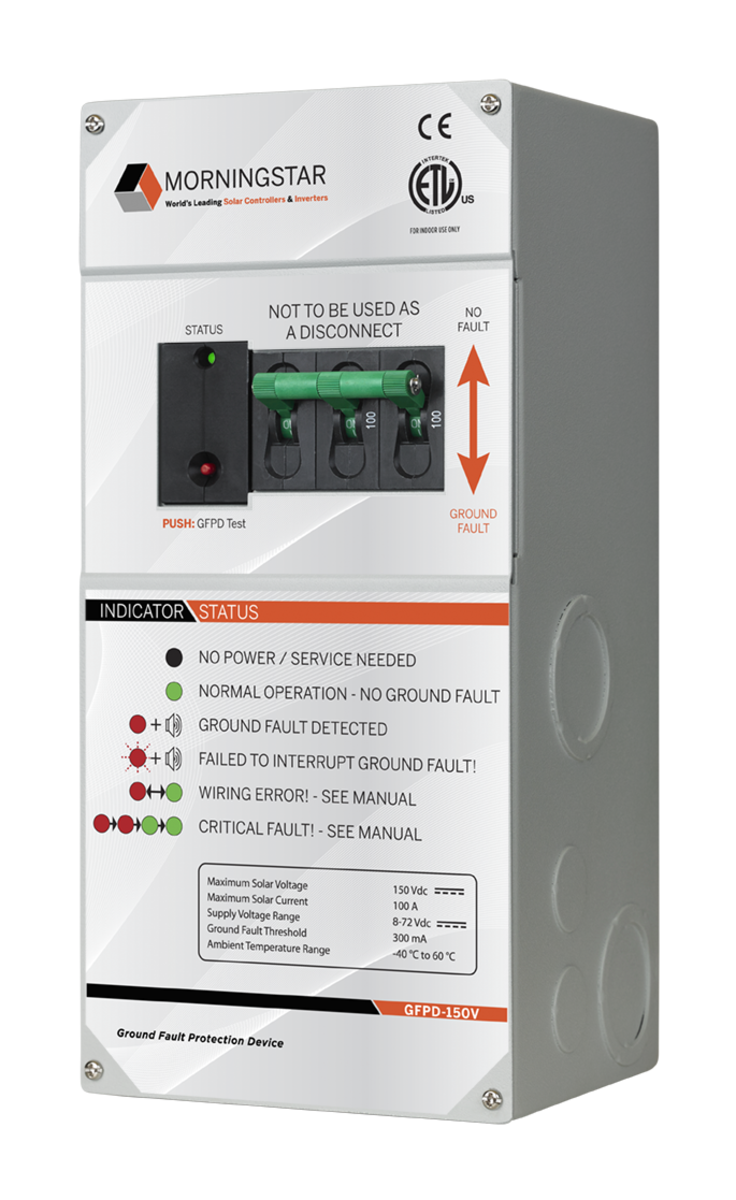

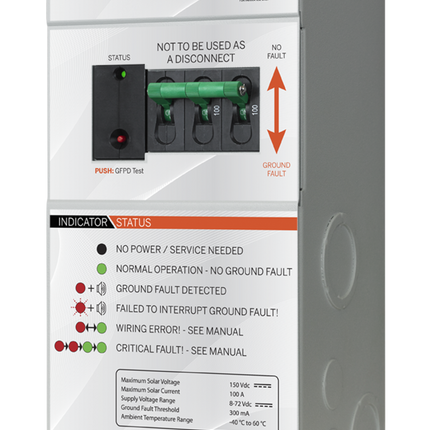

The Morningstar GFPD-150V Ground Fault Protection Device is designed to provide reliable ground fault protection for 150V solar arrays. This device offers simple and flexible installation, making it suitable for a variety of PV system configurations.

Product Features:

• This device works with both positive and negative grounded PV systems, it supports both single and multiple controller systems.
• It features side or below flush mounting with coupling hardware included, simplifying the installation process.
• The device is DC powered via the PV system's battery, ensuring seamless integration.
• It includes a pre-wired feedback signal harness and fused battery cable for power, reducing installation complexity.
• This device offers greater sensitivity and does not require fuses, enhancing safety and reliability.
• It features a maximum solar voltage (Voc) of 150V and a maximum solar current of 85A.
• The device has a supply voltage range of 10-72 Vdc and a self-consumption of less than 0.5W.
• It has a ground fault threshold current of 300 mA +/- 10%, with a trip method of relay and an output trip signal of 12V.
• The nominal system voltage is 12, 24, 36, or 48 Vdc.

Application Areas:

• This device is ideal for providing ground fault protection in solar power systems.
• It is perfect for use in both residential and commercial PV installations.
• This product is beneficial for industrial applications requiring reliable ground fault protection.
• It is suitable for any setup that utilizes 150V solar arrays and requires robust safety features.

In the Box:

• 1x Morningstar GFPD-150V Ground Fault Protection Device
