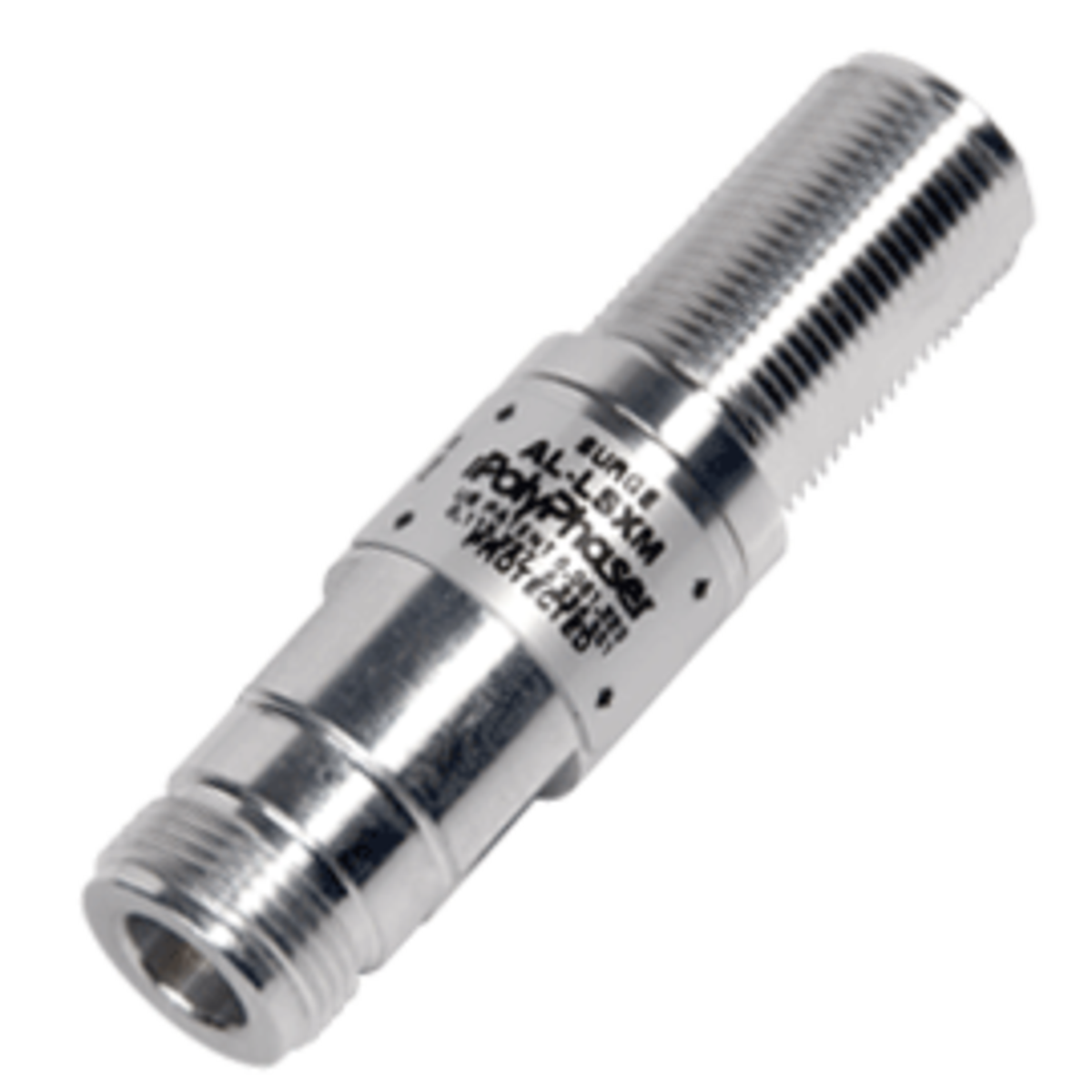

The PolyPhaser AL-LSXM Radio Frequency Filter Protector is designed to protect RF equipment operating within the 2 GHz to 6 GHz frequency range. Utilizing a patented spiral inductor design, this surge protector ensures an almost instantaneous response to lightning surges, protecting critical hardware while maintaining RF performance.

Product Features:

• This surge protector supports a surge current of up to 10kA.
• The device has a maximum power rating of 10W.
• It operates within a frequency range from 2 GHz to 6 GHz.
• The surge protector features N-type female connectors.
• It is waterproof and IP67 rated for durability.
• The device includes a DC block.
• It offers a VSWR of less than 1.3:1.
• The surge protector has multi-strike capability for enhanced durability.
• It is CE and RoHS compliant.

Application Areas:

• This surge protector is ideal for WiFi systems.
• The device is suitable for cellular communication systems.
• It is perfect for any setup requiring reliable RF protection within the specified frequency range.
• The surge protector is beneficial for protecting critical hardware from lightning surges.

In the Box:

• 1x PolyPhaser AL-LSXM Radio Frequency Filter Protector

Documents:

Polyphaser AL-LSXM RF Surge Protector - Datasheet PolyPhaser SX Series Surge Protector - Datasheet
