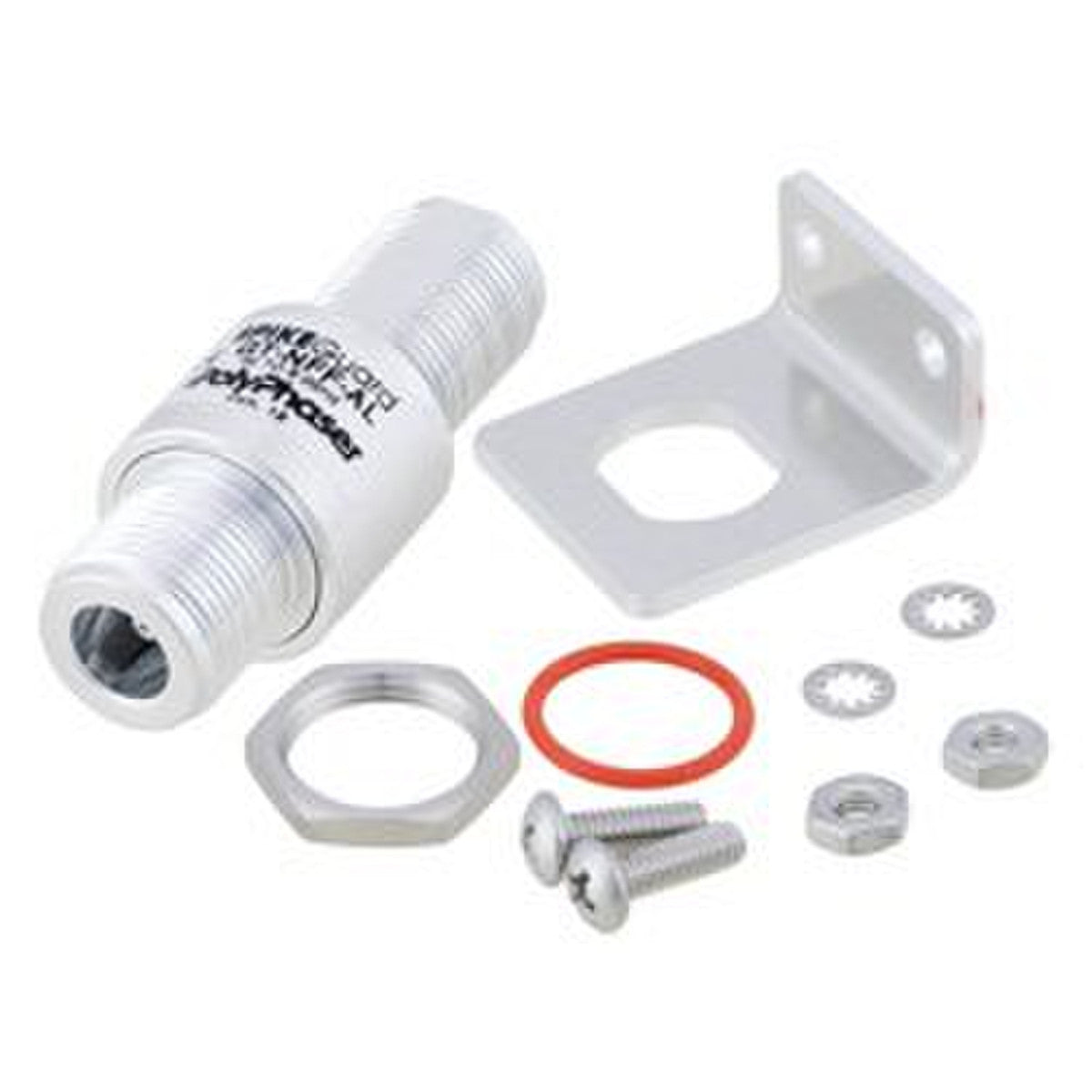

Polyphaser GT-NFF-AL-LUG RF Surge Protector with 9100-0452 LUG

Polyphaser GT-NFF-AL-LUG RF Surge Protector with 9100-0452 LUG

Available

Item ID:
168021440
Export:
Accepted
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
GT-NFF-AL-LUG
Send Request for Quote (RFQ)
The PolyPhaser GT-NFF-AL is an RF surge protector designed to protect RF equipment operating within the DC to 6 GHz frequency range.
Regular price $177.00
Regular price $0.00 Sale price $177.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The PolyPhaser GT-NFF-AL is an RF surge protector designed to protect RF equipment operating within the DC to 6 GHz frequency range. Utilizing a gas tube (GT or GDT), this surge protector ensures effective protection against electrical transient surges. It is manufactured in a coaxial in-line design, providing a wide operating frequency range.

Product Features:

  • This surge protector supports a surge current of 20kA.
  • The device has a maximum power rating of 90W (RMS).
  • It operates within a frequency range from DC to 6 GHz.
  • The surge protector features N-type Female connectors.
  • It is waterproof and IP67 rated for durability.
  • The device includes a DC pass.
  • It offers a typical VSWR of less than 1.1:1.
  • The surge protector is bidirectional for versatile application.

Application Areas:

  • This surge protector is ideal for WiFi systems.
  • The device is suitable for GPS applications.
  • It is perfect for land mobile radio systems.
  • The surge protector is beneficial for any setup requiring reliable RF protection within the specified frequency range.

In the Box:

  • 1x PolyPhaser GT-NFF-AL RF Surge Protector

Documents:

PolyPhaser GT-NFF-AL RF Surge Protector - Datasheet
