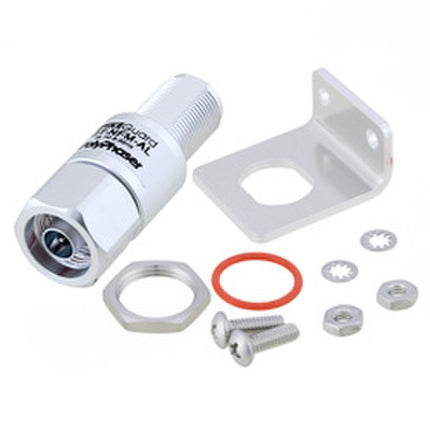

The PolyPhaser GT-NFM-AL RF Surge Protector is designed to protect RF equipment operating within the DC to 6 GHz frequency range. Utilizing a gas tube (GT or GDT), this surge protector ensures effective protection against electrical transient surges. It is manufactured in a coaxial in-line design, providing a wide operating frequency range.

Product Features:

• This surge protector supports a surge current of 20kA.
• The device has a maximum power rating of 90W (RMS).
• It operates within a frequency range from DC to 6 GHz.
• The surge protector features N Female to N Male connectors.
• It is waterproof and IP67 rated for durability.
• The device includes a DC pass.
• It offers a typical VSWR of less than 1.1:1.
• The surge protector is CE and RoHS compliant.
• It is bidirectional for versatile application.

Application Areas:

• This surge protector is ideal for WiFi systems.
• The device is suitable for GPS applications.
• It is perfect for land mobile radio systems.
• The surge protector is beneficial for any setup requiring reliable RF protection within the specified frequency range.

In the Box:

• 1x PolyPhaser GT-NFM-AL RF Surge Protector

Documents:

PolyPhaser GT-NFM-AL RF Surge Protector - Datasheet PolyPhaser GT Series Surge Protector - Datasheet
