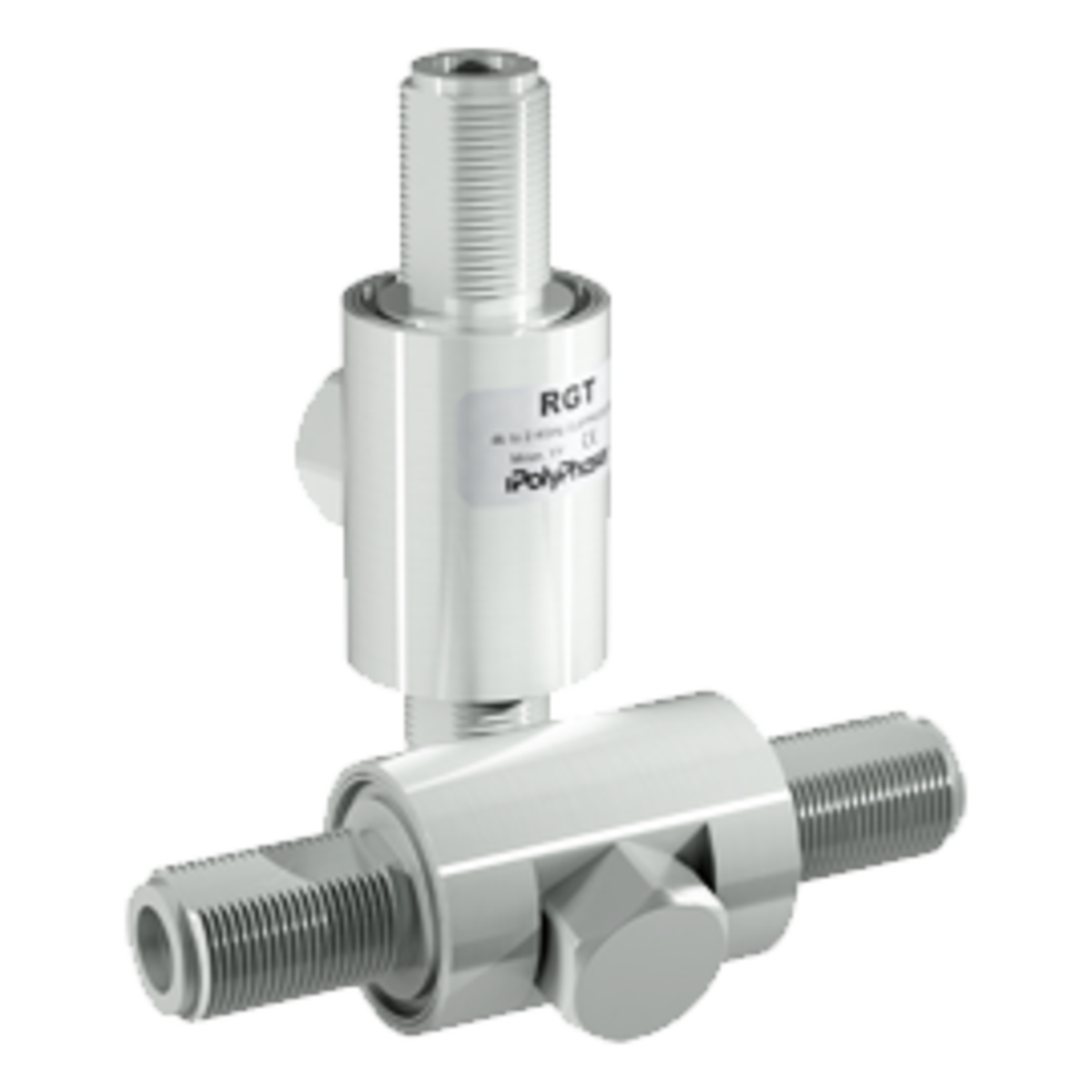

The PolyPhaser RGT Surge Protector is a robust and reliable RF surge protector designed to safeguard your equipment from lightning strikes and power surges. With a wide operating frequency range from DC to 2.4 GHz, this surge protector is ideal for various applications, ensuring your devices remain protected and operational.

Product Features:

• This surge protector can handle a surge current of 18kA.
• The maximum power rating is 50W (RMS).
• It operates within a frequency range from DC to 2.4 GHz.
• The device features N-type female connectors.
• It is waterproof with an IP67 rating.
• The surge protector allows DC pass.
• It has a VSWR of less than 1.28:1.
• The product is CE and RoHS compliant.
• It is bi-directional, providing protection in both directions.

Application Areas:

• This surge protector is suitable for WiFi applications.
• The device can be used for GPS systems.
• It is ideal for land mobile radio applications.
• The surge protector is also suitable for other RF communication systems.

In the Box:

• 1 x PolyPhaser RGT Surge Protector

Documents:

PolyPhaser RGT Surge Protector - Datasheet PolyPhaser GT Surge Protector - Datasheet
