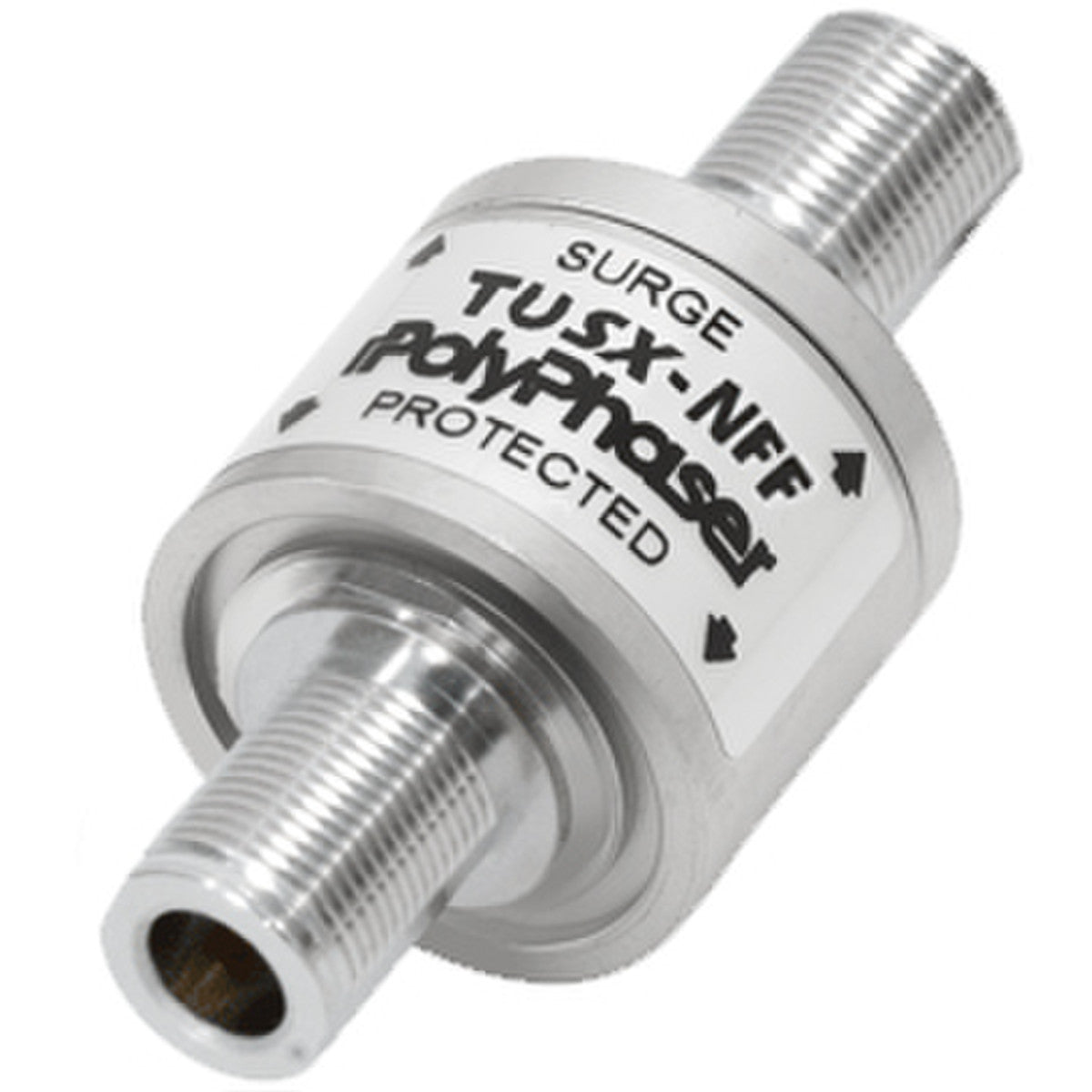

The PolyPhaser TUSX-NFF Surge Protector is designed to protect RF equipment operating within the 300 MHz to 1.2 GHz frequency range. Utilizing a patented spiral inductor design, this surge protector ensures an almost instantaneous response to lightning surges, protecting critical hardware while maintaining RF performance. It is manufactured in a coaxial in-line design with a wide operating frequency range.

Product Features:

• This surge protector supports a surge current of 40kA and has maximum power rating of 2.5kW.
• It operates within a frequency range from 300 MHz to 1.2 GHz.
• The surge protector features N-type Female connectors.
• It is waterproof and IP67 rated for durability.
• The device includes a DC block.
• It offers a VSWR of less than 1.1:1.
• The surge protector has low insertion loss.
• It is CE and RoHS compliant.
• The device is bidirectional for versatile application.

Application Areas:

• This surge protector is ideal for cellular communication systems.
• The device is suitable for public safety systems.
• It is perfect for emergency response systems.
• The surge protector is beneficial for industrial communications.
• This unit is useful in any setup requiring reliable RF protection within the specified frequency range.

In the Box:

• 1x PolyPhaser TUSX-NFF Surge Protector

Documents:

PolyPhaser TUSX-NFF Surge Protector - Datasheet PolyPhaser SX Surge Protector - Datasheet
