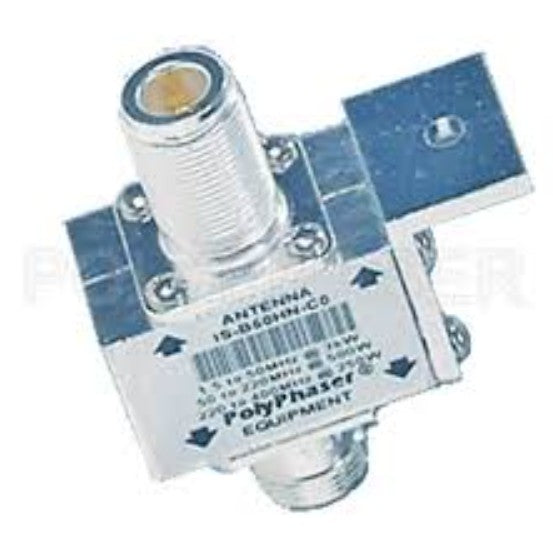

PolyPhaser IS-B50HN-C0 RF Surge Protector, 1.5-700 MHz, 3 kW, N(F)/(F)

PolyPhaser IS-B50HN-C0 RF Surge Protector, 1.5-700 MHz, 3 kW, N(F)/(F)

Available

Item ID:
168021253
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
IS-B50HN-C0
Send Request for Quote (RFQ) Discount Offers
The PolyPhaser IS-B50HN-C0 RF Surge Protector is designed to protect RF equipment operating within the 1.5 MHz to 700 MHz frequency range.
Regular price $357.00
Regular price $0.00 Sale price $357.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The PolyPhaser IS-B50HN-C0 RF Surge Protector is designed to protect RF equipment operating within the 1.5 MHz to 700 MHz frequency range. This surge protector integrates an RF blocking capacitor with a gas tube (GT or GDT) and is manufactured in a coaxial in-line design, ensuring effective protection against electrical transient surges.

Product Features:

  • This surge protector supports a surge current of 50kA.
  • The device has a maximum power rating of 3kW.
  • It operates within a frequency range from 1.5 MHz to 700 MHz.
  • The surge protector features N Female to N Female connectors.
  • It offers a VSWR of less than 1.1:1.
  • The device has multi-strike capability for enhanced durability.
  • It is CE and RoHS compliant.
  • The surge protector integrates an RF blocking capacitor with a gas tube (GT or GDT).
  • It is designed in a coaxial in-line configuration for wide operating frequency range.

Application Areas:

  • This surge protector is ideal for HF, UHF, and VHF radios.
  • The device is suitable for ham radios.
  • It is perfect for remote industrial monitoring applications.
  • The surge protector is beneficial for any setup requiring reliable RF protection.

In the Box:

  • PolyPhaser IS-B50HN-C0 RF Surge Protector

Documents:

PolyPhaser IS-B50HN-C0 RF Surge Protector - Datasheet PolyPhaser IS-B50 Series Surge Protector - Datasheet

Product Specifications

Add gtin 729198816476
MPN IS-B50HN-C0
Brands PolyPhaser
Component type Surge Protector
Height 5.08
Insertion loss db ? 0.1 dB
GTIN/EAN 729198816476
Length 5.08
Vswr ? 1.1:1 @ 2 MHz to 400 MHz
Width 7.62
