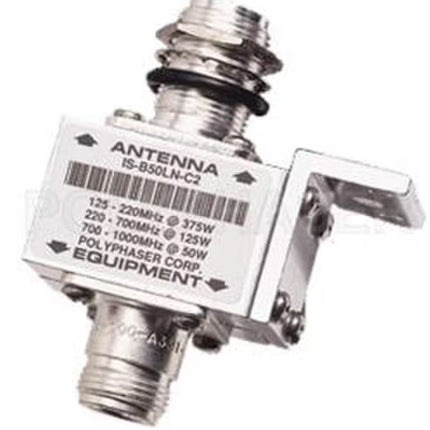

PolyPhaser IS-B50LN-C2 Surge Protector, 10 MHz-1 GHz, N (F)/(F) Bulkhead

PolyPhaser IS-B50LN-C2 Surge Protector, 10 MHz-1 GHz, N (F)/(F) Bulkhead

Available

Item ID:
168029594
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
IS-B50LN-C2
Send Request for Quote (RFQ) Discount Offers
PolyPhaser IS-B50LN-C2 Surge Protector is a high-performance RF surge protector designed to protect your equipment from lightning strikes and power surges.
Regular price $266.00
Regular price $0.00 Sale price $266.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The PolyPhaser IS-B50LN-C2 Surge Protector is a high-performance RF surge protector designed to protect your equipment from lightning strikes and power surges. With a frequency range from 10 MHz to 1 GHz, this surge protector is suitable for a variety of applications, ensuring reliable protection for your devices.

Product Features:

  • This surge protector can handle a surge current of 20kA.
  • The maximum power rating is 1.5KW.
  • It operates within a frequency range from 10 MHz to 1 GHz.
  • The device features N Female to N Female connectors.
  • It has a VSWR of less than 1.1:1.
  • The surge protector has multi-strike capability.
  • It is CE and RoHS compliant.
  • The device integrates an RF blocking capacitor with a gas tube (GT or GDT).
  • It is manufactured in a coaxial in-line design.

Application Areas:

  • This surge protector is suitable for HF, UHF, and VHF radios.
  • The device can be used for ham radios.
  • It is ideal for remote industrial monitoring.
  • The surge protector is also suitable for other RF communication systems.

In the Box:

  • 1 x PolyPhaser IS-B50LN-C2 Surge Protector

Documents:

PolyPhaser IS-B50LN-C2-ME Surge Protector - Datasheet PolyPhaser IS-B50 Series Surge Protector - Datasheet

Product Specifications

Add gtin 729198671846
MPN IS-B50LN-C2
Brands PolyPhaser
Component type Surge Protector
Frequency range mhz 10 - 1000
Height 3
Insertion loss db ? 0.1 dB
GTIN/EAN 729198671846
Length 7
Vswr ? 1.1:1 over frequency range
Width 6
