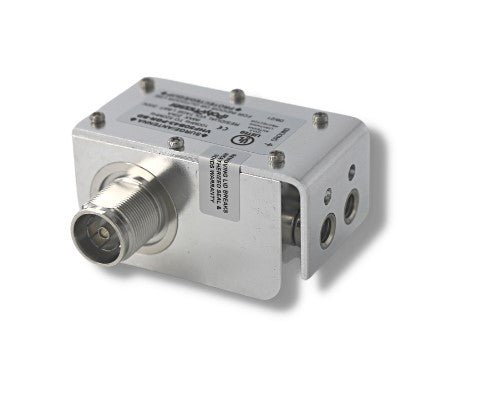

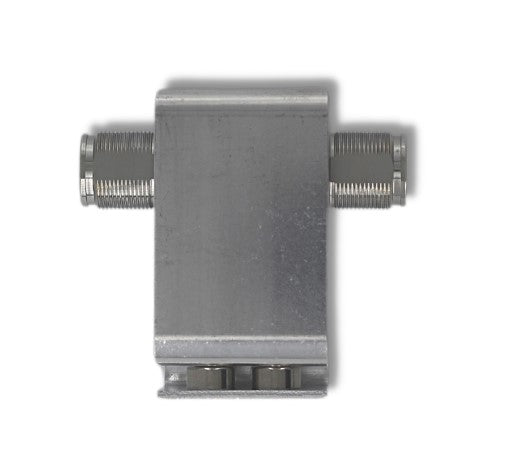

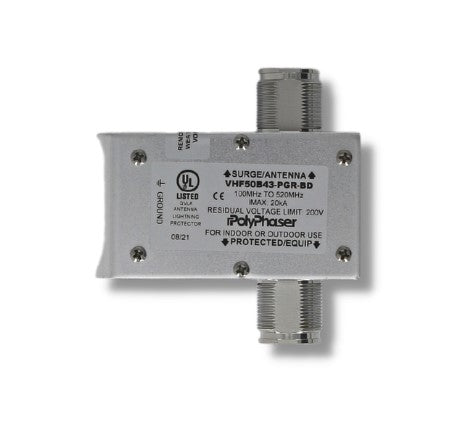

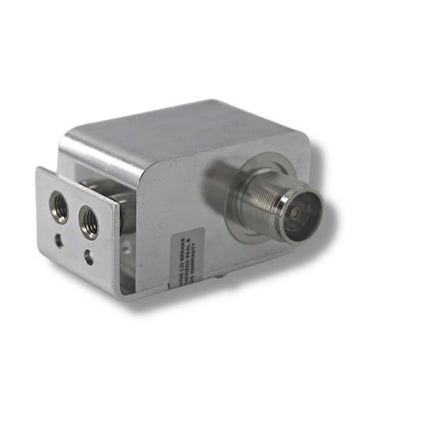

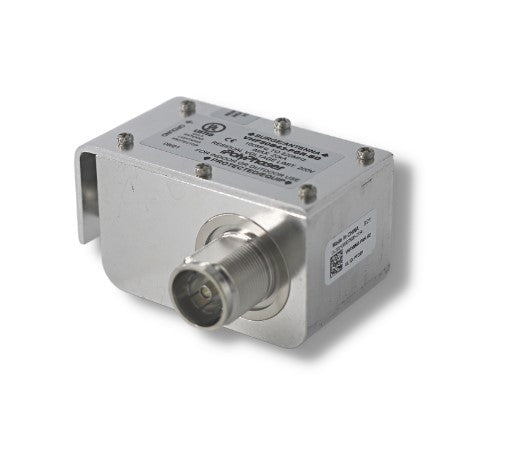

The PolyPhaser VHF50B43-PGR-BD Surge Protector is designed to protect RF equipment operating within the 100 MHz to 520 MHz frequency range. This surge protector ensures effective protection against electrical transient surges while maintaining excellent RF performance. It is manufactured in a coaxial in-line design with a bracket down configuration.

Product Features:

• This surge protector supports a surge rating of 20kA.
• The device features a low let-through high pass filter design.
• It provides bi-directional, repetitive strike protection.
• The surge protector includes 4.3-10 connectors on both sides.
• It offers broadband performance from 100 MHz to 520 MHz.
• The device supports high CW and PIP RF power.
• It ensures excellent RF performance with low PIM.
• The surge protector is waterproof and IP67 rated.
• It is CE and RoHS compliant.

Application Areas:

• This surge protector is ideal for VHF/UHF Range 1 and Range 2 applications.
• The device is suitable for land mobile radio systems.
• It is perfect for emergency response systems.
• The surge protector is beneficial for public safety systems.
• This unit is useful in any setup requiring reliable RF protection within the specified frequency range.

In the Box:

• 1x PolyPhaser VHF50B43-PGR-BD Surge Protector

Documents:

PolyPhaser VHF50B43-PGR-BD Coaxial Surge Protector - Datasheet

Read our complete guide to RF surge protection
