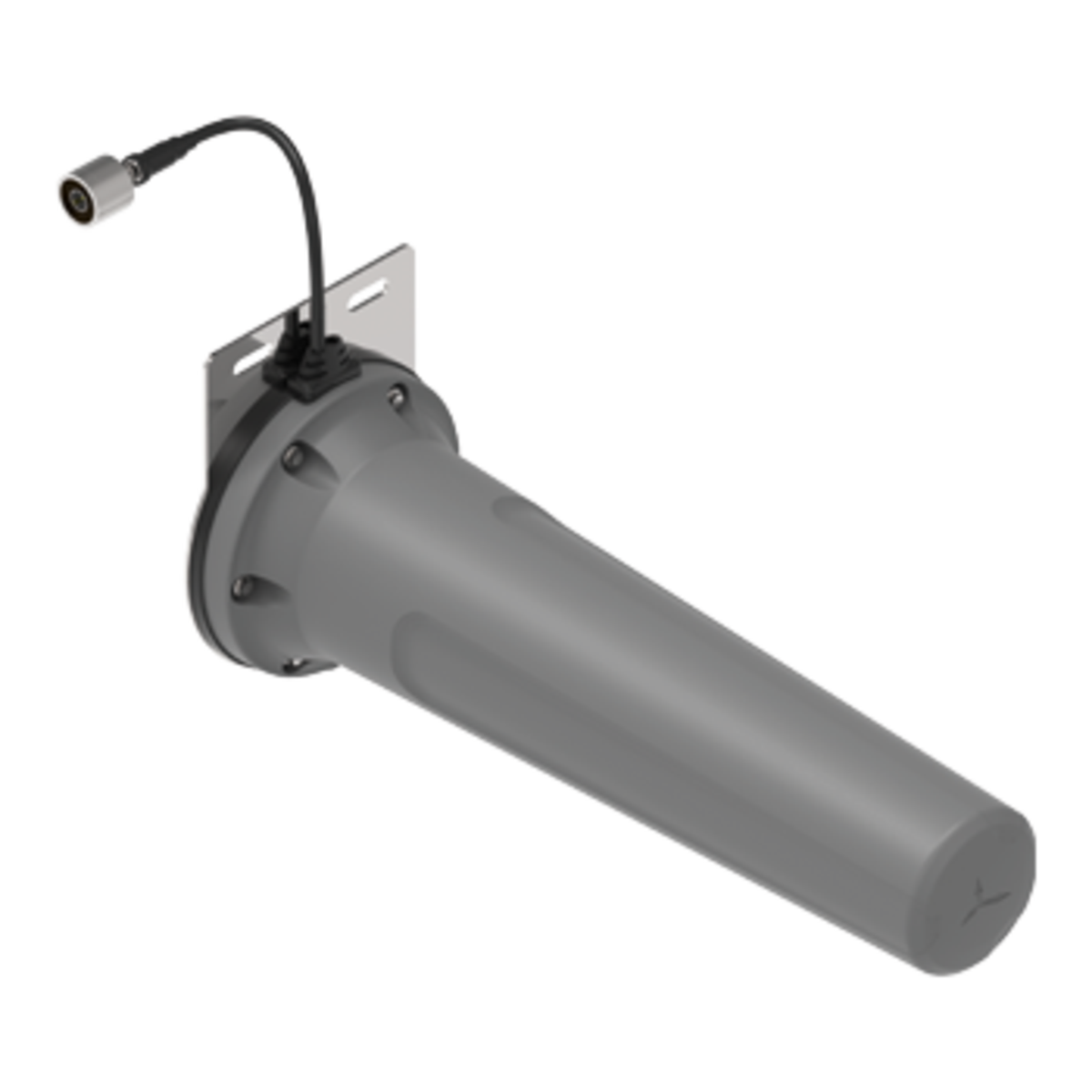

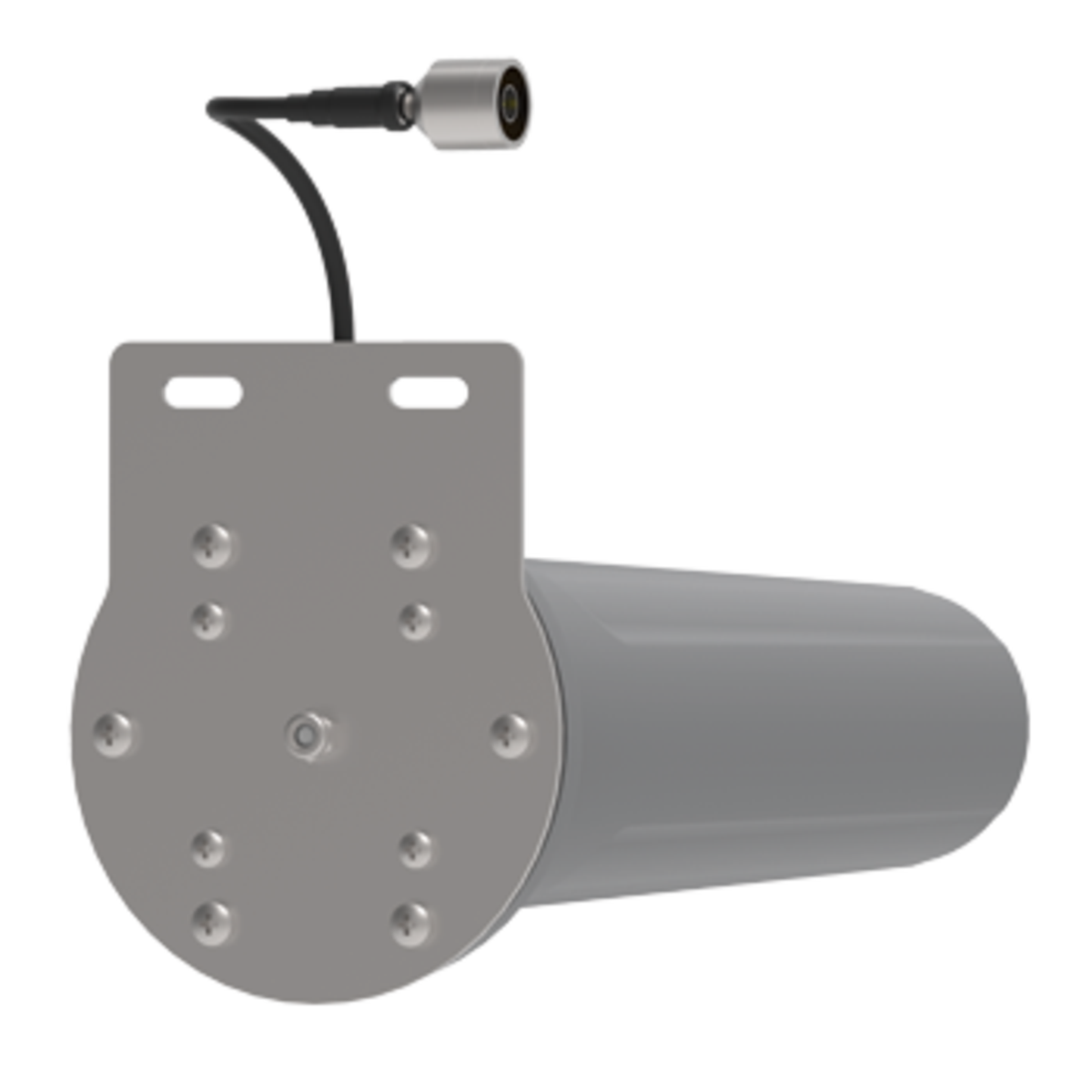

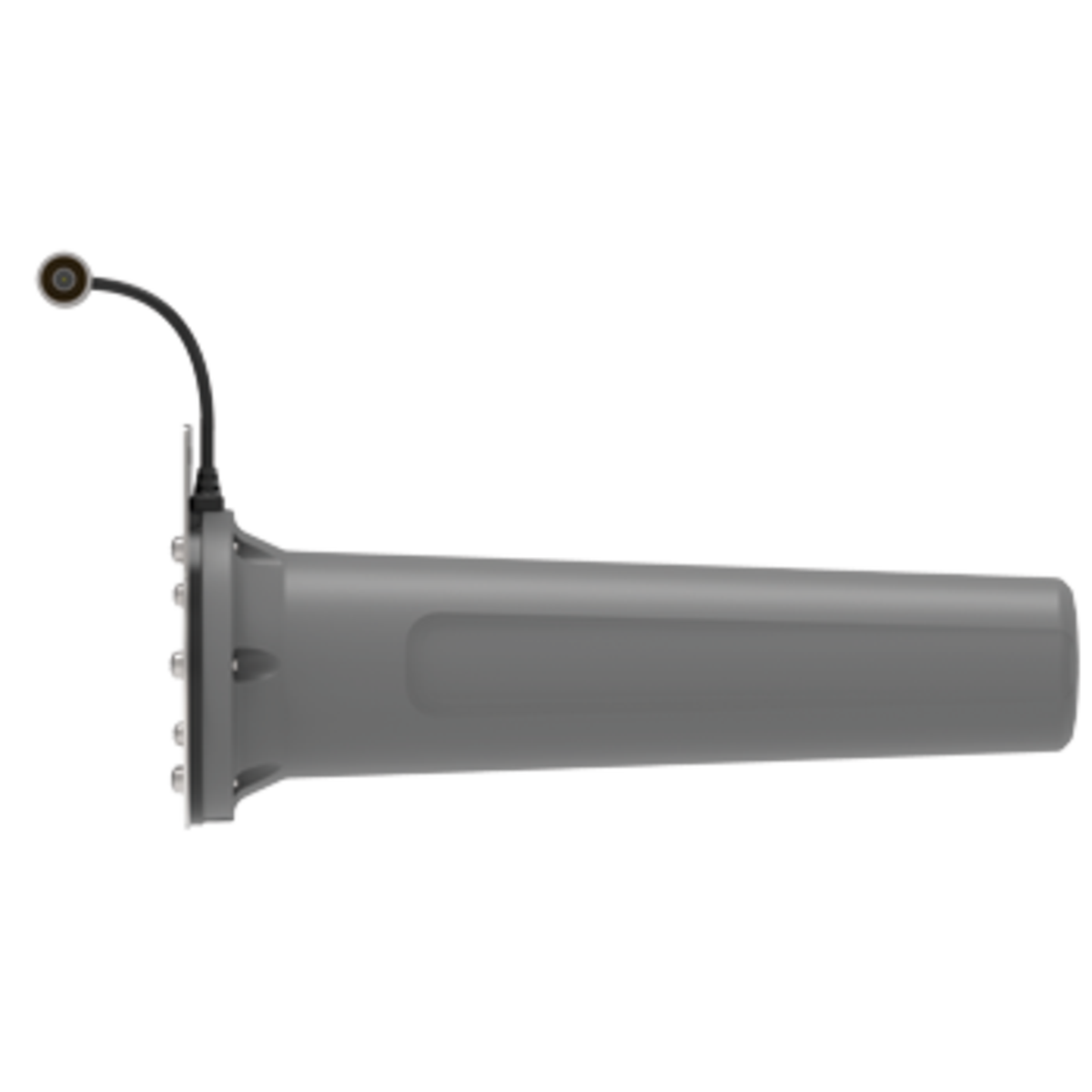

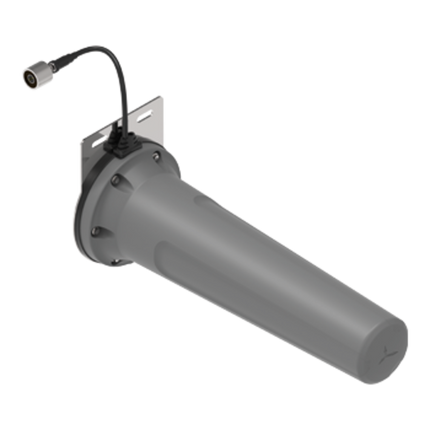

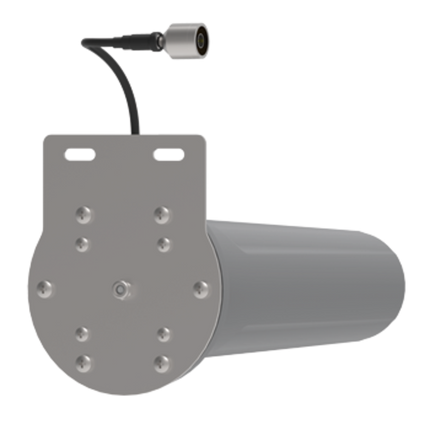

Poynting HELI-12-RH Uni-Directional Mining Antenna, 5000-6000 MHz, 13 dBi, N-Male

Poynting HELI-12-RH Uni-Directional Mining Antenna, 5000-6000 MHz, 13 dBi, N-Male

Brand:
Item ID:
168014221
Export:
Accepted
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
A-HELI-0012-V3-01-R
Send Request for Quote (RFQ)
Poynting HELI-12-RH 5.0 GHz Circular Polarised Uni-Directional Mine/Tunnel Antenna (5000-6000 MHz); 13 dBi used for the deployment of IoT within the tunnel
Regular price $597.00
Regular price $0.00 Sale price $597.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Poynting HELI-12-RH forms part of a series of Mini HELI antennas. These antennas are only mini in size relative to their bigger brothers, the HELI-3, HELI-4 & HELI-8, but offer medium to high gain, which makes these antennas ideal for mining tunnels where IoT/M2M connectivity is deployed and can also be used for coverage into the stopes.
The HELI-12 is a 5 GHz Wi-Fi antenna, radiating in one direction (i.e. Uni-directional), which make it ideal for the coverage of the 5 GHz in mining and other type of tunnels. These antennas are typically used for the deployment of IoT within the tunnel to provide telemetry and mine automation. These antennas are available in both Left-Hand Circular (LHC) & Right-Hand Circular (RHC) polarised antenna elements to provide optimal decorrelation within a MIMO deployment when using the BRKT-45, resulting in optimum performance. The decorrelation is due to the polarisation difference and spatial diversity, between the two antenna elements, which enhances MIMO performance and RF reliability within a mining tunnel. The Wi-Fi connection propagates around tunnel bends in a non-Line of Sight scenario and provides immunity to many Wi-Fi signal disrupting objects such as trains and drilling machinery which appear to obscure the tunnel.

Product Features:

  • The antenna features a single 5 GHz Wi-Fi port for high-speed wireless connectivity.
  • It is especially designed for mining operations and tunnel environments where network extension is required.
  • The uni-directional design radiates signals in one direction along the length of the tunnel.
  • Left-hand and right-hand circular polarization options are available to support MIMO configurations.
  • An intrinsically safe version is available upon request for use in hazardous environments.

Application Areas:

  • It supplements fibre or leaky feeder cable “hotspots” to extend network coverage into inaccessible areas.
  • The antenna supports underground telemetry and automation systems.
  • It enables the creation of comprehensive underground data networks, providing internet and LTE connectivity throughout tunnels.
  • It ensures seamless connectivity for personnel using cellular phones, smart devices, and tablets in subterranean environments.

In the Box:

  • 1x Poynting HELI-12-RH Uni-Directional Mining Antenna
  • 1x N-Male connector

Documents:

Poynting HELI-12 Antenna - Datasheet
