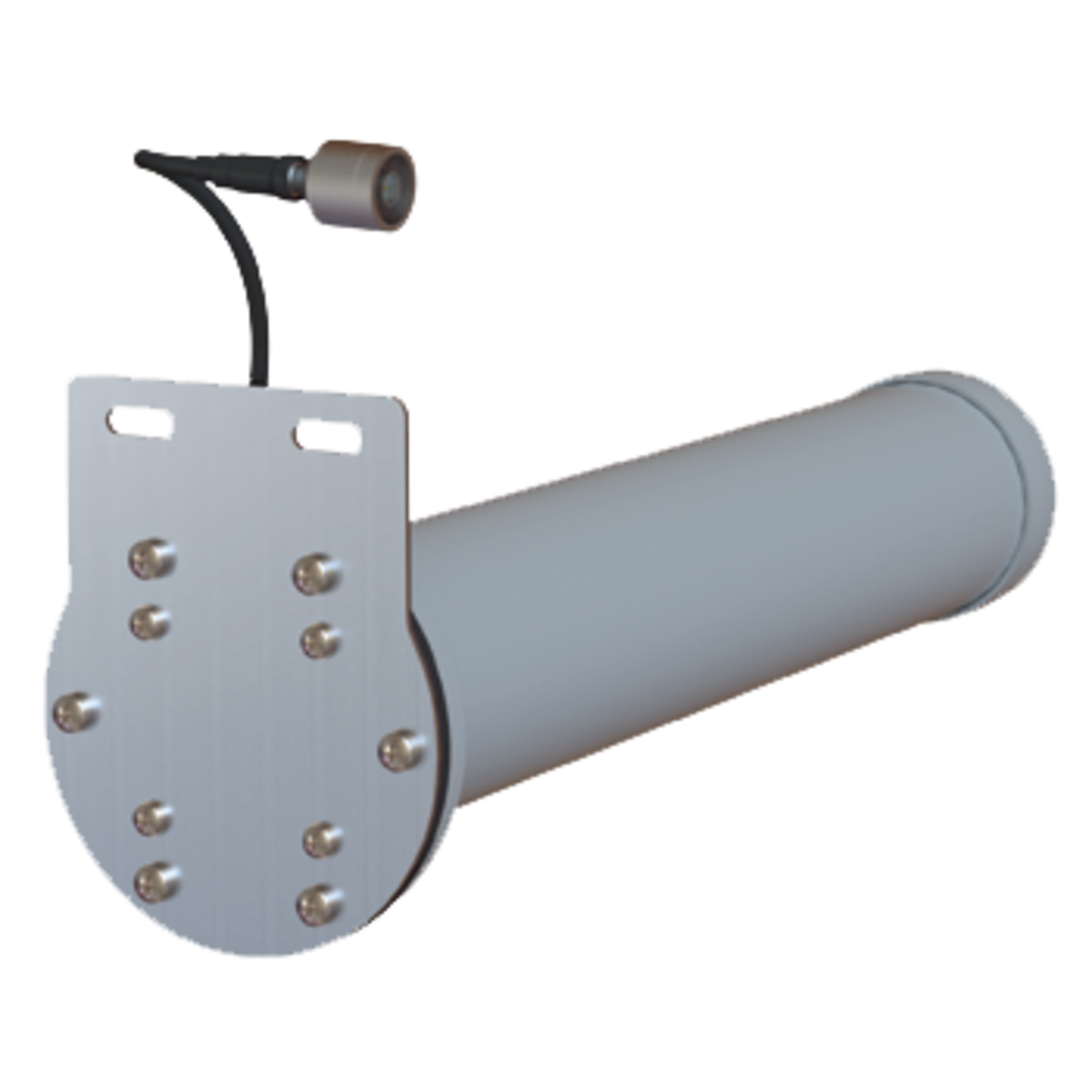

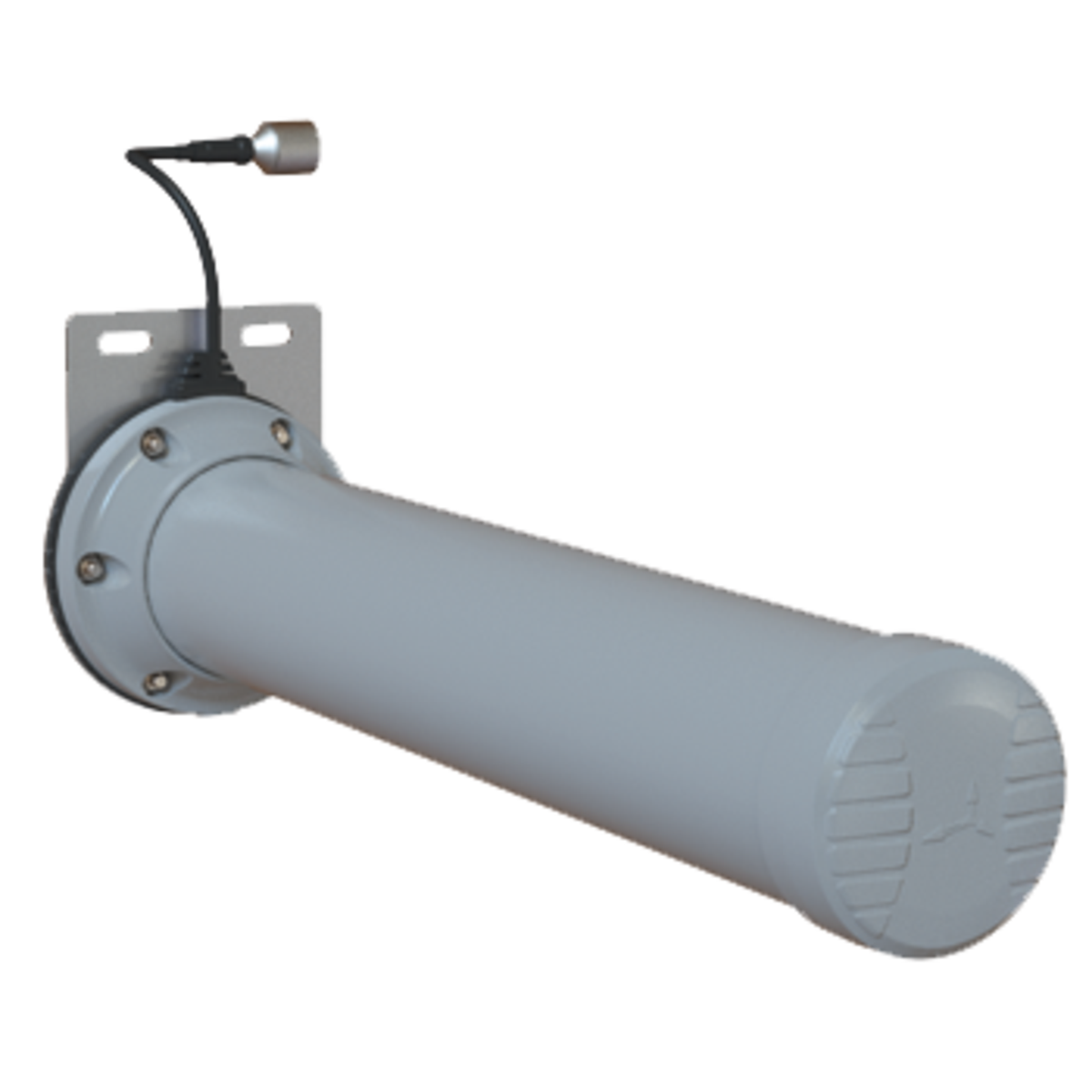

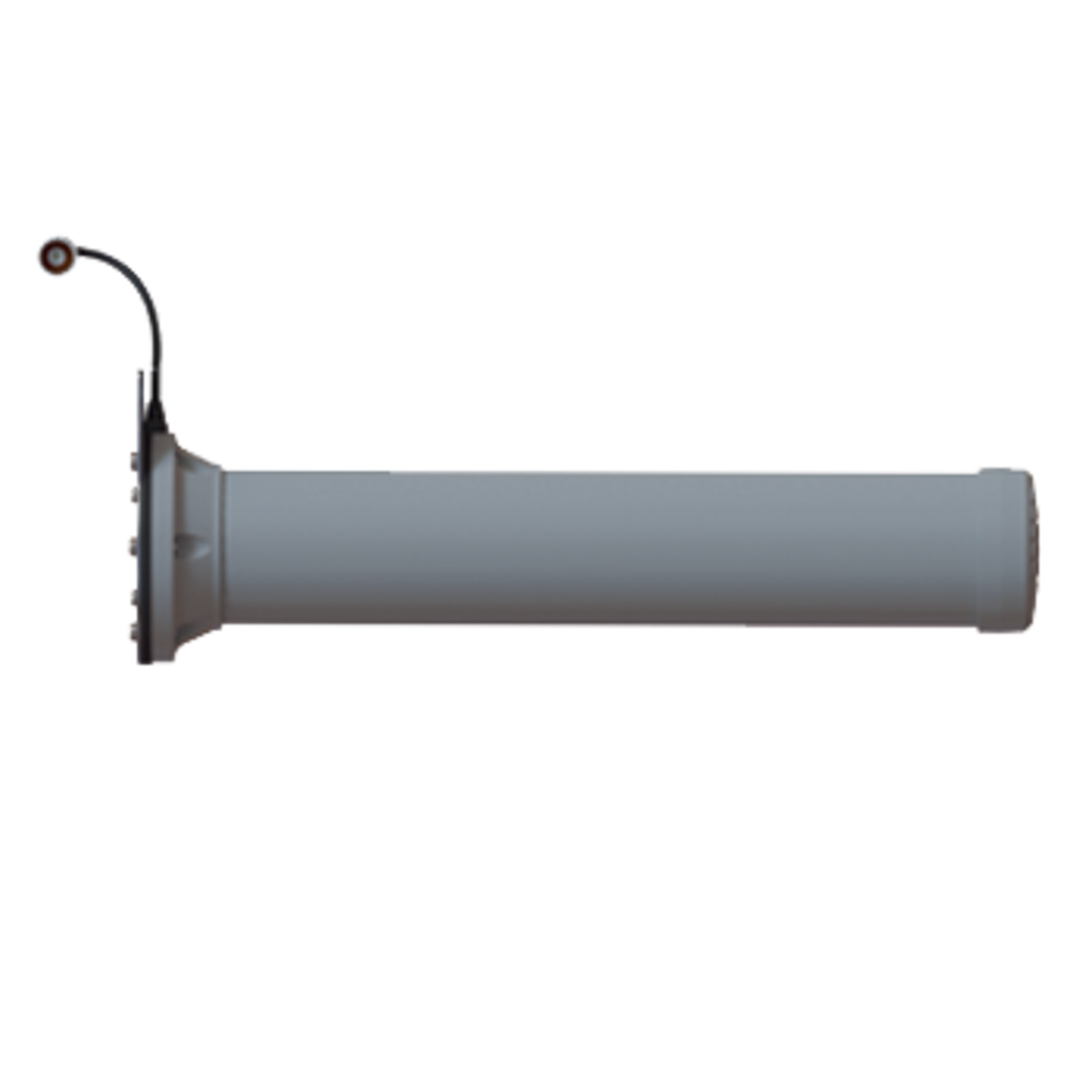

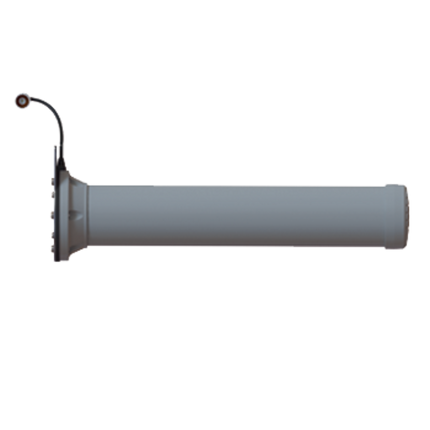

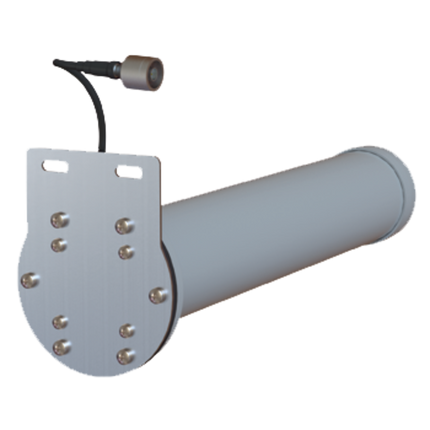

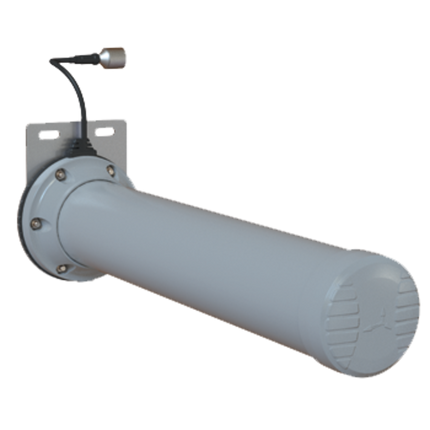

The Poynting HELI-31-LH forms part of a series of Mini-HELI antennas. These antennas are only mini in size relative to their bigger brothers which makes these antennas ideal for mining tunnels where IoT/M2M connectivity is deployed and can also be used for coverage into the stopes.
The HELI-31 is an ultra-wideband antenna, radiating in one direction (i.e. Uni-directional), which make them ideal for the coverage from 1700-7200 MHz. These antennas are typically used for the deployment of IoT within the tunnel to provide telemetry and mine automation. This wide-band helical antenna propagates around tunnel bends in a Non-Line of Sight scenario and provides immunity to many of the signal disrupting objects such as trains and drilling machinery which appear to obscure the tunnel.
Product Features:
- The antenna operates over an ultra-wideband frequency range of 1700–7200 MHz.
- It delivers a peak gain of 9.5 dBi across the 1700–7200 MHz range.
- Its proven antenna performance ensures maximum range.
- The uni-directional design radiates signals in a single direction.
- Both left-hand and right-hand circular polarization options are available to support MIMO configurations.
- An intrinsically safe version can be provided upon request for use in hazardous environments.
Application Areas:
- It supplements fibre and cable networks by providing “hotspots†in inaccessible areas such as mines and tunnels.
- The antenna supports underground telemetry applications.
- It enables the creation of comprehensive underground data networks, delivering internet, LTE, and Wi-Fi connectivity throughout tunnels.
- It ensures seamless connection for personnel using cellular phones, smart devices, and tablets in subterranean environments.
In the Box:
- 1x Poynting HELI-31-LH LTE/5G/Wi-Fi-6 Mining Antenna
- 1x N-Male connector
Documents:
Poynting HELI-31 Antenna - Datasheet
