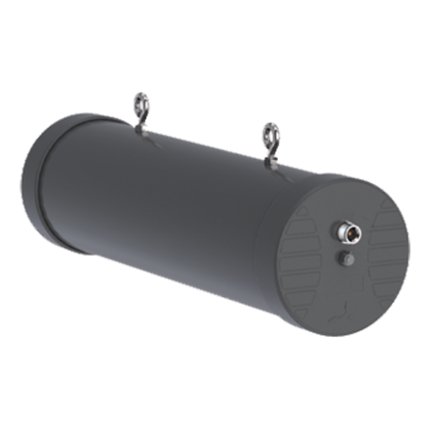

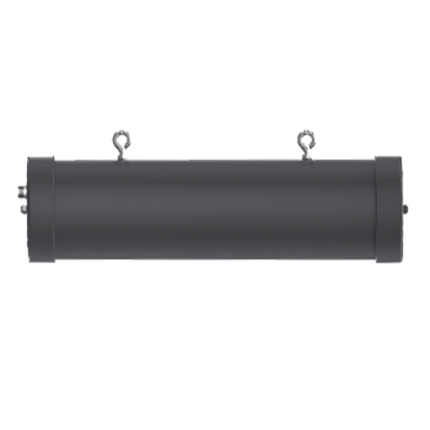

Poynting HELI-4-IS Mining Antenna, 2.4 GHz, 14.5 dBi, N-Female - Intrinsically Safe

    Poynting HELI-4-IS Mining Antenna, 2.4 GHz, 14.5 dBi, N-Female - Intrinsically Safe

      Product form
      Brand:
      Item ID:
      168014244
      Export:
      Accepted
      Shipping:
      Please contact us for lead time
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Options/MPN:
      A-HELI-0004-IS

      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      Poynting HELI-4-IS Circular Polarised Directional Mine/Tunnel Antenna (2400-2500 MHz); 14.5 dBi (Intrinsically Safe) ideal antenna for 2.4 - 2.5 GHz wireless

      $874.00

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
      •  Item available to backorder. Please contact us for lead time.
      • Pay securely! All major cards accepted.

        shop pay

      Product Description

      The Poynting HELI-4-IS is a high gain, directional antenna which complements our Wi-Fi MinePoynt tunnel and mine antennas. The combination of MinePoynt beam antennas, for long distance thru-tunnel links, with this directional antenna, exploits Poynting’s fifteen years’ experience in designing and manufacturing antennas for underground mining data networks. This antenna is also suitable for oil/gas chemical environments where intrinsically safe (IS) equipment is required. The tunnel antenna is the ideal antenna for 2.4 - 2.5 GHz wireless applications in tunnels. In tests, both the data rate and range achieved with this antenna was greater than obtained when using linearly polarized panel antennas of the same gain. The hardy construction of this antenna makes it ideal for the mining environment. The HELI-4-IS gives you a low-cost network infrastructure for current voice and data needs in mines and tunnels

      Product Features:

      • The antenna is uni-directional, focusing signal propagation on a single direction.
      • It delivers high gain across the 2.4 GHz Wi-Fi band for reliable connectivity.
      • Circular polarisation reduces multipath interference to improve performance.
      • The design offers versatile mounting options for installation on walls, poles, or machinery.
      • It is lightweight, making installation and handling easier.

      Application Areas:

      • It supplements fibre and cable networks by providing wireless “hotspots” in inaccessible areas such as mines and tunnels.
      • The antenna supports underground telemetry systems for real-time monitoring and control.
      • It enables the creation of comprehensive tunnel- and mine-wide data networks and internet connectivity.
      • It ensures seamless connections for personnel using VoIP phones, smart devices, and tablets underground.
      • The device is suitable for machine-to-machine (M2M) applications in remote environments.
      • It facilitates the extension of wireless connectivity on oil rigs, refineries, and factories where intrinsically safe equipment is required.

      In the Box:

      • Poynting HELI-4-IS Mining Antenna

      Documents:

      Poynting HELI-4-IS Antenna - Datasheet

      Product Specifications

      MPN A-HELI-0004-IS
      Antenna application DAS Antenna
      Antenna features Directional
      Antenna port connectors N (F)
      Antenna type Directional SISO
      Brands Poynting
      Colour Black
      Connector N female
      Coverage type Directional
      Frequency band Single Band WiFi
      Height 16
      Ingress protection ip IP65
      Installation type Internal mounting
      Ip rating IP65
      GTIN/EAN 707273468758
      Length 50
      Low pim No
      Max frequency mhz 2500
      Max gain dbd dbi 14.5
      Mimo support No
      Min frequency mhz 2400
      Min gain dbd dbi 14.5
      Mount supported Ceiling mount
      Mount supported detailed Ceiling mount
      Mounting area Two eye bolts for ceiling mount
      No of antenna ports 1
      Nominal gain dbi 14.5
      Polarisation Circular
      Power w 10
      Technologies supported Wi-Fi
      Temperature range c -20 to +70
      Tuned bandwidth Full band
      Vswr <2.0:1
      Width 16
      Wind gust km h <120
