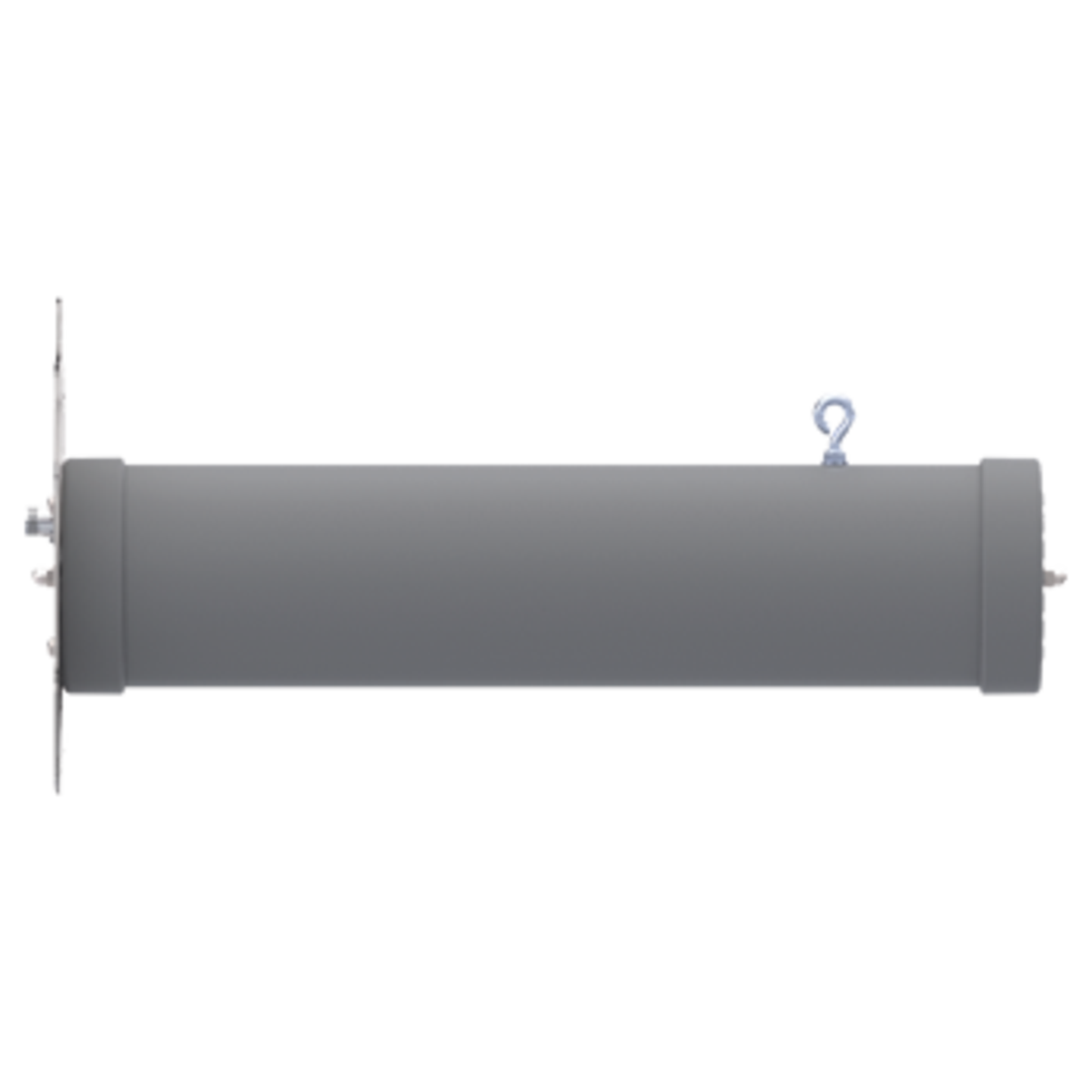

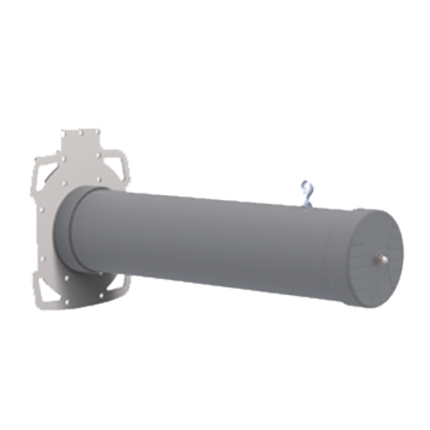

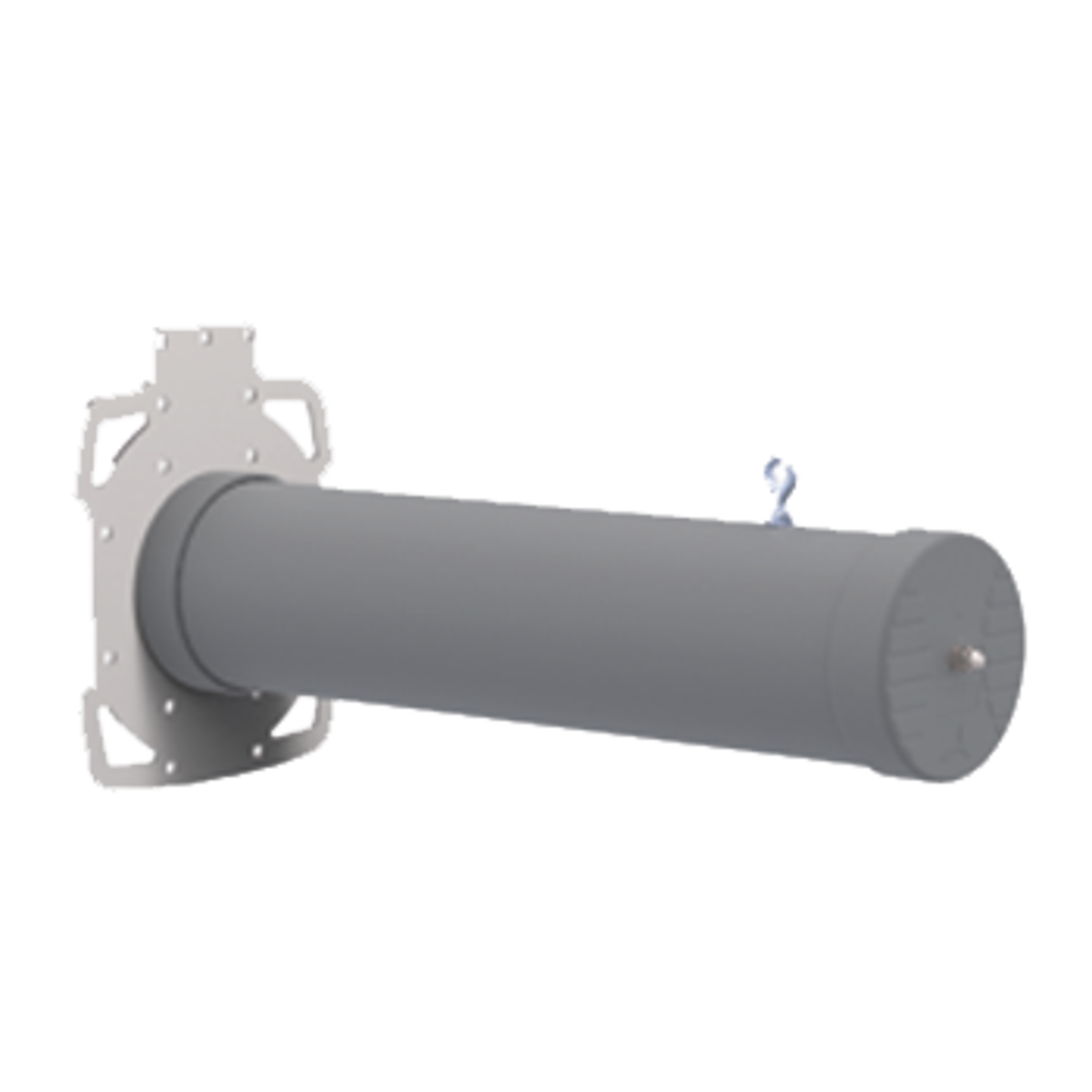

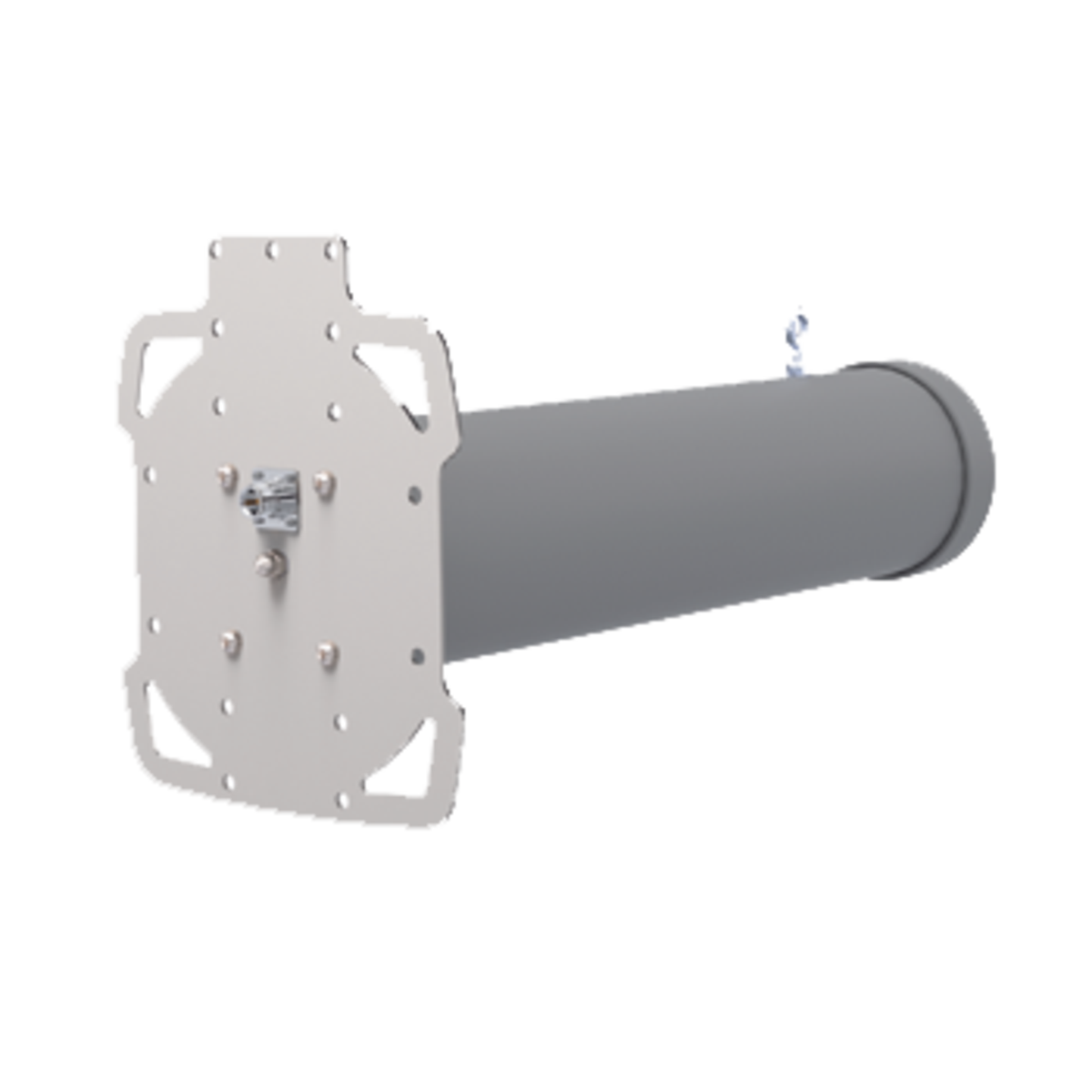

Poynting HELI-5 is a high gain, directional antenna for LTE applications, which complements our MinePoynt mine and tunnel antennas. The combination of MinePoynt beam antennas for long distance thru–tunnel links with this directional antenna, exploits Poynting’s fifteen years’ experience in designing and manufacturing antennas for underground mining communication and data networks.
This antenna is also suitable for oil/gas chemical environments where IS equipment is required. In tests the data rate and range achieved with this antenna was
greater than those obtained when using linear polarised panel antennas of the same gain. The hardy construction of the antenna makes it ideal for a mining environment.
Product Features:
- It delivers high gain across the 1710–2170 MHz frequency range.
- The antenna features a uni-directional radiation pattern for focused signal delivery.
- It offers proven performance, providing maximum range in challenging environments.
- Circular polarisation reduces multipath interference for improved performance.
- It is ideal for mining and tunnelling applications.
- An intrinsically safe version is available upon request.
Application Areas:
- It supplements fibre and cable network “hotspots†to enhance mobility and extend connectivity to inaccessible areas such as mines and tunnels.
- It supports underground telemetry systems.
- It enables the creation of comprehensive in-tunnel data networks, providing internet and LTE connectivity underground.
- It ensures seamless connection for personnel using cellular phones, tablets, and other smart devices.
In the Box:
- Poynting HELI-5 LTE Circular Polarised Tunnel Antenna
- N-Female connector
Documents:
Poynting A-HELI-0005-V1-01 Antenna - Datasheet
