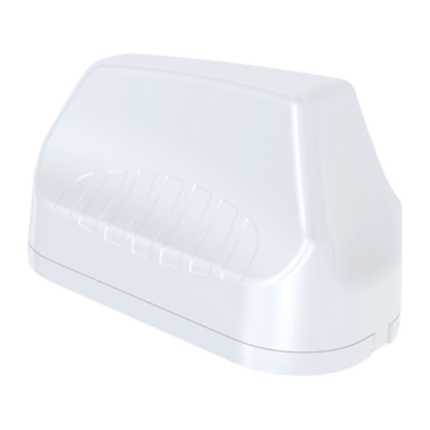

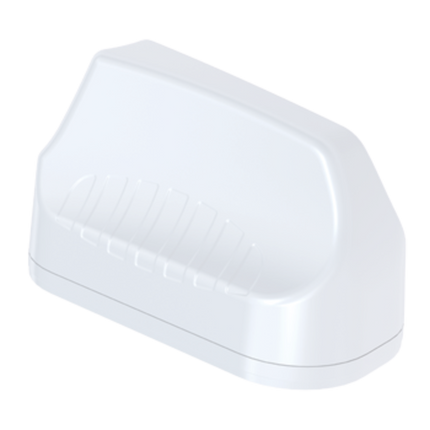

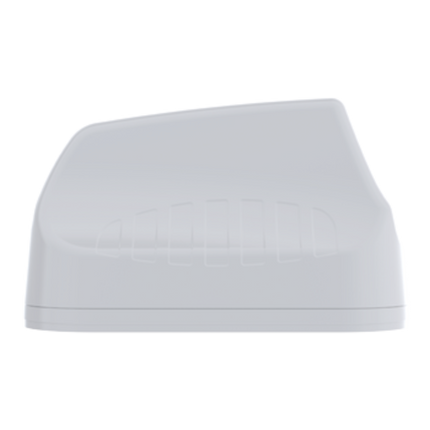

Poynting MIMO-3-12 Antenna, MIMO, 2-In-1, 410-3800 MHz - White

    Poynting MIMO-3-12 Antenna, MIMO, 2-In-1, 410-3800 MHz - White

      Product form
      Brand:
      Item ID:
      168014281
      Export:
      Accepted
      Shipping:
      Please contact us for lead time
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Options/MPN:
      A-MIMO-0003-V2-12

      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      The Poynting MIMO-3-12 antenna is a 2-in-1 high performance multi frequency antenna cover the contemporary 617 MHz to 2700 MHz bands.

      $306.00

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
      •  Item available to backorder. Please contact us for lead time.
      • Pay securely! All major cards accepted.

        shop pay

      Product Description

      The Poynting MIMO-3-12 antenna is a 2-in-1 high performance multi frequency antenna within a single housing. The two cellular MIMO antennas (for 2G/3G/4G) cover the contemporary 617 MHz to 2700 MHz bands, as well as the new emerging LTE and 5G spectrum for 450 MHz and 3.5 GHz CBRS bands, which is becoming popular across the various international cellular network operators for LTE.  The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation.

      Product Features:

      • The antenna operates over an ultra-wideband frequency range covering 410–470 MHz, 617–2700 MHz, and 3400–3800 MHz bands.
      • The cleverly designed decorrelated antenna elements deliver superior MIMO performance across the cellular bands.
      • The robust mechanical construction provides ruggedness and protection against corrosion, water, and dust (IP69K rated).
      • The MIMO-3 model features an internal ground plane, making it suitable for installation on any surface type.

      Application Areas:

      • It supports transport broadband, automation, and telemetry applications for buses, utility vehicles, trucks, and public safety fleets.
      • The antenna is designed for industrial factory automation, robotic machinery, and other machine-to-machine (M2M) telemetry systems.
      • It facilitates farming and agricultural automation deployments, including M2M and IoT use cases.
      • It enables broadband cellular distribution for marine vessels, including inland boats and near-coastal ships.
      • The device supports communications, telemetry, and automation (M2M & IoT) for mining vehicles and heavy machinery.

      In the Box:

      • 1x Poynting MIMO-3-12 Transportation Antenna - White

      Documents:

      Poynting MIMO-3-12 Antenna - Datasheet

      Videos:

      MIMO-3 Antenna Installation on a Caravan/RV/Campervan

      Product Specifications

      MPN A-MIMO-0003-V2-12
      Antenna application Terminal Antenna, Vehicle Antenna
      Antenna cable type Twin HDF-195
      Antenna features Omnidirectional, Multi Band Capable
      Antenna port connectors SMA (M)
      Antenna type Ground Independent, Low Profile Transit, Omni MIMO
      Band 617 to 4200 MHz
      Brands Poynting
      Cable and connector 2 x RTK-031 Cables Terminated with 2 x SMA(M)
      Cable length m 2
      Colour White
      Connector SMA(M)
      Coverage type Omni-directional
      Frequency band Multi-Band 700-3800 MHz
      Frequency mhz 410-470|617-960|1427-1517|1710-2700|3400-3800
      Height 20.4
      Ingress protection ip IP69K
      Installation type External mounting
      Ip rating IP69K
      GTIN/EAN 6009710923689
      Length 26.5
      Low pim No
      Max frequency mhz 3800
      Max gain dbd dbi 5.8
      Mimo support Yes
      Min frequency mhz 410
      Min gain dbd dbi 1
      Mount supported Stud mount, Adhesive mount, Magnetic base
      Mount supported detailed Stud mount, Adhesive mount, Magnetic base
      No of antenna ports 2
      Nominal gain dbi 5.8
      Polarisation Vertical
      Power w 10
      Salt spray MIL-STD 810g/ASTM B117
      Technologies supported 2G, 3G, 4G, 5G
      Temperature range c -40 to +80
      Tuned bandwidth Full
      Vswr < 2.5:1
      Width 21.1
      Wind gust km h ?220
