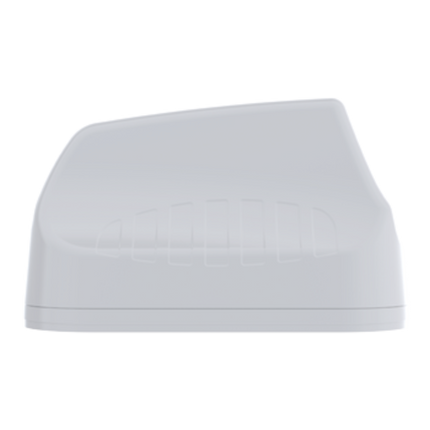

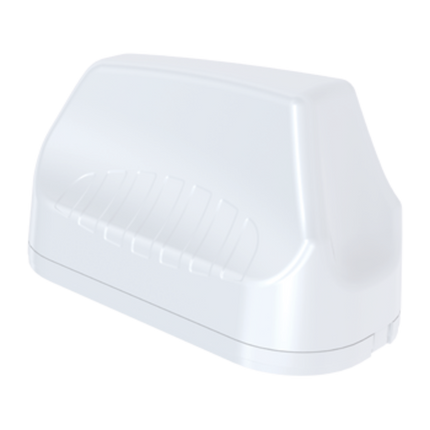

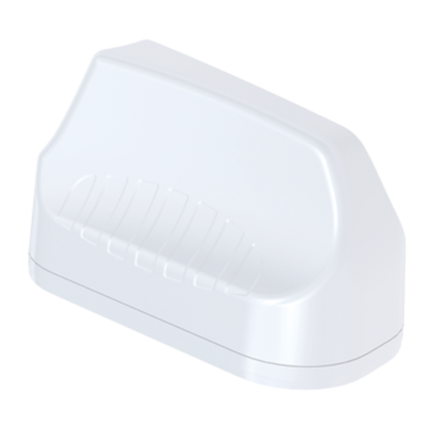

Poynting MIMO-3-13 Antenna, 3-In-1, 410-3800 MHz - White

Poynting MIMO-3-13 Antenna, 3-In-1, 410-3800 MHz - White

Low stock

Brand:
Item ID:
168014282
Export:
Accepted
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
A-MIMO-0003-V2-13
Send Request for Quote (RFQ)
Poynting MIMO-3-13 Antenna is a 3-in-1 transport antenna from Poynting supporting 4G & 5G technologies with 2x2 MIMO over 410-3800 MHz band, a maximum gain of 5.8 dBi and GPS. Ideal for marine, transportation and other outdoor applications.
Regular price $384.00
Regular price $0.00 Sale price $384.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

Poynting MIMO-3-13 Antenna exceeds the performance of most competitors due to the attention to the design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation. This is an important criterion for the transportation and marine market. which the antenna was specifically designed for. Main applications are for commercial/industrial vehicles, marine, M2M and other IoT systems using a wide range of radio technologies, while remaining futureproof over the wide frequency band.

Product Features:

  • The antenna operates across an ultra-wideband frequency range covering 410–470 MHz, 617–2700 MHz, and 3400–3800 MHz bands.
  • The cleverly designed decorrelated antenna elements deliver superior MIMO performance across the cellular bands.
  • It includes a high-performance GPS/GLONASS antenna for accurate positioning and navigation.
  • Its robust mechanical design provides ruggedness as well as corrosion, water, and dust resistance (IP69K rated).
  • The MIMO-3 model features an internal ground plane, making it suitable for installation on any surface type.

Application Areas:

  • It supports transport broadband, automation, and telemetry applications for buses, utility vehicles, trucks, and public safety fleets.
  • It is ideal for industrial factory automation, robotic machinery, and other machine-to-machine telemetry systems.
  • It facilitates farming and agricultural automation use cases, including M2M and IoT deployments.
  • It enables broadband cellular distribution for marine vessels, including inland boats and near-coastal crafts.
  • It supports communications, telemetry, and automation (M2M & IoT) for mining vehicles and heavy machinery.

In the Box:

  • 1x Poynting MIMO-3-13 Transportation Antenna - White

Documents:

Poynting MIMO-3-13 Antenna - Datasheet

Videos:

MIMO-3 Antenna Installation on a Caravan/RV/Campervan
