Poynting MIMO-3-15 Automotive Antenna, 5-in-1, 2x Cellular, 2x Wi-Fi, 1x GPS

    Poynting MIMO-3-15 Automotive Antenna, 5-in-1, 2x Cellular, 2x Wi-Fi, 1x GPS

      Product form
      Brand:
      Item ID:
      165022199
      Export:
      Accepted
      Shipping:
      Not available to ship
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      MPN/Options:
      A-MIMO-0003-V2-15

      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      Poynting MIMO-3-15 4G-5G White Ultraband MIMO-3-15 Wi-Fi & GPS / GLONASS 5-in-1 High-performance multi-frequency 2G/3G/4G/LTE/5G antenna

      Sold-out

      $434.00

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        The Poynting MIMO-3-15 is a high-performance 5-in-1 antenna designed for automotive, transportation, and marine applications. It combines multiple antenna technologies into a single, compact enclosure, offering reliable connectivity across cellular, Wi-Fi, and GPS systems. With ultra-wideband support and robust construction, it is ideal for demanding environments and future-ready networks.

        Product Features:

        • This antenna includes two cellular MIMO antennas supporting 2G, 3G, 4G, and emerging 5G frequencies, including 450 MHz and 3.5 GHz CBRS bands.
        • It features ultra-wideband performance, making it compatible with various network operators and ready for future 5G technologies up to 3.8 GHz.
        • This device provides two dual-band Wi-Fi antennas, each supporting concurrent 2.4 GHz and 5 GHz operation with 2x2 MIMO capability.
        • It includes a high-performance active GPS/GLONASS antenna, ensuring accurate positioning even in extreme temperatures down to -40°C.
        • The antenna is housed in a robust, water-resistant enclosure rated IP68, suitable for harsh outdoor and mobile environments.
        • It is designed for transportation and marine use, offering reliable connectivity on the move.

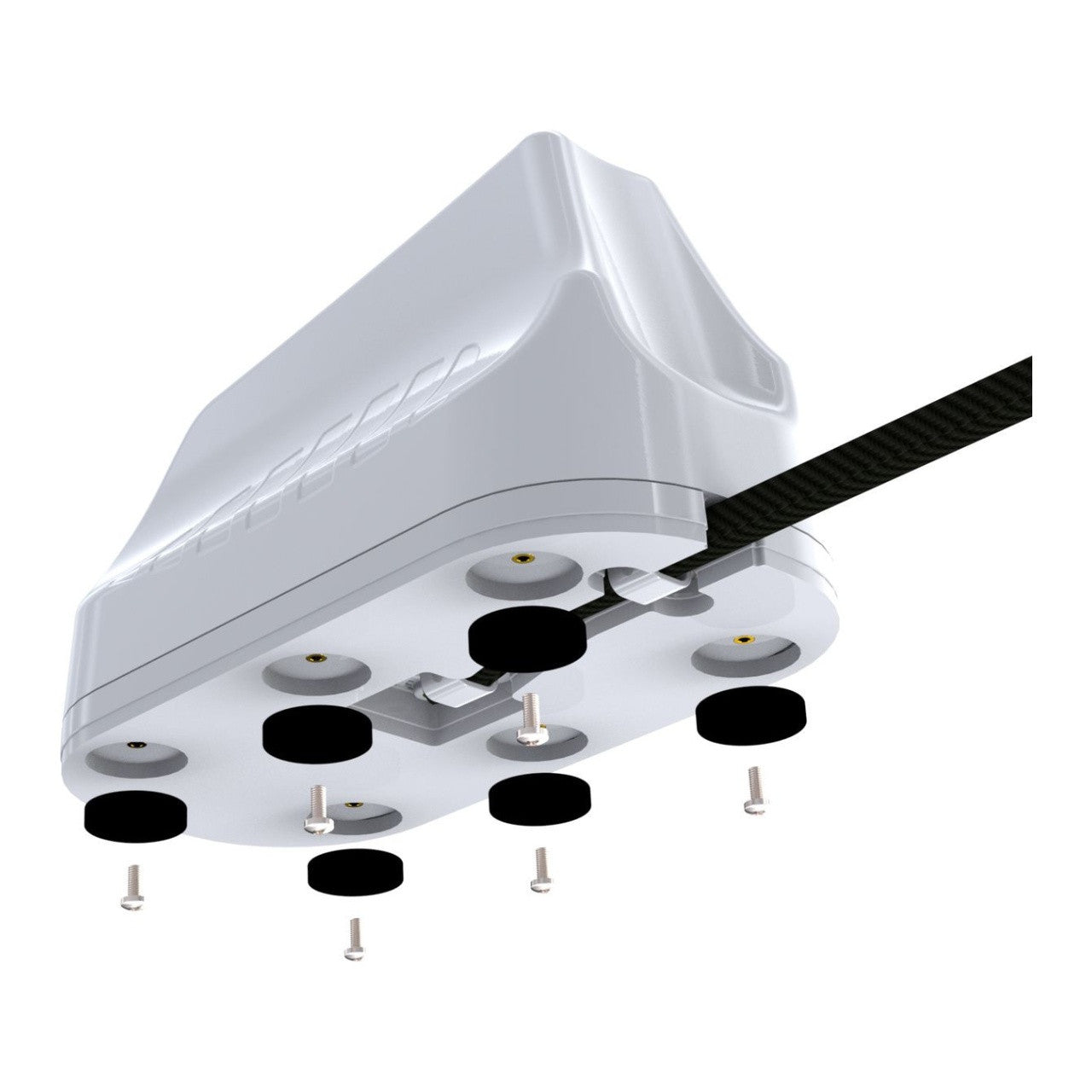

        • The unit supports multiple mounting options, allowing for flexible and easy installation on various surfaces.

        Application Areas:

        • The antenna is ideal for automotive and fleet vehicles requiring multi-network connectivity and GPS tracking.
        • It is suitable for marine vessels needing reliable Wi-Fi, cellular, and navigation signal reception.
        • This device is effective in public transport systems, enabling real-time communication and monitoring.
        • It is also applicable in industrial and remote IoT deployments where robust, multi-band connectivity is essential.

        In the Box:

        • 1x Poynting MIMO-3-15 Automotive Antenna (5-in-1)

        Documents:

        Poynting MIMO-3 Antenna - Datasheet

        Videos:

        Poynting MIMO-3 Antenna - Product Overview MIMO-3 Antenna Installation on a Caravan/RV/Campervan How do I connect a Poynting 5-in-1 MIMO antenna (MIMO-3-15) to a Teltonika RUT955 Router

        Product Specifications

        MPN A-MIMO-0003-V2-15
        Antenna cable type Twin HDF-195, RTK-031
        Antenna port connectors SMA (M)
        Brands Poynting
        Cable length m 2
        Coverage type Omni-directional
        Height 21
        Ingress protection ip IP69K
        Installation type External mounting
        GTIN/EAN 6009710923764
        Length 27
        Low pim No
        Max frequency mhz 7200
        Max gain dbd dbi 21
        Mimo support Yes
        Min frequency mhz 410
        Min gain dbd dbi 1
        Mount supported Stud mount, Adhesive mount, Magnetic base
        Mount supported detailed Stud mount, Adhesive mount, Magnetic base
        No of antenna ports 5
        Power w 10
        Technologies supported Wi-Fi, 2G, 3G, 4G, 5G, GPS
        Width 22
        Wind gust km h ?220
