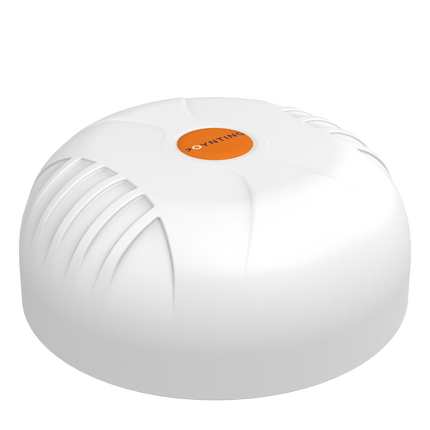

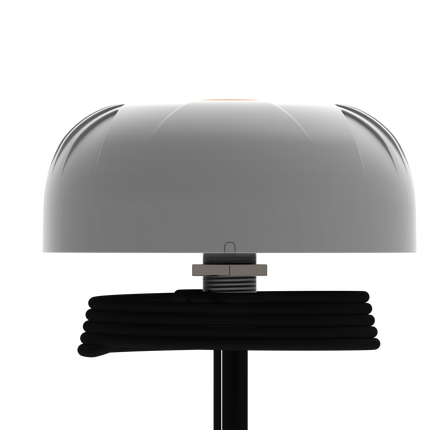

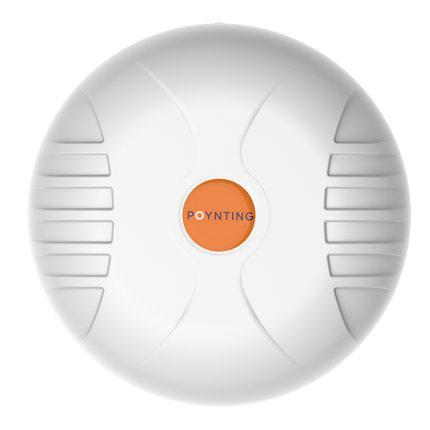

Poynting MIMO-4-15-W Antenna, 5-In-1, 617-7200 MHz - White

Poynting MIMO-4-15-W Antenna, 5-In-1, 617-7200 MHz - White

Brand:
Item ID:
168014286
Export:
Accepted
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
A-MIMO-0004-V1-15-W
Send Request for Quote (RFQ)
Poynting MIMO-4-15-W antenna that combines 2x2 MIMO cellular, 2x2 MIMO Wi-Fi, and GPS/GLONASS functionality in a single, rugged housing. Its robust design, with an IP69K rating.
Regular price $393.50
Regular price $0.00 Sale price $393.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

Poynting MIMO-4-15-W antenna that combines 2x2 MIMO cellular, 2x2 MIMO Wi-Fi, and GPS/GLONASS functionality in a single, rugged housing. Its robust design, with an IP69K rating. The two cellular MIMO antennas offer wideband coverage from 617 to 6000 MHz, covering LTE/4G and 5G bands for future proof implementation. The ultra-wideband performance of the cellular antennas allows it to be used across different operators & technologies. The antenna also provides two dual-band Wi-Fi antennas, providing concurrent 2.4 GHz and 5 to 7.2 GHz on each antenna for 2x2 MIMO capability.

Product Features:

  • This antenna integrates 2×2 MIMO cellular, 2×2 MIMO Wi-Fi, and a GPS/GLONASS module to deliver comprehensive connectivity.
  • It covers a wide frequency range from 617 to 6000 MHz, supporting LTE/4G, 5G, and Wi-Fi applications.
  • The IP69K-rated enclosure ensures durability in challenging transportation, marine, and industrial environments.
  • The radiation patterns of all elements provide an excellent balance of omni-directionality, pattern diversity, and elevation coverage.
  • The internal ground plane design enables versatile installation options while maintaining reliable performance.
  • It offers multiple mounting options for easy and adaptable installation in a variety of settings.

Application Areas:

  • It supports broadband and Wi-Fi distribution, automation, and telemetry in transportation and automotive sectors.
  • It is ideal for industrial automation, telemetry, and IoT systems in commercial vehicles.
  • It facilitates agricultural automation and IoT applications in farming environments.
  • It provides broadband cellular and Wi-Fi coverage for marine vessels such as boats.
  • It enables communications, telemetry, and automation (M2M & IoT) for mining vehicles and heavy machinery.

In the Box:

  • 1x Poynting MIMO-4-15-W Transportation Antenna - White

Documents:

Poynting MIMO-4-15 Antenna - Datasheet

Videos:

What is the MIMO-4 Antenna and when do you use it? Unboxing the #POYNTING MIMO-4 Antenna for Transport and Automotive Applications What are the typical deployments for the MIMO-4 Antennas?
