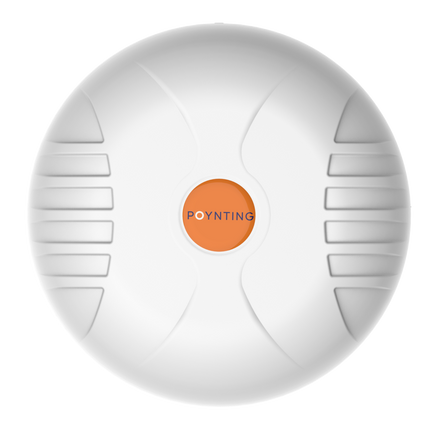

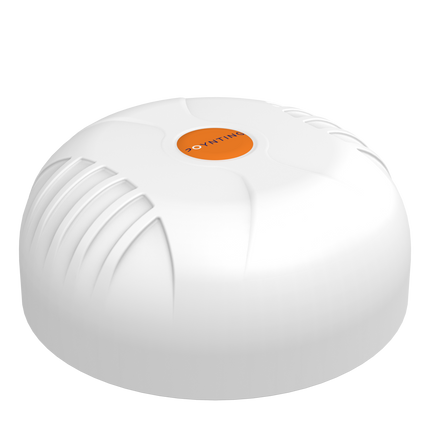

Poynting MIMO-4-17 Transportation Antenna, 7-In-1, 617-7200 MHz - White

    Poynting MIMO-4-17 Transportation Antenna, 7-In-1, 617-7200 MHz - White

      Product form
      Brand:
      Item ID:
      168014288
      Export:
      Accepted
      Shipping:
      Please contact us for lead time
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Options/MPN:
      A-MIMO-0004-V1-17-W

      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      Poynting MIMO-4-17 7-In-1 4x4 MIMO 5G/LTE; 2x2 WiFi & GNSS Transportation & Automotive Antenna (617-7200 MHz); 6.0 / 6.5 dBi - White

      $473.50

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
      •  Item available to backorder. Please contact us for lead time.
      • Pay securely! All major cards accepted.

        shop pay

      Product Description

      The Poynting MIMO-4-17 Transportation Antenna integrates seven high-performance elements, four wideband cellular MIMO, two dual-band Wi-Fi, and one active GNSS (GPS/GLONASS) into a single, rugged IP69K enclosure. Covering 617 – 7200 MHz for LTE/4G, 5G, and 2.4 / 5–7.2 GHz Wi-Fi, it delivers 6.0 / 6.5 dBi gain and ground-plane-independent operation for seamless connectivity in commercial vehicles, marine vessels, and industrial IoT systems. The four cellular MIMO antennas offer wideband coverage from 617 to 6000 MHz, covering LTE/4G and 5G bands for future proof implementation. The ultra-wideband performance of the cellular antennas allows it to be used across different operators & technologies. The antenna also provides two dual-band Wi-Fi antennas, providing concurrent 2.4 GHz and 5 to 7.2 GHz on each antenna for 2x2 MIMO capability.

      Product Features:

      • It integrates seven elements in one: four wideband cellular MIMO elements (617–6000 MHz), two dual-band Wi-Fi antennas (2.4 GHz and 5–7.2 GHz), and one active GNSS receiver for GPS/GLONASS.
      • Its ultra-wideband performance ensures compatibility with LTE, 5G, and all popular Wi-Fi bands within a single compact housing.
      • The medium-gain design (6.0 / 6.5 dBi) balances range and coverage for both cellular and Wi-Fi links.
      • The IP69K-rated, UV-stable enclosure and corrosion-resistant materials withstand high-pressure wash-downs, dust, and harsh weather conditions.
      • Optimized radiation patterns deliver true omnidirectionality and pattern diversity across all frequencies, ensuring reliable coverage.
      • Its ground-plane-independent architecture enables installation on both metal and non-metal surfaces without any performance loss.
      • It includes multiple mounting options—magnetic, bracket, spigot, or adhesive—for quick field deployment.

      Application Areas:

      • It supports broadband and Wi-Fi distribution in trucks, buses, and utility vehicles to provide passenger Internet access and telematics.
      • It is ideal for industrial automation, telemetry, and IoT systems in commercial and emergency-service fleets.
      • The antenna is suited for agricultural machinery setups that require reliable cellular and Wi-Fi connectivity for precision farming.
      • It serves marine vessels and workboats needing combined cellular backhaul and onboard Wi-Fi networks.
      • It supports mining vehicles and heavy equipment with remote monitoring, control, and crew connectivity capabilities.
      • It is perfect for mobile offices and transport hubs where robust, multi-band connectivity is essential.

      In the Box:

      • 1 × Poynting MIMO-4-17 Transportation Antenna (white housing).
      • Magnetic-pad, bracket, spigot, and adhesive mounting kits for versatile installation.

      Documents:

      Poynting MIMO-4-17 Antenna - Datasheet

      Videos:

      What is the MIMO-4 Antenna and when do you use it? Unboxing the #POYNTING MIMO-4 Antenna for Transport and Automotive Applications What are the typical deployments for the MIMO-4 Antennas?

      Product Specifications

      MPN A-MIMO-0004-V1-17-W
      Antenna application Terminal Antenna, Vehicle Antenna
      Antenna cable type RTK-031
      Antenna configuration 4x4 MIMO
      Antenna features Omnidirectional, Multi Band Capable
      Antenna port connectors SMA (M)
      Antenna type Omni
      Brands Poynting
      Cable and connector 7 x RTK-031 Cables Terminated with SMA(M) connectors
      Cable length m 2
      Colour White
      Connector SMA(M)
      Coverage type Omni-directional
      Frequency band Dual Band 2.4 & 5.8 GHz WiFi, Multi-Band 617-4200 MHz
      Frequency range mhz 5000 - 6000, 3400 - 3800, 1427 - 1517, 1710 - 2700, 3400 - 4200, 617 - 960
      Height 15
      Ingress protection ip IP69K
      Installation type Internal or external mounting
      Ip rating IP69K
      GTIN/EAN 6009710925423
      Length 23
      Low pim No
      Max frequency mhz 7200
      Max gain dbd dbi 21
      Mimo support Yes
      Min frequency mhz 617
      Min gain dbd dbi -0.5
      Mount supported Stud mount
      Mount supported detailed Stud mount
      No of antenna ports 7
      Nominal gain dbi 6 / 6.5
      Number of outputs 7
      Polarisation Vertical
      Power w 10
      Salt spray MIL-STD 810g/ASTM B117
      Technologies supported Wi-Fi, 2G, 3G, 4G, GPS
      Temperature range c -40 to +80
      Tuned bandwidth Full
      Vswr < 2:1
      Width 22
      Wind gust km h ?220
      Wind load 160km h n 220
