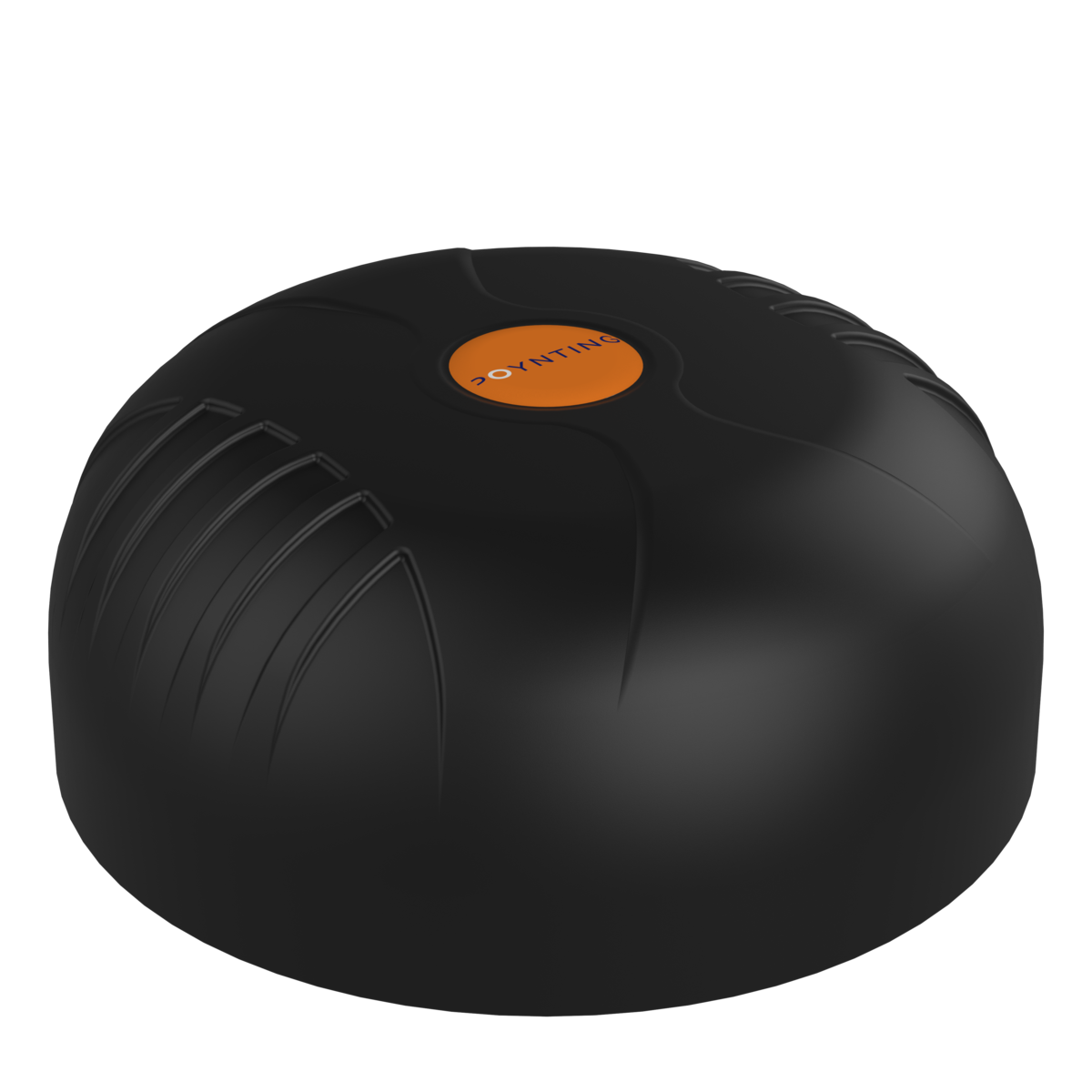

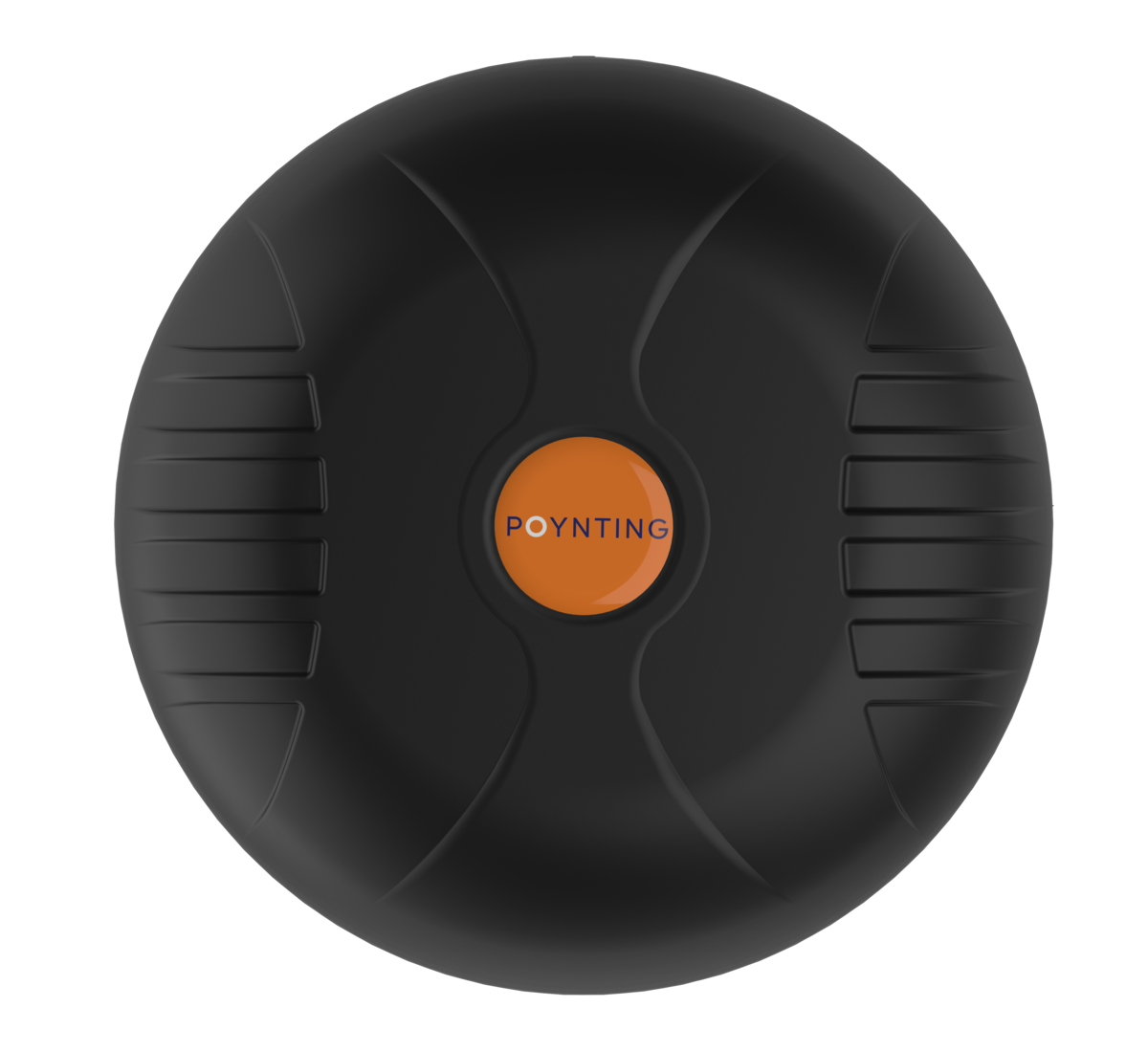

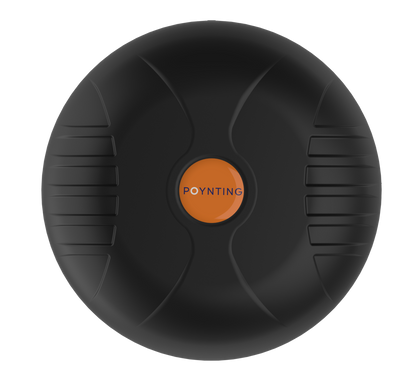

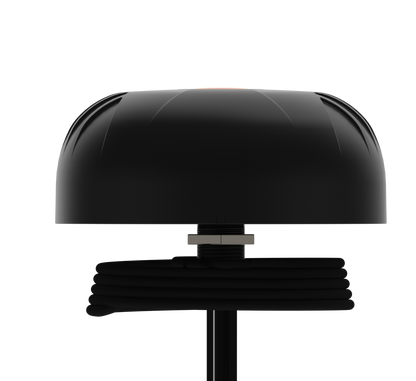

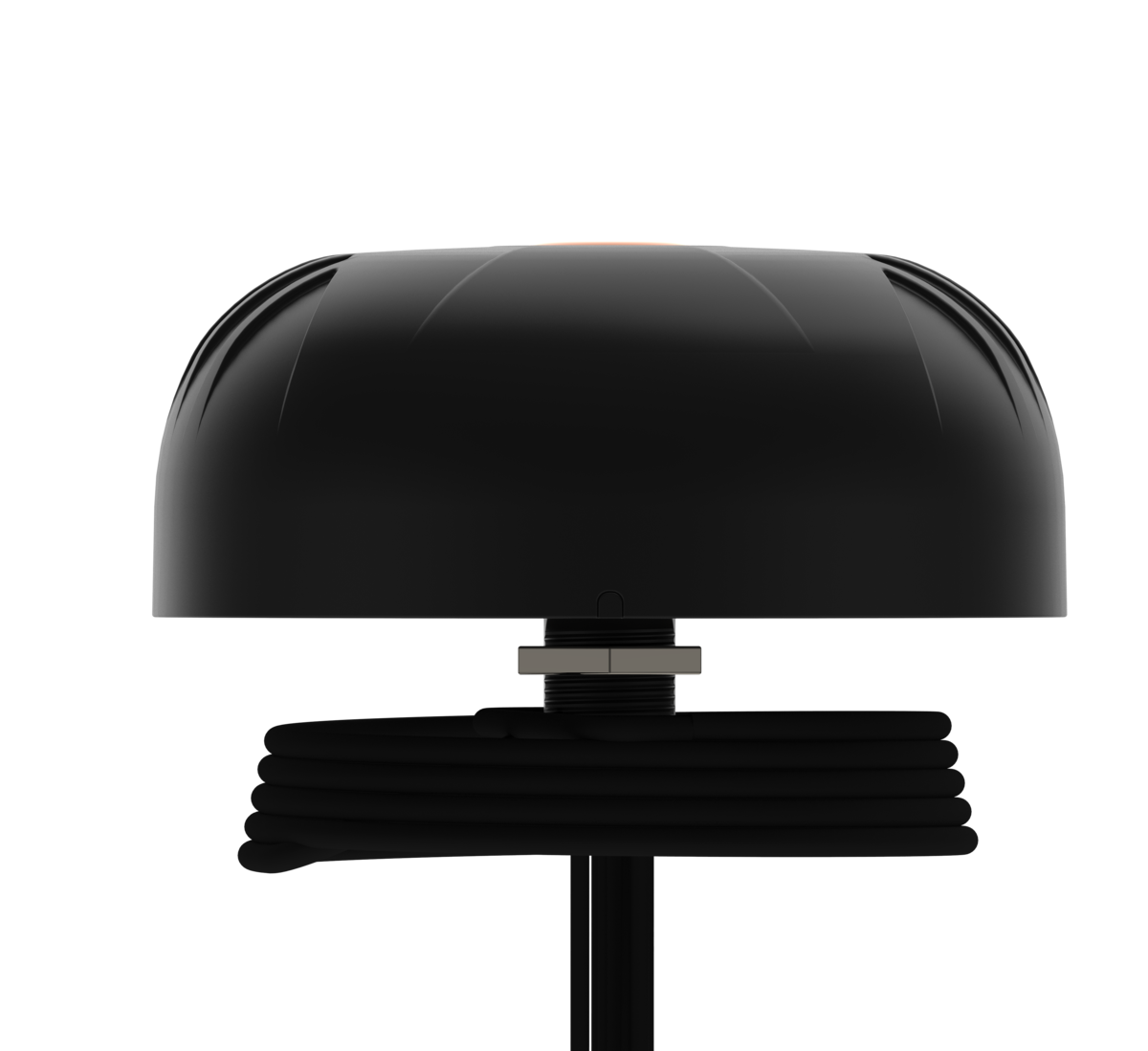

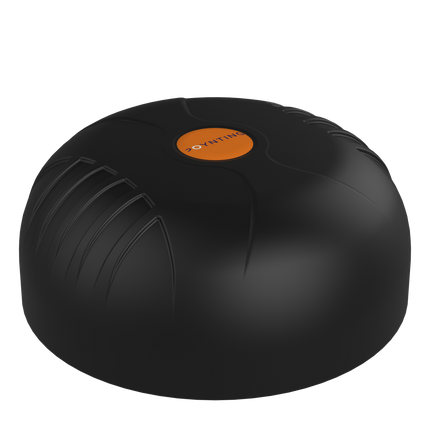

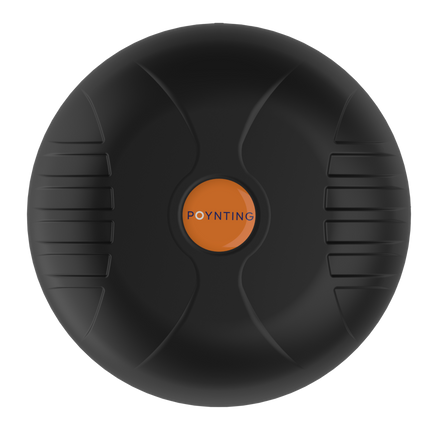

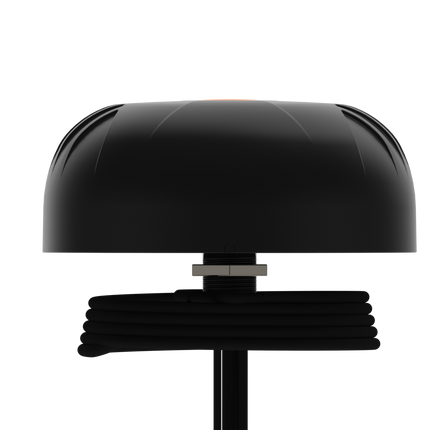

Poynting MIMO-4-19 Transportation Antenna, 9-In-1, 617-7200 MHz - Black

Poynting MIMO-4-19 Transportation Antenna, 9-In-1, 617-7200 MHz - Black

On backorder

Brand:
Item ID:
168014289
Export:
Accepted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
A-MIMO-0004-V1-19-B
Send Request for Quote (RFQ) Discount Offers
Poynting MIMO-4-19 9-In-1 4x4 MIMO 5G/LTE; 4x4 WiFi & GNSS Transportation & Automotive Antenna (617-7200 MHz); 6.0 / 6.5 dBi - Black
Regular price $595.00
Regular price $0.00 Sale price $595.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Poynting MIMO-4-19 Transportation Antenna combines nine high-performance radiating elements four cellular MIMO, four dual-band Wi-Fi, and one active GNSS (GPS/GLONASS) into a single, rugged IP69K enclosure. Covering 617 – 7200 MHz for LTE/5G and 2.4 GHz plus 5 – 7.2 GHz Wi-Fi, it delivers 6.0 / 6.5 dBi gain and ground-plane-independent operation for seamless connectivity in vehicles, marine vessels, and industrial IoT deployments. The four cellular MIMO antennas offer wideband coverage from 617 to 6000 MHz, covering LTE/4G and 5G bands for future proof implementation. The ultra-wideband performance of the cellular antennas allows it to be used across different operators & technologies. The antenna also provides four dual-band Wi-Fi antennas, providing concurrent 2.4 GHz and 5 to 7.2 GHz on each antenna for 4x4 MIMO capability.

Product Features:

  • It integrates nine elements in one compact housing: four wideband cellular MIMO elements (617–6000 MHz), four dual-band Wi-Fi antennas (2.4 GHz & 5–7.2 GHz), and one active GNSS receiver for GPS/GLONASS.
  • Its ultra-wideband performance ensures compatibility with LTE, 5G, and all popular Wi-Fi standards.
  • The medium-gain design (6.0 / 6.5 dBi) balances range and coverage for both cellular and Wi-Fi links.
  • The IP69K-rated, UV-stable enclosure and corrosion-resistant materials withstand high-pressure wash-downs, dust, and harsh weather conditions.
  • The optimised radiation patterns deliver true omnidirectionality and pattern diversity across all operating frequencies.
  • The ground-plane-independent architecture enables installation on metal or non-metal surfaces without performance loss.
  • It includes multiple mounting options—magnetic, bracket, spigot, or adhesive—for quick field deployment.

Application Areas:

  • It supports broadband and Wi-Fi distribution in trucks, buses, and utility vehicles to provide passenger internet access and telematics.
  • It is ideal for industrial automation, telemetry, and IoT systems in commercial and emergency-service fleet vehicles.
  • It facilitates reliable connectivity for agricultural machinery requiring precision-farming applications.
  • It enables combined cellular backhaul and onboard Wi-Fi networks for marine vessels and workboats.
  • It supports communications, telemetry, and automation (M2M & IoT) in mining vehicles and heavy equipment.
  • It is perfect for mobile offices and transport hubs where robust, multi-band connectivity is essential.

In the Box:

  • 1 × Poynting MIMO-4-19 Transportation & Automotive Antenna (black housing).
  • Mounting bracket, magnetic pad, spigot and adhesive kits for versatile installation.

Documents:

Poynting MIMO-4-19 Antenna - Datasheet

Videos:

What is the MIMO-4 Antenna and when do you use it? Unboxing the #POYNTING MIMO-4 Antenna for Transport and Automotive Applications What are the typical deployments for the MIMO-4 Antennas?

Product Specifications

MPN A-MIMO-0004-V1-19-B
Antenna application Terminal Antenna, Vehicle Antenna
Antenna cable type RTK-031
Antenna configuration 4x4 MIMO
Antenna features Omnidirectional, Multi Band Capable
Antenna port connectors SMA (M)
Antenna type Omni
Brands Poynting
Cable and connector 9 x RTK-031 Cables Terminated with SMA(M) connectors
Cable length m 2
Colour Black
Connector SMA(M)
Coverage type Omni-directional
Frequency band Dual Band 2.4 & 5.8 GHz WiFi, Multi-Band 617-4200 MHz
Frequency range mhz 5000 - 6000, 3400 - 3800, 1427 - 1517, 1710 - 2700, 3400 - 4200, 617 - 960
Height 15
Ingress protection ip IP69K
Installation type Internal or external mounting
Ip rating IP69K
GTIN/EAN 6009710925348
Length 23
Low pim No
Max frequency mhz 7200
Max gain dbd dbi 21
Mimo support Yes
Min frequency mhz 617
Min gain dbd dbi -0.5
Mount supported Stud mount
Mount supported detailed Stud mount
No of antenna ports 9
Nominal gain dbi 6 / 6.5
Number of outputs 9
Polarisation Vertical
Power w 10
Salt spray MIL-STD 810g/ASTM B117
Technologies supported Wi-Fi, 2G, 3G, 4G, 5G, GPS
Temperature range c -40 to +80
Tuned bandwidth Full
Vswr < 2:1
Width 22
Wind gust km h ?220
Wind load 160km h n 220
