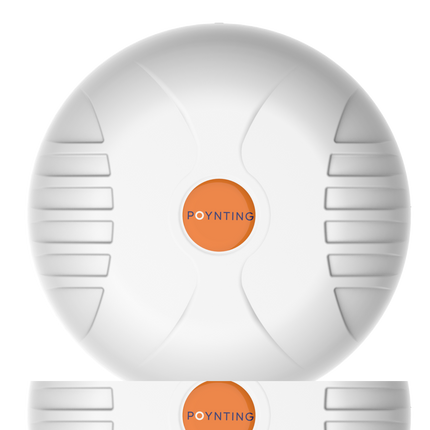

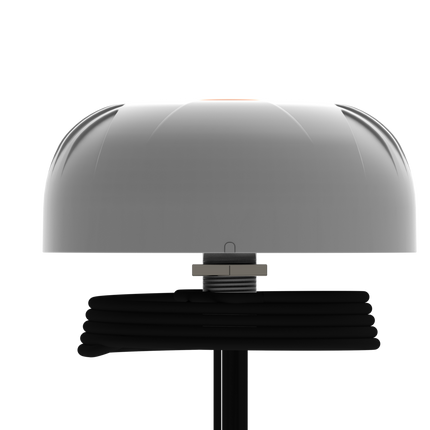

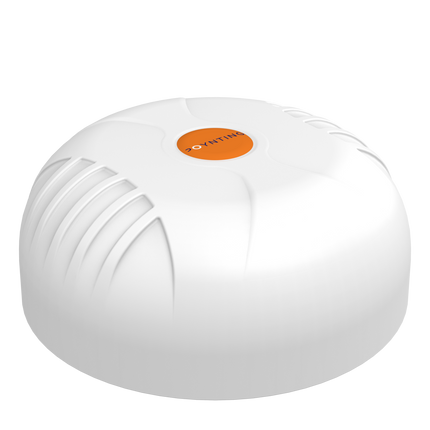

The Poynting MIMO-4-19-W Transportation Antenna combines nine high-performance radiating elements four cellular MIMO, four dual-band Wi-Fi, and one active GNSS (GPS/GLONASS) into a single, rugged IP69K enclosure. Covering 617 – 7200 MHz for LTE/5G and 2.4 GHz plus 5 – 7.2 GHz Wi-Fi, it delivers 6.0 / 6.5 dBi gain and ground-plane-independent operation for seamless connectivity in vehicles, marine vessels, and industrial IoT deployments. The four cellular MIMO antennas offer wideband coverage from 617 to 6000 MHz, covering LTE/4G and 5G bands for future proof implementation. The ultra-wideband performance of the cellular antennas allows it to be used across different operators & technologies. The antenna also provides four dual-band Wi-Fi antennas, providing concurrent 2.4 GHz and 5 to 7.2 GHz on each antenna for 4x4 MIMO capability.

Product Features:

• It integrates nine elements in one compact housing: four wideband cellular MIMO elements (617–6000 MHz), four dual-band Wi-Fi antennas (2.4 GHz & 5–7.2 GHz), and one active GNSS receiver for GPS/GLONASS.
• Its ultra-wideband performance ensures compatibility with LTE, 5G, and all popular Wi-Fi standards.
• The medium-gain design (6.0 / 6.5 dBi) balances range and coverage for both cellular and Wi-Fi links.
• The IP69K-rated, UV-stable enclosure and corrosion-resistant materials withstand high-pressure wash-downs, dust, and harsh weather.
• Optimised radiation patterns deliver true omnidirectionality and pattern diversity across all operating frequencies.
• The ground-plane-independent architecture enables installation on metal or non-metal surfaces without any performance loss.
• It includes multiple mounting options—magnetic, bracket, spigot, or adhesive—for quick field deployment.

Application Areas:

• It supports broadband and Wi-Fi distribution in trucks, buses, and utility vehicles to provide passenger internet access and telematics.
• It is ideal for industrial automation, telemetry, and IoT systems in commercial and emergency-service fleets.
• It facilitates agricultural machinery by providing reliable cellular and Wi-Fi connectivity for precision-farming applications.
• It enables marine vessels and workboats to utilize combined cellular backhaul and onboard Wi-Fi networks.
• It supports mining vehicles and heavy equipment with remote monitoring, control, and crew connectivity capabilities.
• It is perfect for mobile offices and transport hubs where robust, multi-band connectivity is essential.

In the Box:

• 1 × Poynting MIMO-4-19-W Transportation & Automotive Antenna (white housing).
• Mounting bracket, magnetic pad, spigot and adhesive kits for versatile installation.
