Poynting Omni-292 LTE Wideband Antenna, 617-2700 MHz, 8 dBi, N-Female

Poynting Omni-292 LTE Wideband Antenna, 617-2700 MHz, 8 dBi, N-Female

On backorder

Brand:
Item ID:
168014294
Export:
Accepted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
A-OMNI-0292-V2
Send Request for Quote (RFQ) Discount Offers
Poynting LTE Omni-292 Directional Wideband Antenna (617-2700 MHz); 8 dBi covers all cellular frequencies bands needed for 4G LTE.
Regular price $282.00
Regular price $0.00 Sale price $282.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

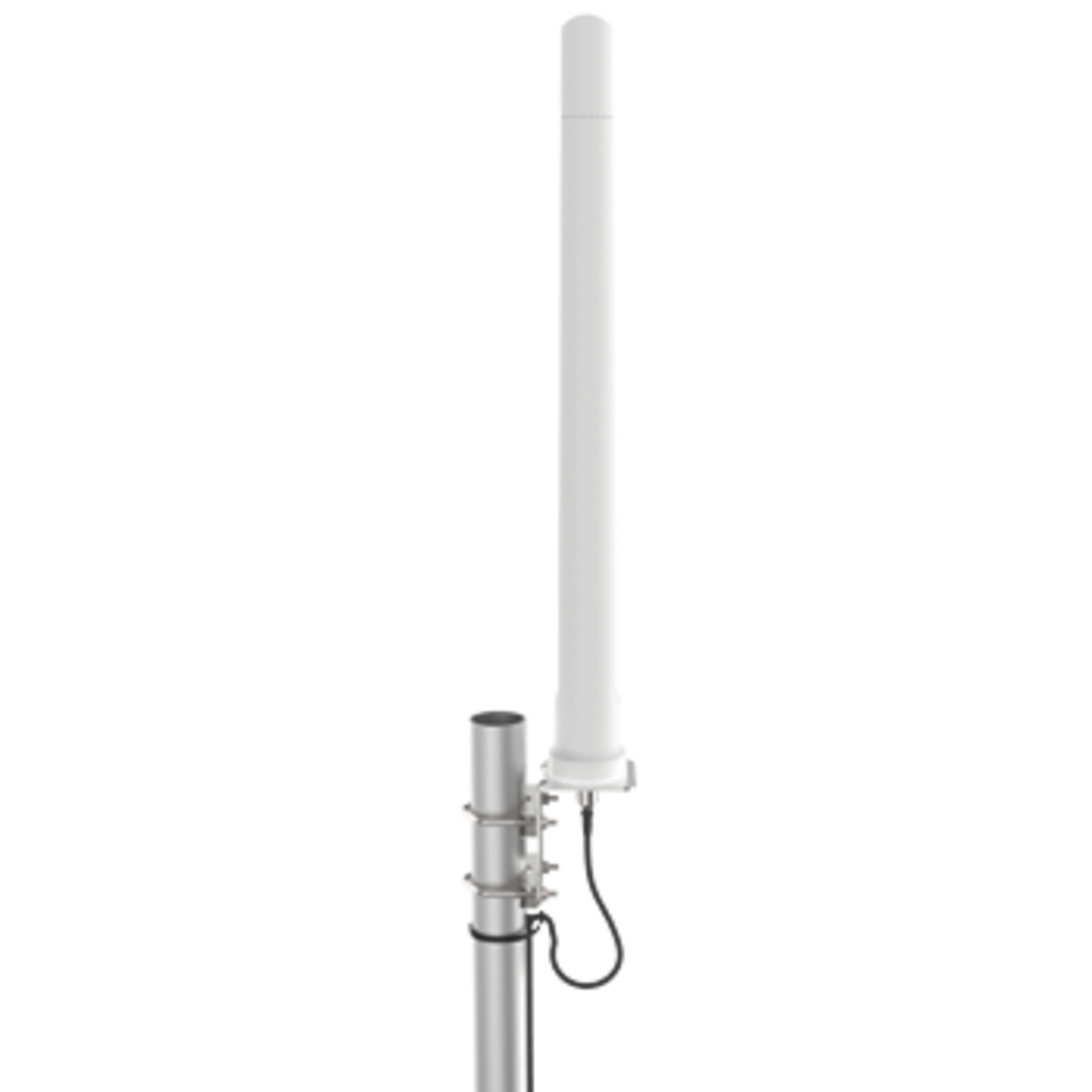

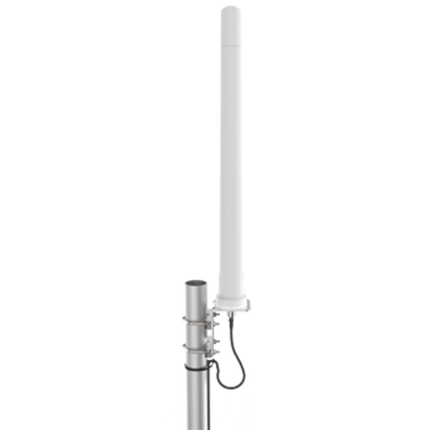

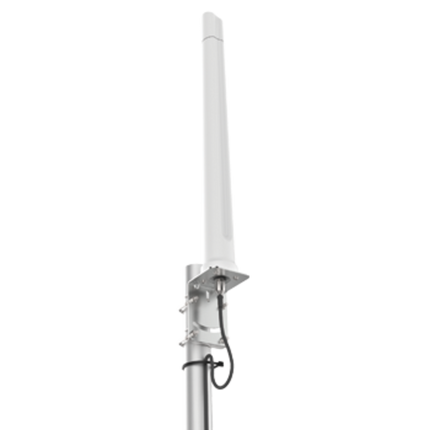

The Poynting Omni-292 LTE Wideband Omni-Directional Antenna delivers a steady 8 dBi gain across the full 617 – 2700 MHz cellular spectrum including 4G LTE, HSDPA, 3G, EDGE, GPRS, voice bands, plus the 2.4 GHz Wi-Fi range. Engineered for fixed and M2M installations, the Omni-292’s robust, weather-resistant design and N-Type female connector make it an installer’s choice for reliable, high-performance links in industrial, transportation, and remote-office applications.

Product Features:

  • The high-gain omni-directional design (8 dBi) ensures consistent, wide-area coverage.
  • It provides ultra-wideband coverage across all essential cellular bands (617–2700 MHz) and the 2.4–2.5 GHz Wi-Fi band for versatile connectivity.
  • The lightweight, yet rugged enclosure withstands harsh weather, UV exposure, and industrial environments.
  • It operates in the 2.4–2.5 GHz Wi-Fi band, enabling combined cellular and local network applications.
  • It features an N-Type female connector that allows the use of any cable type and length for flexible installations.
  • The OMNI-292 omni-directional antenna operates in the 617–960 MHz, 1427–1517 MHz, and 1710–2700 MHz frequency ranges.

Application Areas:

  • It supports machine-to-machine (M2M) communication over GSM and LTE networks.
  • It enhances cellular data signal reception in both indoor and outdoor settings.
  • It improves slow or unstable data transmission connections for critical equipment.
  • It increases system transmission reliability in high-end industrial-grade routers.
  • It is ideal for mobile offices and transportation applications such as caravans, RVs, and utility vehicles.

In the Box:

  • 1 × Poynting Omni-292 LTE Wideband Omni-Directional Antenna.
  • 1 × N-Type female connector.

Documents:

Poynting Omni-292 Antenna - Datasheet

Videos:

Speed difference when changing networks - Tested with OMNI-292 Antenna Speed test by using Indoor (bunny ears) vs Outdoor (OMNI-292) Cellular Antennas

Product Specifications

MPN A-OMNI-0292-V2
Antenna application Terminal Antenna
Antenna configuration SISO
Antenna features Omnidirectional
Antenna port connectors N (F)
Antenna type Omni
Brands Poynting
Colour White
Connector N(F)
Coverage type Omni-directional
Frequency band Multi-Band 700-2700 MHz
Frequency mhz 790-960|1710-2170|2500-2700
Frequency range mhz 1710 - 2170, 2300 - 2700, 1427 - 1517, 617 - 960
Height 9
Ingress protection ip IP65
Installation type External mounting
Ip rating IP65
GTIN/EAN 6009710923726
Length 70
Low pim No
Max frequency mhz 2700
Max gain dbd dbi 8
Mimo support No
Min frequency mhz 617
Min gain dbd dbi 5
Mount supported Wall mount, Pole mount, Window mount
Mount supported detailed Wall mount, Pole mount, Window mount
Mounting area Window (suction), wall or pole mount
No of antenna ports 1
Nominal gain dbi 8
Polarisation Vertical
Power w 5
Rf connectors N female
Technologies supported Wi-Fi, 2G, 3G, 4G
Temperature range c -40 to +70
Tuned bandwidth Full
Vswr < 2.5:1
Width 9.5
Wind gust km h ?190
Wind load 160km h n 190
