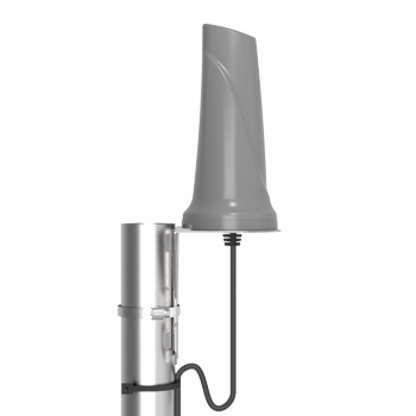

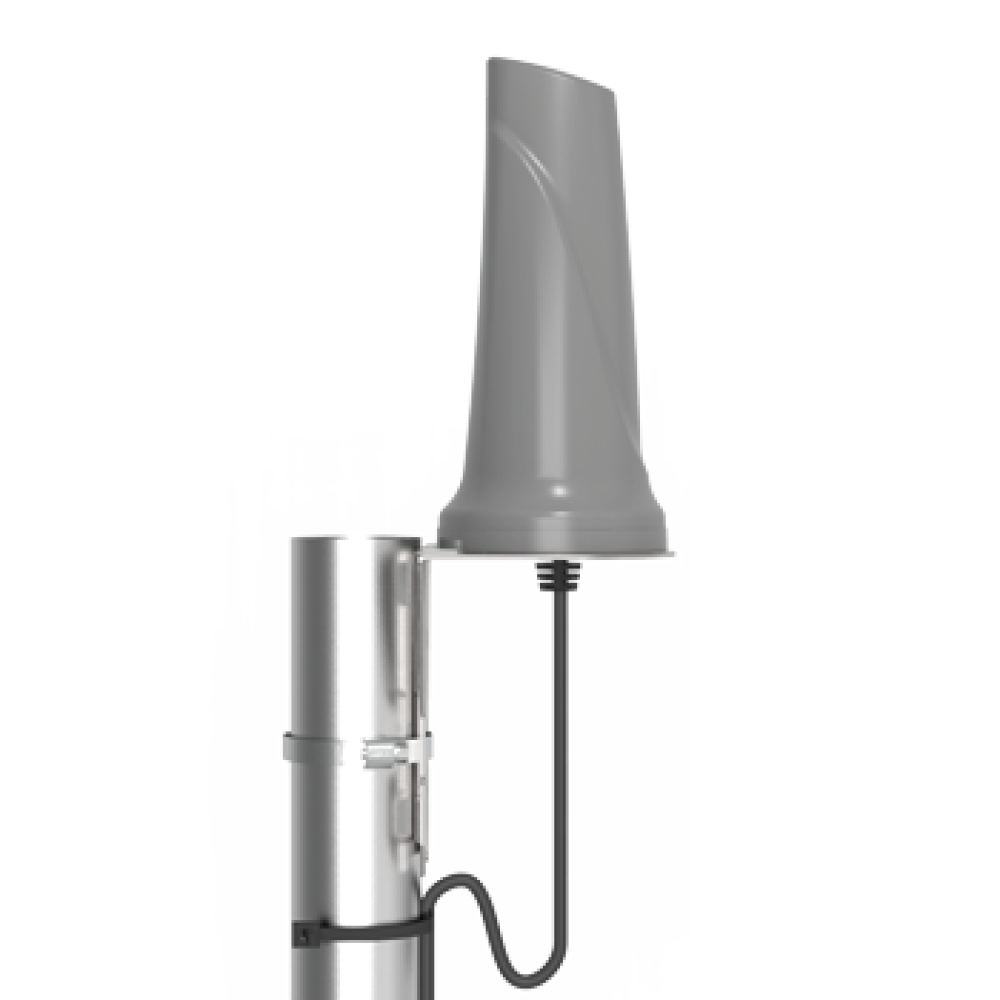

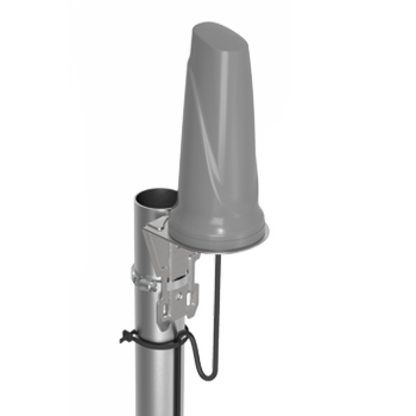

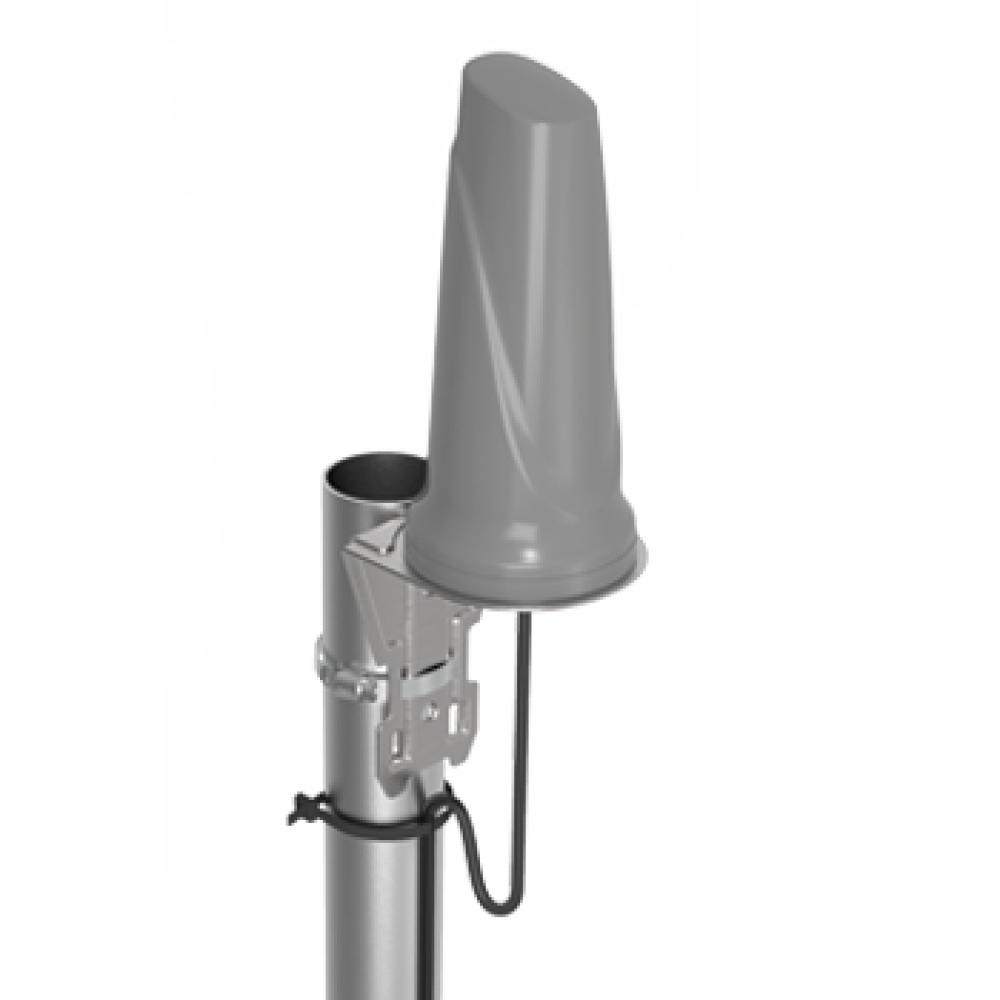

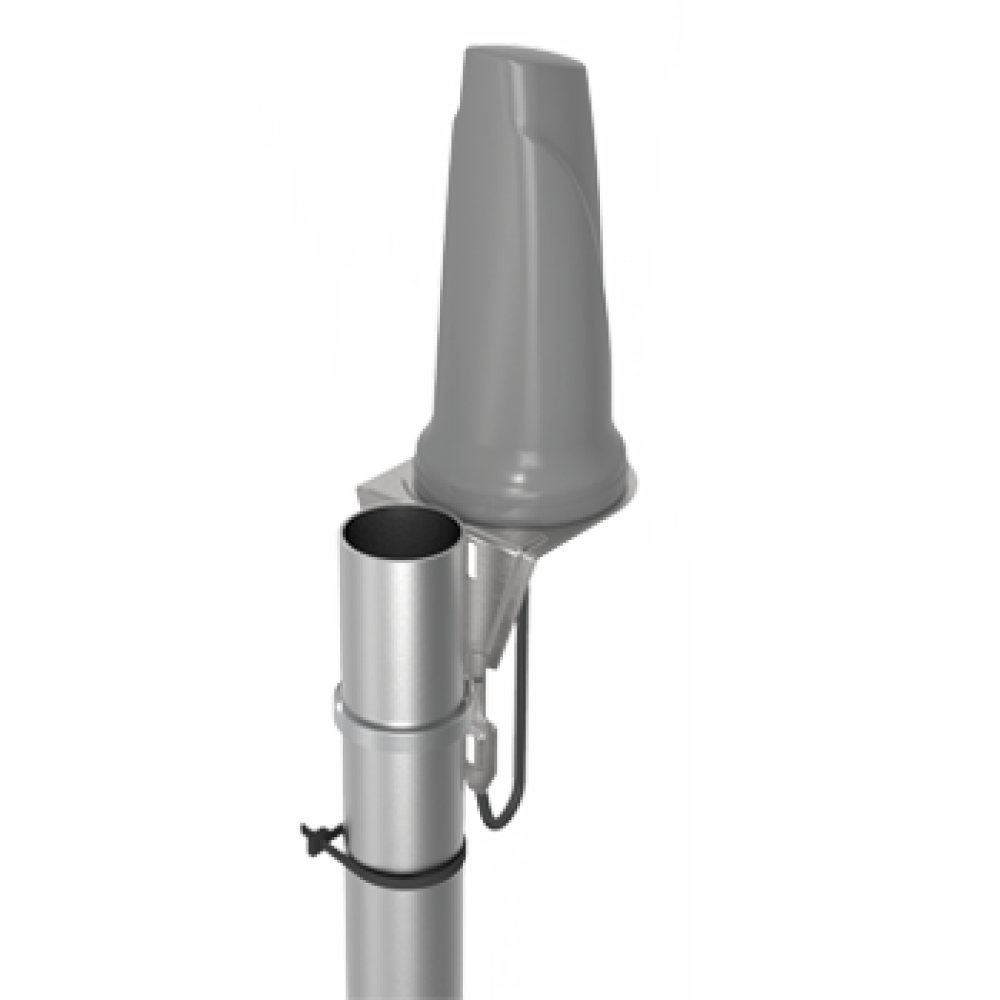

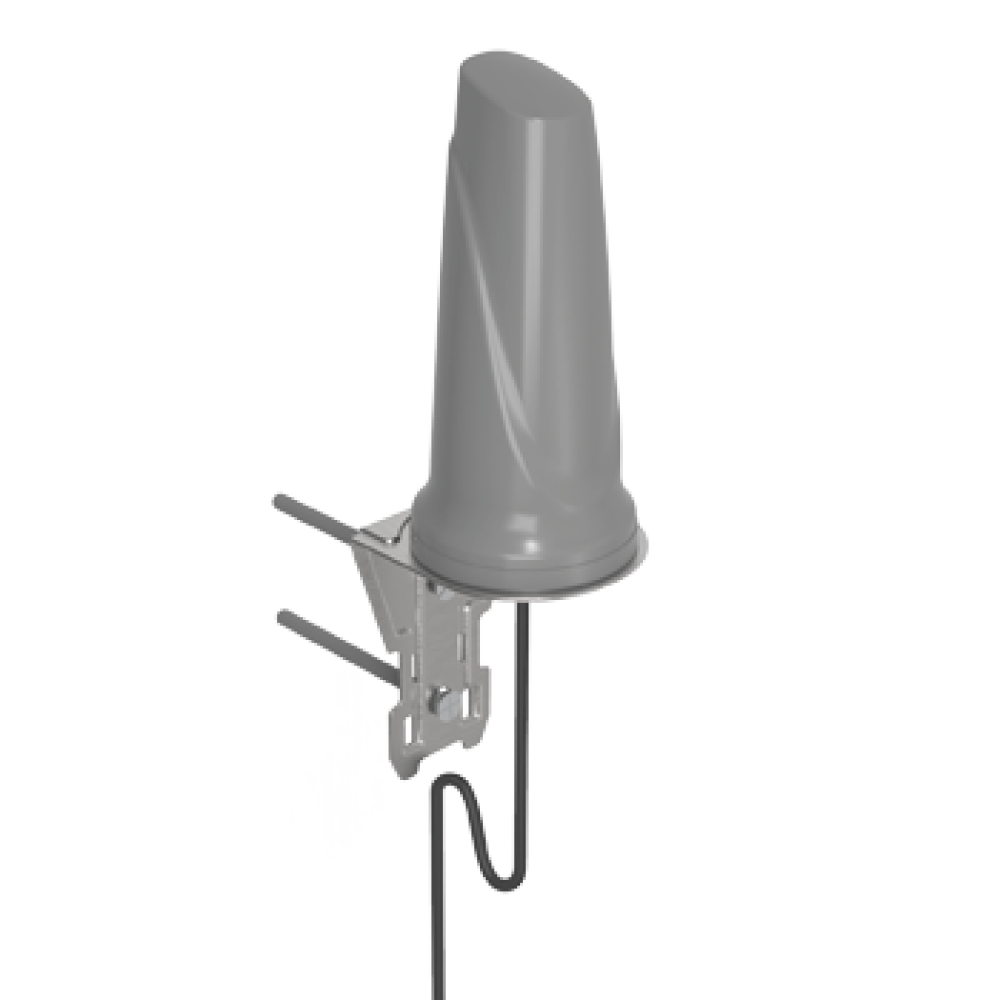

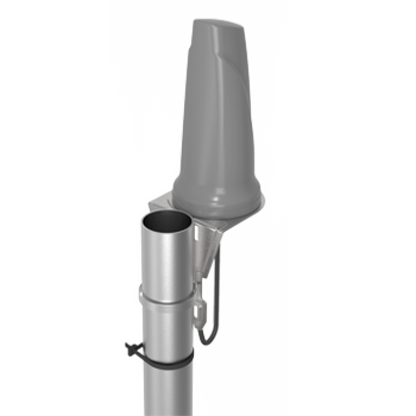

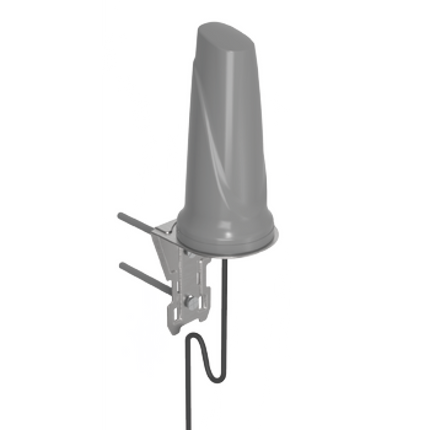

Poynting OMNI-297 5G/LTE Rhyno Antenna, 2 dBi, 0.6m, SMA-Male

Poynting OMNI-297 5G/LTE Rhyno Antenna, 2 dBi, 0.6m, SMA-Male

On backorder

Brand:
Item ID:
165022188
Export:
Accepted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
A-OMNI-0297-V1-01
Send Request for Quote (RFQ) Discount Offers
Poynting OMNI-297 Omni-Directional, Wideband LTE Antenna: 698-3800 MHz, 2 dBi forms part of the new Poynting “Rhyno” antenna range. The OMNI-297 is wideband cellular antenna that operates from 617 to 3800 MHz, covering all the contemporary 5G and LTE frequency bands.
Regular price $136.50
Regular price $0.00 Sale price $136.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The new Poynting OMNI-297 Omni-Directional, Wideband LTE Antenna: 698-3800 MHz, 2 dBi forms part of the new Poynting “Rhyno” antenna range. The OMNI-297 is wideband cellular antenna that operates from 617 to 3800 MHz, covering all the contemporary 5G and LTE frequency bands. The antenna is designed for superior pattern control over the entire frequency range, making the OMNI-297 an exceptional omni-directional antenna for its size. The constant gain across the entire frequency range improves the LTE performance features, such as multi carrier aggregation (CA). The ideal operation for the antenna will be for fixed installations of any cellular bands. It is also ideal for machine to machine (M2M) and internet of things (IoT) applications that communicate through the GSM networks (GPRS/EDGE/3G/HSPA/LTE).

Product Features:

  • The antenna is suitable for all 5G networks operating up to 3800 MHz.
  • It delivers medium gain in an omni-directional pattern for consistent 360° coverage.

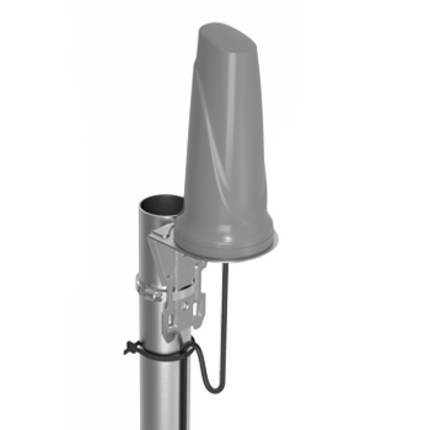

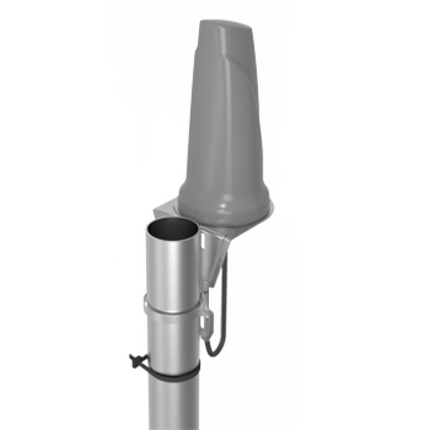

  • The design allows for both wall and pole mounting to simplify installation.
  • The robust enclosure provides protection against vandalism and dust ingress.
  • The sleek, low-profile form factor offers an aesthetically pleasing appearance.

Application Areas:

  • It supports machine-to-machine (M2M) communication and Internet of Things (IoT) applications.
  • It enhances connectivity in areas with poor data signal reception, both indoors and outdoors.
  • It improves slow data transmission connections for critical equipment.
  • It increases system transmission reliability to maintain stable network performance.
  • It is ideal for use with high-end industrial-grade routers.
  • It enhances signal reception for mobile office environments.

In the Box:

  • Poynting OMNI-297 5G/LTE Rhyno Antenna
  • 0.6 m cable
  • SMA-Male connector

Documents:

Poynting A-OMNI-0297-V1-01 Antenna - Datasheet

Videos:

Poynting A-OMNI-0297-V1-01 Antenna - Product Overview Poynting A-OMNI-0297-V1-01 Antenna - Unboxing Poynting A-OMNI-0297-V1-01 Antenna testing in extreme conditions

Product Specifications

MPN A-OMNI-0297-V1-01
Antenna cable type RG58
Antenna port connectors SMA (M)
Brands Poynting
Cable length m 0.6
Coverage type Omni-directional
Height 15.5
Ingress protection ip IP69K
Installation type External mounting
GTIN/EAN 6009710920909
Length 7
Low pim No
Max frequency mhz 3800
Max gain dbd dbi 2
Mimo support No
Min frequency mhz 617
Min gain dbd dbi -3.5
Mount supported Adhesive mount, Bracket mount
Mount supported detailed Adhesive mount, L-bracket
No of antenna ports 1
Power w 10
Technologies supported Wi-Fi, 2G, 3G, 4G, 5G
Width 7
Wind gust km h <190
