Poynting OMNI-300-1 LoRa, Helium, IoT Antenna, 868-930 MHz, 4.5 dBi, N-Female

    Poynting OMNI-300-1 LoRa, Helium, IoT Antenna, 868-930 MHz, 4.5 dBi, N-Female

      Product form
      Brand:
      Item ID:
      168015383
      Export:
      Accepted
      Shipping:
      Please contact us for lead time
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Options/MPN:
      A-OMNI-0300-V2-01

      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy

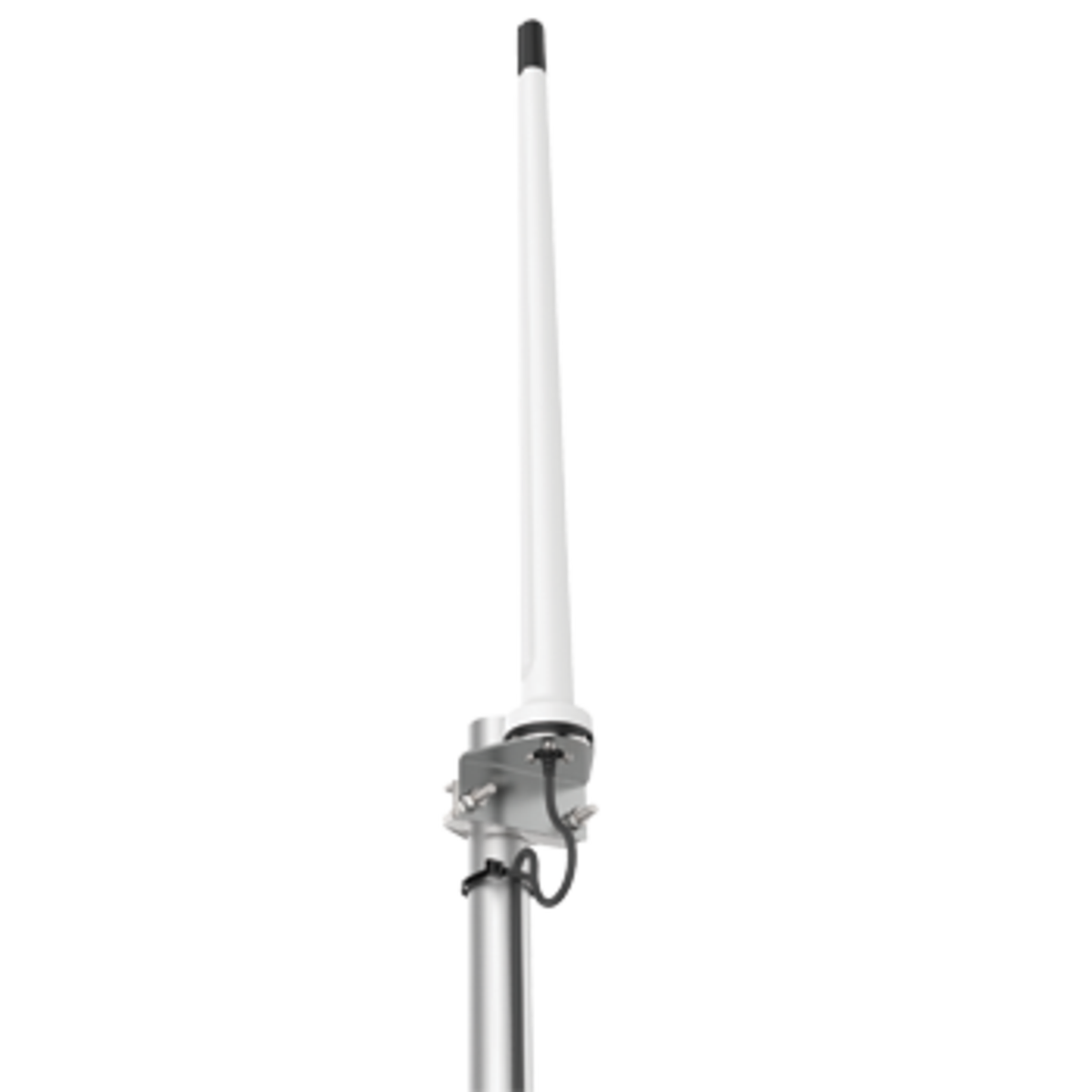

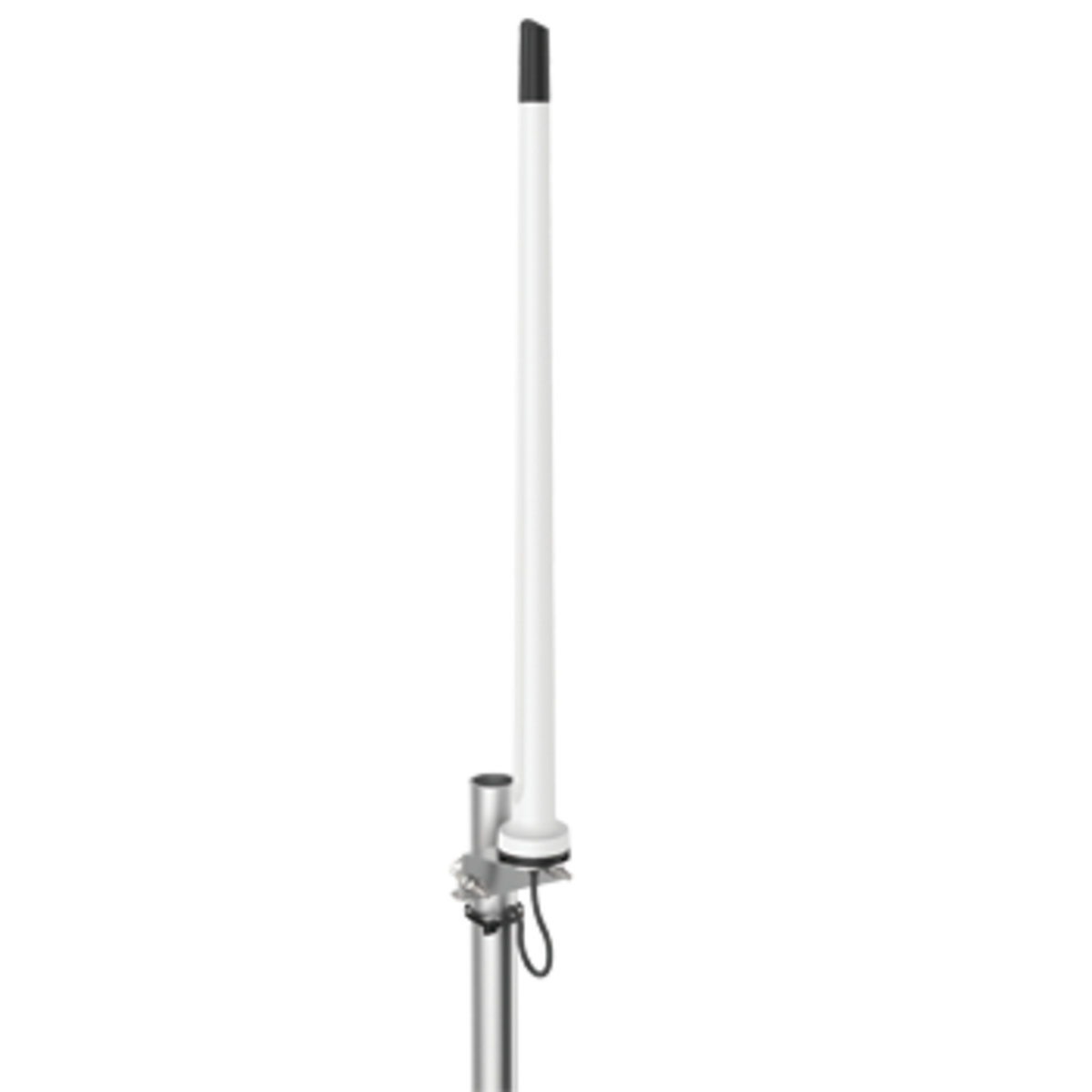

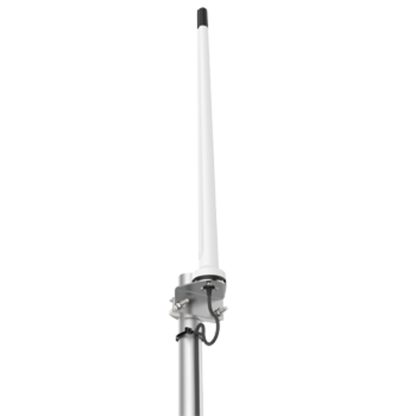

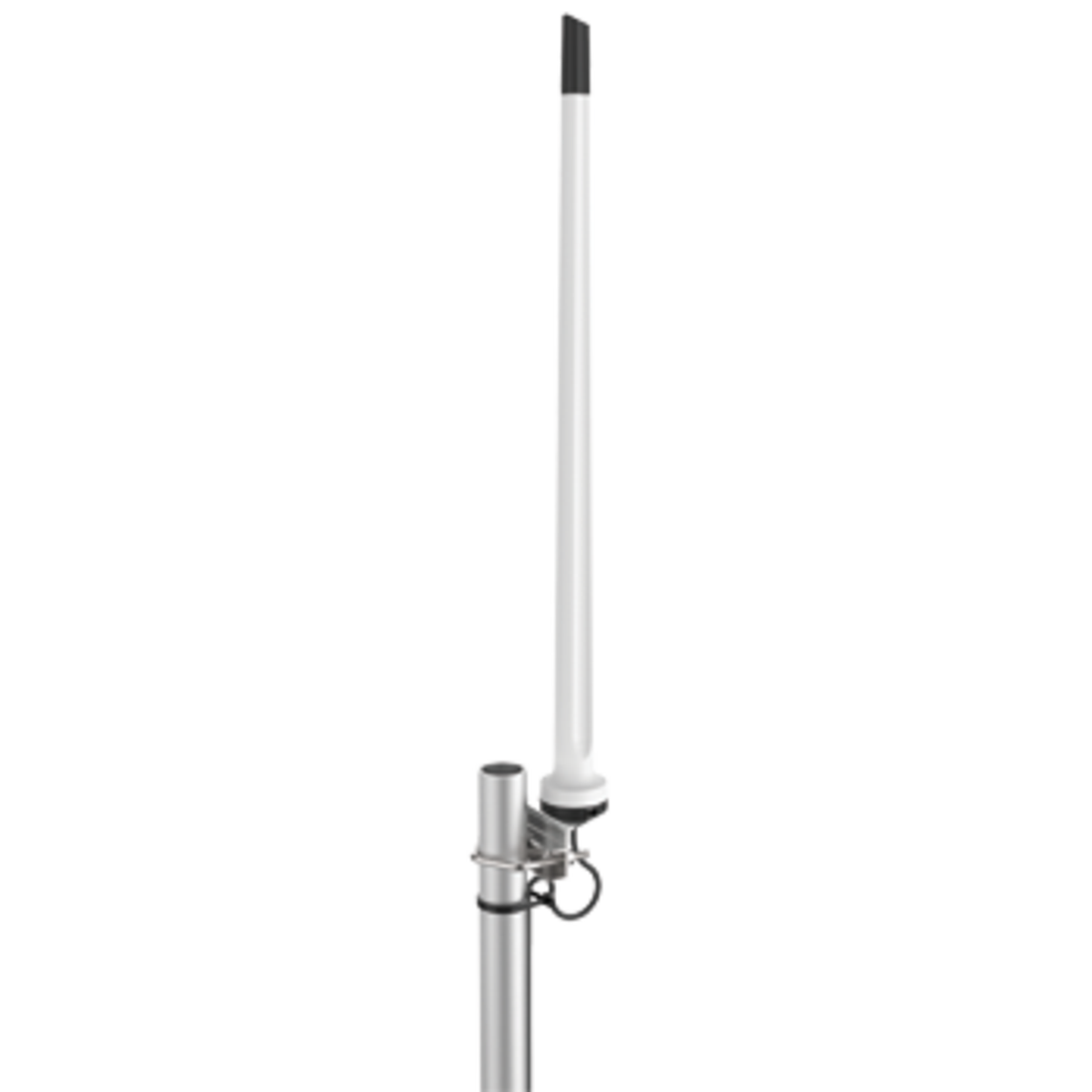

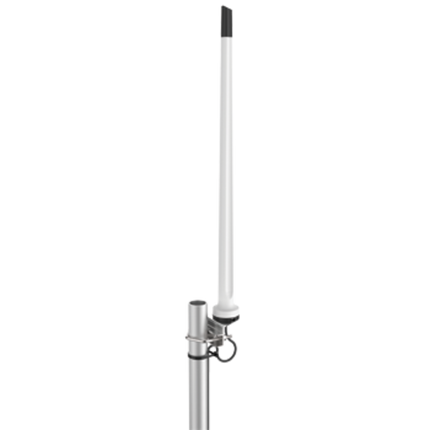

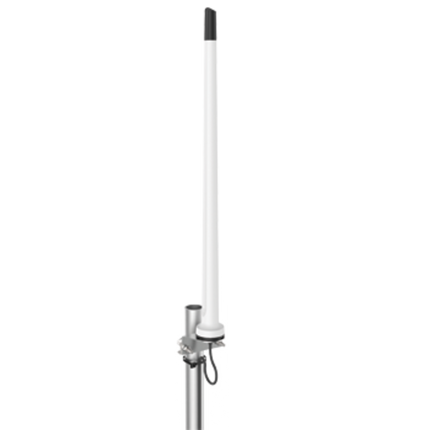

      Poynting OMNI-300 Omni-Directional LoRa/Helium/IoT Antenna (868-930 MHz); N(F) 4.5 dBi, is dust and water-resistant (IP65), making it ideal for outdoor deployment.

      $117.00

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
      •  Item available to backorder. Please contact us for lead time.
      • Pay securely! All major cards accepted.

        shop pay

      Product Description

      Poynting OMNI-300 Omni-Directional LoRa/Helium/IoT Antenna (868-930 MHz); N(F) 4.5 dBi, elevates Machine to Machine (M2M) and Internet of Things (IoT) connectivity. This omni-directional powerhouse is tailored for the 868-930 MHz frequency bands, ensuring seamless communication through LoRa and ISM for long-range applications.

      Product Features:

      • The OMNI-300 is an omni-directional, medium-gain antenna that provides enhanced connectivity by facilitating higher data throughput for a stable, high-quality connection.
      • The lightweight and rugged design allows the antenna to be effortlessly wall- or pole-mounted, offering flexibility in deployment.
      • The antenna is dust- and water-resistant with an IP65 rating, ensuring durability in challenging conditions.
      • The OMNI-300 is optimized for M2M and IoT deployments and is perfect for real-time monitoring in utilities, security, and other applications.
      • The antenna features an N-Type (female) connector at its base for seamless integration with cabling.

      Application Areas:

      • The antenna is ideal for M2M applications where machines and measurement devices require reliable connectivity for real-time monitoring.
      • The device provides efficient data transmission for utility monitoring systems in power and water metering applications.
      • The OMNI-300 delivers robust connectivity for security industry deployments, including monitoring cameras and other security equipment.
      • The antenna increases system transmission reliability, making it an indispensable choice for critical communication setups.

      In the Box:

      • Poynting OMNI-300-1 LoRa Antenna - White
      • N-Female connector

      Documents:

      Poynting OMNI-300 Antenna - Datasheet

      Product Specifications

      MPN A-OMNI-0300-V2-01
      Antenna application Terminal Antenna
      Antenna configuration SISO
      Antenna features Omnidirectional
      Antenna port connectors N (F)
      Antenna type Omni SISO
      Brands Poynting
      Colour White
      Connector N(F)
      Coverage type Omni-directional
      Frequency mhz 868-930
      Height 6.5
      Ingress protection ip IP65
      Installation type External mounting
      Ip rating IP65
      GTIN/EAN 6009710922033
      Length 59.5
      Low pim No
      Max frequency mhz 930
      Max gain dbd dbi 4.5
      Mimo support No
      Min frequency mhz 868
      Min gain dbd dbi 4.5
      Mount supported Wall mount, Pole mount
      Mount supported detailed Wall mount, Pole mount
      Mounting area wall or pole mount
      No of antenna ports 1
      Nominal gain dbi 4.5
      Polarisation Vertical
      Power w 10
      Salt spray MIL-STD 810g/ASTM B117
      Technologies supported ISM, LoRa
      Temperature range c -40 to +80
      Tuned bandwidth Full
      Vswr < 2.0:1
      Width 13
      Wind gust km h ?160
      Wind load 160km h n 160
