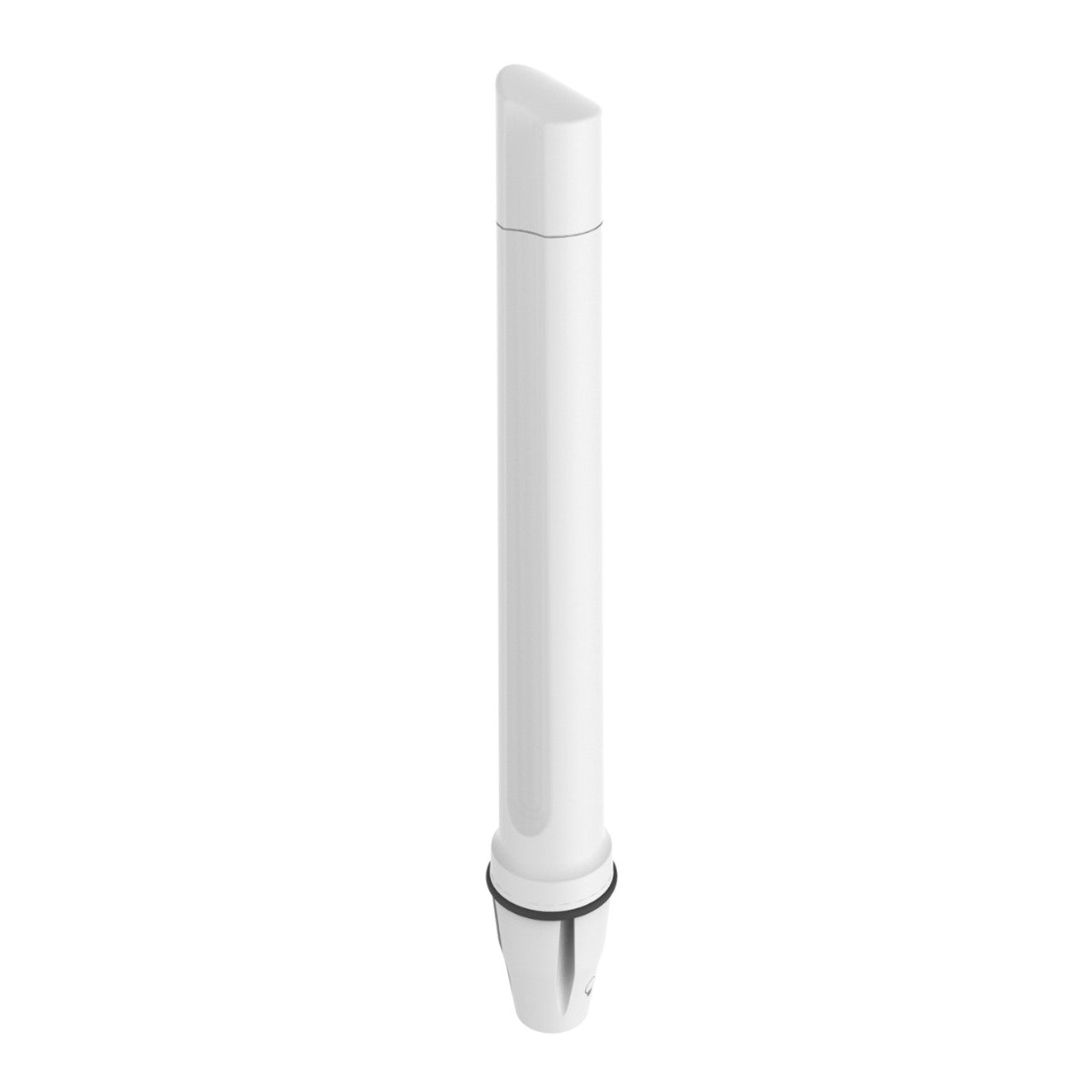

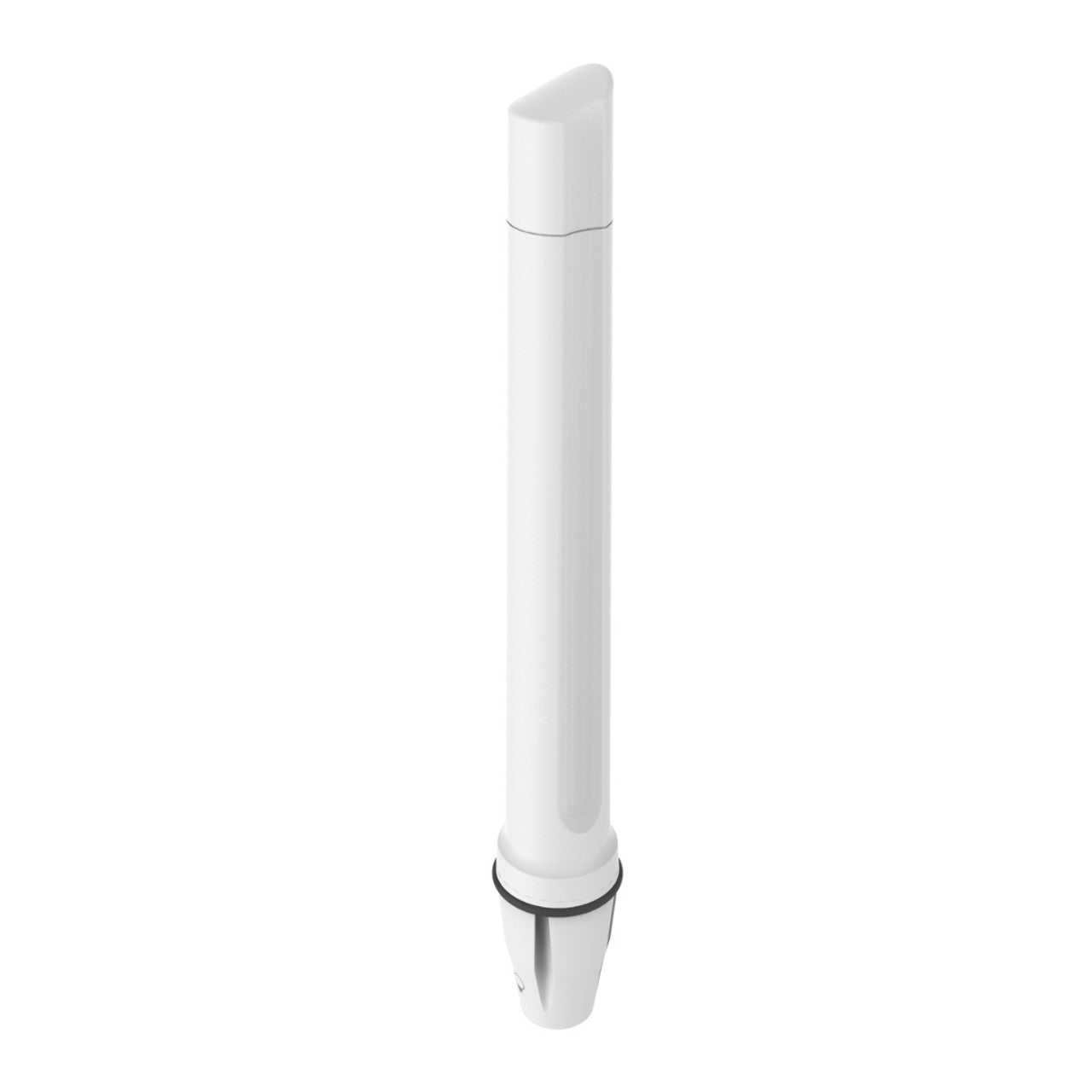

Poynting OMNI-400 LTE Marine Antenna, 617-2700 MHz, 7.5 dBi, N-Female

Poynting OMNI-400 LTE Marine Antenna, 617-2700 MHz, 7.5 dBi, N-Female

On backorder

Brand:
Item ID:
165022226
Export:
Accepted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
A-OMNI-0400
Discount Offers
Poynting OMNI-400 LTE is a high-performance marine antenna. It is easy to install to most marine attachments with help of standard 1-inch (14 TPI) marine mount. This antenna supports an ultra-wide frequency band that covers all contemporary LTE operating frequencies and provides well-balanced gain across the entire range.
Price on application
Open Request for Quote (RFQ) Form View full details

Product Description

Poynting OMNI-400 LTE is a high-performance marine antenna. It is easy to install on most marine attachments with the help of standard 1-inch (14 TPI) marine mount. This antenna supports an ultra-wide frequency band that covers all contemporary LTE operating frequencies and provides well-balanced gain across the entire range. Its design allows Poynting to achieve superior pattern control. The OMNI-400 is suitable for use worldwide as it guarantees signal reception almost everywhere.

Product Features:

  • This antenna delivers high-performance omni-directional coverage specifically designed for marine environments.

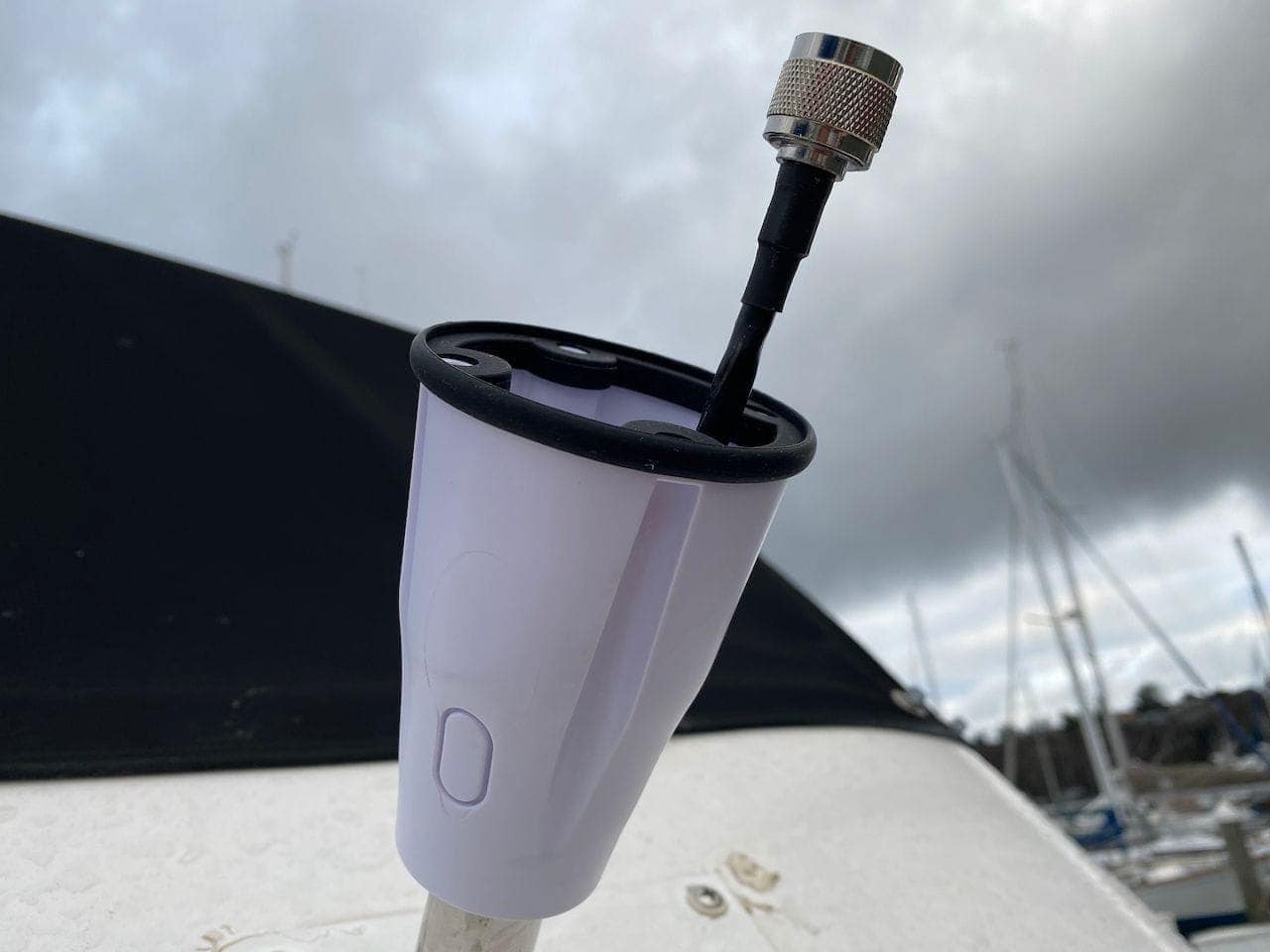

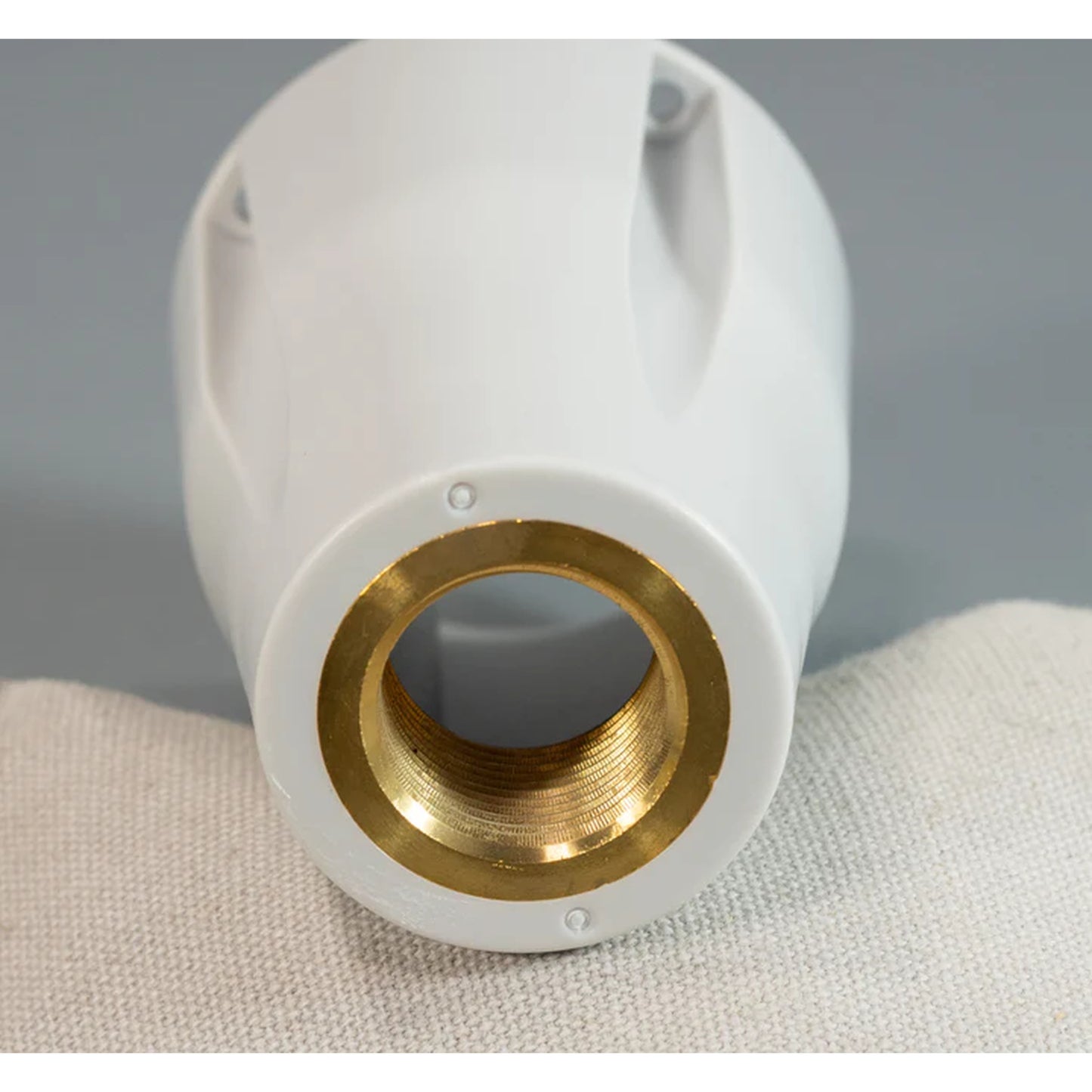

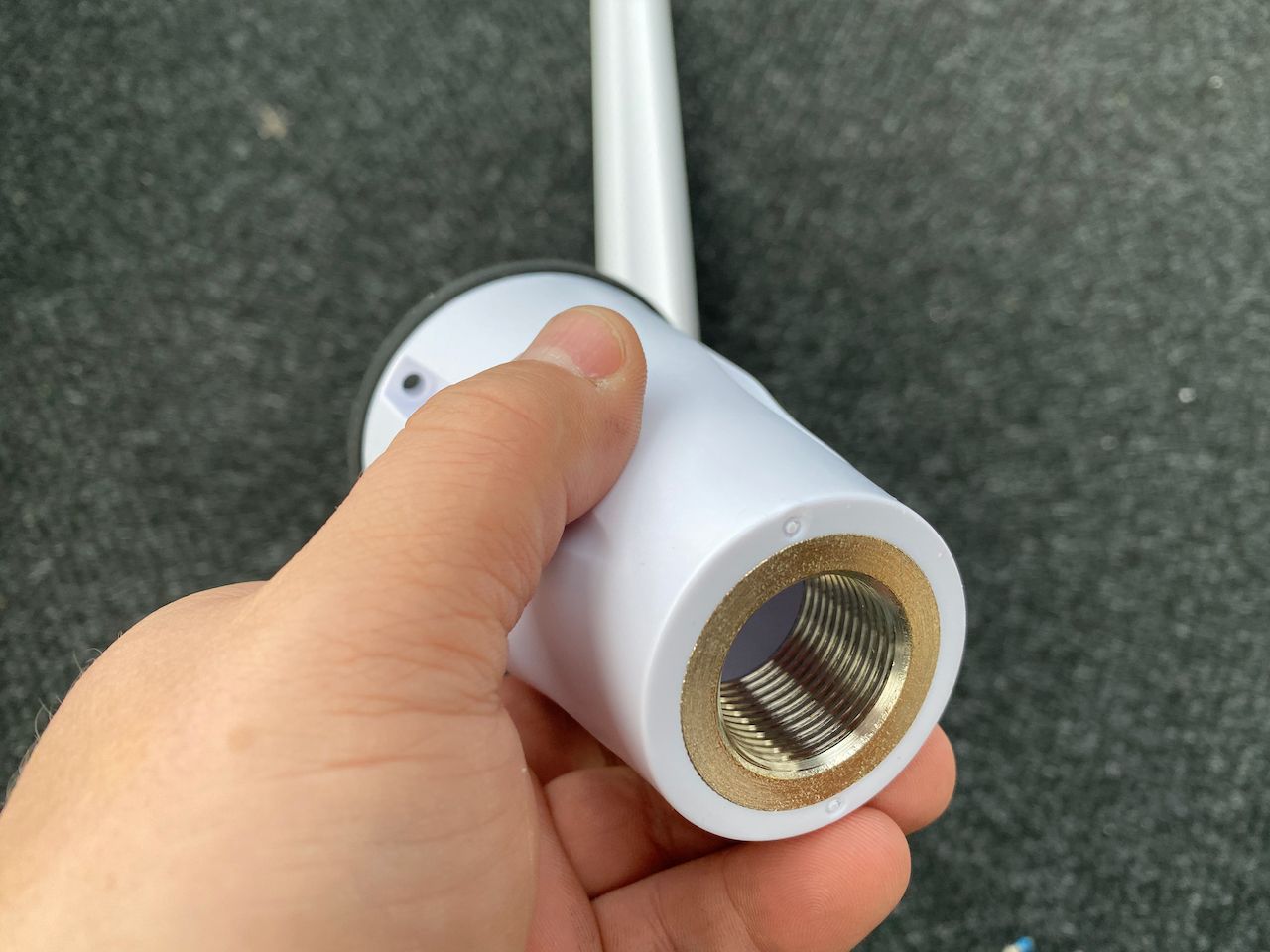

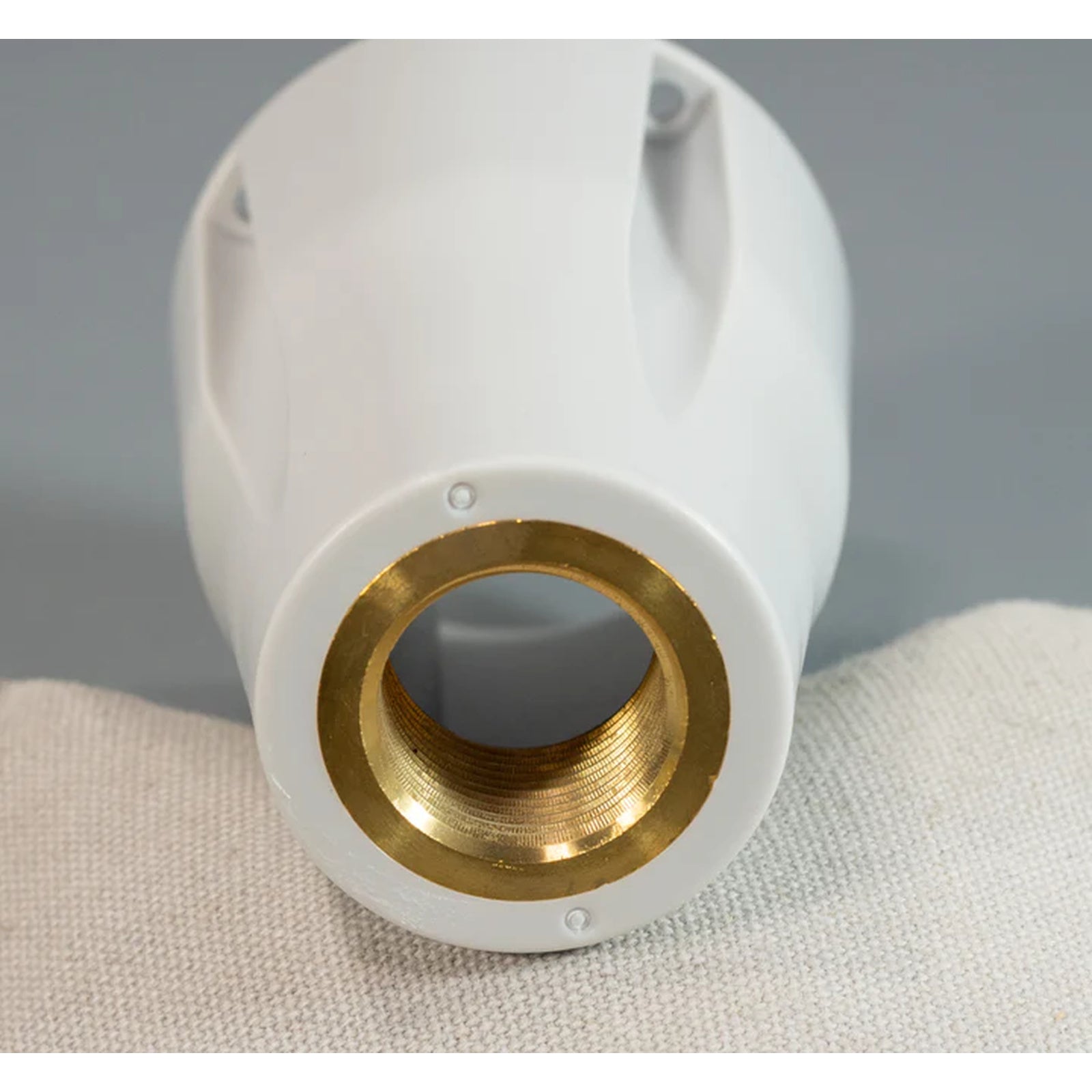

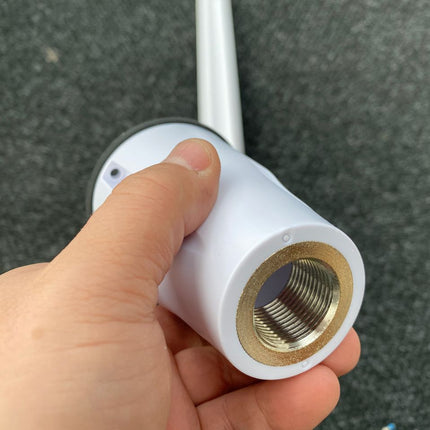

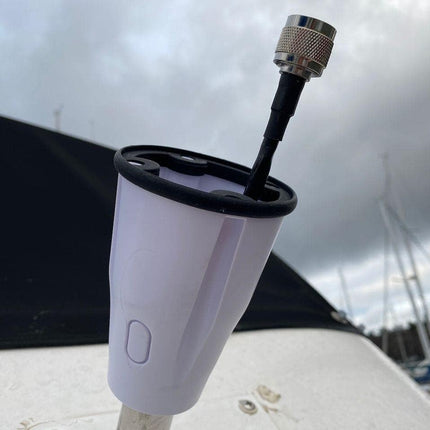

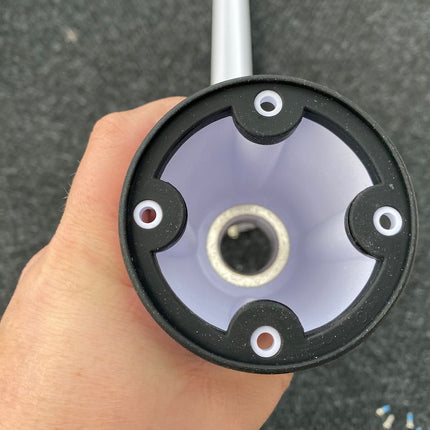

  • It mounts easily using a standard 1-inch marine adapter bracket for quick installation.
  • The durable enclosure is IP67-rated to withstand harsh saltwater, dust, and weather conditions.

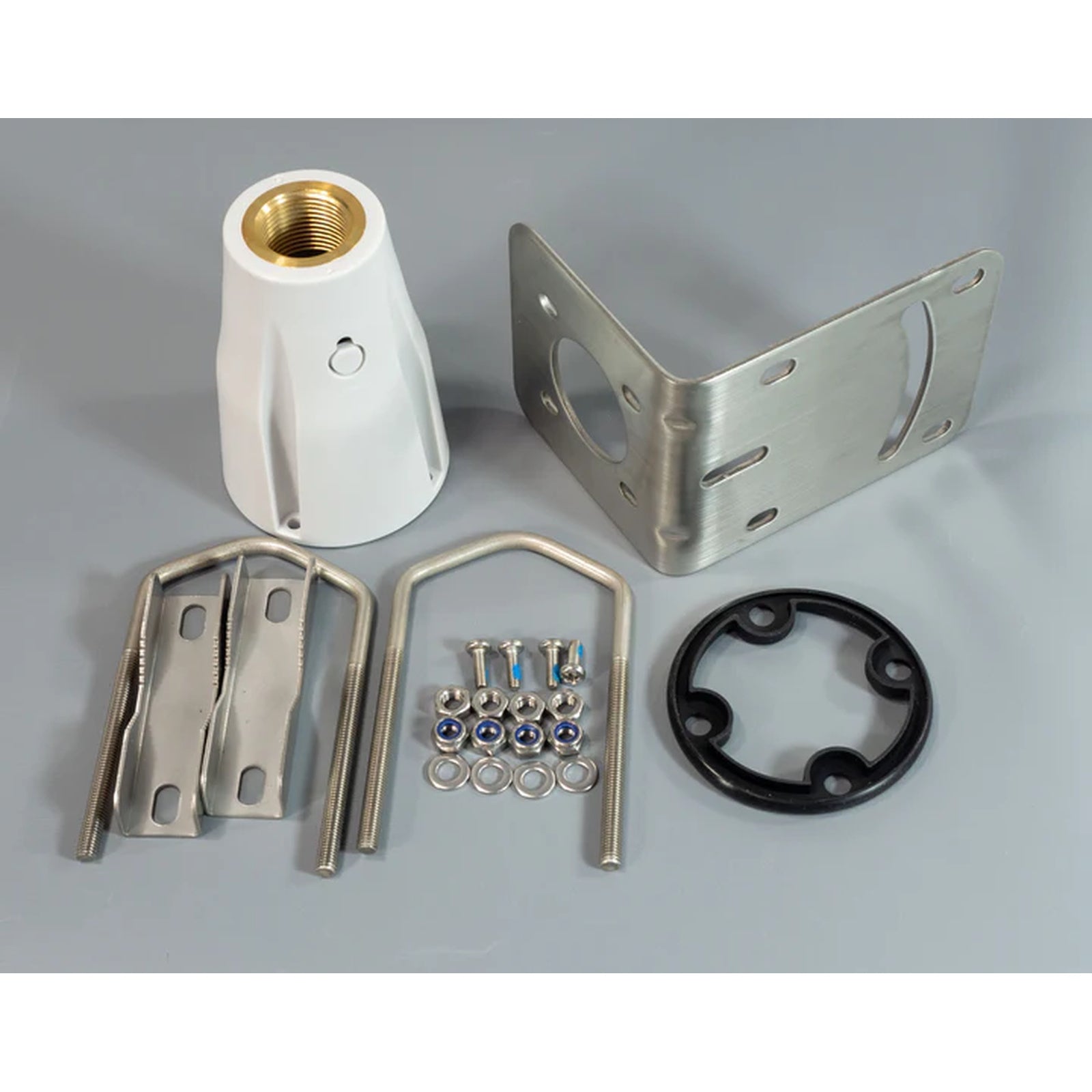

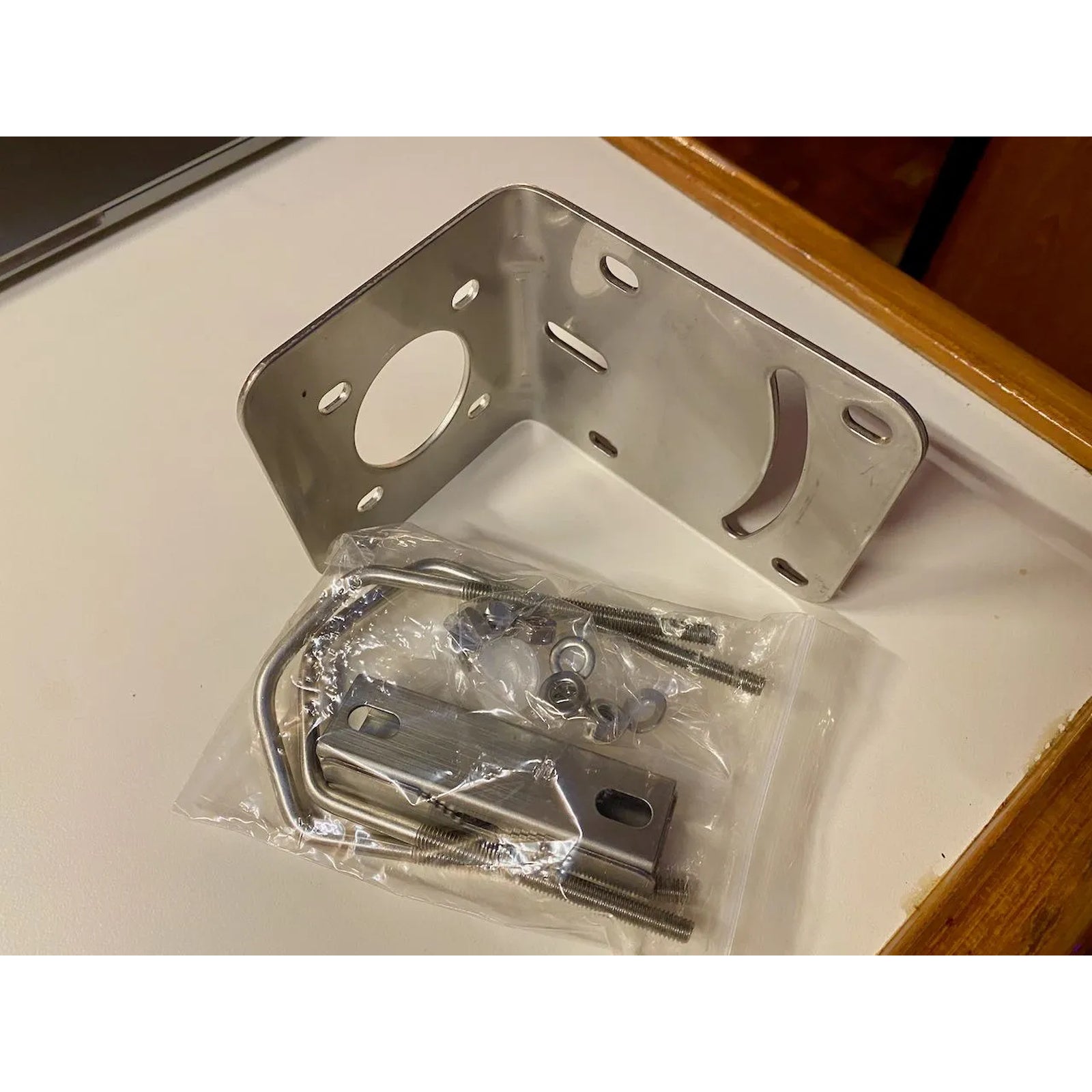

  • It offers various 316 stainless-steel mounting bracket options to suit different deck and rail installations.
  • It operates in the 2.4–2.5 GHz Wi-Fi band to provide reliable local wireless connectivity.

Application Areas:

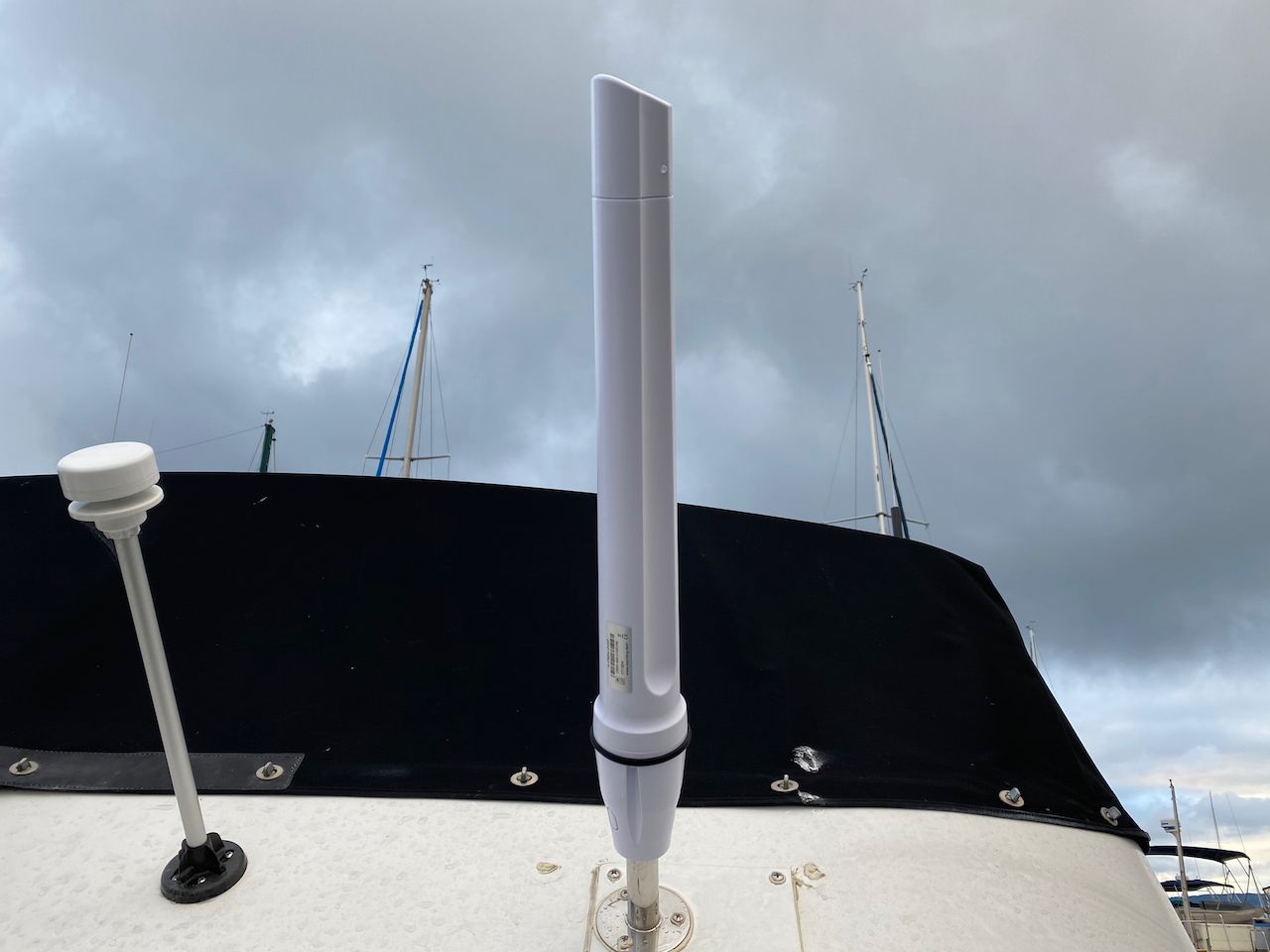

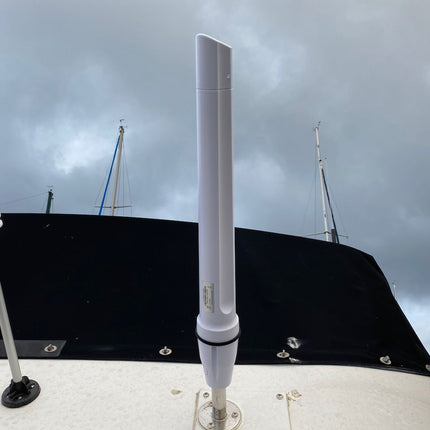

  • It is ideal for marine vessels, including yachts, boats, and ferries requiring dependable connectivity.
  • The antenna enhances LTE reception in coastal, offshore, and open-water settings.
  • It supports IoT and M2M communications for remote sensors and telemetry on marine platforms.
  • It ensures reliable performance in areas with poor data signal reception.
  • It improves data transmission reliability and link stability for critical maritime applications.
  • It also serves onboard Wi-Fi applications, delivering consistent coverage throughout the vessel.

In the Box:

  • Poynting OMNI-400 LTE Marine Antenna
  • N-Female connector

Documents:

Poynting OMNI-400 Antenna - Datasheet

Product Specifications

MPN A-OMNI-0400

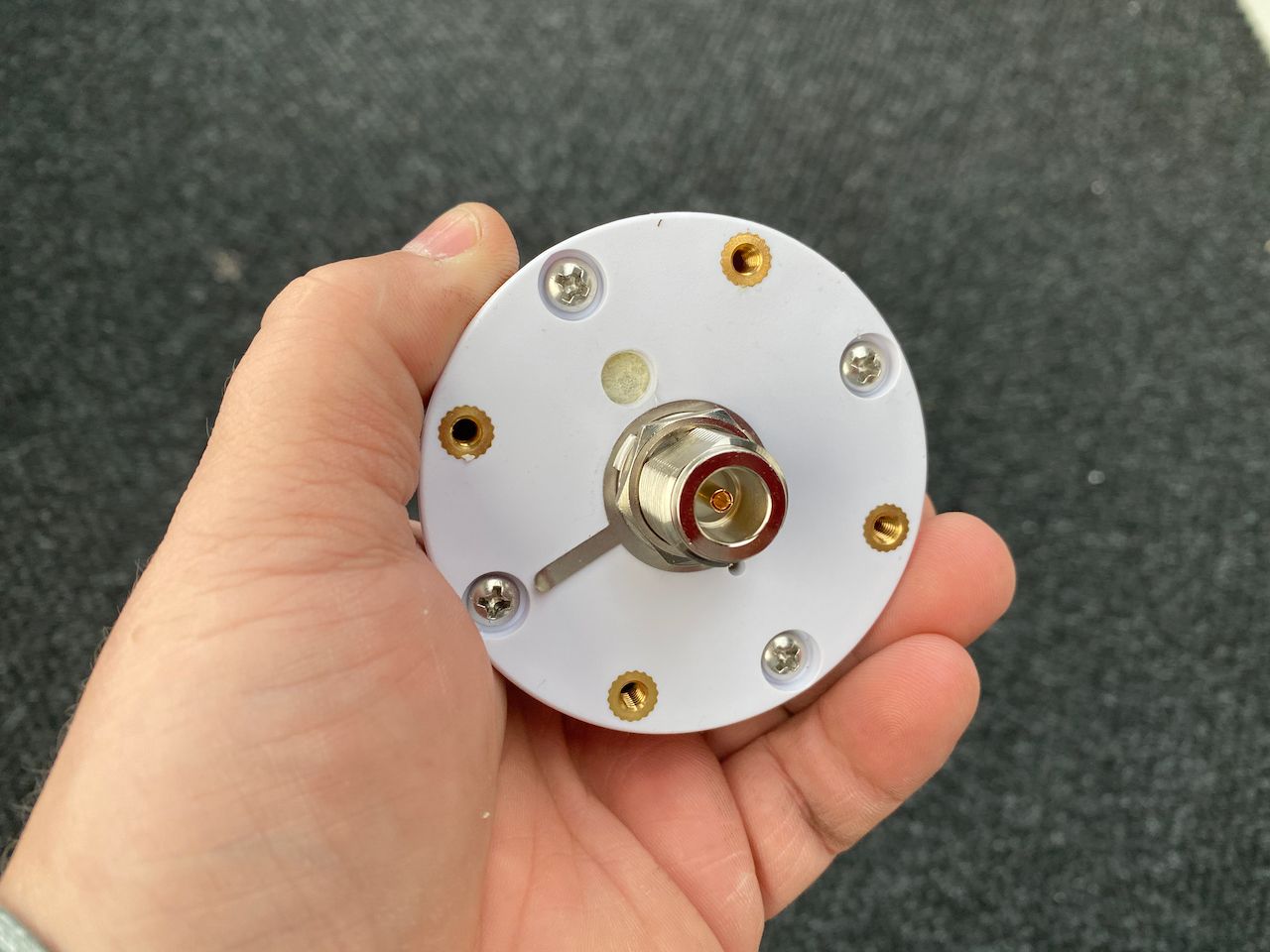

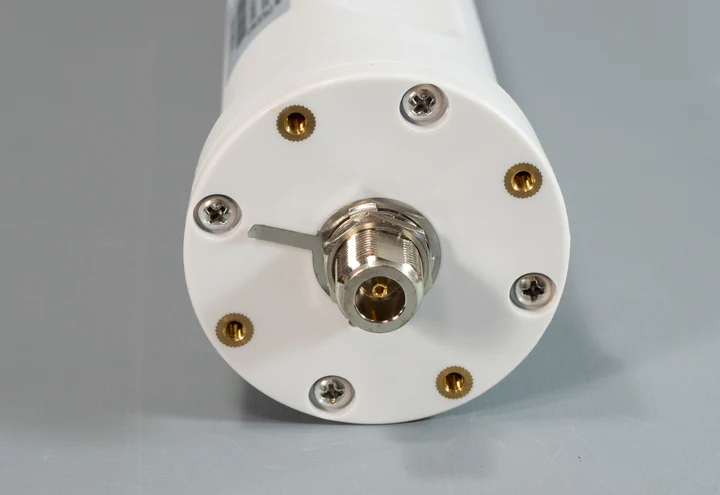

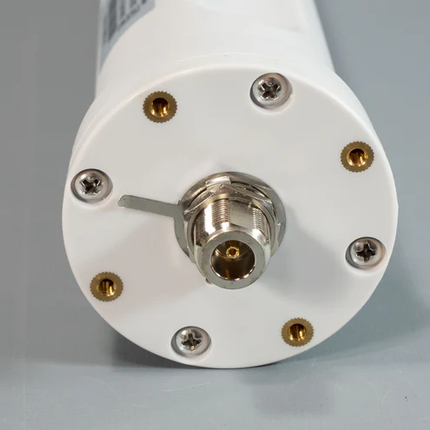

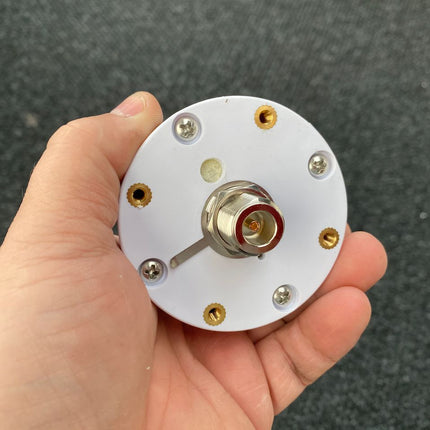

Antenna port connectors N (F)
Brands Poynting
Coverage type Omni-directional
Height 9.5
Ingress protection ip IP67
Installation type External mounting
GTIN/EAN 707273469434

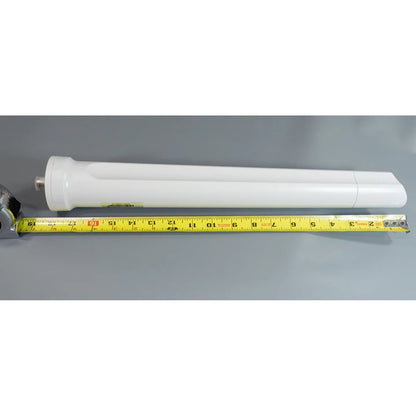

Length 58
Low pim No
Max frequency mhz 2700
Max gain dbd dbi 7.5
Mimo support No
Min frequency mhz 617
Min gain dbd dbi 4
Mount supported Bracket mount
Mount supported detailed L-bracket
No of antenna ports 1
Power w 10
Technologies supported Wi-Fi, 2G, 3G, 4G
Width 9.5
Wind gust km h <186
