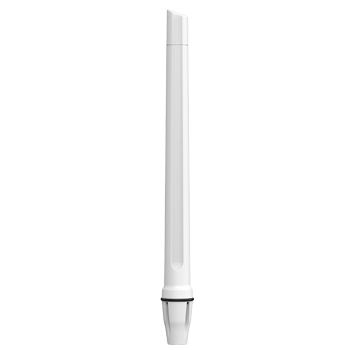

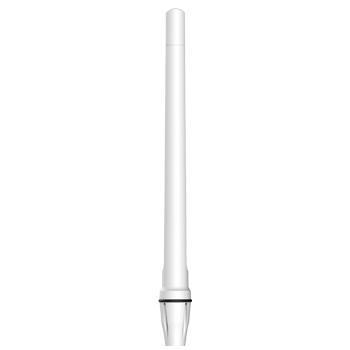

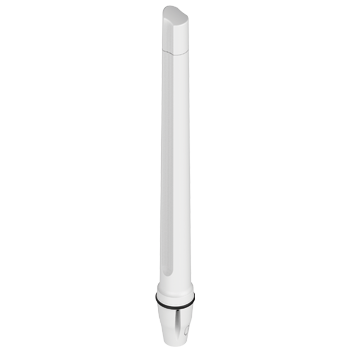

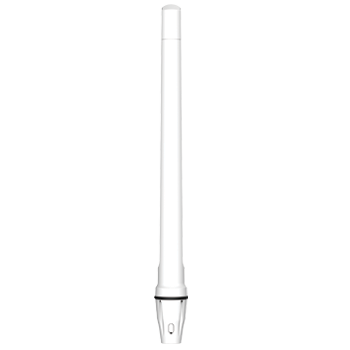

Poynting OMNI-402 antenna is an ultra-wide-band omni-directional antenna widely used in marine, coastal and rural applications. Supporting frequencies from 410 MHz to 3,800 MHz, this antenna has excellent gain of 6.5 dBi in the 698-2,700 MHz range. It supports all 3GPP technologies including 4G & 5G, particularly the 3,500 MHz range of 5G's n78 band. On the lower band site, it supports future 450 MHz range. OMNI-402 is a 2x2 MIMO antenna, with vertically separated elements for radiation in the same radome.

Product Features:

• The antenna provides balanced gain across its frequency bands, delivering 1 dB at 410-470 MHz, 6.5 dBi at 698-2700 MHz, and 2.5 dBi at 3400-3800 MHz.
• It is specifically built for marine and coastal use, ensuring reliable operation at sea.
• The IP68-rated enclosure enables the antenna to withstand harsh environments, including high UV exposure and saltwater immersion.
• It supports 2x2 MIMO configurations for excellent data throughput and link resilience.
• The antenna covers both 4G and 5G frequencies from 410 MHz up to 3800 MHz for future-proof connectivity.
• Various bracket options are available to facilitate quick and easy installation on a range of surfaces.

Application Areas:

• It is ideal for installation on yachts, boats, and ferries to maintain strong marine connectivity.
• It supports industrial IoT and M2M applications in remote or challenging environments.
• It improves mid-band 4G and 5G coverage where existing signals are weak.
• It is suited for any setting where reliable, uninterrupted connectivity is required.
• It can also be used for Wi-Fi applications in the 2.4-2.5 GHz band to extend local network coverage.

In the Box:

• 1x Poynting Omni-402 Antenna with 2m of Twin HDF 195, SMA-Male connector
• 1x 1"(14 TPI) Marine Adapter (U-bolt mount, BRKT-40) with L-bracket (Ø30-50mm Pole)
• Comes with 2m HDF-195 cable SMA(m)

Additional Accessories (to be ordered separately):

• BRKT-37 Marine flat mount antenna bracket 1�-14TPI 316 Stainless Steel
• BRKT-38 Marine ratchet rail mount antenna bracket 1�-14TPI 316 Stainless Steel
• BRKT-39 Heavy duty marine mount antenna bracket 1�-14TPI 316 Stainless Steel

Documents:

22225 - Technical-Specification A-OMNI-0402
