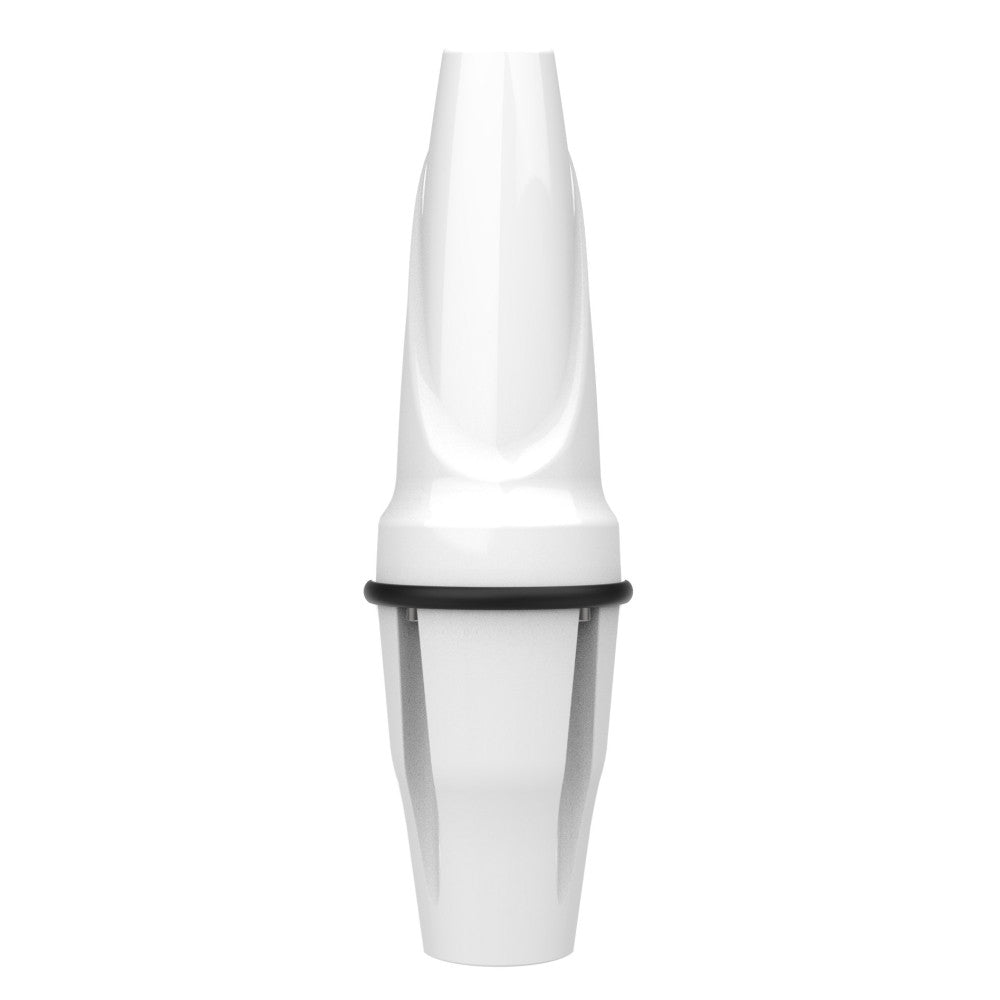

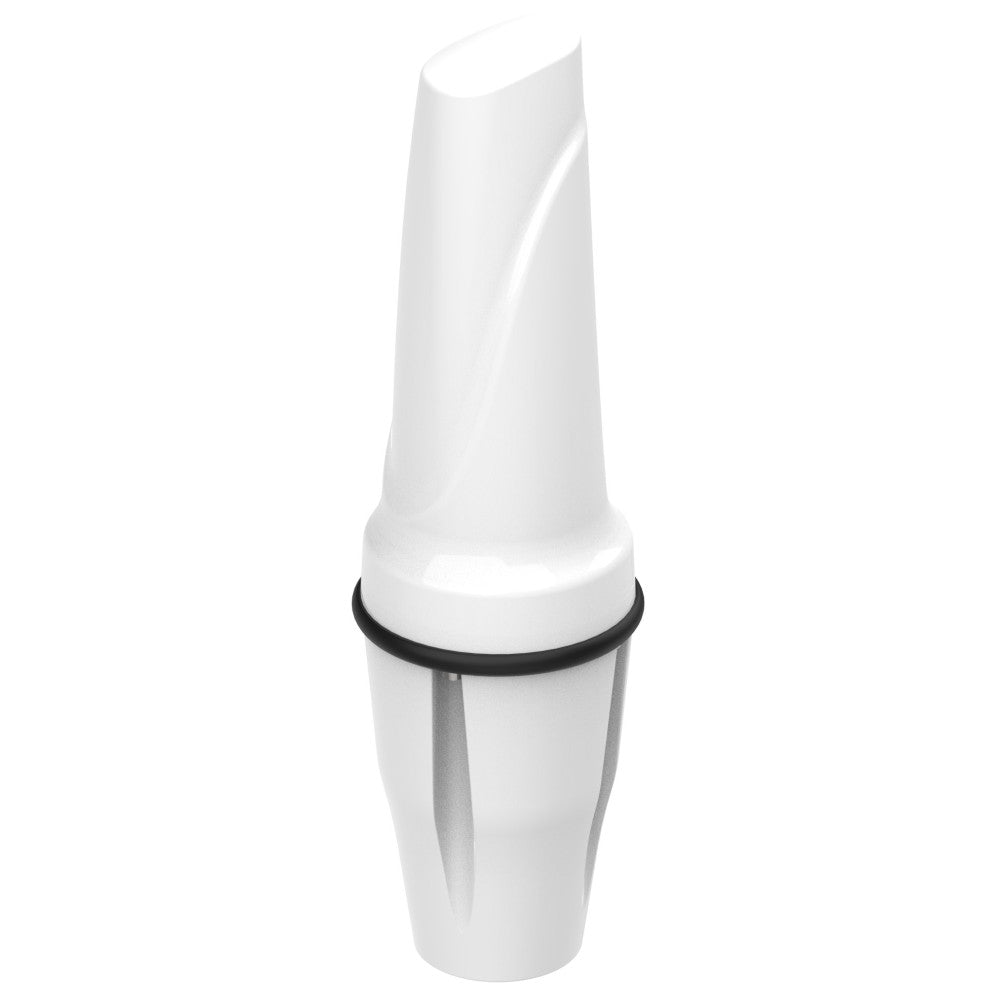

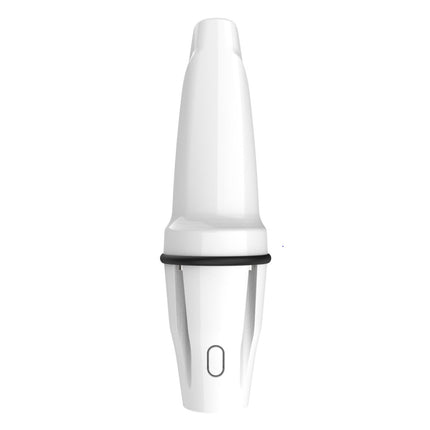

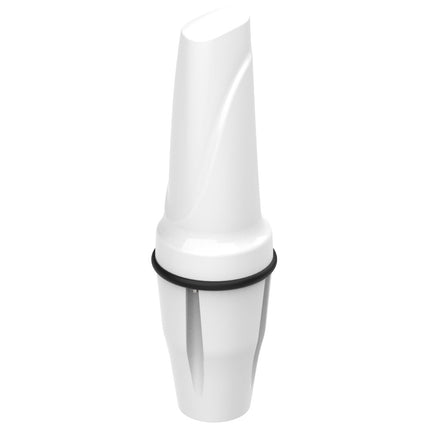

Poynting OMNI-404 Omni-Directional Marine and Coastal LTE-5G Ready Antenna is a wide band LTE/5G antenna with a smaller profile radome which is specifically designed for adverse marine & coastal environments. This antenna covers all contemporary LTE operating frequencies, from 617 to 3800 MHz, with excellently balanced gain across all frequencies, enhancing LTE performance features, such a multi carrier aggregation (CA). This antenna is also suitable on all 5G networks up to 3800 MHz. The antenna is designed for superior pattern control over the entire frequency range, making the OMNI-404 an exceptional omni-directional antenna for its size and application. Poynting Antennas achieves this through a new antenna design using multiple dipoles and a unique (patented) feed network. A standard 1-inch (14 TPI) marine mount connector is used for simplified installation to most standard marine attachments.

Product Features:

• The antenna delivers medium gain in an omni-directional pattern for consistent 360° coverage.
• It is purpose-built for marine and coastal applications to withstand harsh saltwater environments.
• The design fits directly to a standard 1-inch (14 TPI) marine mount for easy installation.
• The UV-stable and salt-water resistant enclosure ensures long-term reliability at sea.
• The robust housing is rated IP69K, protecting against high-pressure water jets, dust ingress, and extreme conditions.

Application Areas:

• It is ideal for marine vessels including yachts, boats, and ferries requiring dependable connectivity.
• The antenna enhances LTE reception in challenging coastal and offshore environments.
• It supports Internet of Things (IoT) and machine-to-machine (M2M) communication systems on maritime platforms.
• It provides reliable performance in areas with poor data signal reception.
• It improves the stability and reliability of data transmission for critical applications on vessels and coastal installations.

In the Box:

• Poynting OMNI-404 5G/LTE Marine Antenna
• N-Female connector

Documents:

Poynting A-OMNI-0404-V1-01 Antenna - Datasheet
