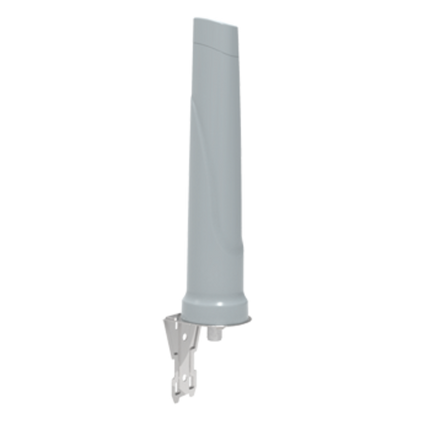

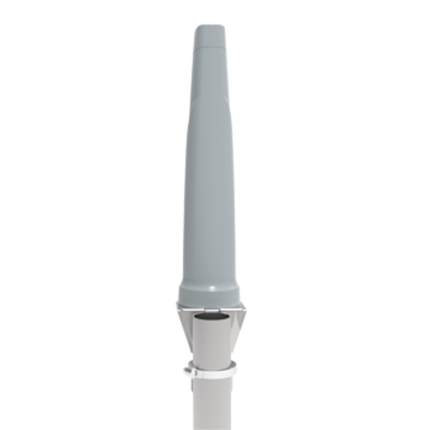

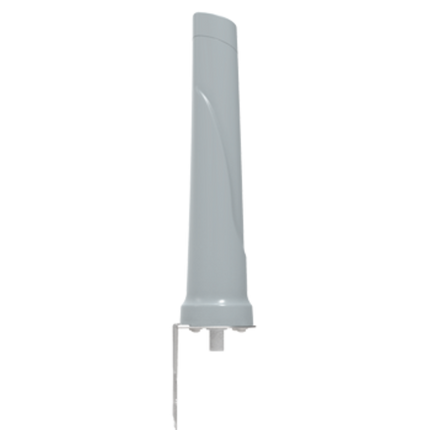

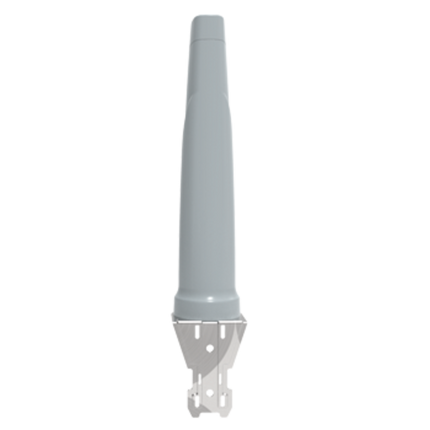

Poynting OMNI-702 antenna is an omni-directional Wi-Fi antenna. The antenna operates from 2.4-2.5 GHz, covering the 2.4 GHz Wi-Fi band, and has a maximum gain of 8 dBi. The constant gain throughout the entire band offers improved performance with reliable connections. The antenna was designed for superior pattern control over the entire frequency range, making the OMNI-702 an exceptional omni-directional antenna for its size. The antenna can connect to any Wi-Fi access point and resolve channel saturation and provide ultimate Wi-Fi performance and flexibility. The rugged enclosure design offers protection in adverse environmental conditions with an IP 69K and IK 10 rating. The antenna has an N-Type female connector at its base, which can be connected to a cable of the desired type and length.

Product Features:

• This omni-directional antenna delivers high performance across its operating band.
• It provides high gain in the 2400-2500 MHz Wi-Fi frequency range.

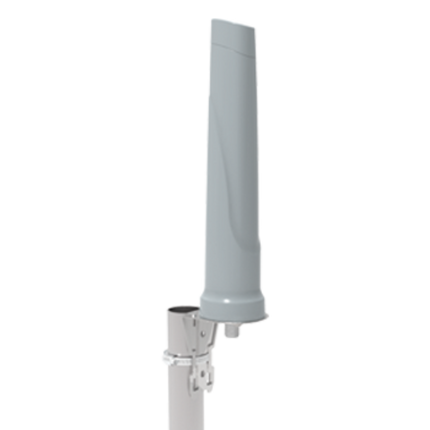

• It installs easily, supporting both pole and wall mounting for flexible deployment.
• The stylish, robust design ensures durability while complementing any installation environment.
• The IP 69K-rated enclosure resists high-pressure water jets and dust ingress for reliable outdoor operation.

Application Areas:

• It supports smart-utility networks, including power, gas, and water metering systems.
• It is ideal for smart-building applications such as climate control, access control, security, and irrigation automation.
• It enhances performance in smart environmental and water management systems.
• It improves communication reliability in warehouse and logistics operations.
• It is suited to industrial factory automation and machine-to-machine (M2M) systems.
• It provides dependable connectivity for farming and agricultural IoT/M2M applications.

In the Box:

• Poynting OMNI-702 Omni-Directional Wi-Fi Antenna
• N-Female connector

Documents:

Poynting A-OMNI-0702-V1-01 Antenna - Datasheet
