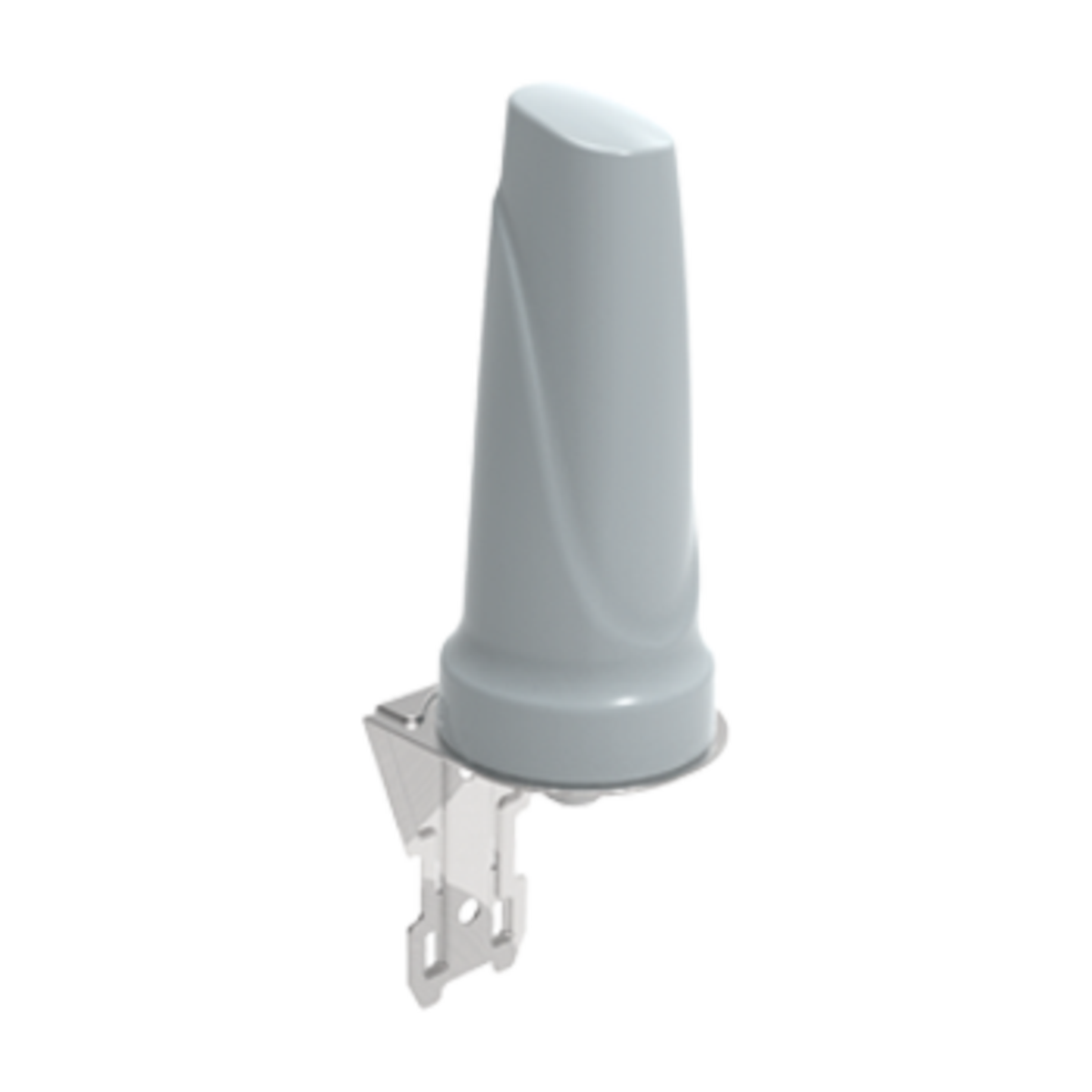

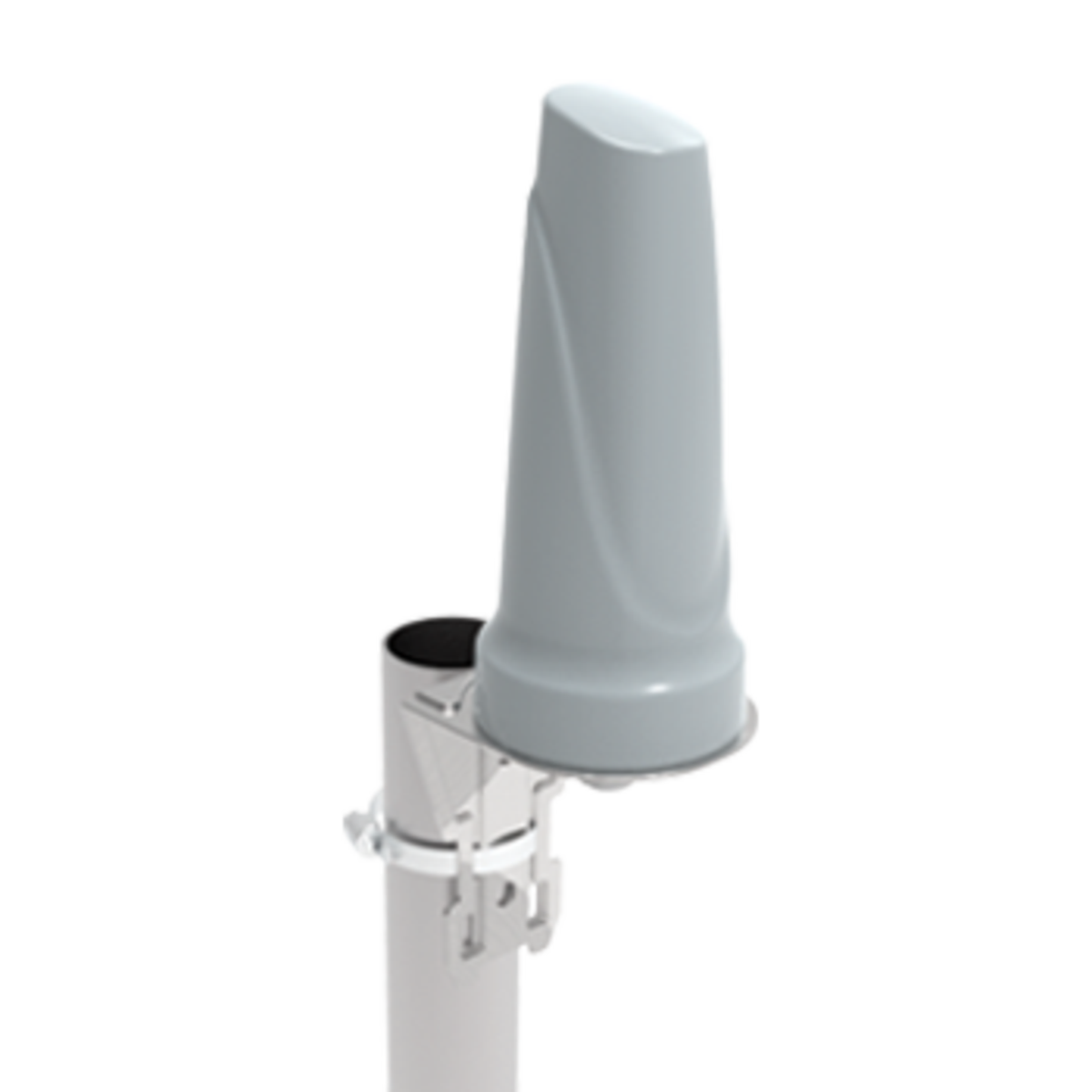

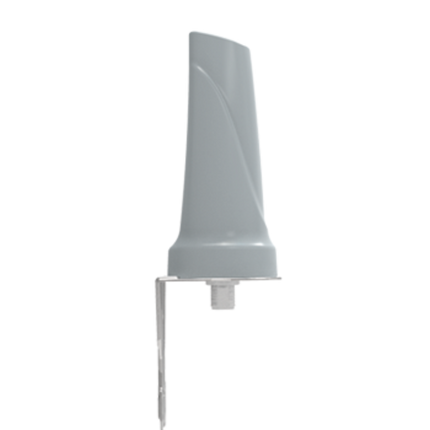

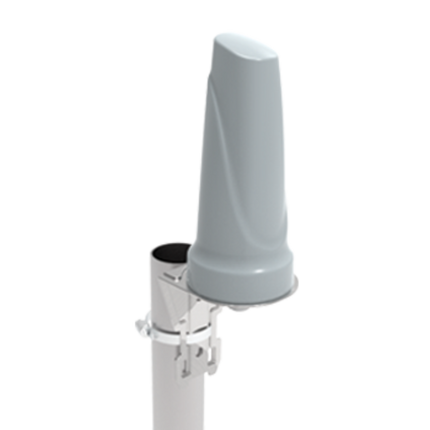

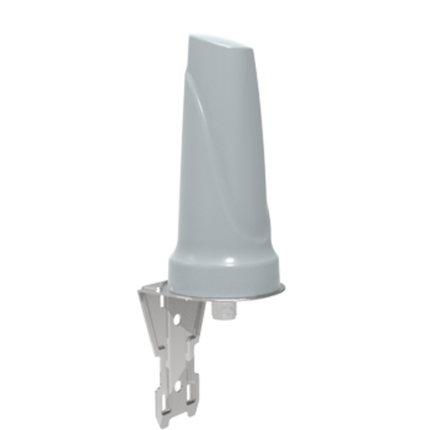

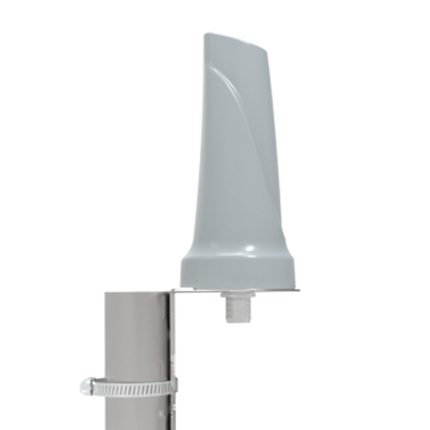

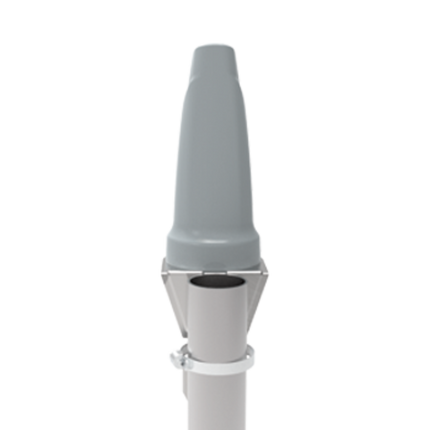

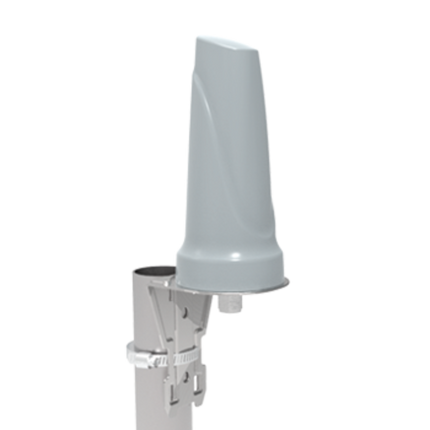

Poynting OMNI-704 antenna forms part of their new“Rhyno"antenna range. The OMNI-704 operates from 5.0-6.0 GHz, covering the upper half of the 5 GHz Wi-Fi band, and has a maximum gain of 4 dBi. The antenna has a constant gain throughout the entire band of operation, as this offers improved performance with reliable connections. The antenna was designed with superior pattern control over the entire frequency range, making the OMNI-704 an exceptional omni-directional antenna for its size. The antenna housing is made of UV stable ASA, which offers protection in highly corrosive environments, including chemical and toxic environments such as industrial plants. The rugged enclosure design offers protection in adverse environmental conditions with an IP 69K and IK 10 rating. The antenna has an N-Type female connector at its base, which can be connected to a cable of the desired type and length.

Product Features:

• The antenna provides true omni-directional coverage, ensuring 360° signal reception.
• It delivers medium-gain performance across the 5000-6000 MHz Wi-Fi frequency band.

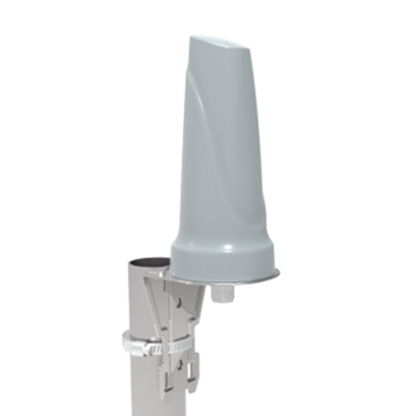

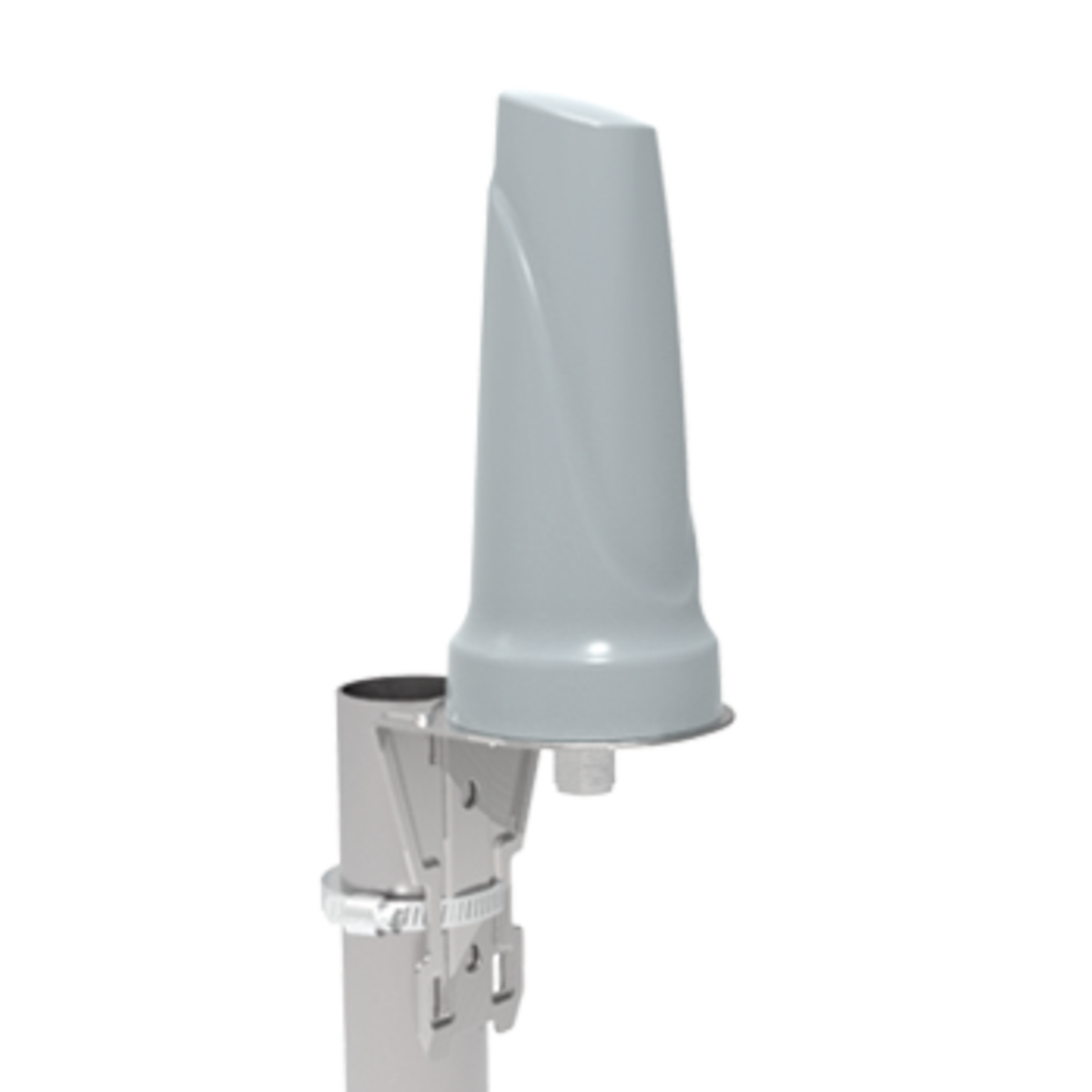

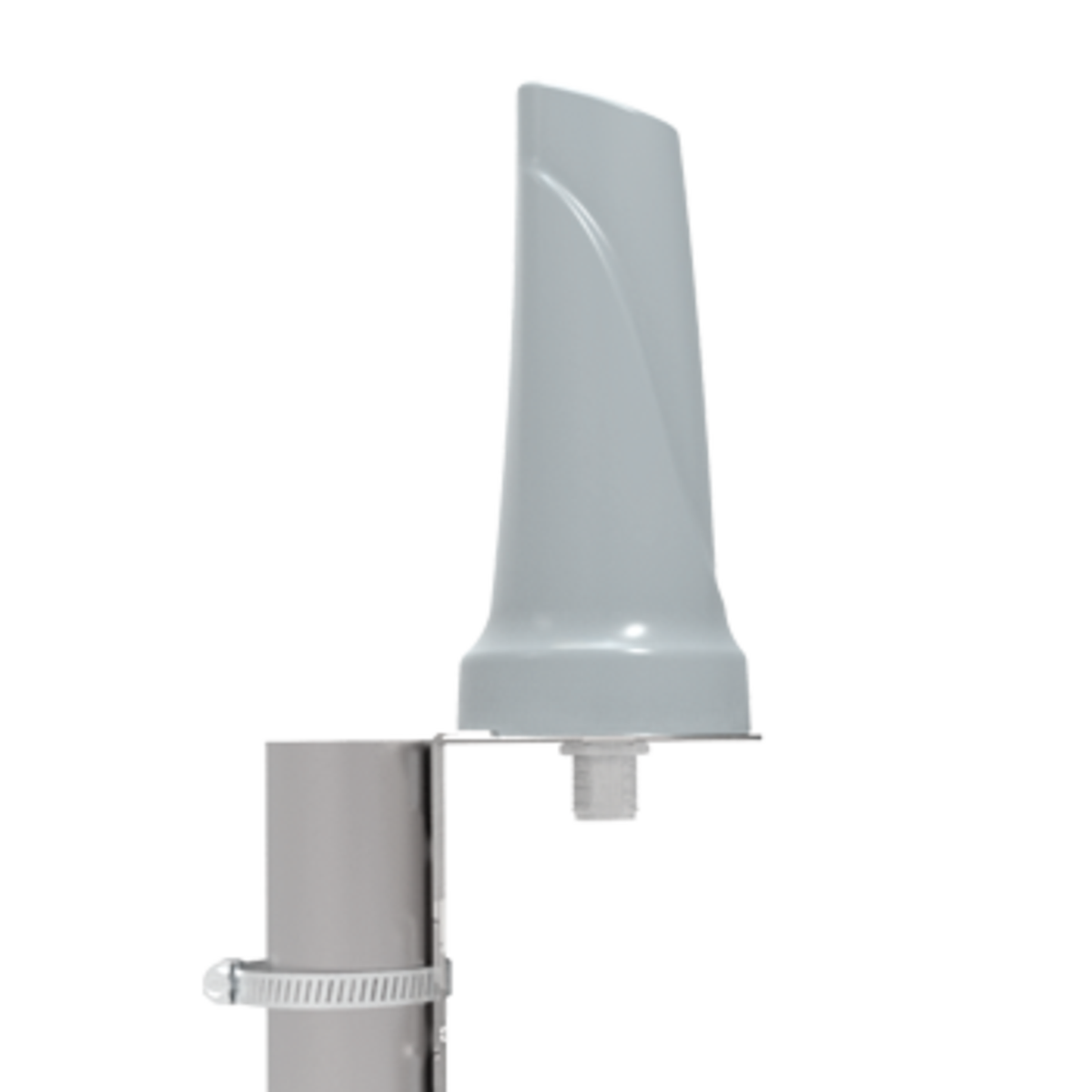

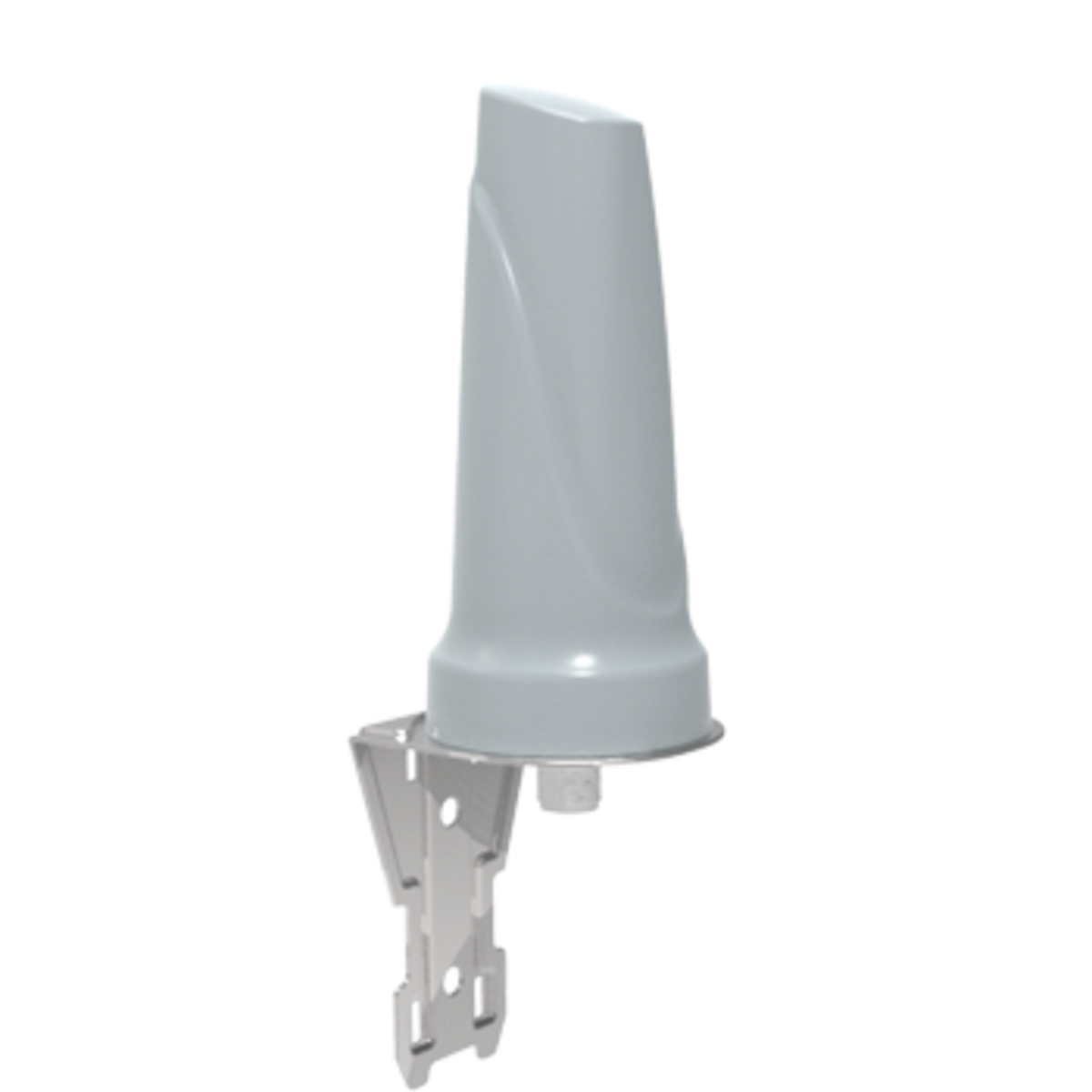

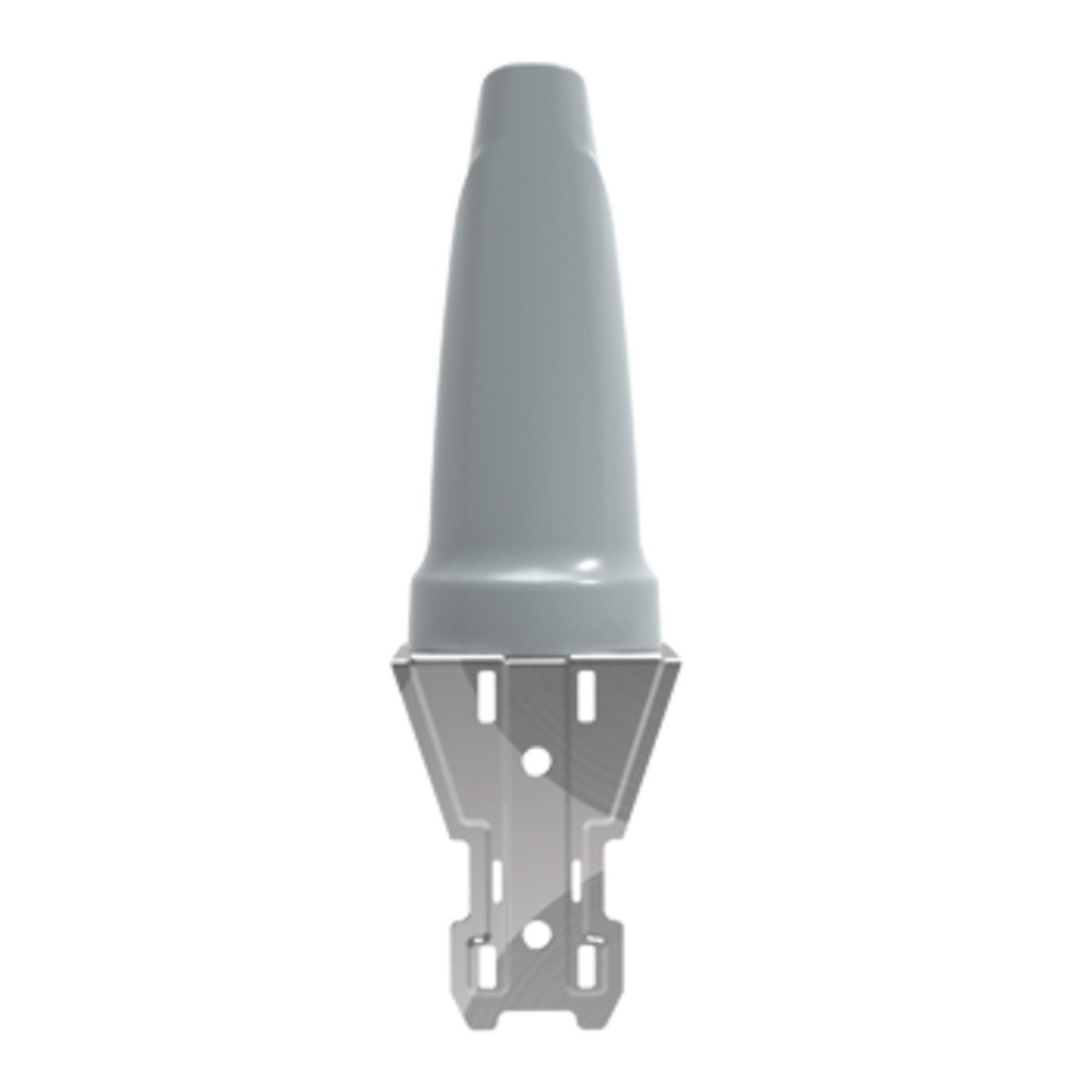

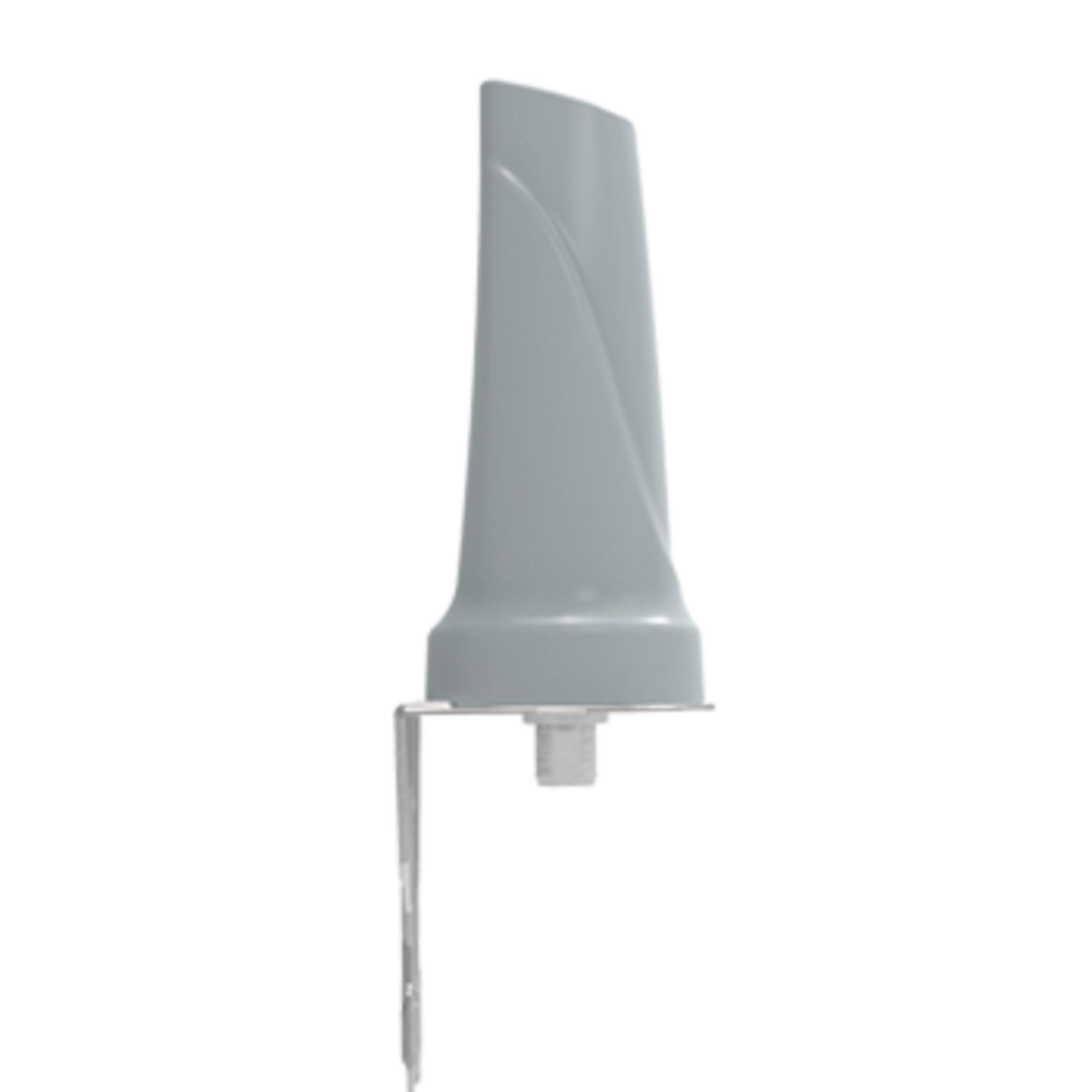

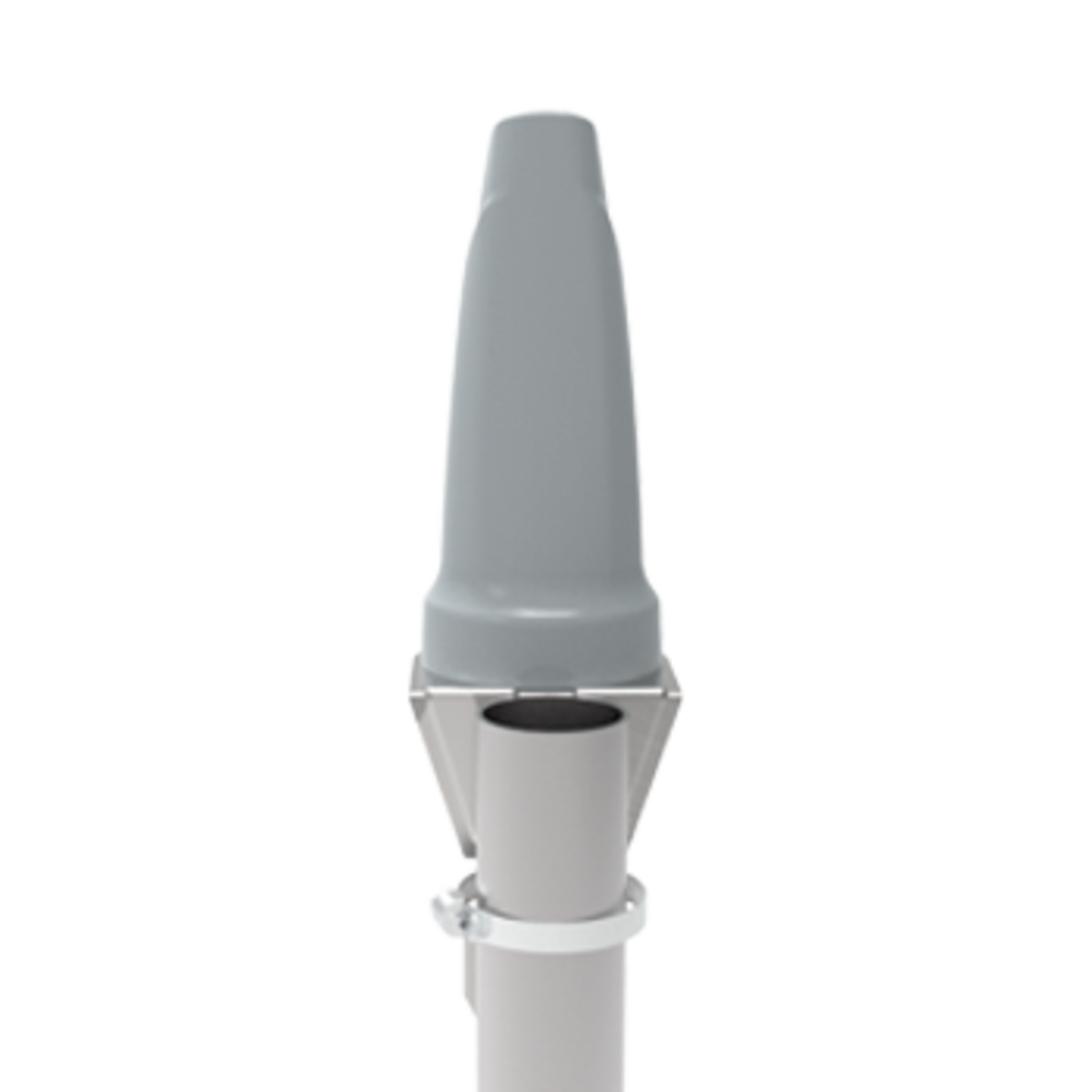

• The design supports easy installation, allowing for both pole and wall mounting.
• Its stylish yet robust housing combines aesthetic appeal with long-lasting durability.
• The IP69K-rated enclosure protects against high-pressure water jets and dust ingress for reliable outdoor operation.

Application Areas:

• It is ideal for smart-utility networks, including smart power, gas, and water metering systems.
• The antenna supports smart-building applications such as climate control, access control, security, and automated irrigation.
• It enhances wireless connectivity in environmental monitoring and automated water-management installations.
• It improves network reliability in warehouse and logistics operations, supporting asset tracking and automation.
• The device is suited to industrial factory automation and machine-to-machine (M2M) communication systems.
• It provides dependable connectivity for farming and agricultural IoT/M2M applications in remote fields.

In the Box:

• Poynting OMNI-704 Omni-Directional Wi-Fi Antenna
• N-Female connector

Documents:

Poynting A-OMNI-0704-V1-01 Antenna - Datasheet
