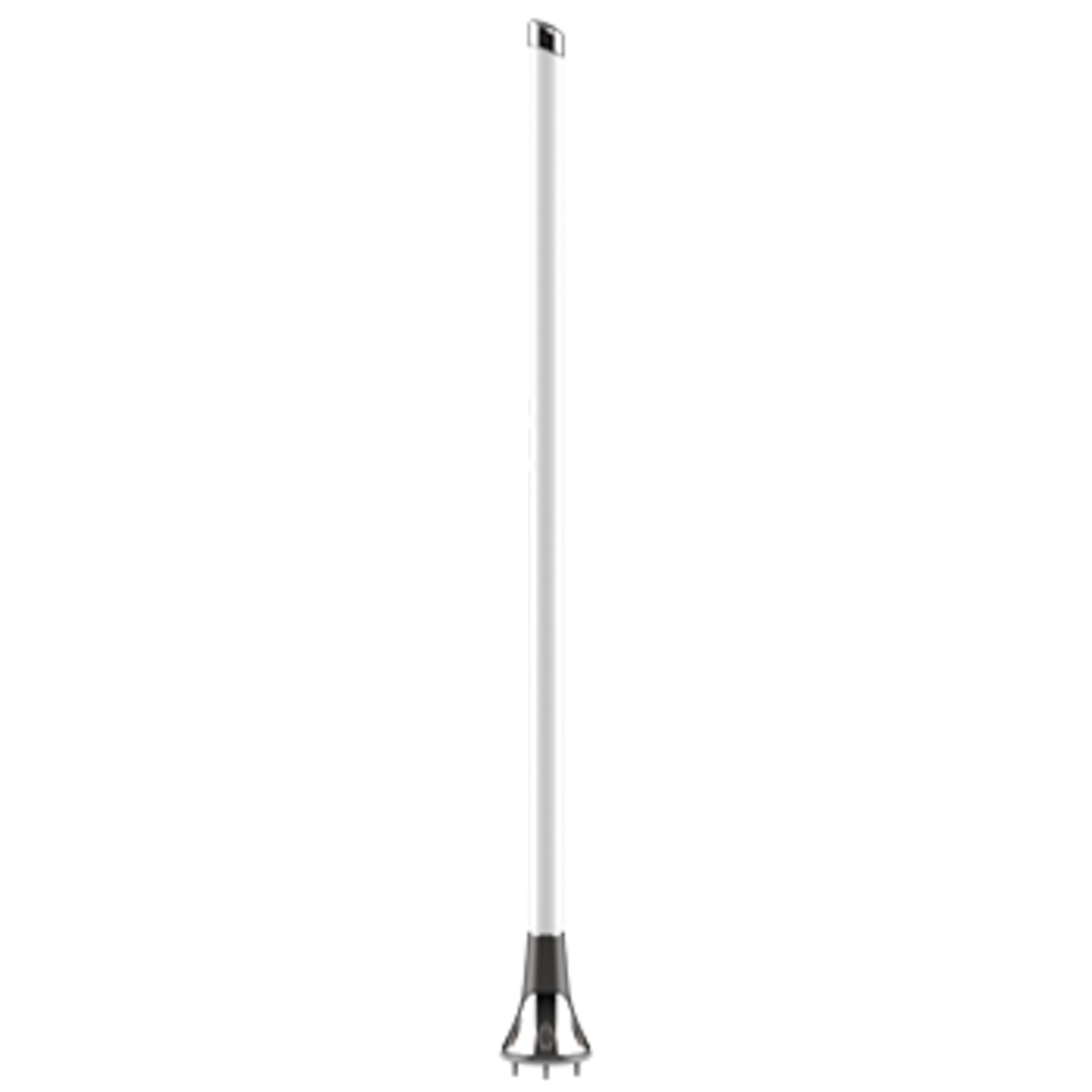

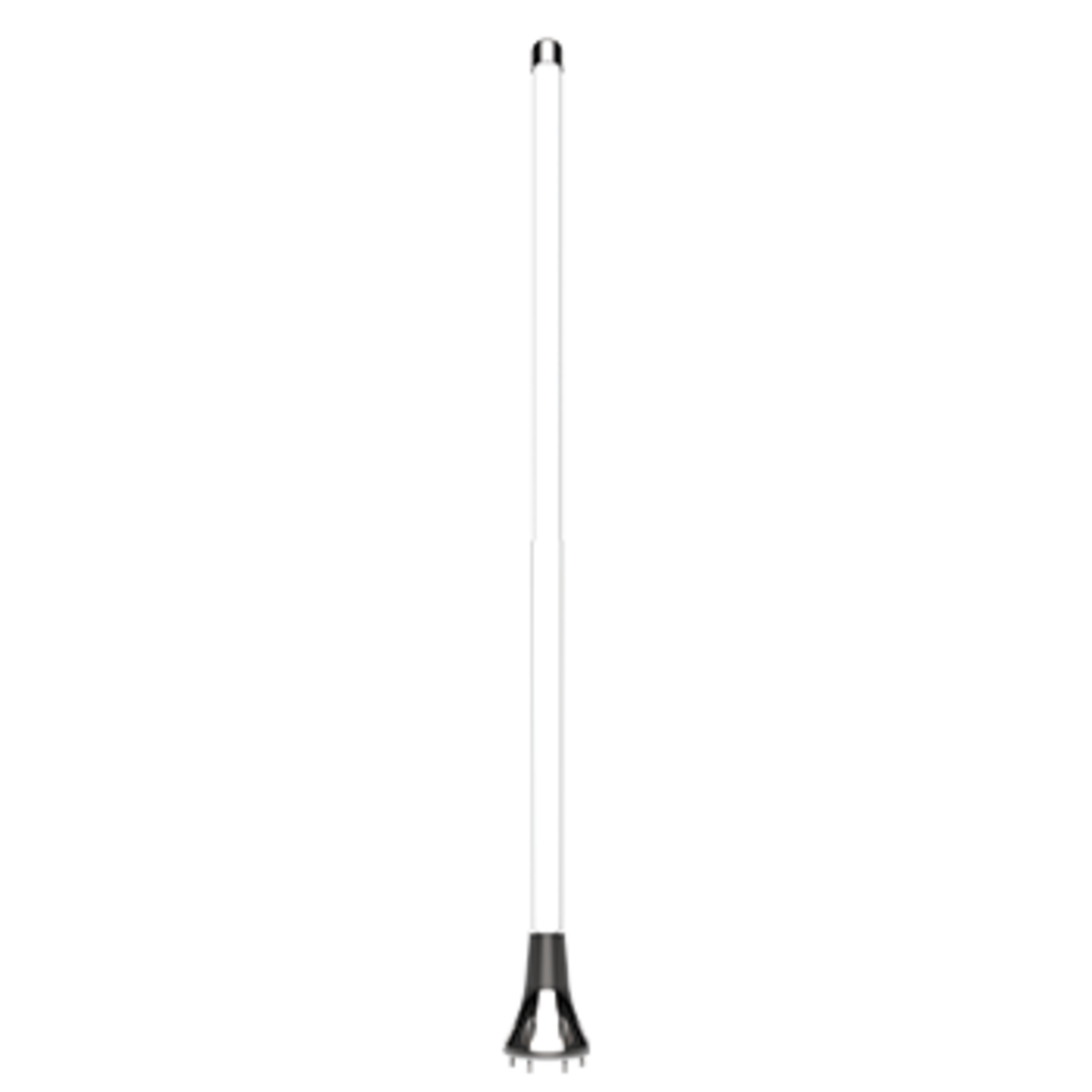

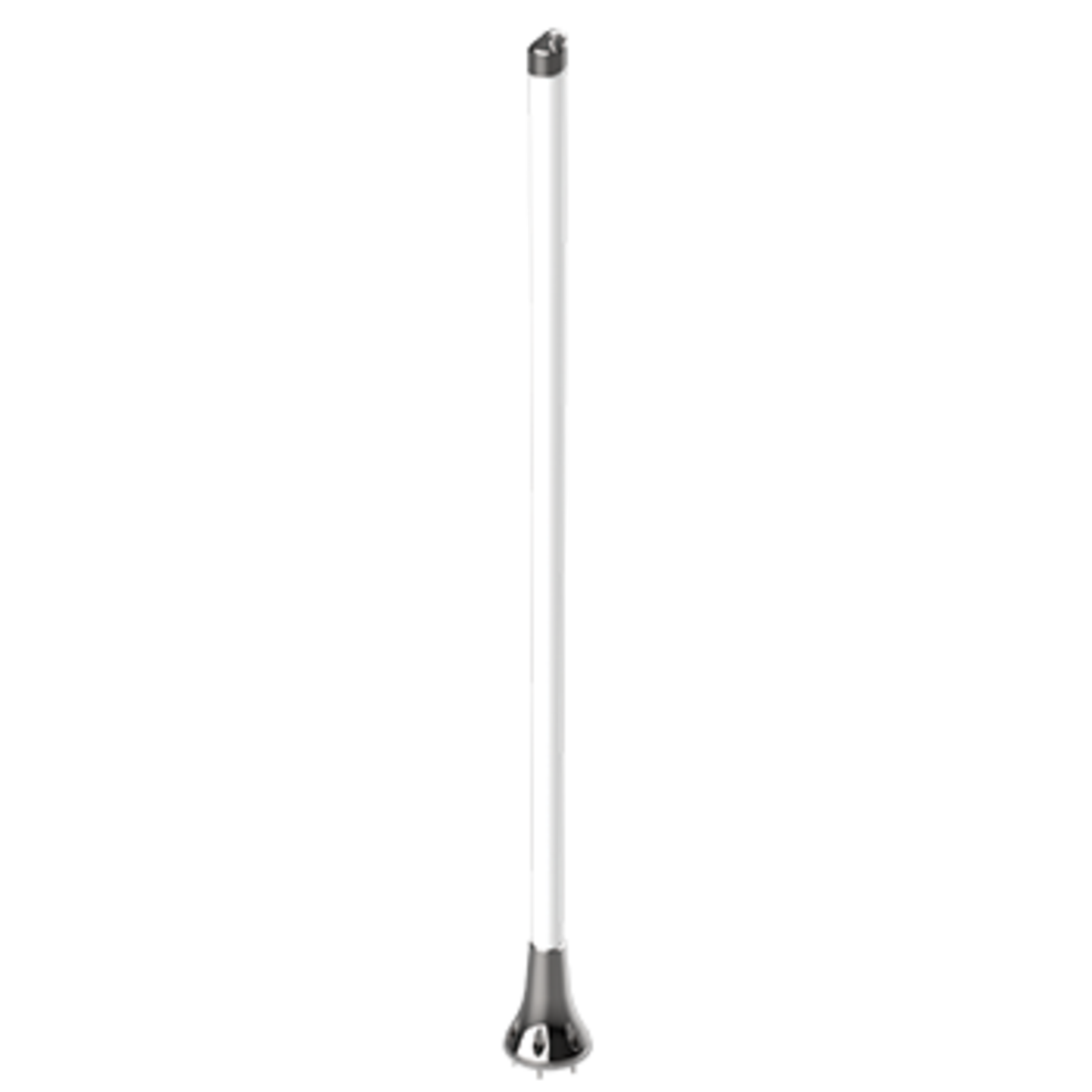

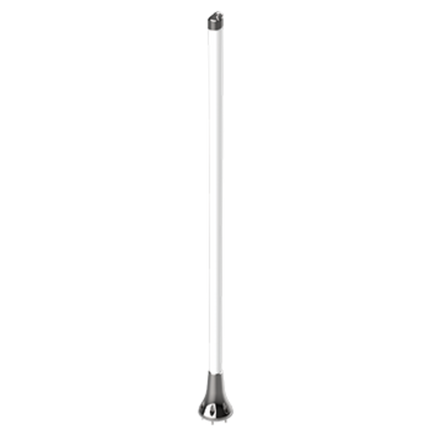

Poynting OMNI-904 is a high gain, ultra-wideband antenna, which covers all contemporary 5G LTE frequency bands with excellent balanced gain across all frequencies from 617 to 4200 MHz. The antenna offers 4x4 MIMO capability from its vertically separated radiating elements, all in the same single radome. The antenna design combines two low gain and two high gain omni-directional antennas, which allows for superior pattern control over the entire frequency range. This unique combination of low and high gain omni-directional antennas makes the OMNI-904 a true omni-directional 4x4 MIMO antenna, suitable for marine and coastal applications.
The antenna comes with an IP68 protection rating against dust and water ingress, making it ideal for most severe storms at sea. The radome is also fully salt water protected so that it can be used in highly corrosive environments, thanks to the fiberglass radome material. The OMNI-904 guarantees signal reception almost everywhere and is usable in all part of the world. The ultra-wideband performance makes the antenna future proof, as it covers LTE Band 71 (617 to 698 MHz) as well as the CBRS bands from 3400 to 4200 MHz for inland use.
Product Features:
- The antenna delivers high performance as a 4×4 MIMO omni-directional device.
- It functions as a wideband antenna supporting LTE and 5G frequencies from 617 to 4200 MHz.
- It includes support for Band 71 (617–698 MHz) and the 3.5 GHz 5G band for extended coverage.
- Its robust, weather-resistant enclosure carries an IP68 rating for protection against dust and water ingress.
- The UV- and salt-water-resistant housing ensures reliable operation in harsh marine environments.
Application Areas:
- It is designed for marine applications, including super yachts, boats, and ferries.
- It enhances LTE/4G and 5G reception in challenging environments.
- It increases system transmission reliability for critical communication links.
- It is suitable for high-end industrial-grade router installations.
- It supports industrial and commercial LTE and 5G deployment scenarios.
- It enables LTE and 5G data distribution for agricultural and farming operations.
In the Box:
- Poynting OMNI-904 5G/LTE MIMO Antenna
- 2m cable
- N-Female connector
Documents:
Poynting OMNI-904 Antenna - Datasheet
