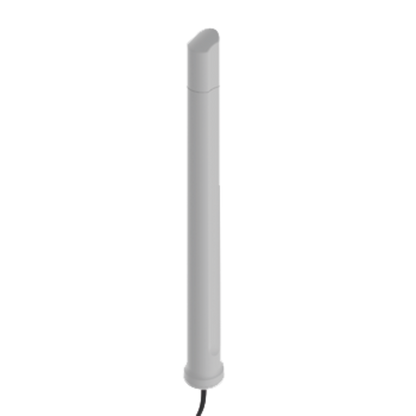

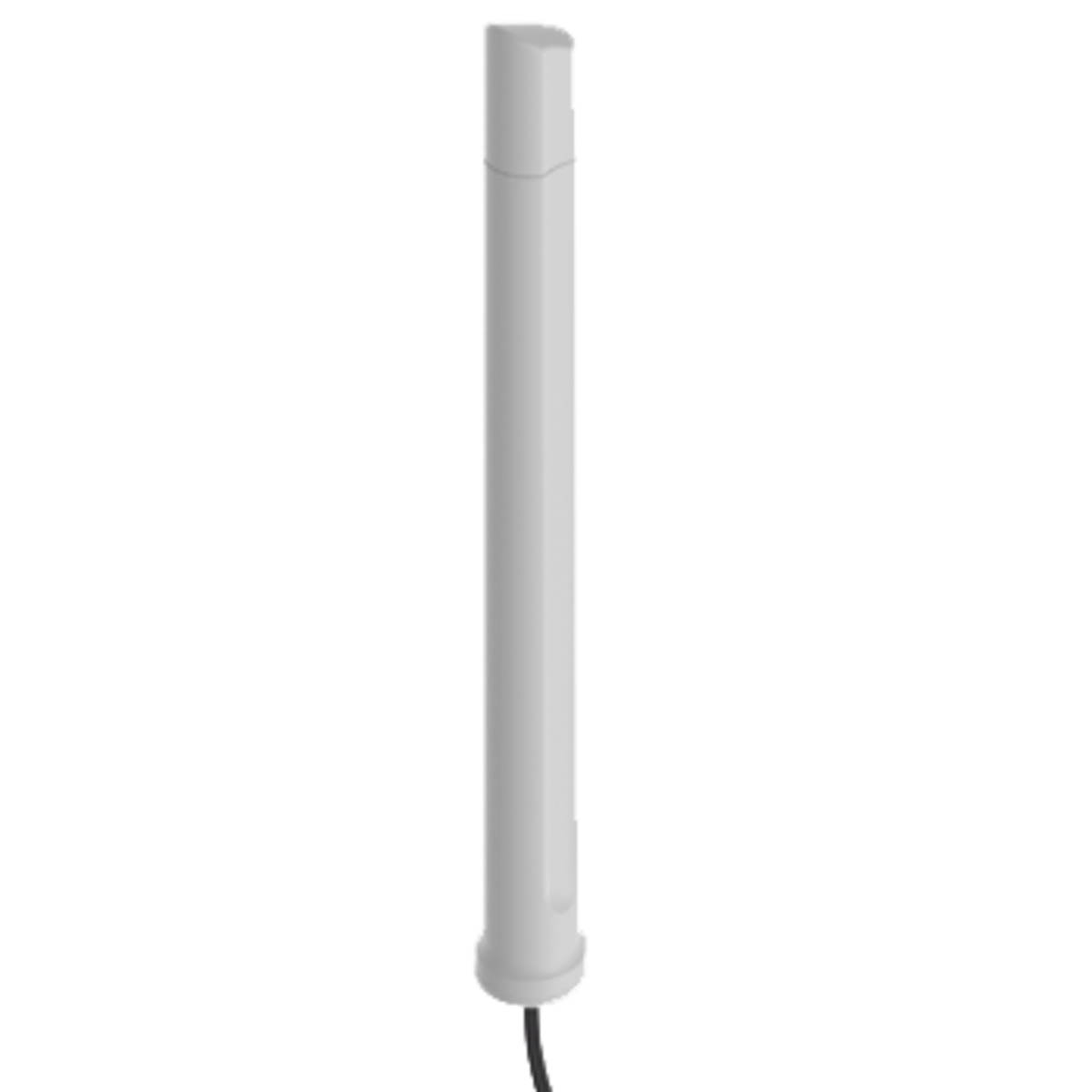

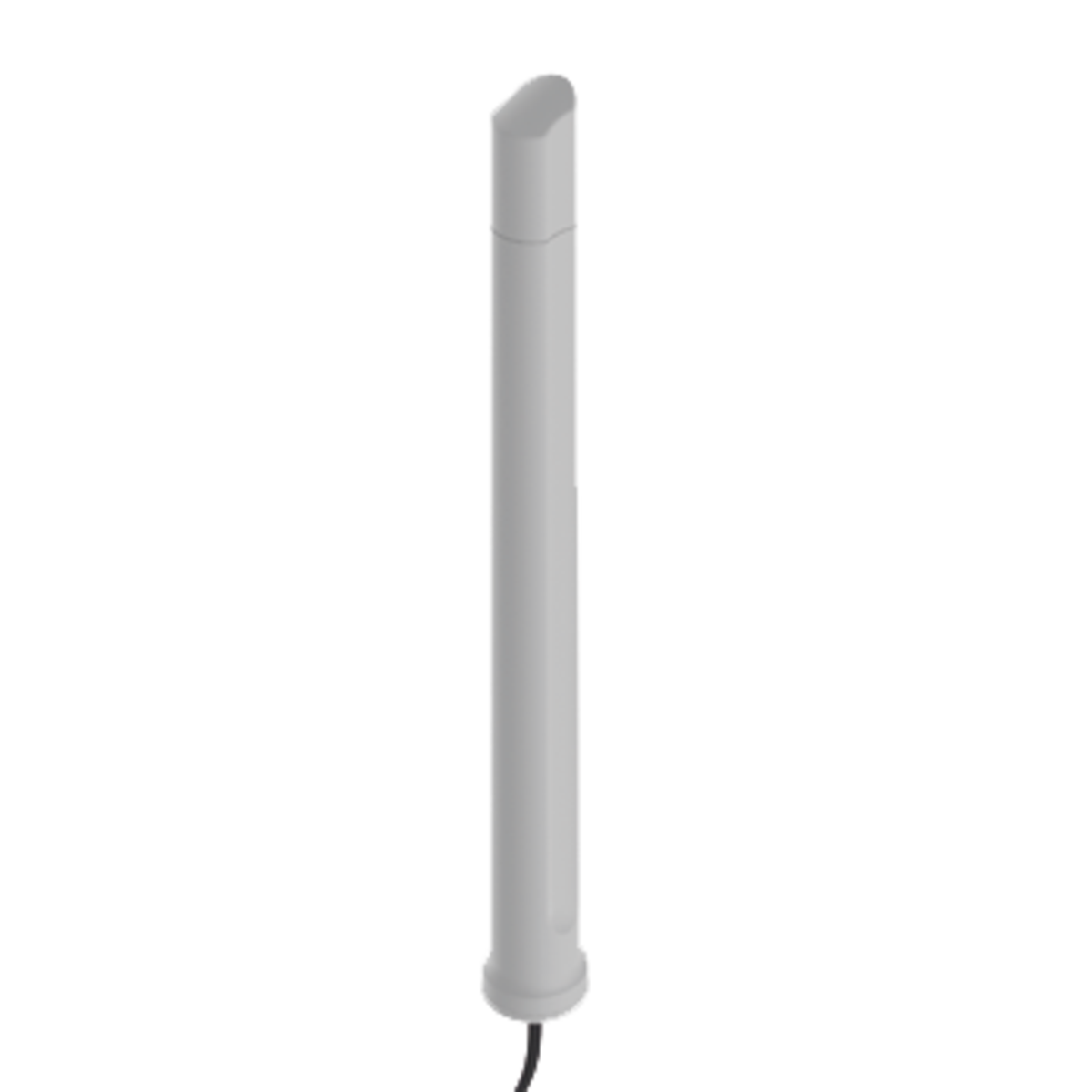

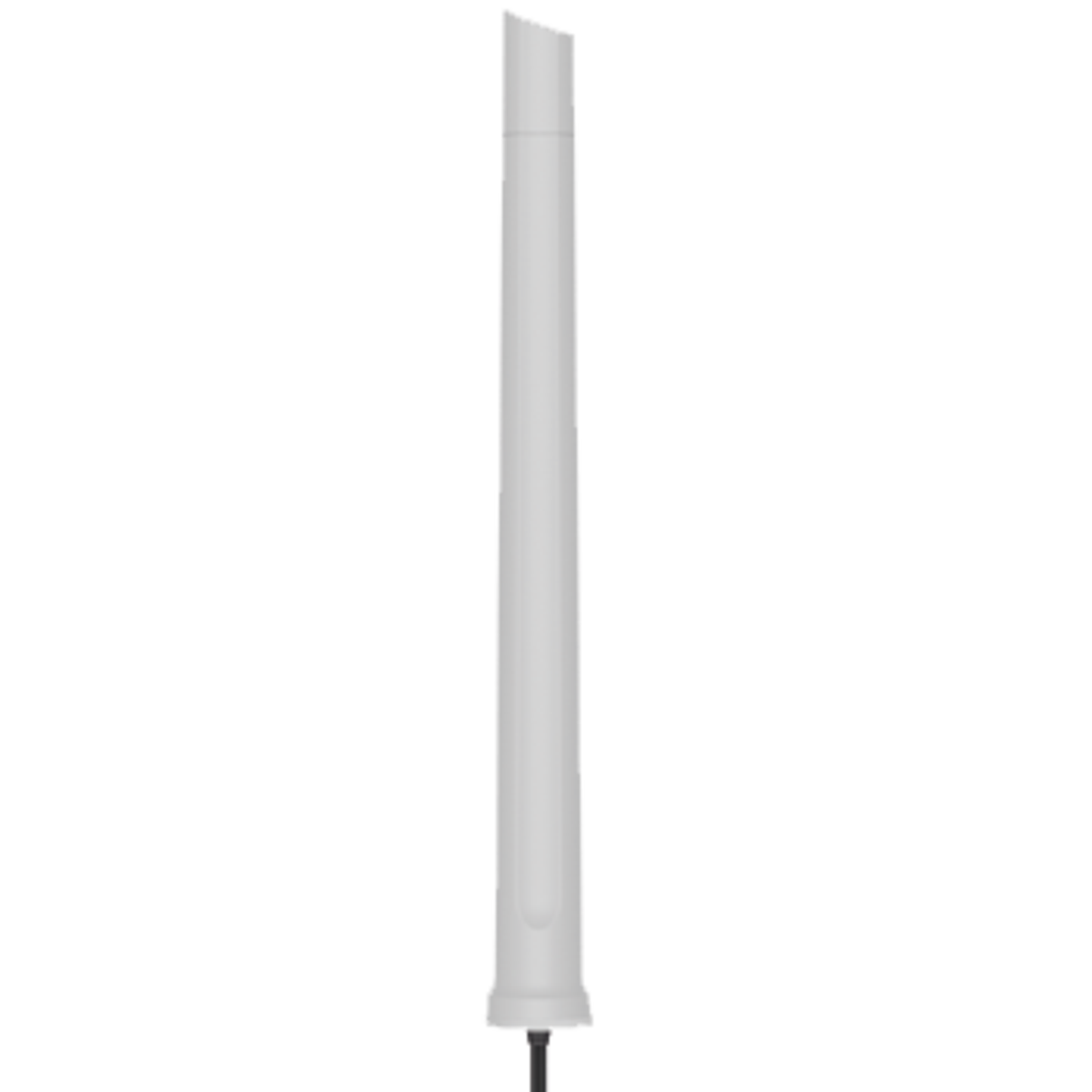

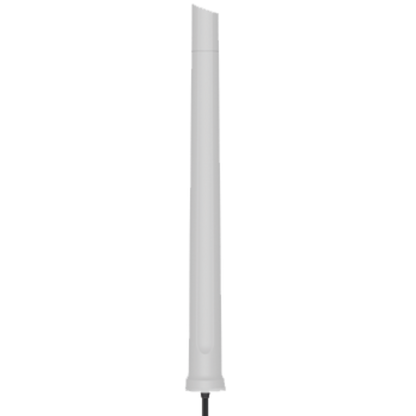

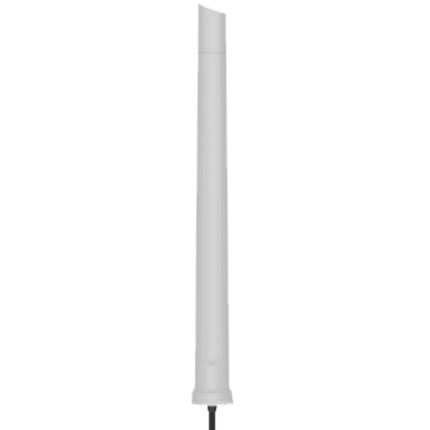

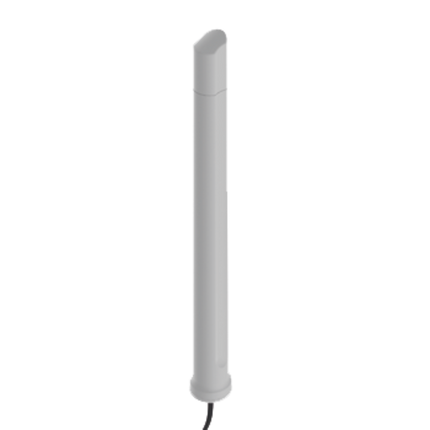

Poynting Omni-600 LTE Antenna, 2x2 MIMO, 410-3800 MHz, 6.2 dBi, 5m, SMA-Male

Poynting Omni-600 LTE Antenna, 2x2 MIMO, 410-3800 MHz, 6.2 dBi, 5m, SMA-Male

Sold out

Brand:
Item ID:
168014301
Export:
Accepted
Shipping:
Not available to ship
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
A-OMNI-0600-V1-02
Send Request for Quote (RFQ) Discount Offers
Poynting Omni-600 Directional 2X2 MIMO LTE Antenna (410 - 3800 MHz); 6.2 dBi, is a unique new design with superior performance across a wide frequency range
Regular price $462.00
Regular price $0.00 Sale price $462.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Poynting OMNI-600 2 × 2 MIMO LTE Antenna packs twin, phase-matched radiators into a single omni-directional housing, delivering a steady 6.2 dBi medium gain from 410 MHz right up to 3 800 MHz. A patented multi-dipole feed network balances radiation patterns across the entire band—including legacy 450 MHz, CBRS/3.5 GHz, and the 2.4 GHz Wi-Fi range—so you enjoy faster, more reliable data links now and in the future. Rugged, lightweight, and fully weather-sealed, the OMNI-600 is the go-to antenna for industrial routers, mobile offices, and any M2M site that demands rock-solid connectivity in tough outdoor conditions. Unlike conventional designs, the OMNI-600 maintains superior pattern control even at higher frequencies, making it a true high-performance solution. Its innovative configuration, featuring multiple dipoles and a patented feed network, ensures future-proof connectivity, covering the 450 MHz frequency and the emerging 3.5 GHz CBRS band. Robust, weather-resistant, and lightweight, the OMNI-600 is go-to choose for reliable signal reception globally.

Product Features:

  • The antenna features a medium-gain omni-directional design of 6.2 dBi with true 2 × 2 MIMO electrical performance, providing higher data throughput and link resilience.
  • It offers ultra-wideband coverage from 410 MHz to 3800 MHz, encompassing 450 MHz private-LTE, 2.4 GHz Wi-Fi, and the 3.5 GHz CBRS/5 G band.
  • The superior pattern control maintains balanced gain and low cross-polarisation at the highest frequencies, ensuring reliable global connectivity.
  • Its innovative multi-dipole array with a patented feed network keeps impedance stable across the entire spectrum, future-proofing the installation.
  • The rugged, UV-stable, weatherproof enclosure resists wind, rain, and temperature extremes while remaining lightweight for easy mast or wall mounting.

Application Areas:

  • It supports industrial M2M and telemetry links that require broadband omni-directional coverage.
  • It is ideal for sites with weak or unstable cellular data, where higher gain and MIMO improve throughput.
  • It provides Wi-Fi backhaul for warehouses, depots, and mobile offices.
  • It is well suited for high-end cellular routers in smart-grid, oil & gas, agriculture, and transport networks.
  • It is perfect for temporary installations and rapid-deployment hotspots that need a single antenna to cover multiple bands.

In the Box:

  • Poynting Omni-600 LTE Antenna
  • 5m cable
  • SMA-Male connector

Documents:

Poynting OMNI-600 Antenna - Datasheet

Product Specifications

MPN A-OMNI-0600-V1-02
Antenna application Terminal Antenna
Antenna cable type HDF-195
Antenna configuration 2x2 MIMO
Antenna features Omnidirectional
Antenna port connectors SMA (M)
Antenna type Omni
Brands Poynting
Cable length m 5
Colour White
Connector N(F)
Coverage type Omni-directional
Frequency band Multi-Band 700-3800 MHz
Frequency mhz 410-470|698-960|1710-2700|3400-3800
Frequency range mhz 698 - 960, 3400 - 3800, 1710 - 2700
Height 10
Ingress protection ip IP65
Installation type External mounting
Ip rating IP65
GTIN/EAN 6009880915101
Length 70
Low pim No
Max frequency mhz 3800
Max gain dbd dbi 6.2
Mimo support Yes
Min frequency mhz 410
Min gain dbd dbi 1

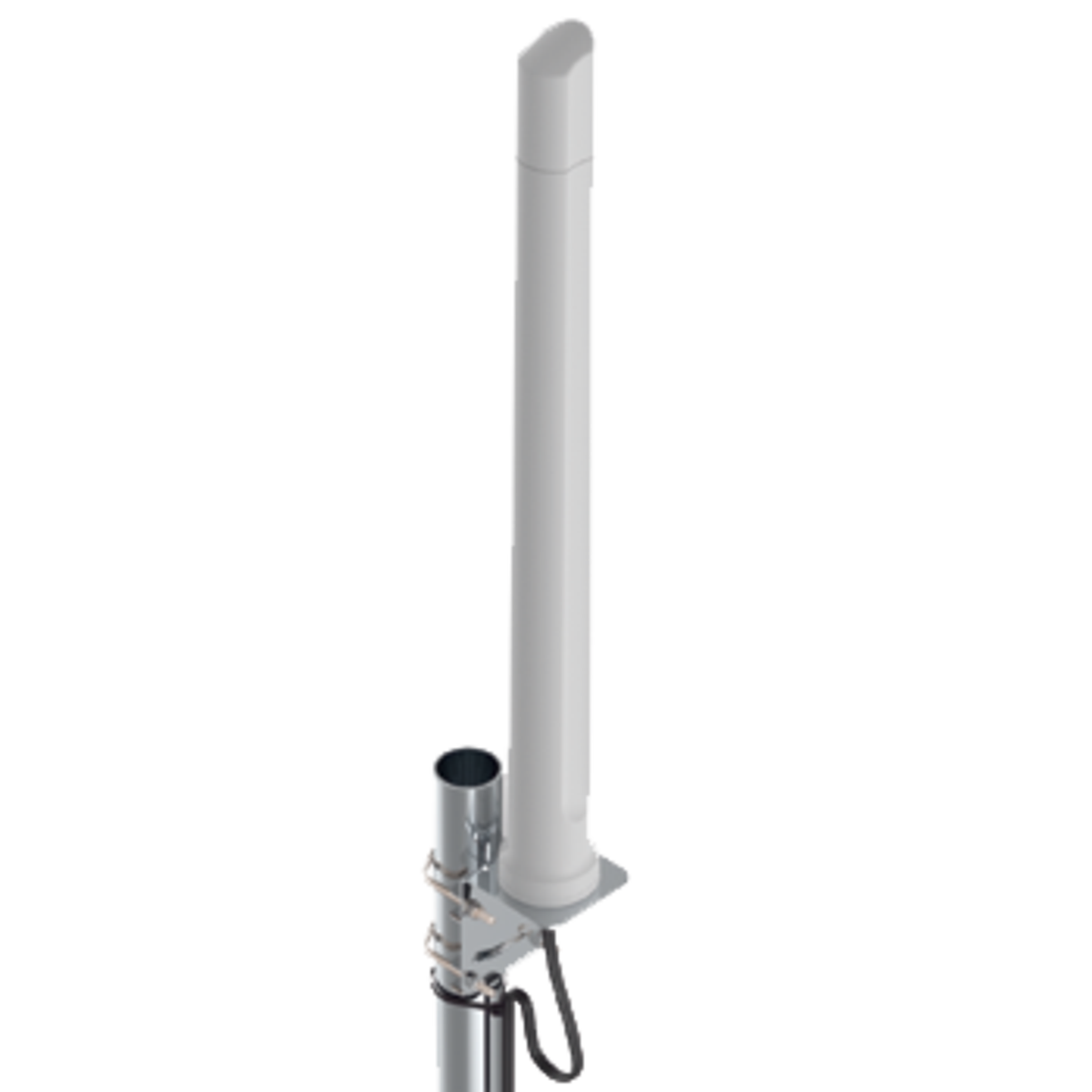

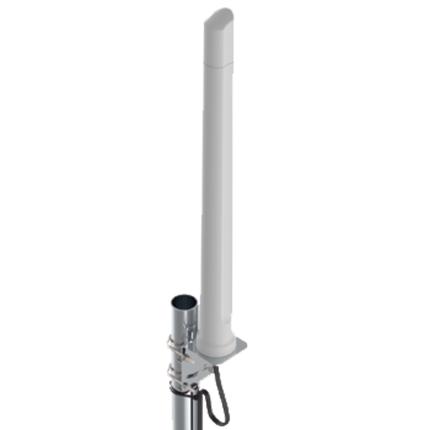

Mount supported Wall mount, Pole mount
Mount supported detailed Wall mount, Pole mount
Mounting area Mounting Bracket Included
No of antenna ports 2
Nominal gain dbi 1 / 2 / 6.2 / 2
Number of outputs 2x2 MIMO
Polarisation Vertical
Power w 5
Technologies supported Wi-Fi, 2G, 3G, 4G, 5G
Temperature range c -40 to +70
Tuned bandwidth Full
Vswr < 3.0:1
Width 15
Wind gust km h ?160
Wind load 160km h n 160
