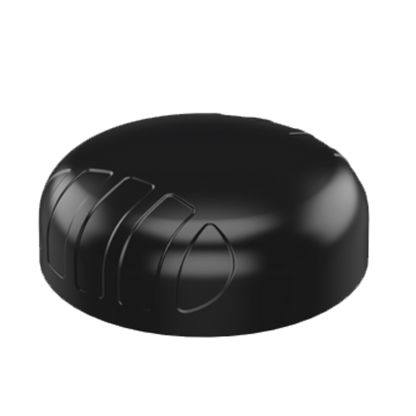

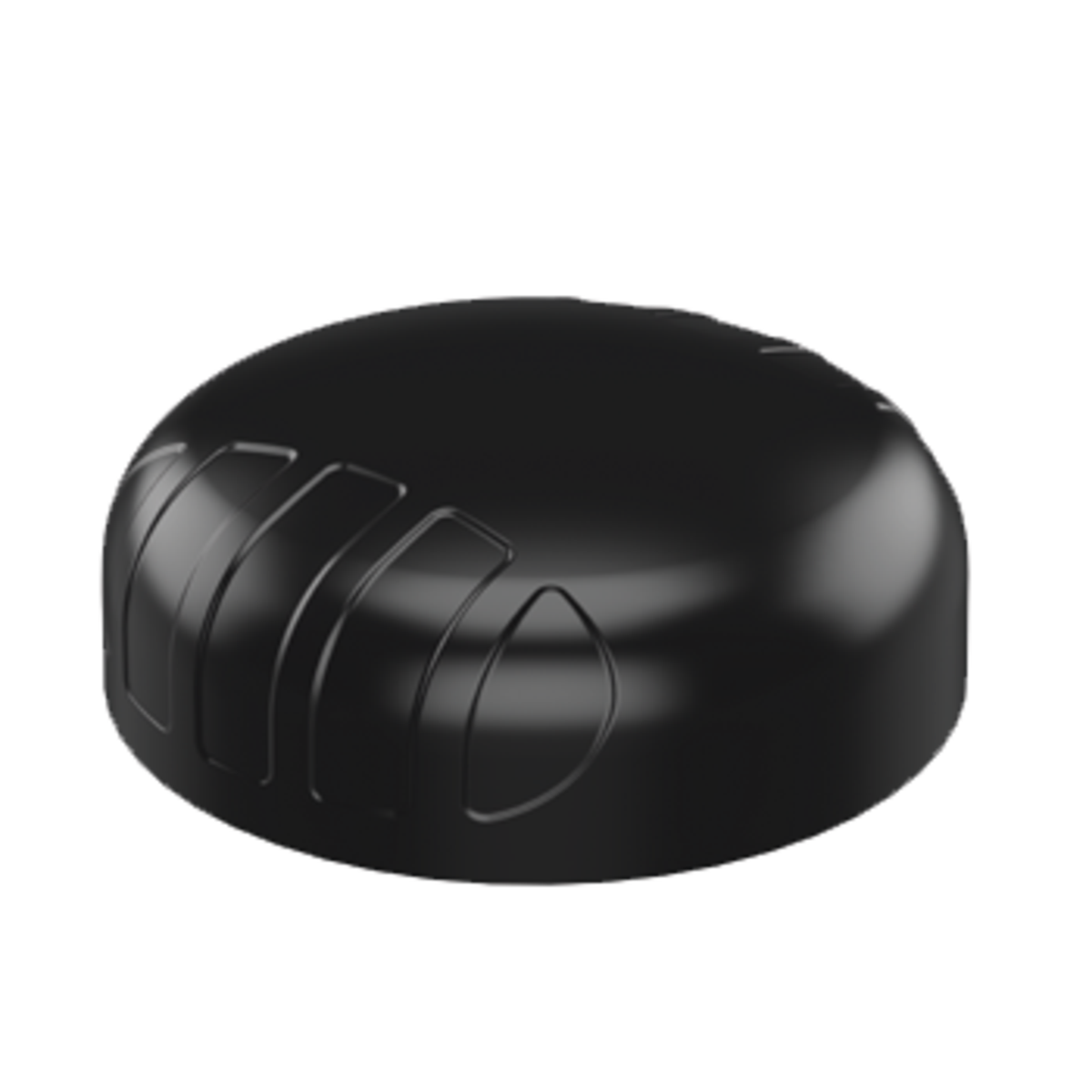

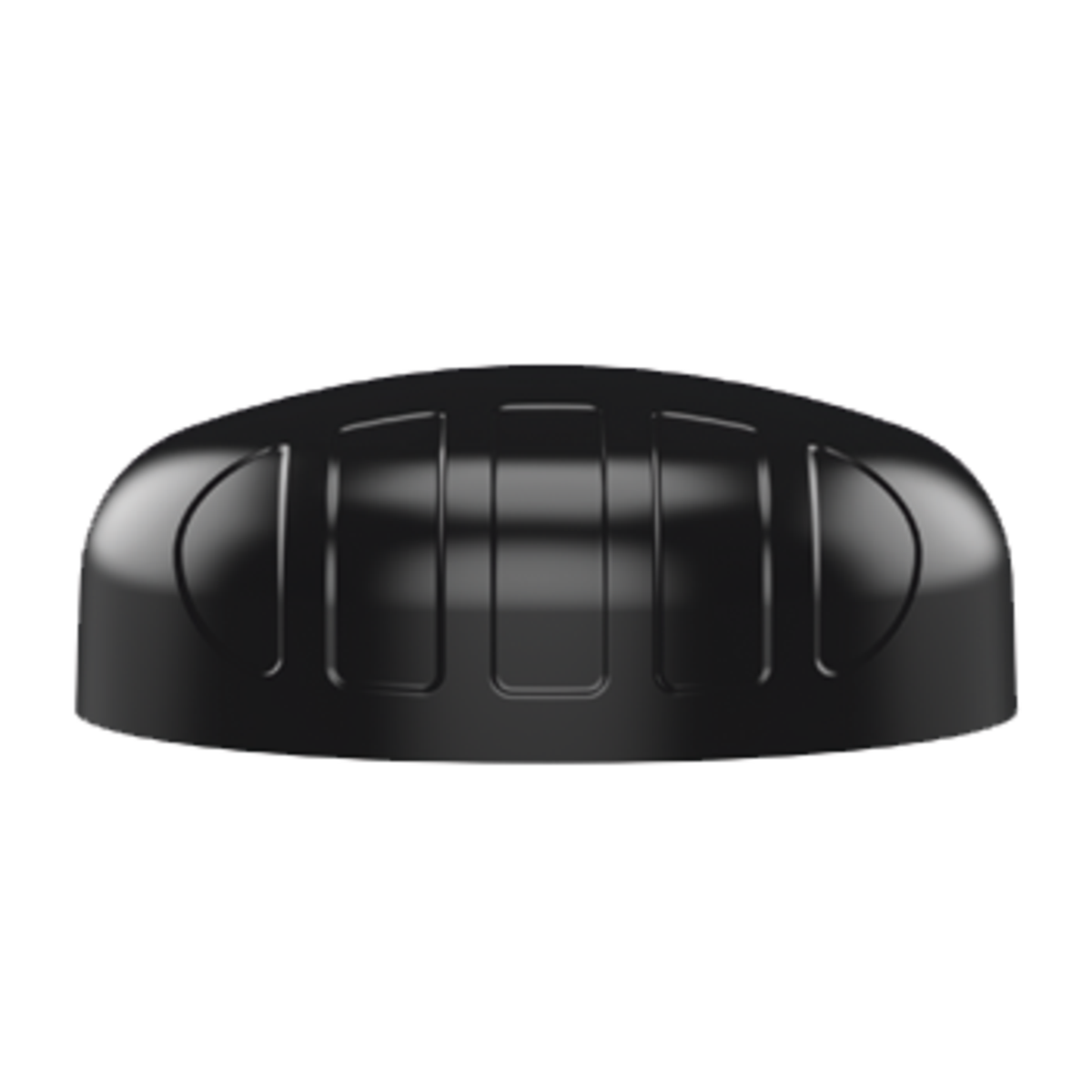

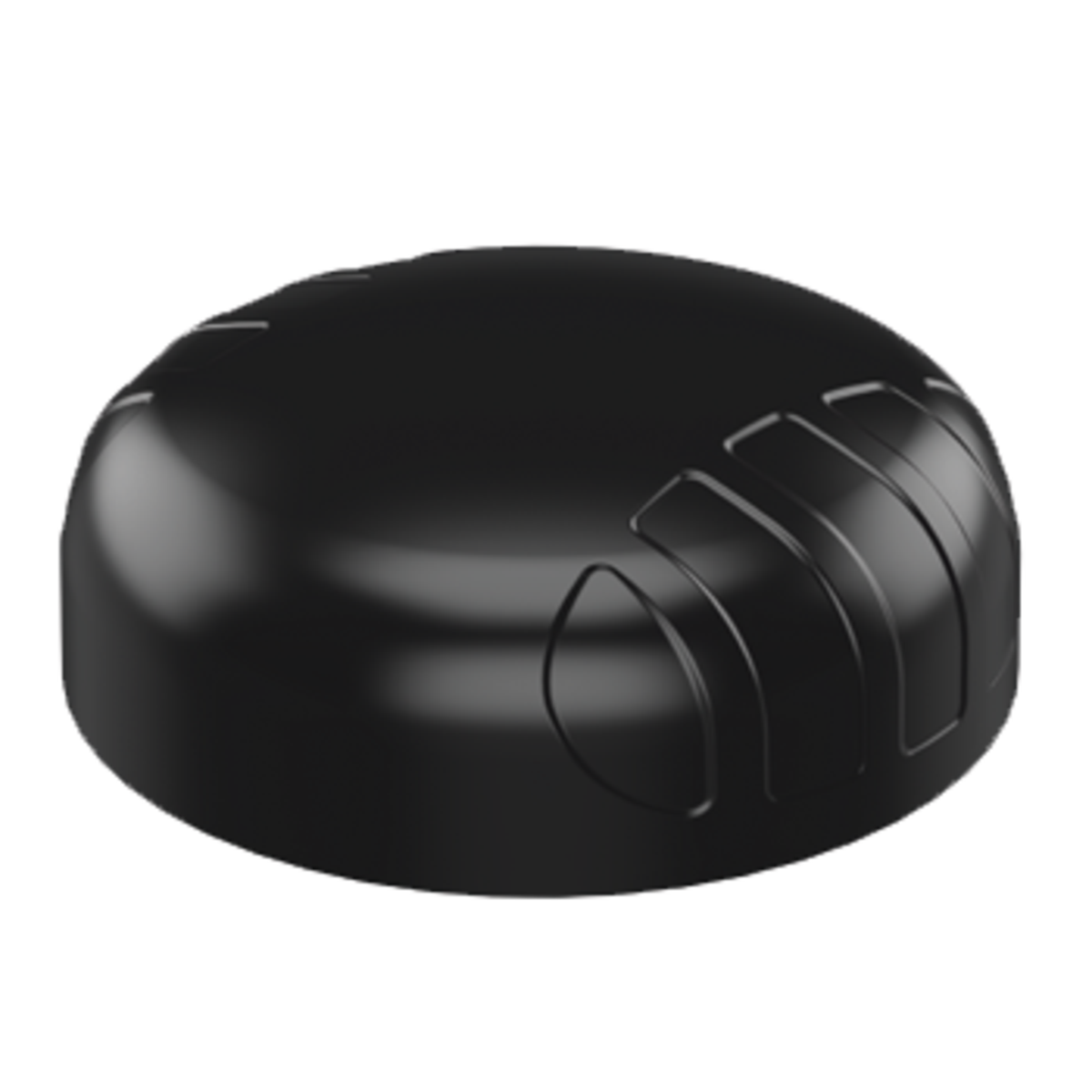

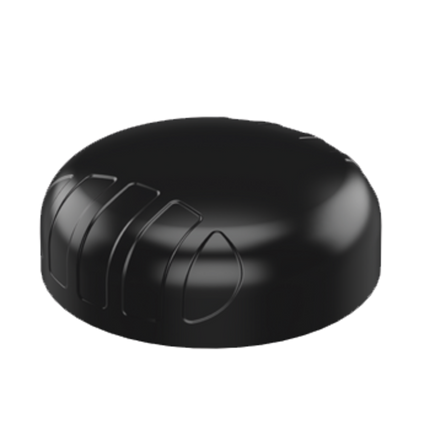

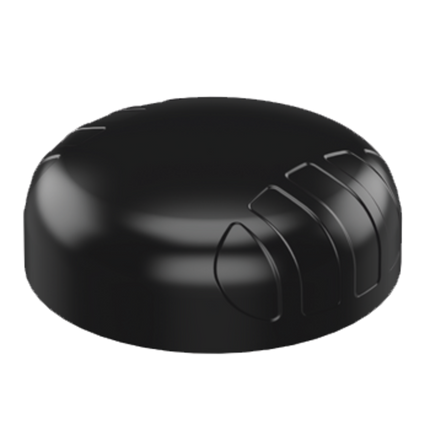

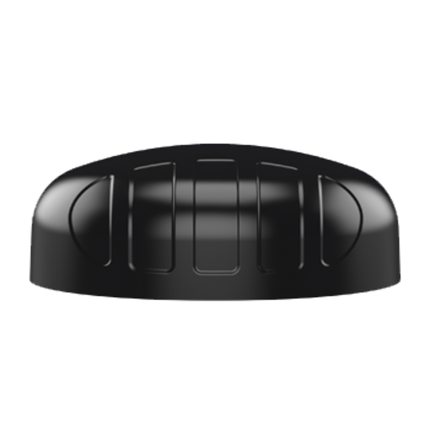

The Poynting PUCK-3-V1 consists of a 3-in-1 antenna system within a single housing, featuring SISO LTE, SISO Wi-Fi and GPS/GLONASS. The Cellular antenna (for 2G/3G/4G) covers the 698MHz to 3800MHz band, this includes the most popular international LTE bands. The antenna provides a dual-band Wi-Fi antenna offering concurrent 2.4 GHz and 5 GHz bands, capable of 802.11n and 802.11ac/ax. The third antenna is a high-performance active GPS/GLONASS system operating at temperatures as low as -40ºC.
The PUCK exceeds the performance of many competitors due to the attention to design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation, which is often overlooked in such a small size antenna. Despite its small size, this antenna provides excellent performance especially at the higher frequency bands, where performance is critical for LTE throughput and connection stability.
Product Features:
- It integrates three antennas in one enclosure: a SISO LTE element covering 698 - 3800 MHz, a dual-band Wi-Fi antenna supporting 2.4 GHz & 5 GHz (802.11 n/ac/ax), and an active GPS/GLONASS receiver.
- It has an ultra-compact, low-profile form factor (Ø 100 mm x 36 mm H) that minimises visual impact and wind load.
- The IP68-rated, fire-resistant, UV-stable housing provides outstanding resistance to water, dust, corrosion, and prolonged sunlight exposure.
- Its ground-plane-independent design maintains consistent radiation patterns on both metal and non-metal surfaces.
- It is 5G-ready with full coverage of the 3.2 - 4.2 GHz CBRS band for private-LTE and future 5G deployments.
- Its radiation patterns are optimised for omni-directionality and elevation gain to maximise LTE throughput and link stability despite the small size.
- It operates reliably in extreme climates from -40 °C to +80 °C, with proven shock and vibration resistance.
- It includes multiple mounting kits as standard€�spigot, magnetic pad, high-bond adhesive tape, and surface bracket for rapid, flexible installation.
Application Areas:
- It is ideal for smart-utility AMI/AMR metering networks for power, gas, and water.
- It supports smart-building systems, including HVAC monitoring, access control, security, and irrigation automation.
- It provides resilient cellular backhaul for digital signage, kiosks, and payment terminals.
- It enhances warehouse and logistics infrastructure, supporting asset-tracking gateways and autonomous robots.
- It enables industrial automation, robotics, and other M2M/IIoT deployments.
- It is suited to transport fleets such as buses, public-safety vehicles, and utility trucks€�with limited roof clearance.
- It ensures reliable telemetry, collision-avoidance, and remote-control capabilities for mining vehicles and heavy machinery.
- It delivers cellular IoT connectivity for agricultural equipment in precision-farming applications.
- It provides robust connectivity for small boats and yachts operating near coastlines or inland waterways.
In the Box:
- Poynting Puck-3-V1 Transportation Antenna - Black
- 2m cable
- SMA-Male connector
Documents:
Poynting PUCK-3-V1 Antenna - Datasheet
Videos:
Poynting PUCK Antenna - Unboxing
