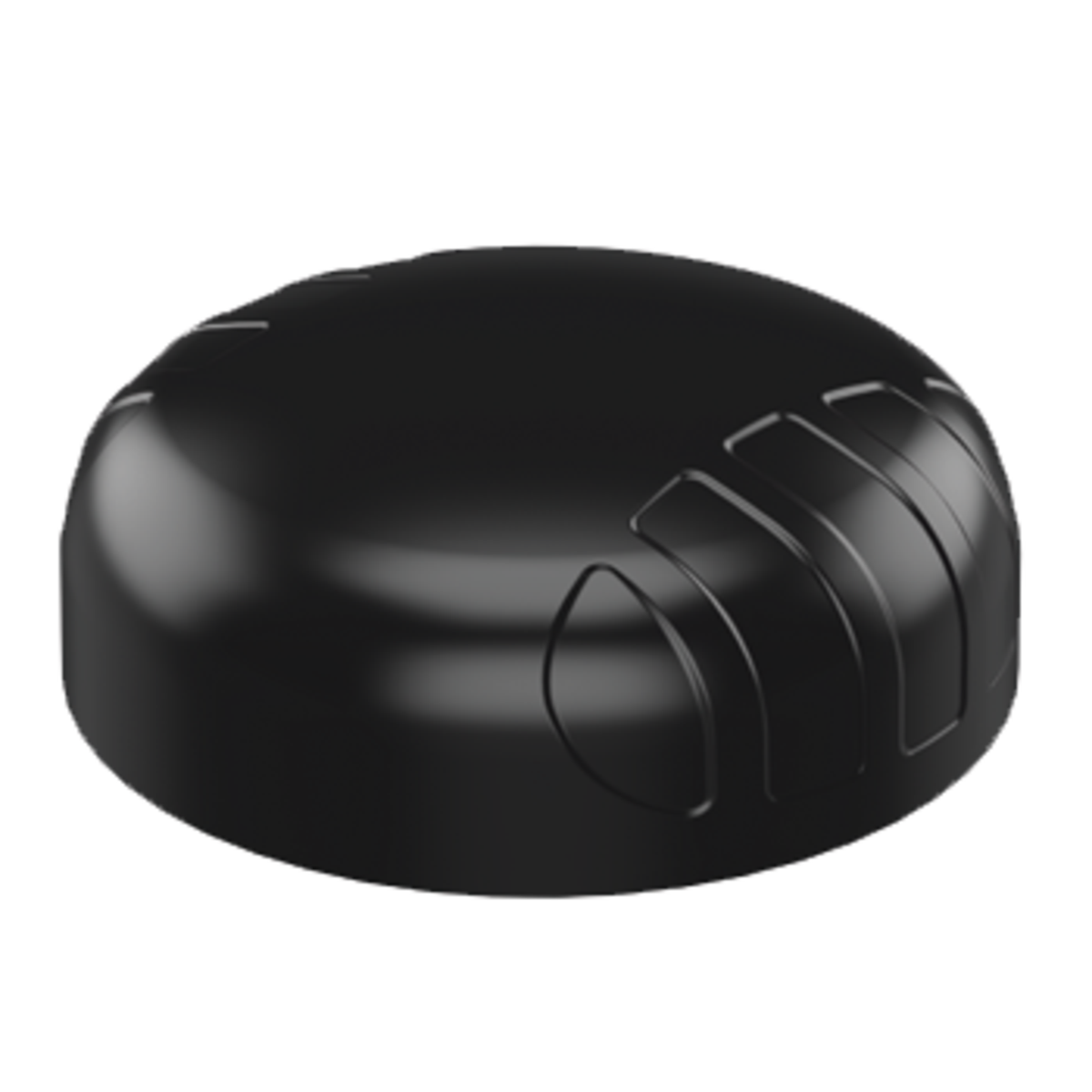

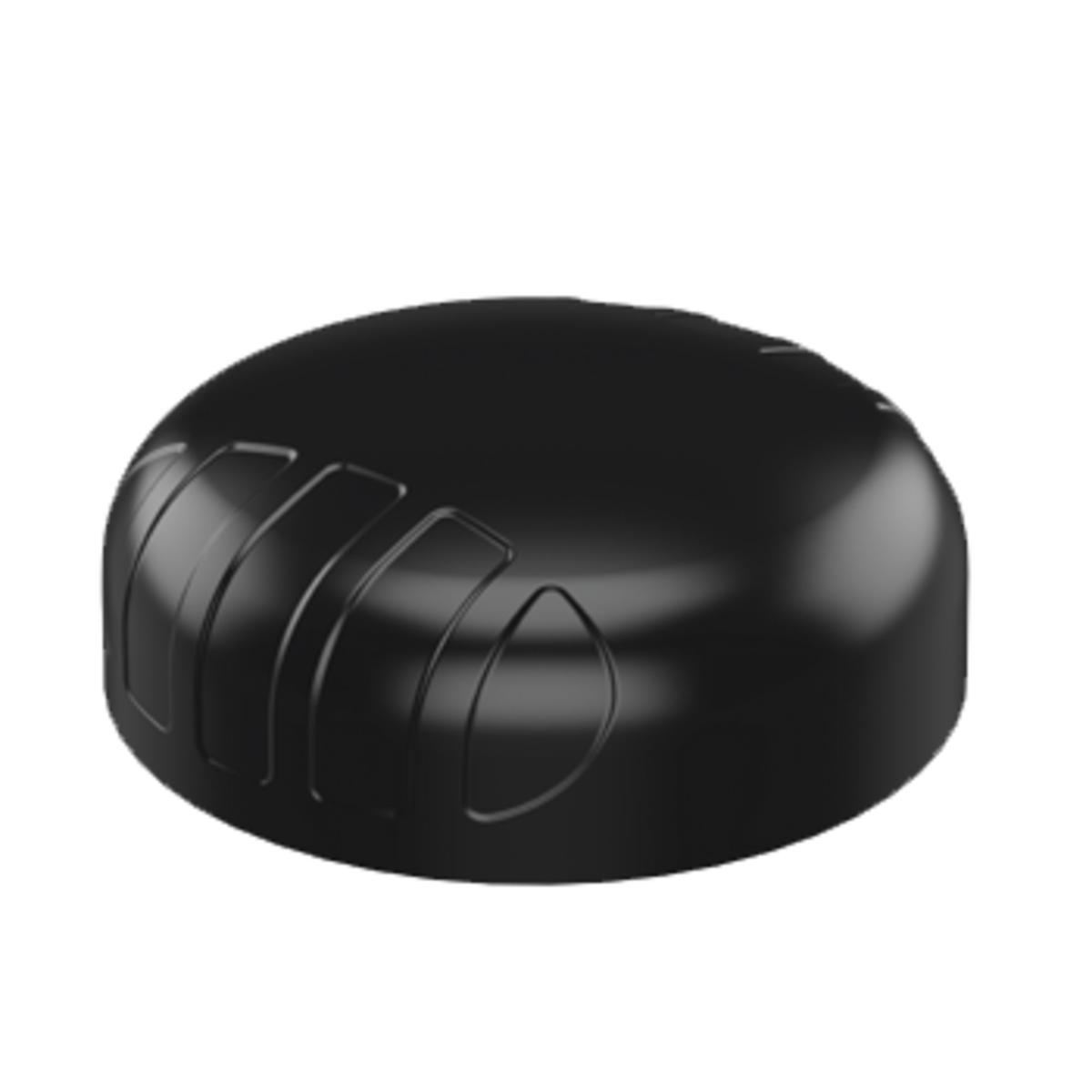

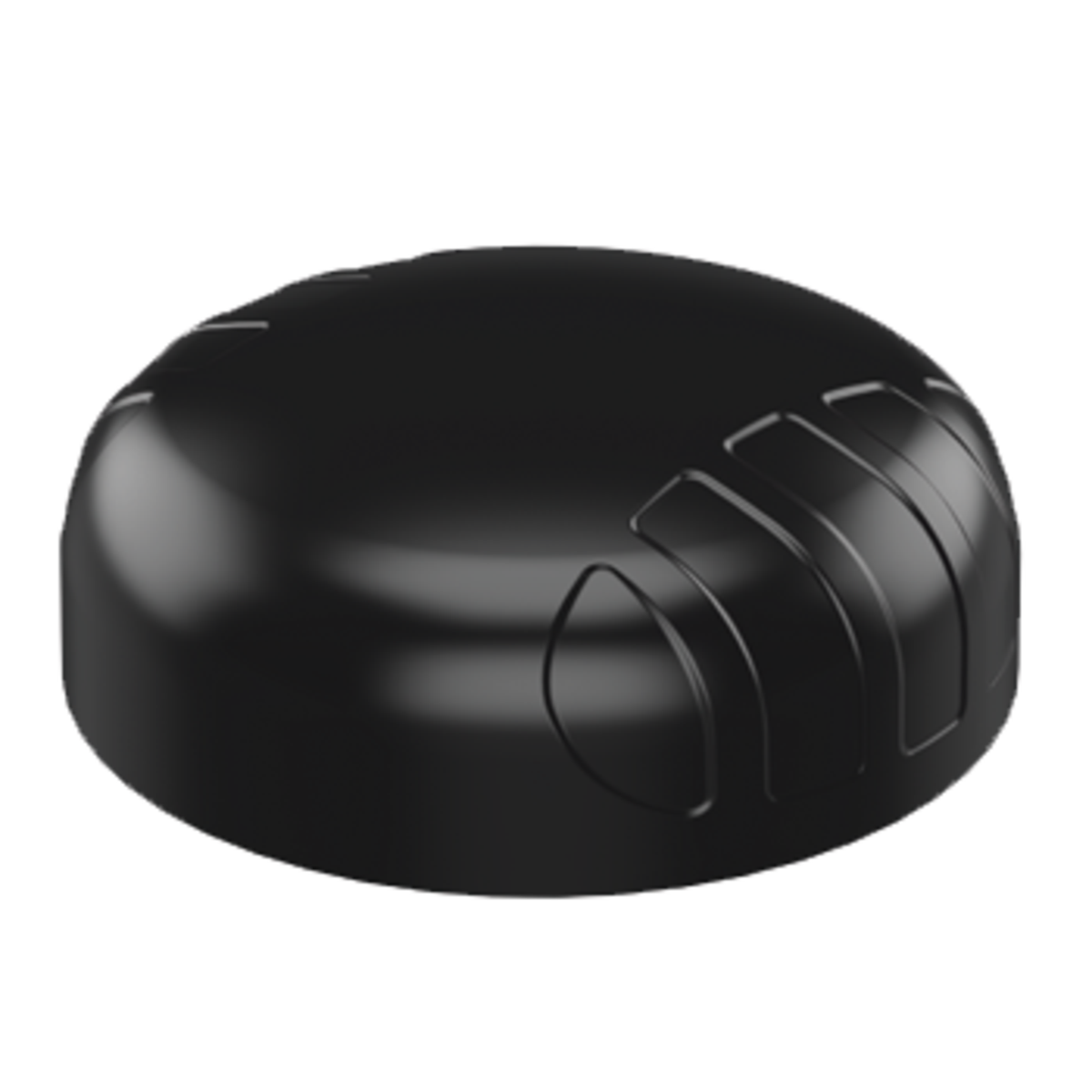

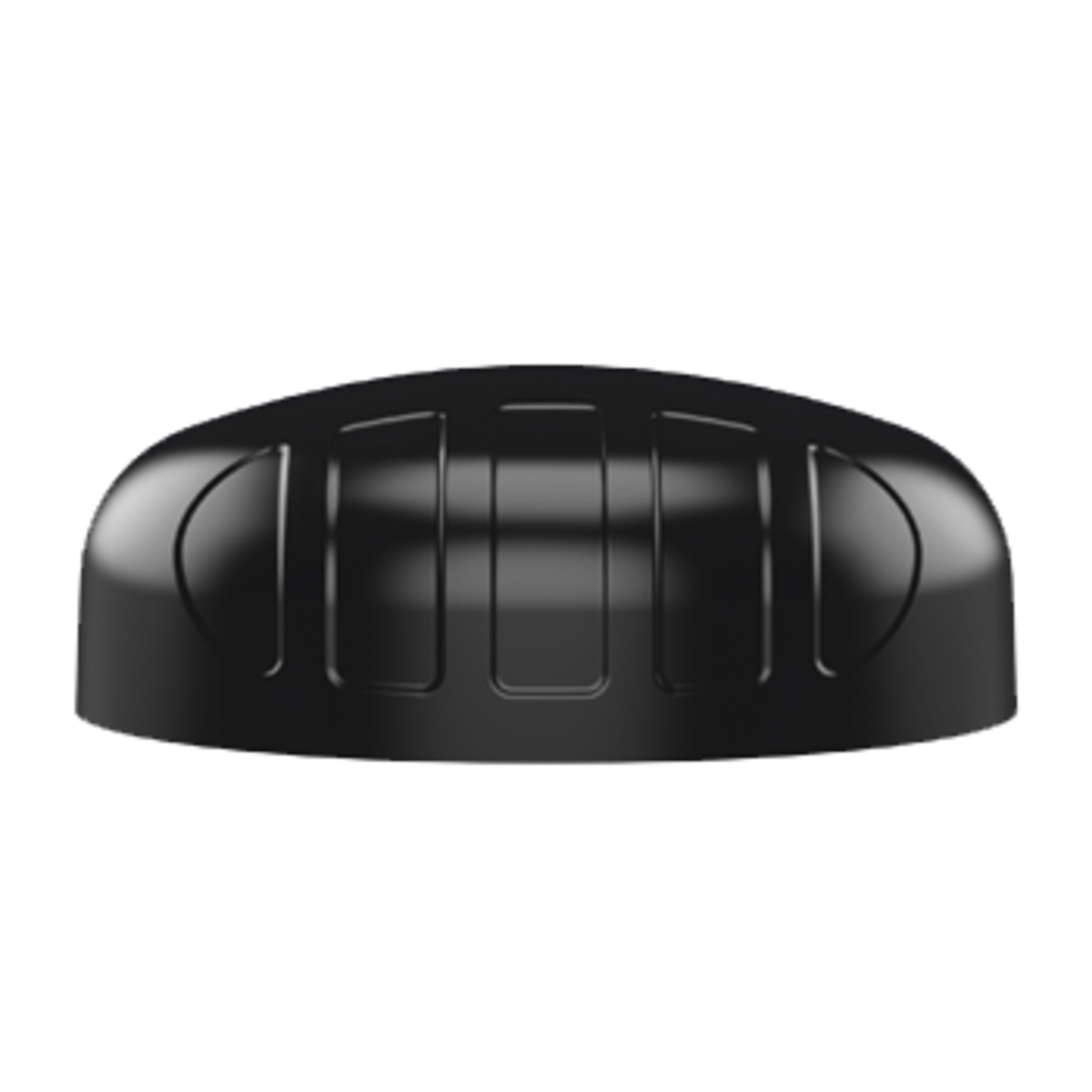

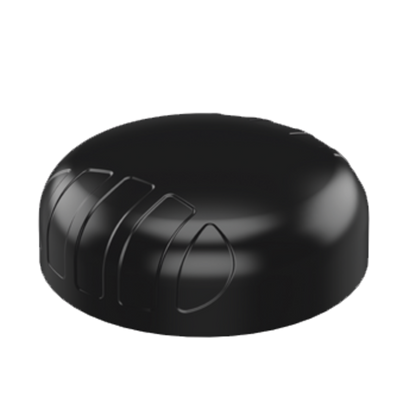

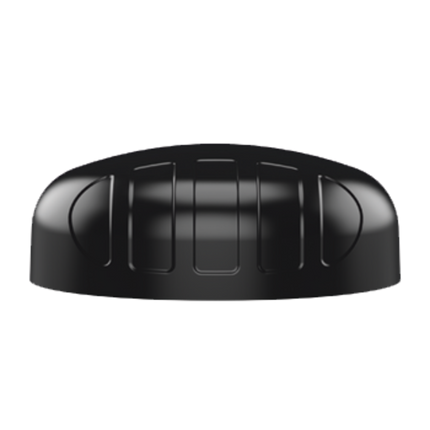

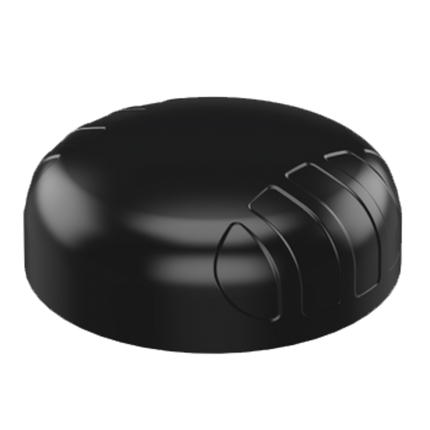

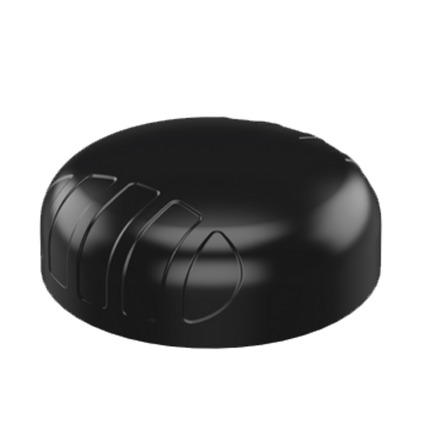

The Poynting PUCK-5-B 5-in-1 exceeds the performance of many competitors due to the attention to design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation, which is often overlooked in such a small size antenna. Despite its small size, this antenna provides excellent performance especially at the higher frequency bands, where performance is critical for LTE throughput and connection stability. This antenna is designed so that both the LTE ports are connected to the router/device to ensure the best performance. Please see other derivatives of the PUCK range that are more suitable for a SISO application. The 2x Cellular MIMO antennas (for 2G/3G/4G/5G) cover the 617 MHz to 4200 MHz band, this includes the most popular international LTE bands and 5G band up to 4200 MHz. The antenna provides two separate dual-band Wi-Fi antennas offering concurrent 2.4GHz and 5 GHz bands, capable of 802.11n and 802.11ac/ax with 2x2 MIMO. The fifth antenna is a high-performance active GPS/GLONASS system operating at temperatures as low as -40ºC.

Product Features:

• The antenna features an ultra-compact, low-profile design (Ø 100 mm x 36 mm H) that minimizes visual impact and wind load.
• The IP69K-rated enclosure offers exceptional resistance to high-pressure water jets, dust ingress, corrosion, and harsh cleaning processes.
• The fire-resistant, UV-stable polymer housing ensures long-term durability in both indoor and outdoor environments.
• The antenna delivers 5G-ready coverage, including the 3.2 - 3.8 GHz CBRS band for private-LTE and future 5G rollouts.
• It includes multiple mounting options spigots, magnetic pad, high-bond adhesive tape, and bracket to speed installation on flat or curved surfaces.
• The robust mechanical design is tested for shock and vibration, making it suitable for vehicles, machinery, and heavy equipment.

Application Areas:

• It is ideal for smart-utility and smart-building systems, including power and gas metering, HVAC monitoring, access control, security, and irrigation automation.
• The antenna supports factory automation, robotics, and other machine-to-machine (M2M) or industrial IoT deployments.
• It provides uninterrupted cellular backhaul for digital signage, kiosks, and payment terminals.
• It enhances communications in warehouse and logistics hubs, supporting autonomous guided vehicles and asset-tracking gateways.
• It is suited to transport fleets such as buses, service vans, and public-safety vehicles where limited roof height or tunnel clearance demands a low-profile antenna.
• The device enables telematics, collision-avoidance, and remote monitoring for mining haul trucks, dozers, and drill rigs.
• It delivers robust connectivity for agricultural tractors and combines used in precision-farming systems.
• It is suitable for coastal and inland-water marine craft, including small boats and yachts operating near shorelines and marinas.

In the Box:

• 1 x Poynting PUCK-5-B Antenna - Black
• Spigot mounting kit.
• Magnetic-base attachment pad.
• High-bond double-sided adhesive pad.
• Surface-mount bracket with screws and gasket.

Documents:

Poynting PUCK-5 Antenna - Datasheet
