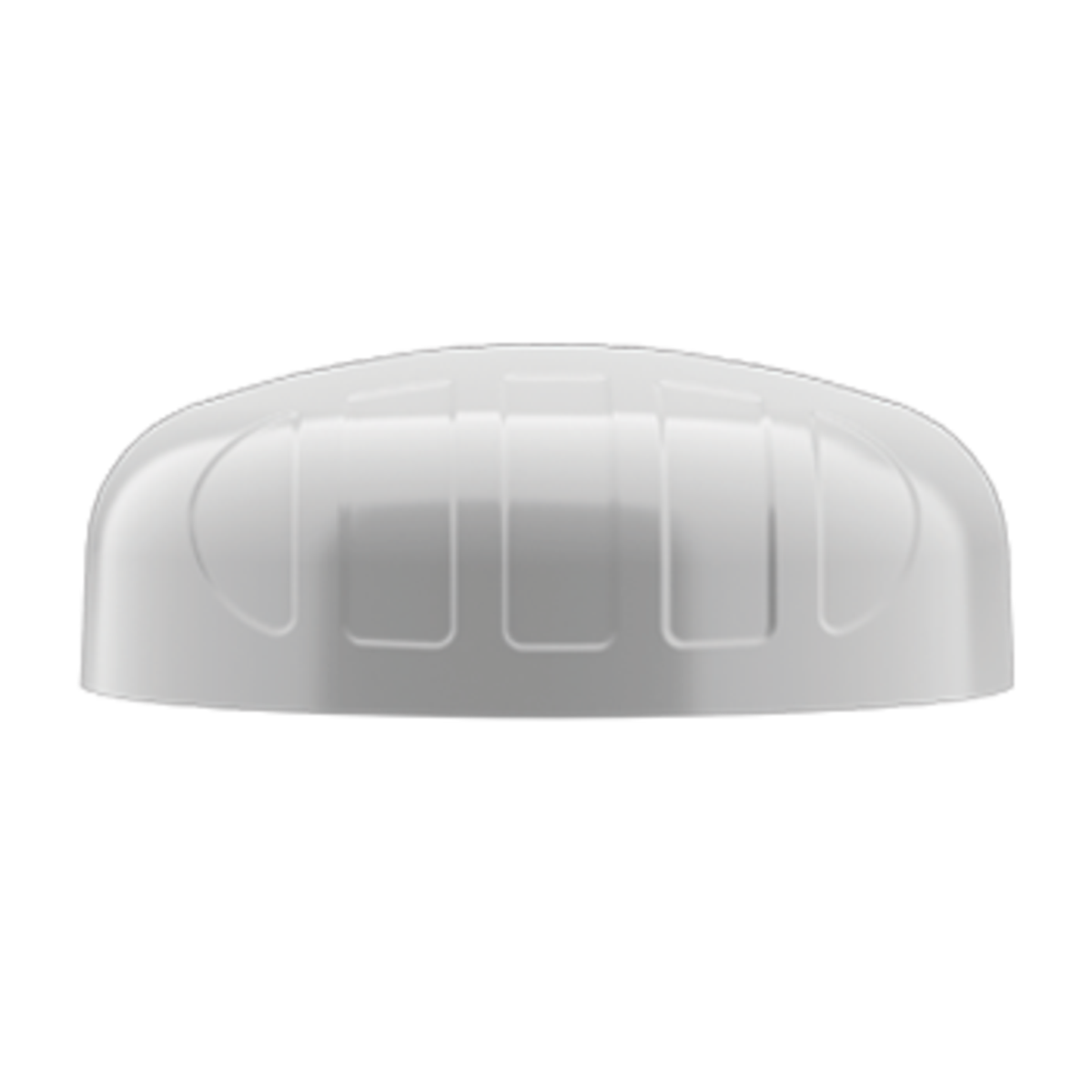

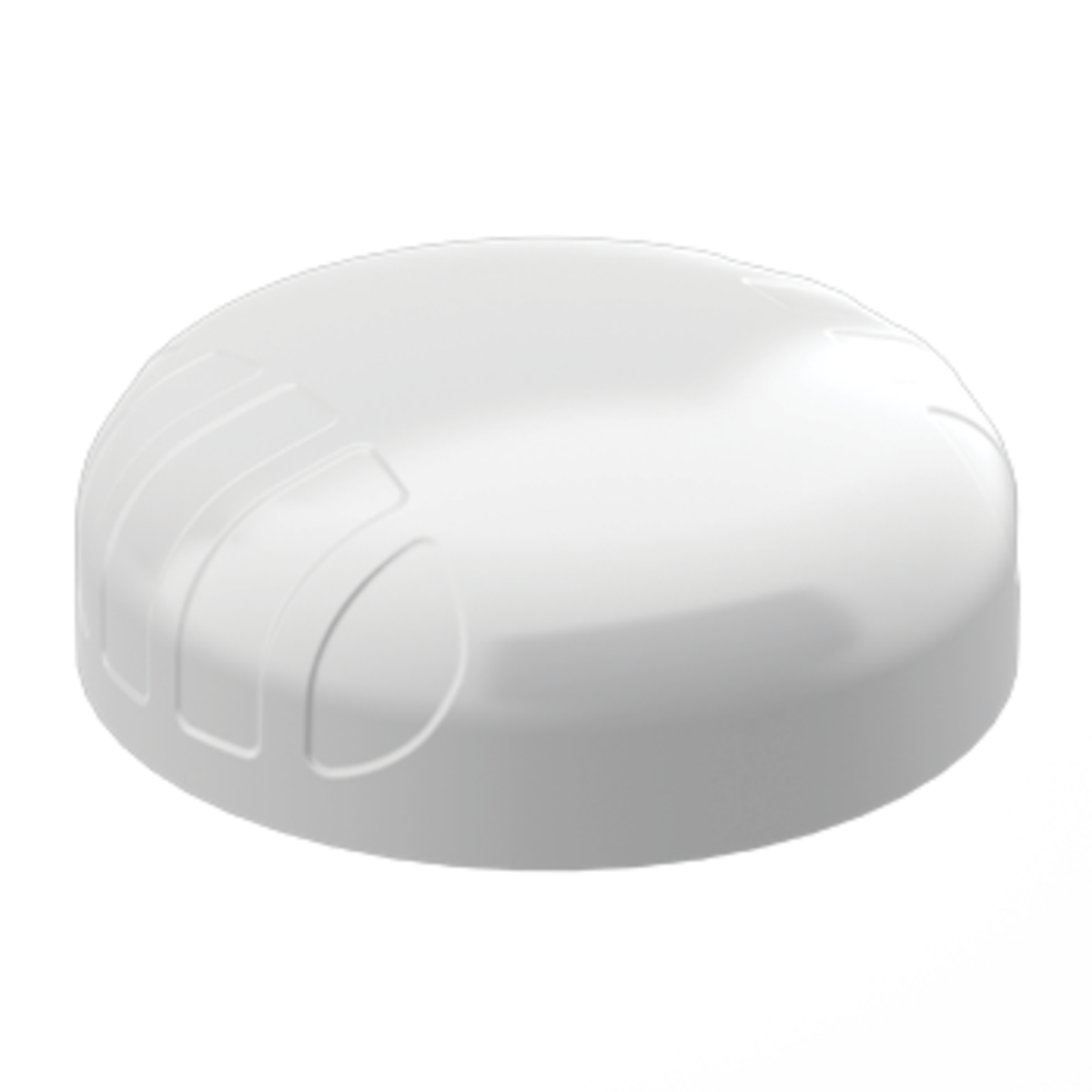

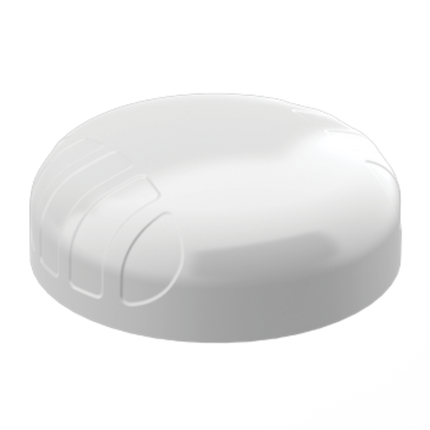

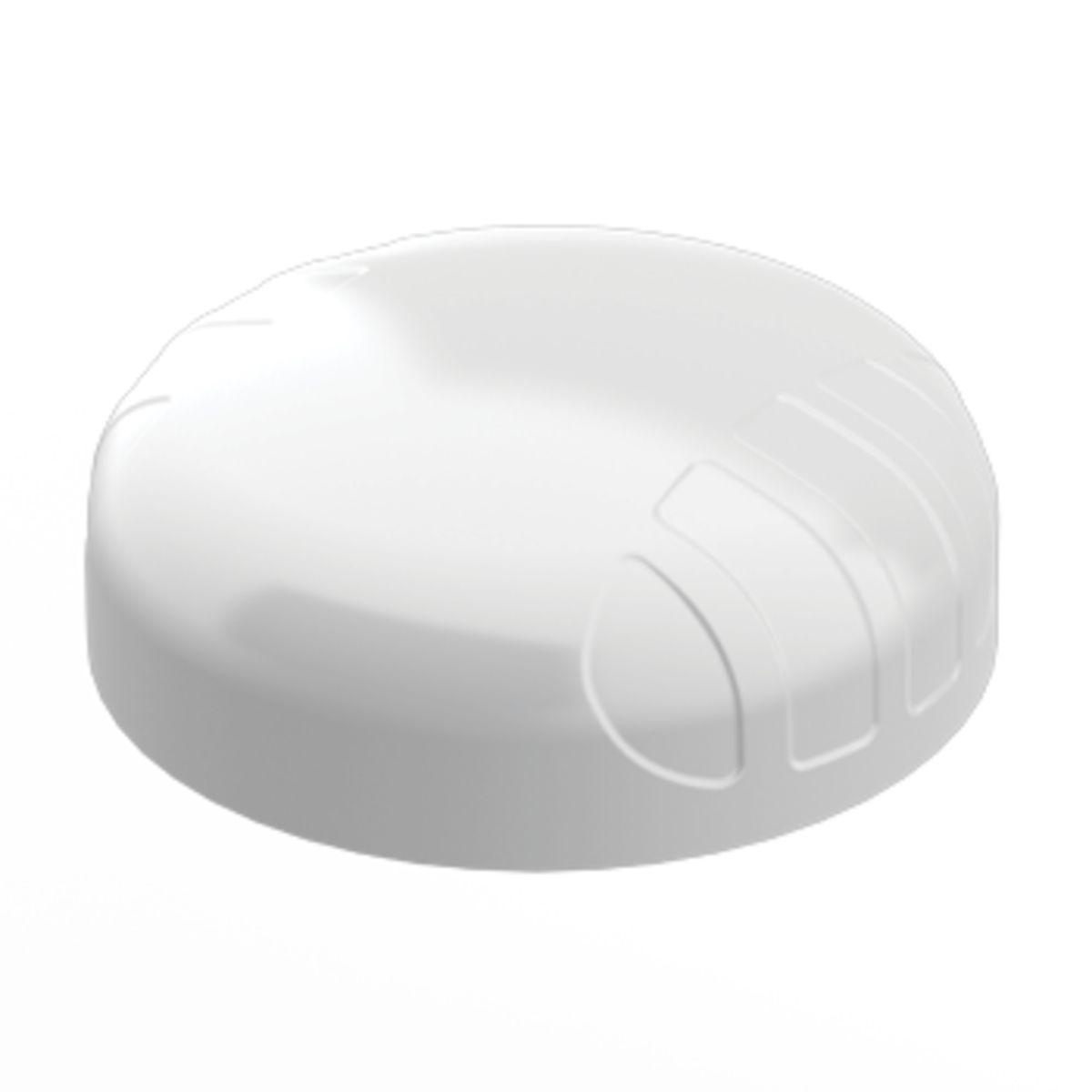

Poynting PUCK-5-W antenna offers a small profile antenna for use in the IoT/M2M, Smart Meter, Smart Utilities, Transportation, Marine and the Agricultural/Farming markets. The PUCK-5 consists of a 5-in-1 antenna system within a single housing, featuring 2X2 MIMO LTE, 2X2 MIMO Wi-Fi (Dual-band 2.4 GHz & 5 GHz) and GPS/GLONASS. The 2x Cellular MIMO antennas (for 2G/3G/4G) cover the 617 MHz to 4200 MHz band, this includes the most popular international LTE bands. The antenna provides two separate dual-band Wi-Fi antennas offering concurrent 2.4 GHz and 5 GHz bands, capable of 802.11n and 802.11ac/ax with 2x2 MIMO. The fifth antenna is a high-performance active GPS/GLONASS system operating at temperatures as low as -40ºC. The PUCK exceeds the performance of many competitors due to the attention to design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation, which is often overlooked in such a small size antenna. Despite its small size, this antenna provides excellent performance especially at the higher frequency bands, where performance is critical for LTE throughput and connection stability. This antenna is designed so that both the LTE ports are connected to the router/device to ensure the best performance. Please see other derivatives of the PUCK range that are more suitable for a SISO application.

Product Features:

• The antenna features an ultra-compact, low-profile design (Ø100 mm × 36 mm H) that minimizes visual impact and wind load.
• The IP69K-rated enclosure offers exceptional resistance to high-pressure water jets, dust ingress, corrosion, and harsh cleaning processes.
• The fire-resistant, UV-stable polymer housing ensures long-term durability both indoors and outdoors.
• The device delivers 5G-ready coverage, including the 3.2 – 3.8 GHz CBRS band for private-LTE and future 5G rollouts.
• Multiple mounting options spigot mount, magnetic pad, high-bond adhesive tape, and bracket enable quick installation on flat or curved surfaces.
• The mechanical design is tested for shock and vibration, making it suitable for vehicles, machinery, and heavy equipment.

Application Areas:

• It supports smart utilities and smart-building systems—including power and gas metering, HVAC monitoring, access control, security, and irrigation automation.
• The antenna is ideal for factory automation, robotics, and other machine-to-machine (M2M) or Industrial IoT deployments.
• It provides uninterrupted cellular backhaul for digital signage, kiosks, and payment terminals.
• It enhances warehouse and logistics infrastructure, including support for autonomous guided vehicles and asset-tracking gateways.
• The device is suited to transport fleets such as buses, service vans, and public-safety vehicles where limited roof height or tunnel clearance demands a low-profile antenna.
• It enables telematics, collision-avoidance, and remote monitoring for mining haul trucks, dozers, and drill rigs.
• It delivers robust connectivity for agricultural tractors and combines, supporting precision-farming systems.
• It provides dependable data links for coastal or inland-water marine craft, including small boats and yachts operating near shorelines and marinas.

In the Box:

• 1 × Poynting PUCK-5-W Antenna - White
• Spigot mounting kit.
• Magnetic-base attachment pad.
• High-bond double-sided adhesive pad.
• Surface-mount bracket with screws and gasket.
