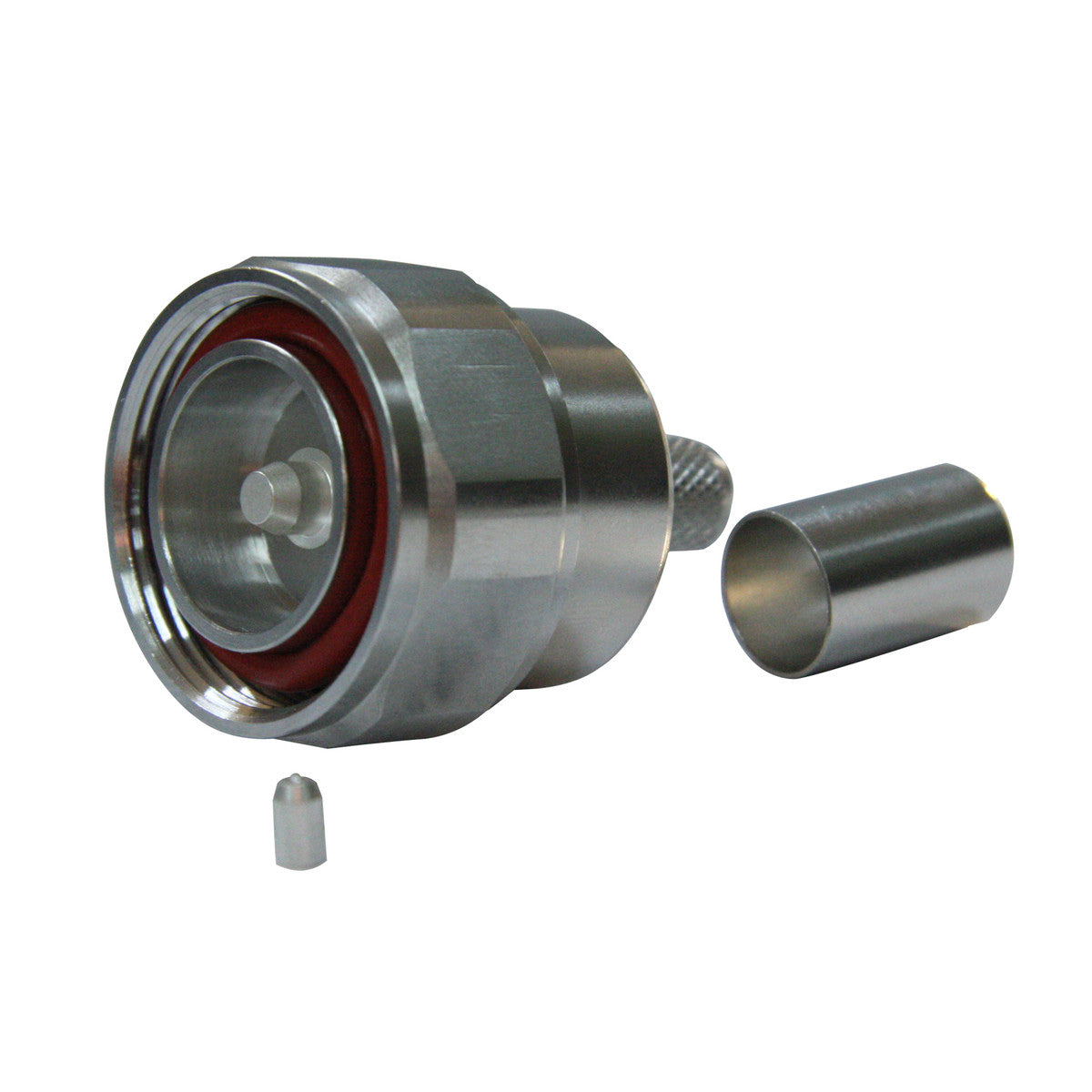

The Pulse 716-213M Crimp Connector is a high-performance 7-16 DIN Male connector designed for use with RG213 coaxial cables. With a 50Ω impedance and support for frequencies up to 7.5 GHz, it is ideal for high-power RF and telecommunications applications.

Product Features:

• This premium RF connector features a 7-16 DIN Male design, specifically engineered for use with RG213 coaxial cable.
• It delivers reliable performance with a low VSWR of 1.3:1 max and excellent return loss.
• Constructed with a corrosion-resistant white bronze alloy-plated body.
• The silver-plated center contact enhances conductivity for optimal signal integrity.
• The Teflon insulation provides superior electrical insulation.
• This connector supports crimp installation using the RCT-213 Crimp Tool.
• Its robust M29 x 1.5 threaded coupling mechanism, making it ideal for high-performance RF applications.
• It meets industry standards, including MIL-STD-202, MIL-STD-101, and MIL-STD-107 compliance.

Application Areas:

• Telecommunication and cellular networks.
• High-power RF transmission systems.
• Broadcast and satellite communication.
• Antenna and base station connectivity.

Installation Instructions:

• Step 1: Fit the crimp sleeve and heat shrink over the cable jacket.
• Step 2: Strip the cable to the specified dimensions.
• Step 3: Solder the stub pin to the center conductor.
• Step 4: Fit the connector by sliding the neck under all braid layers.
• Step 5: Ensure the braid is pulled back to cover the connector neck.
• Step 6: Slide the crimp sleeve over the braid.
• Step 7: Crimp the sleeve using a 10.9mm hex jaw.
• Step 8: Slide the heat shrink over the crimp sleeve and apply heat.

In the Box:

• 1 x Pulse 7-16 DIN (M) Connector for RG213 - Crimp.

Documents:

Pulse 716-213M Connector - Datasheet
