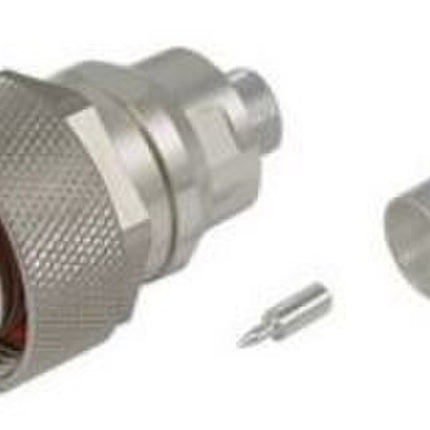

The Pulse 716-41 7-16 DIN-Male Connector is a high-performance, straight cable plug designed for use with LMR400, CNT-400, RG214, and 9913 cables. This connector features a white bronze finish and is known for its robust construction and excellent electrical performance, making it suitable for a wide range of RF applications.
Product Features:
- This connector is a straight cable plug 716 DIN.
- It features a crimp inner hex size of 3.25 mm and a crimp outer hex size of 10.9 mm.
- The connector suits cables such as LMR400, CNT-400, RG214, and 9913.
- The impedance is 50 ohms, providing optimal signal transmission.
- It operates up to a maximum frequency of 7.5 GHz.
- The VSWR is 1.3:1 max, ensuring minimal signal reflection.
- The centre contact is soldered, and the outer contact is crimped.
- The mating is a M29 x 1.5 threaded coupling.
- The connector has a durability of 500 matings.
- The coupling nut retention is 60 lbs max, and the recommended nut mating torque is 25 Nm.
- The cable retention is 80 lbs min.
- The temperature range is from -55° to 155° C.
- It meets vibration standards MIL-STD-202 Test Cond B, salt spray standards MIL-STD-101 Test Cond B, and thermal shock standards MIL-STD-107 Test Cond B.
Application Areas:
- This connector is ideal for use in RF communication systems.
- It is suitable for broadcast, telecom, and networking applications.
- The connector can be used in instrumentation and testing environments.
- It is perfect for applications requiring secure and stable connections with LMR400, CNT-400, RG214, and 9913 cables.
In the Box:
- 1 x 716-41 7-16 DIN-Male Connector, Crimp - White Bronze.
