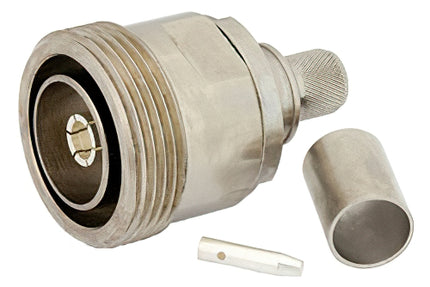

Pulse 716-20 7-16 DIN-Female Connector, Crimp, RG213 Cable

    Pulse 716-20 7-16 DIN-Female Connector, Crimp, RG213 Cable

      Product form
      Brand:
      Pulse
      Item ID:
      168018268
      Export:
      Accepted
      Shipping:
      Not available to ship
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Options/MPN:
      716-20
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      The Pulse 716-20 7-16 DIN-Female Connector is a high-performance, straight cable plug designed for use with RG213 cables. It features a white bronze finish.

      Sold-out/Backorder

      $25.70

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        The Pulse 716-20 7-16 DIN-Female Connector is a high-performance, straight cable plug designed for use with RG213 cables. This connector features a white bronze finish and is known for its robust construction and excellent electrical performance, making it suitable for a wide range of RF applications.

        Product Features:

        • This connector is a 7-16 DIN-Female connector.
        • It is designed for use with RG213 cables.
        • The connector features a crimp set or tool, specifically the RCT-213.
        • It has a white bronze finish for enhanced durability and performance.
        • The connector ensures optimal signal transmission with minimal loss.

        Application Areas:

        • This connector is ideal for use in RF communication systems.
        • It is suitable for broadcast, telecom, and networking applications.
        • The connector can be used in instrumentation and testing environments.
        • It is perfect for applications requiring secure and stable connections with RG213 cables.

        In the Box:

        • 1 x Pulse 716-20 7-16 DIN-Female Connector

        Product Specifications

        MPN 716-20
        Brands Pulse
        Cable retention 80 lbs min
        Cable supported RG213
        Cable type RG213
        Cable type connectors RG213
        Centre contact Crimp
        Component type Connector
        Connector 7-16 DIN(F)
        Connector end a 7-16 DIN (F)
        Coupling nut retention 60lbs Max
        Durability 500 matings
        Height 2
        Impedance ohm 50
        Inner attachment Crimp
        Length 4
        Mating M29 x 1.5 threaded coupling
        Max frequency mhz 7500
        Min frequency mhz 0
        Mounting angle Straight
        Outer contact Crimp
        Prep toolset RCT-213
        Salt spray MIL-STD-101 Test Cond B
        Temperature range -55? to 155? C
        Thermal shock MIL-STD-107 Test Cond B
        Vibration MIL-STD-202 Test Cond B
        Vswr 1.3:1 max
        Width 2
