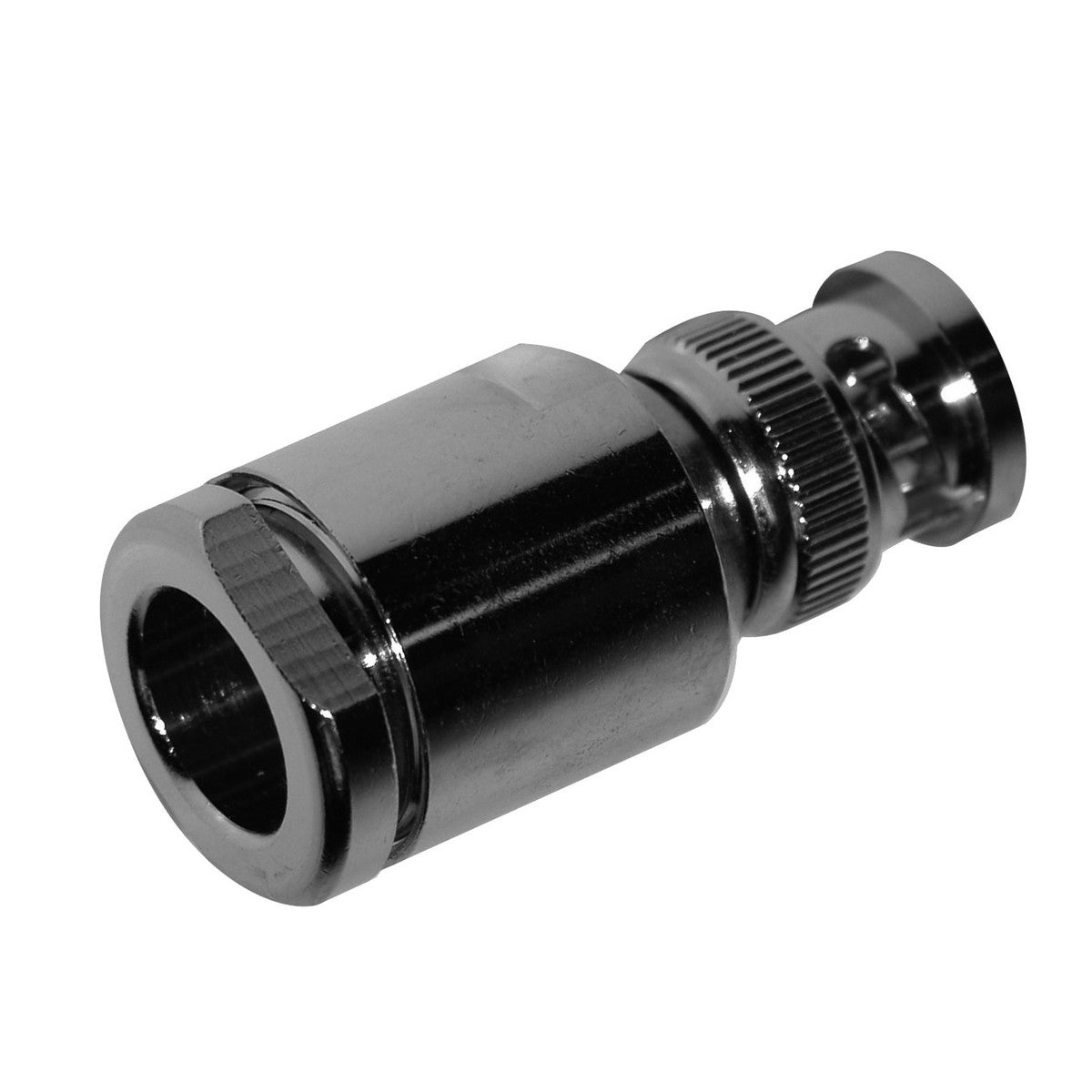

The Pulse BNC-09 Connector is designed for versatile RF applications, providing a reliable connection for RG213 cables. This connector ensures secure and stable connections, making it suitable for a wide range of RF systems.

Product Features:

• This connector features a solder/clamp connection for RG213 cables.
• It is designed for inner attachment soldering.
• The connector supports a frequency range from 0 MHz to 4000 MHz.
• It has an impedance of 50 ohms.
• The connector end is BNC-Male.
• It is designed for straight mounting, providing a secure and stable installation.

Application Areas:

• This connector is ideal for use in RF communication systems.
• It is suitable for broadcast, telecom, and networking applications.
• The connector can be used in instrumentation and testing environments.
• It is perfect for applications requiring secure and stable connections for RG213 cables.

In the Box:

• 1 x BNC(M) Connector, Solder/Clamp.

Documents:

Pulse BNC-09 Connector - Datasheet Pulse BNC-09 Connector - Assembly Instructions
