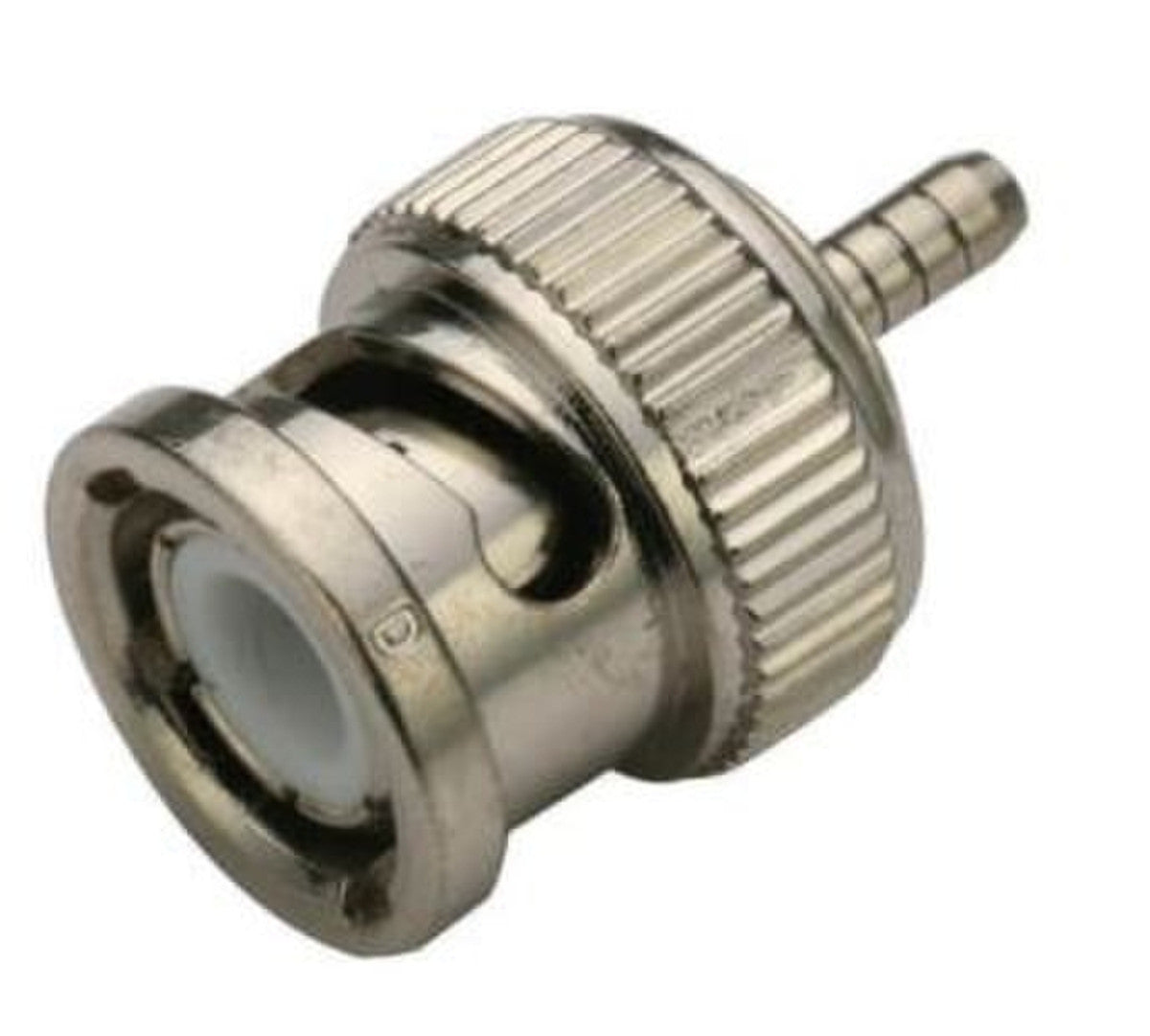

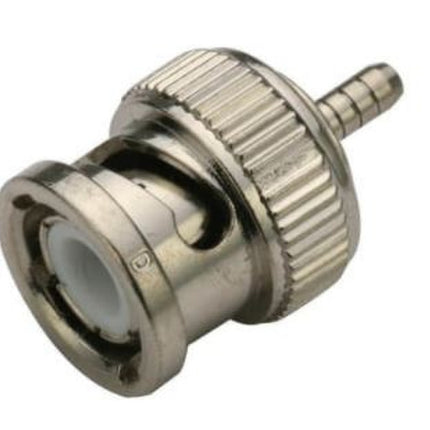

Pulse BNC-174 BNC-Male Connector, Crimp - RG174, RG188 and RG316 Cable

    Pulse BNC-174 BNC-Male Connector, Crimp - RG174, RG188 and RG316 Cable

      Product form
      Brand:
      Pulse
      Item ID:
      168018519
      MPN:
      BNC-174
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      The Pulse BNC-174 BNC-Male Connector is designed for versatile RF applications, providing a reliable connection for RG174, RG188, and RG316 cables.

      Available

      $3.57

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        The Pulse BNC-174 BNC-Male Connector is designed for versatile RF applications, providing a reliable connection for RG174, RG188, and RG316 cables. This crimp connector ensures secure and stable connections, making it suitable for a wide range of RF systems.

        Product Features:

        • This connector features a BNC-Male interface.
        • It is designed for crimp attachment, ensuring a secure and stable installation.
        • The connector supports RG174/U, RG188A/U, and RG316/U cables.
        • It ensures optimal signal transmission with minimal loss.
        • The connector operates within a frequency range of 0 to 4000 MHz.
        • It has an impedance of 50 ohms.
        • The connector has a straight mounting angle.

        Application Areas:

        • This connector is ideal for use in RF communication systems.
        • It is suitable for broadcast, telecom, and networking applications.
        • The connector can be used in instrumentation and testing environments.
        • It is perfect for applications requiring secure and stable connections for RG174, RG188, and RG316 cables.

        In the Box:

        • 1 x BNC-174 BNC-Male Connector,

        Documents:

        Pulse BNC-174 Connector - Datasheet

        Product Specifications

        Brand Pulse
        Length 4
        Width 2
        Height 2
        Cable Retention 40 lbs min
        Cable Supported RG174/U, RG316/U, RG188A/U
        Cable Type RG174
        Centre Contact Crimp 0.72 Sq Jaw
        Component Type Connector
        Connector BNC(M)
        Connector End A BNC (M)
        Coupling Nut Retention 100lbs Max
        Durability 500 matings
        Impedance [Ω] 50
        Inner Attachment Crimp
        Mating Two stud bayonet coupling
        Max Frequency 1 GHz
        Max Frequency (MHz) 4000
        Min Frequency (MHz) 0
        Mounting Angle Straight
        Outer Contact Crimp 3.25mm Hex Jaw
        Prep Toolset RCT-174
        Salt Spray MIL-STD-101 Test Cond B
        Temperature Range -65?to 165?C
        Thermal Shock MIL-STD-107 Test Cond B
        Vibration MIL-STD-202 Test Cond B
