Pulse BNC-33 BNC Female Connector, Bulkhead - Solder

    Pulse BNC-33 BNC Female Connector, Bulkhead - Solder

      Product form
      Brand:
      Pulse
      Item ID:
      168018415
      MPN:
      BNC-33
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy

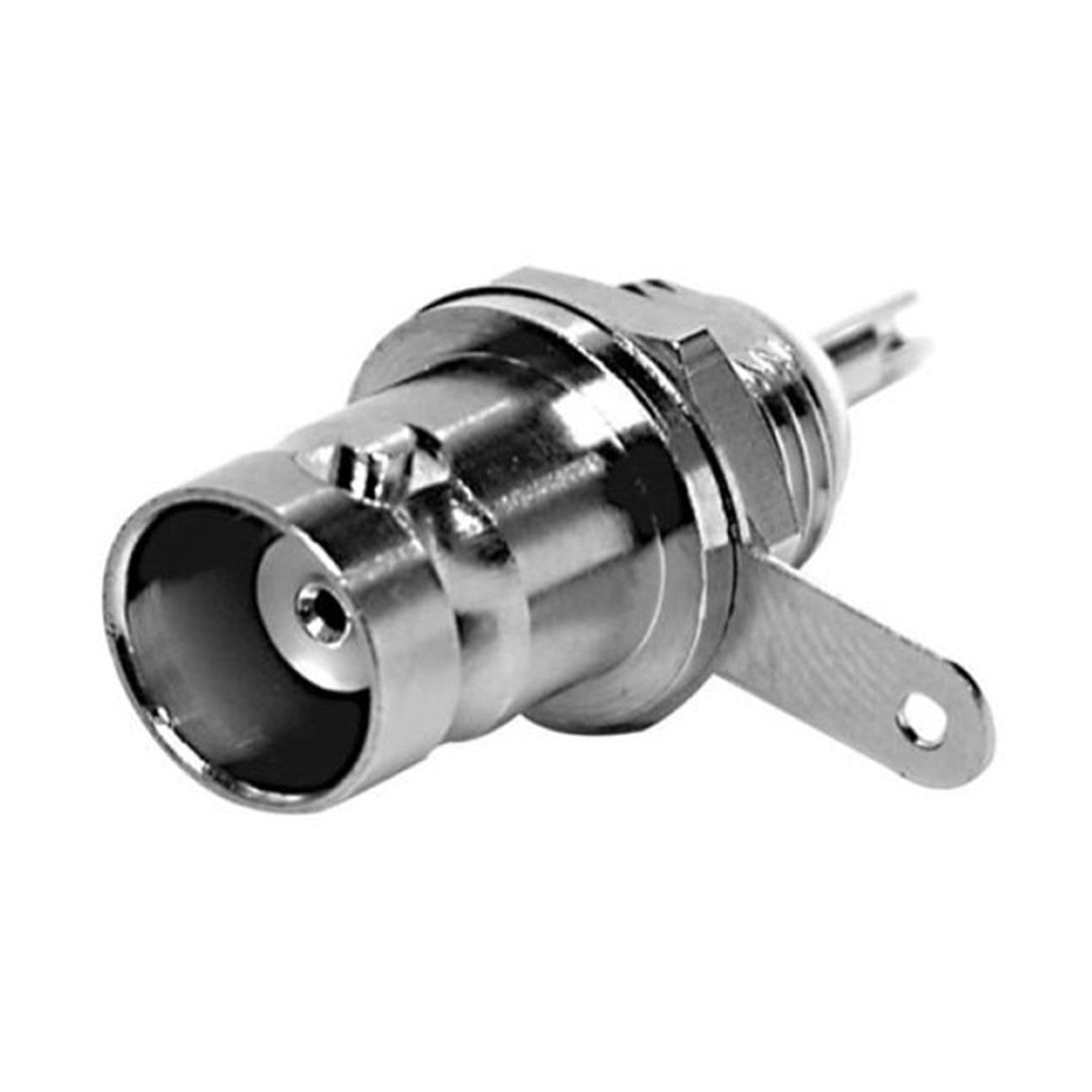

      Pulse BNC-33 is a BNC Female bulkhead mount (front) connector with solder pot. BNC connectors feature the standard 50 Ohm interface dimensions.

      Available

      $3.83

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        The Pulse BNC-33 BNC Female Connector is designed for high-frequency RF applications, providing a reliable connection for bulkhead installations. This connector ensures optimal signal transmission with minimal loss, making it suitable for a wide range of RF systems.

        Product Features:

        • This connector operates over a wide frequency range from 0 MHz to 4000 MHz.
        • It has an impedance of 50 ohms, ensuring compatibility with standard RF systems.
        • The connector end is BNC-Female, suitable for various RF applications.
        • The mounting angle is straight, facilitating easy installation.
        • This connector is designed for bulkhead mounting, providing a secure and stable installation.

        Application Areas:

        • This connector is ideal for use in RF communication systems.
        • It is suitable for broadcast, telecom, and networking applications.
        • The connector can be used in instrumentation and testing environments.
        • It is perfect for applications requiring secure and stable bulkhead connections.

        In the Box:

        • 1 x BNC-33 BNC Female Connector

        Documents:

        Pulse BNC-33 Connector - Datasheet

        Product Specifications

        Brand Pulse
        Length 4
        Width 2
        Height 2
        Cable Supported None - Bulkhead
        Cable Type Connectors RG58
        Centre Contact Solder
        Component Type Connector
        Connector BNC(F)
        Connector End A BNC (F)
        Coupling Nut Retention 100lbs Max
        Durability 500 matings
        Impedance [Ω] 50
        Inner Attachment Solder
        Mating Two stud bayonet coupling
        Max Frequency 4 GHz
        Max Frequency (MHz) 4000
        Min Frequency (MHz) 0
        Mounting Angle Straight
        Outer Contact Clamp
        Prep Toolset Other
        Salt Spray MIL-STD-101 Test Cond B
        Temperature Range -65?to 165?C
        Thermal Shock MIL-STD-107 Test Cond B
        Vibration MIL-STD-202 Test Cond B
