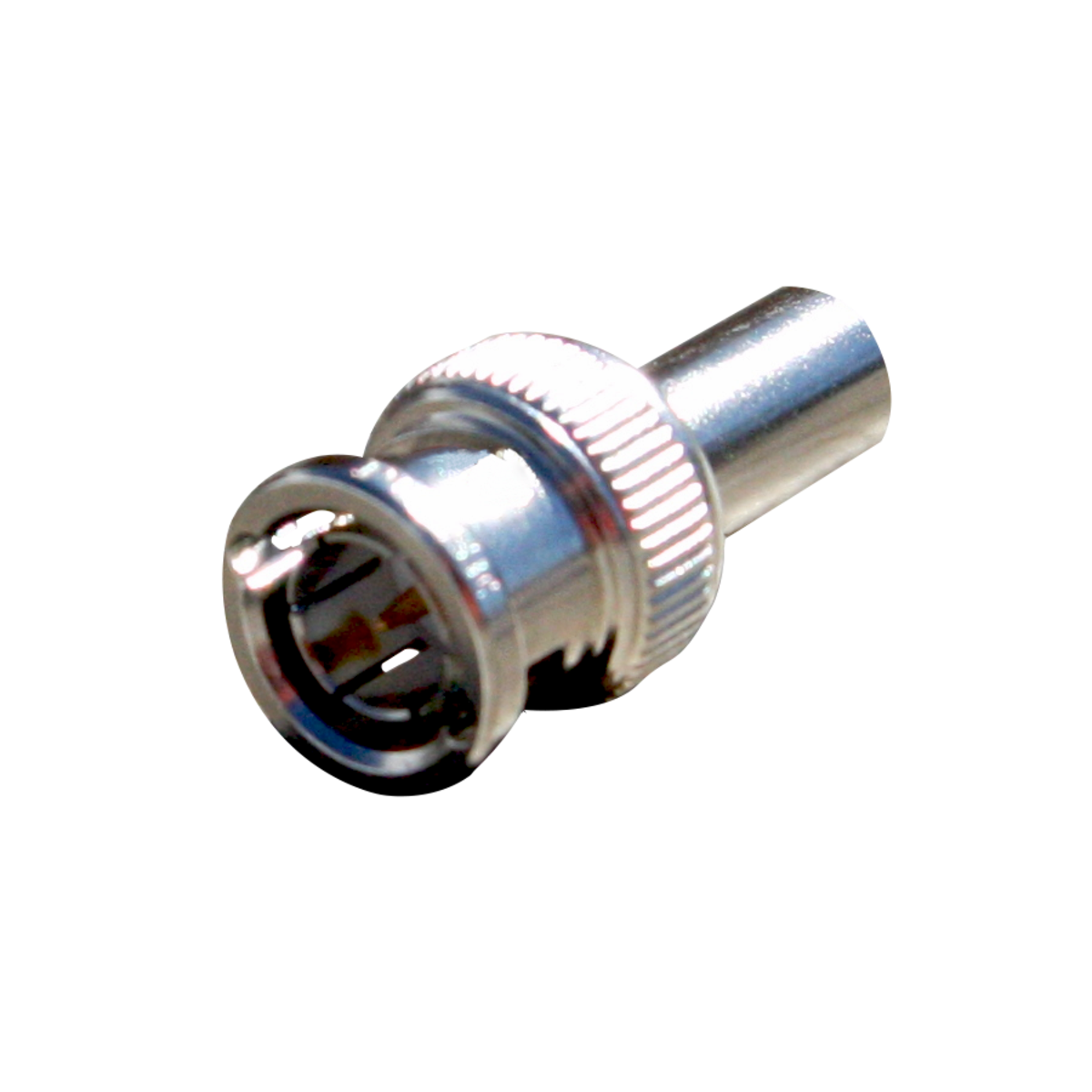

Pulse BNC-97 BNC-Male Connector - RG59 Cable

    Pulse BNC-97 BNC-Male Connector - RG59 Cable

      Product form
      Brand:
      Pulse
      Item ID:
      168018424
      MPN:
      BNC-97
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      The Pulse BNC-97 BNC-Male Connector is designed for versatile RF applications, providing a reliable connection for RG59 cables.

      Available

      $6.51

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        The Pulse BNC-97 BNC-Male Connector is designed for versatile RF applications, providing a reliable connection for RG59 cables. This straight mounting connector ensures secure and stable connections, making it suitable for a wide range of RF systems.

        Product Features:

        • This connector features a BNC-Male crimp for RG59 cables.
        • It is designed for straight mounting, providing a secure and stable installation.
        • The connector supports a frequency range from 0 MHz to 1000 MHz.
        • It has an impedance of 75 ohms.
        • Suggested prep toolset: RCT-59.

        Application Areas:

        • This connector is ideal for use in RF communication systems.
        • It is suitable for broadcast, telecom, and networking applications.
        • The connector can be used in instrumentation and testing environments.
        • It is perfect for applications requiring secure and stable connections for RG59 cables.

        In the Box:

        • 1 x BNC-97 BNC-Male Connector.

        Documents:

        Pulse BNC-97 Connector - Datasheet

        Product Specifications

        Brand Pulse
        Length 4
        Width 2
        Height 2
        Cable Retention 40 lbs min
        Cable Supported RG59
        Cable Type RG59
        Cable Type Connectors RG59
        Centre Conductor Crimp, captice
        Centre Contact Crimp
        Component Type Connector
        Connector BNC(M)
        Connector End A BNC (M)
        Coupling Nut Retention 100lbs Max
        Crimp Set or Tool B
        Durability 500 matings
        Impedance [Ω] 75
        Inner Attachment Other
        Mating Two stud bayonet coupling
        Max Frequency 4 GHz
        Max Frequency (MHz) 1000
        Min Frequency (MHz) 0
        Mounting Angle Straight
        Outer Contact Crimp
        Prep Toolset RCT-59
        Salt Spray MIL-STD-101 Test Cond B
        Temperature Range -65?to 165?C
        Thermal Shock MIL-STD-107 Test Cond B
        Vibration MIL-STD-202 Test Cond B
