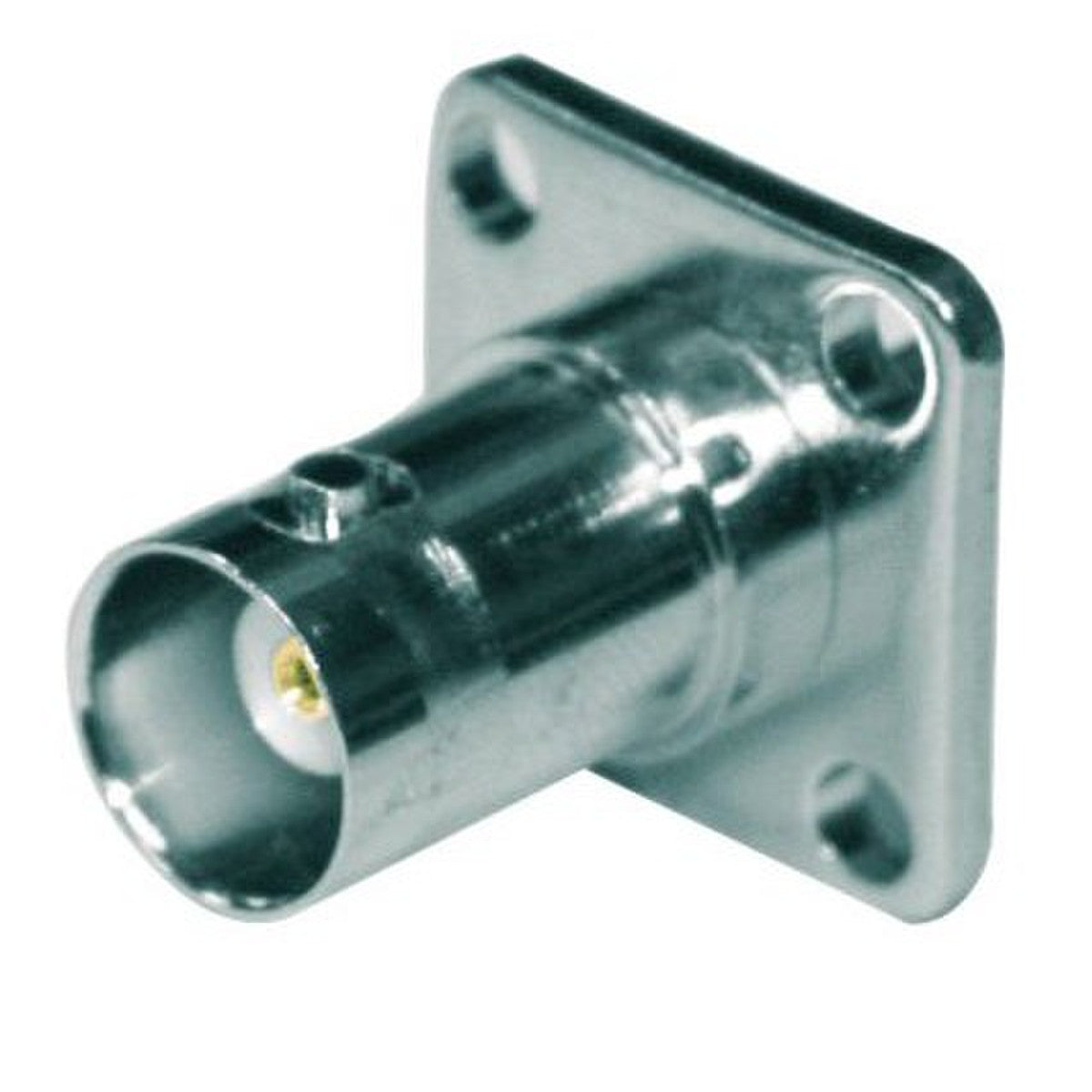

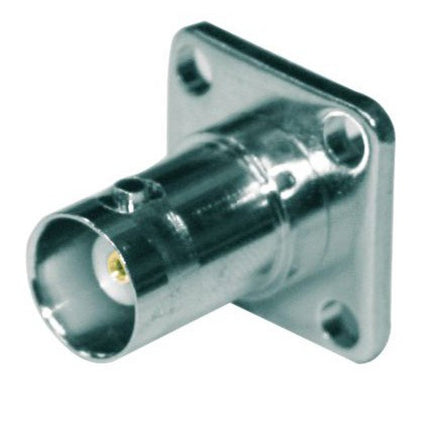

Pulse BNC-27 BNC-Female Connector, Square Flange - Solder Pot

Pulse BNC-27 BNC-Female Connector, Square Flange - Solder Pot

Available

Brand:
Item ID:
168018524
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
BNC-27
Send Request for Quote (RFQ)
Pulse BNC(F) Connector; Square Flange - similar to TNC series but instead of a thread they use a bayonet coupling mechanism allowing a quicker response.
Regular price $7.90
Regular price $0.00 Sale price $7.90
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

Pulse BNC(F) Connector; Square Flange - Solder Pot

BNC connectors are similar to the TNC series but instead of a thread they use a bayonet coupling mechanism allowing a quicker connect/disconnect. BNC connectors are generally used within an operating range of DC to 4 GHz and are popular with many wireless applications requiring frequent connection and disconnection such as test equipment. Also available in reverse gender versions. * All listed BNC connectors feature the standard 50 Ohm interface dimensions. 75 Ohm interface dimensional connectors and an expanded range of other BNC connectors are available.

Documents:

Pulse BNC-27 Connector - Datasheet

Product Specifications

MPN BNC-27
Brands Pulse
Cable retention 40 lbs min
Cable supported Other
Cable type connectors RG174
Centre contact Solder
Component type Connector
Connector BNC(F)
Connector end a BNC (F)
Coupling nut retention 100lbs Max
Durability 500 matings
Height 2
Impedance ohm 50
Inner attachment Solder
Length 4
Mating Two stud bayonet coupling
Max frequency 1 GHz
Max frequency mhz 1000
Min frequency mhz 0
Mounting angle Straight
Outer contact Clamp
Salt spray MIL-STD-101 Test Cond B
Temperature range -65?to 165?C
Thermal shock MIL-STD-107 Test Cond B
Vibration MIL-STD-202 Test Cond B
Width 2
