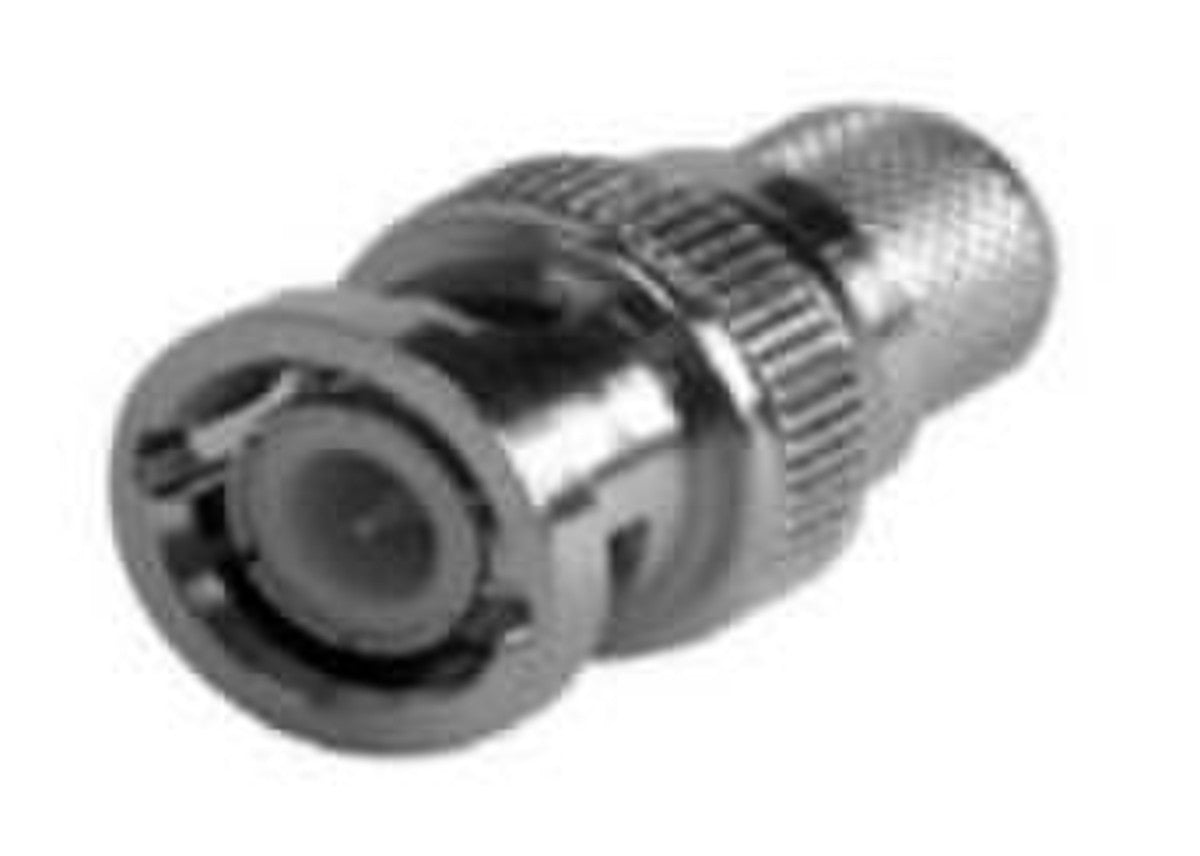

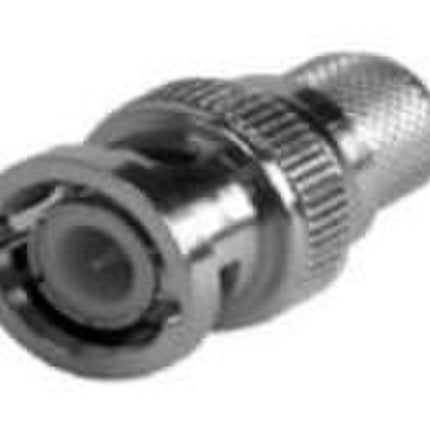

Pulse BNC-203 BNC-Male Connector, Solder/Crimp - CNT-400 Cable

    Pulse BNC-203 BNC-Male Connector, Solder/Crimp - CNT-400 Cable

      Product form
      Brand:
      Pulse
      Item ID:
      168021423
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Options/MPN:
      BNC-203
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      Pulse BNC(M) Connector; CNT-400 - Solder/Crimp - similar to the TNC series but instead of a thread they use a bayonet coupling mechanism.

      Available

      $9.90

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        Pulse BNC(M) Connector; CNT-400 - Solder/Crimp

        Features:

        BNC connectors are similar to the TNC series but instead of a thread they use a bayonet coupling mechanism allowing a quicker connect/disconnect. BNC connectors are generally used within an operating range of DC to 4 GHz and are popular with many wireless applications requiring frequent connection and disconnection such as test equipment. Also available in reverse gender versions. * All listed BNC connectors feature the standard 50 Ohm interface dimensions. 75 Ohm interface dimensional connectors and an expanded range of other BNC connectors are available.

        Documents:

        Pulse BNC-203 Connector - Datasheet

        Product Specifications

        MPN BNC-203
        Brands Pulse
        Cable retention 40 lbs min
        Cable supported CNT-400, B9913, RFI-400-UF, LMR-400
        Cable type CNT-400
        Cable type connectors RG58
        Centre contact Solder
        Component type Connector
        Connector BNC(M)
        Connector end a BNC (M)
        Coupling nut retention 100lbs Max
        Durability 500 matings
        Height 2
        Impedance ohm 50
        Inner attachment Solder, Crimp
        Length 4
        Mating Two stud bayonet coupling
        Max frequency 4 GHz
        Max frequency mhz 4000
        Min frequency mhz 0
        Mounting angle Straight
        Outer contact Crimp
        Prep toolset RCT-214
        Salt spray MIL-STD-101 Test Cond B
        Temperature range -65?to 165?C
        Thermal shock MIL-STD-107 Test Cond B
        Vibration MIL-STD-202 Test Cond B
        Width 2
