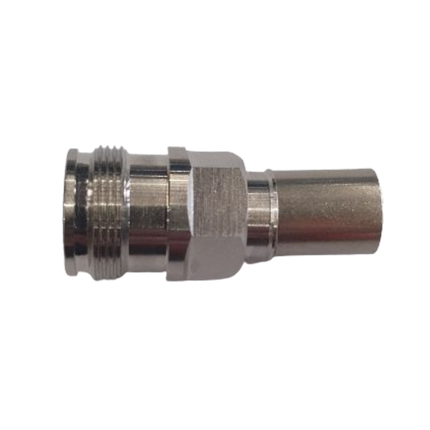

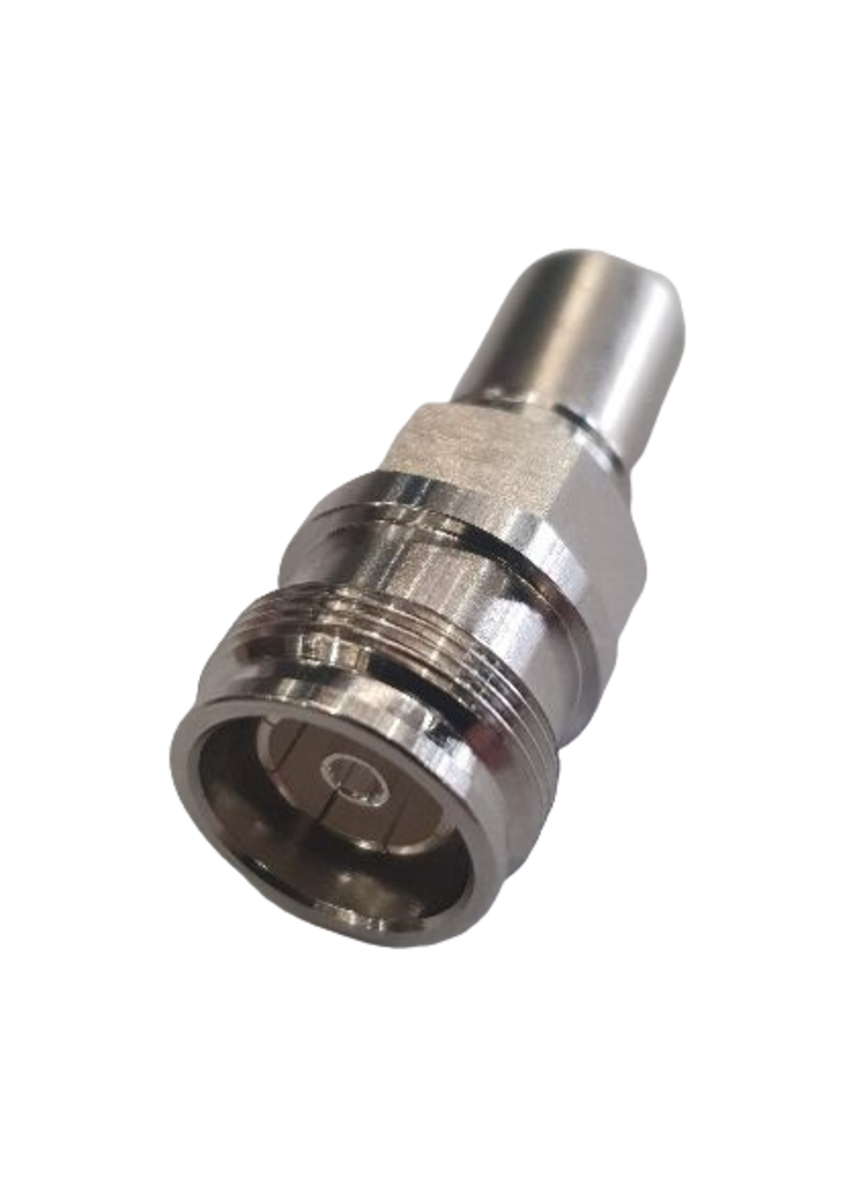

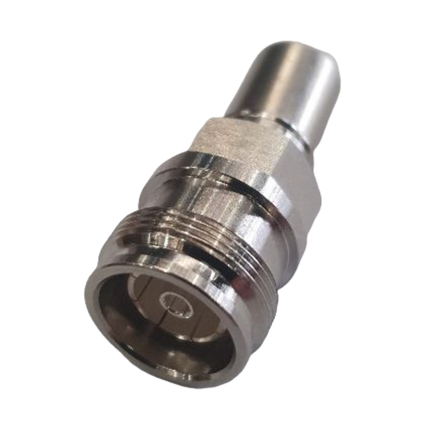

The Pulse D43-102 4.3-10-Female Connector is designed for versatile RF applications, providing a reliable connection for RG214 cables. This connector ensures secure and stable connections, making it suitable for a wide range of RF systems.

Product Features:

• This connector features a solder/crimp connection for RG214 cables.
• The inner conductor pin is made of brass with silver plating.
• The outer contact is made of brass with silver plating.
• The body is made of brass with trimetal plating.
• The insulator/dielectric is made of PTFE.
• It has an impedance of 50 ohms.
• The frequency range is DC to 6 GHz.
• The dielectric withstanding voltage is 2500V rms (DC).
• The operating voltage is 900V rms.
• The model number is D43-102.
• The temperature range is -65°C to +165°C.

Application Areas:

• This connector is ideal for use in RF communication systems.
• It is suitable for broadcast, telecom, and networking applications.
• The connector can be used in instrumentation and testing environments.
• It is perfect for applications requiring secure and stable connections for RG214 cables.

In the Box:

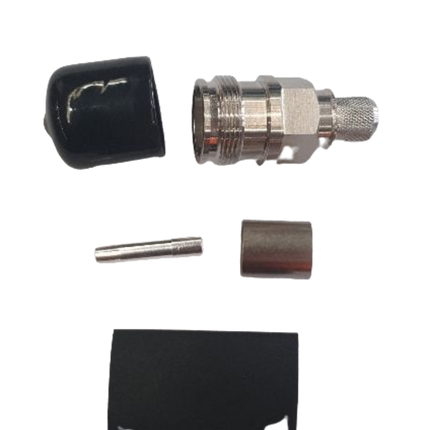

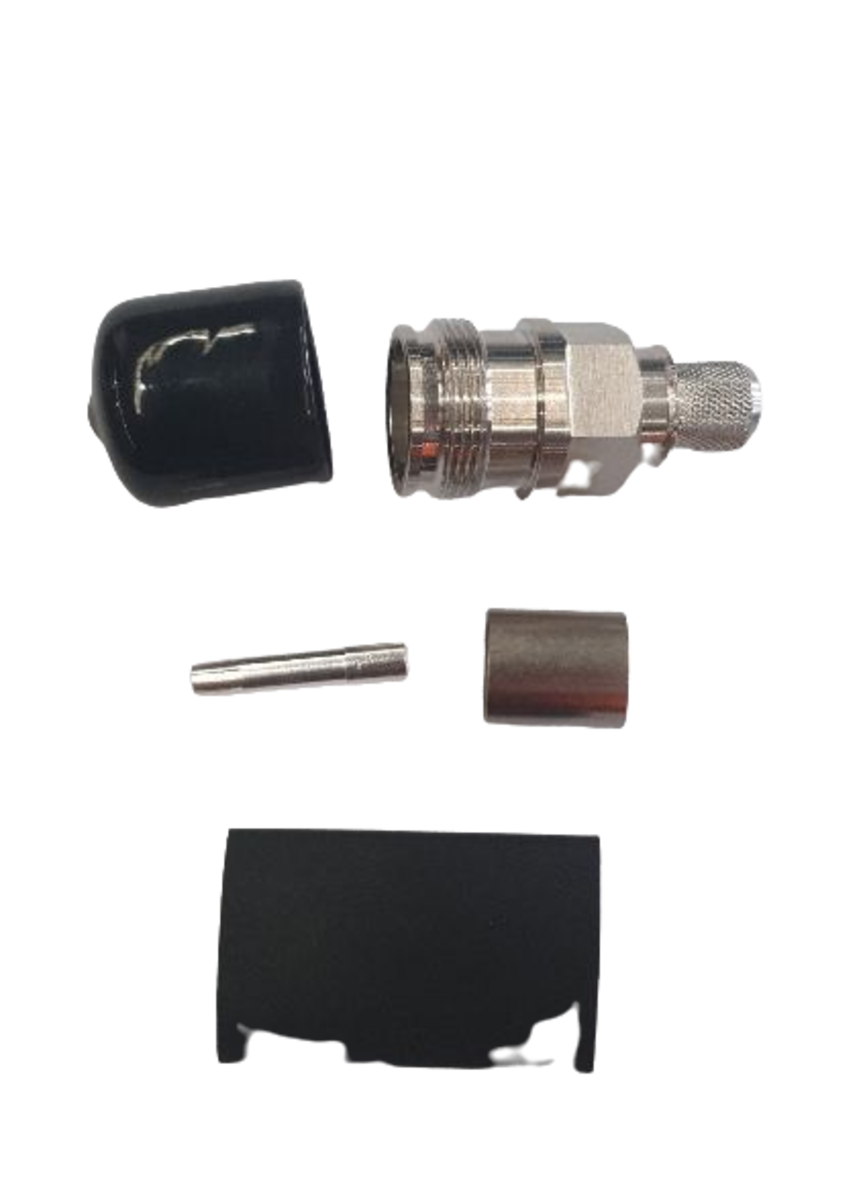

• 1 x D43-102 4.3-10-Female Connector, Solder/Crimp.

Documents:

Pulse D43-102 Connector - Datasheet
